11416 - FRR AUSTRALIA EURO4 SPACECAB
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶

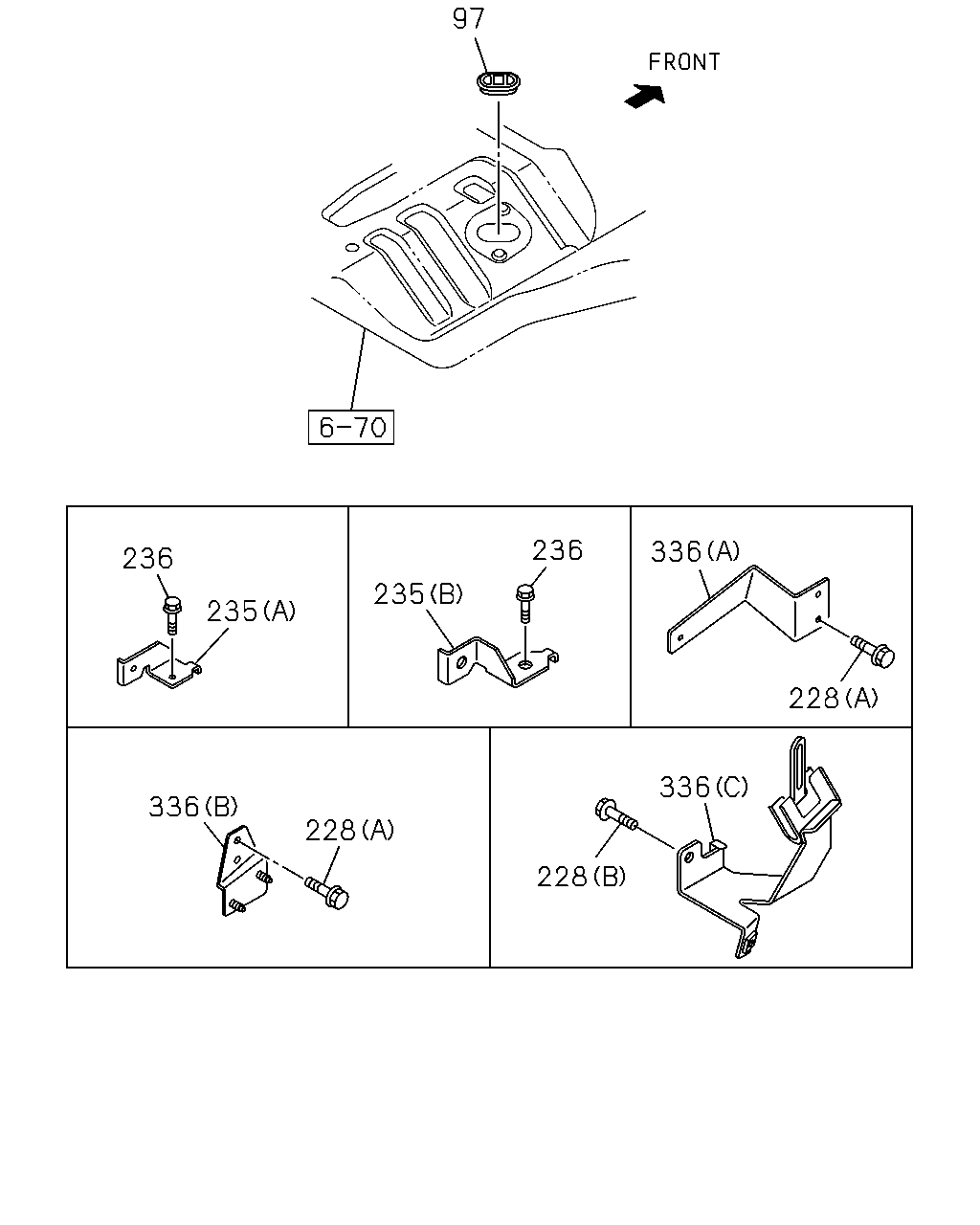

3-11 — PARKING BRAKE CONTROL
(#62929) — 21 parça
Tümü
A - FCD5CS
B - FCR5CS
97
236
336
236
235
235
228
336
336
228
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
97
GROMMET; PARKING BRK CABLE
8-98029-219-1
01
1
0710-
●
●
228
BOLT; CLIP RAD MTG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0710-0710
●
●
228
BOLT; CLIP RAD MTG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0710-0711
●
228
BOLT; CLIP RAD MTG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0712-
●
●
228
BOLT; CLIP RAD MTG
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 FLANGE
0-28650-825-0
02
1
0710-0711
●
228
BOLT; CLIP RAD MTG
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 FLANGE
0-28650-825-0
02
1
0712-
●
●
235
BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98044-674-0
01
1
0710-0710
●
●
235
BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98044-674-0
01
1
0710-0711
●
235
BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98044-674-0
01
1
0712-0810
●
●
235
BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98126-426-0
01
1
0811-
●
●
236
BOLT; BRKT TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE
0-28650-825-0
01
1
0712-
●
●
336
BRACKET; RADIATOR
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98081-003-0
01
1
0710-0710
●
●
336
BRACKET; RADIATOR
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98081-003-0
01
1
0710-0711
●
336
BRACKET; RADIATOR
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98081-003-1
01
1
0712-0901
●
●
336
BRACKET; RADIATOR
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98139-517-0
01
1
0902-
●
●
336
BRACKET; RADIATOR
EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98065-276-0
01
1
0710-0710
●
●
336
BRACKET; RADIATOR
EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98065-276-0
01
1
0710-0711
●
336
BRACKET; RADIATOR
EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98065-276-0
01
1
0712-
●
●
336
BRACKET; RADIATOR
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-98080-965-0
01
1
0710-0711
●
336
BRACKET; RADIATOR
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-98080-965-0
01
1
0712-1309
●
●
336
BRACKET; RADIATOR
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-98251-969-0
01
1
1310-
●
●
