◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#62925) — 26 parça

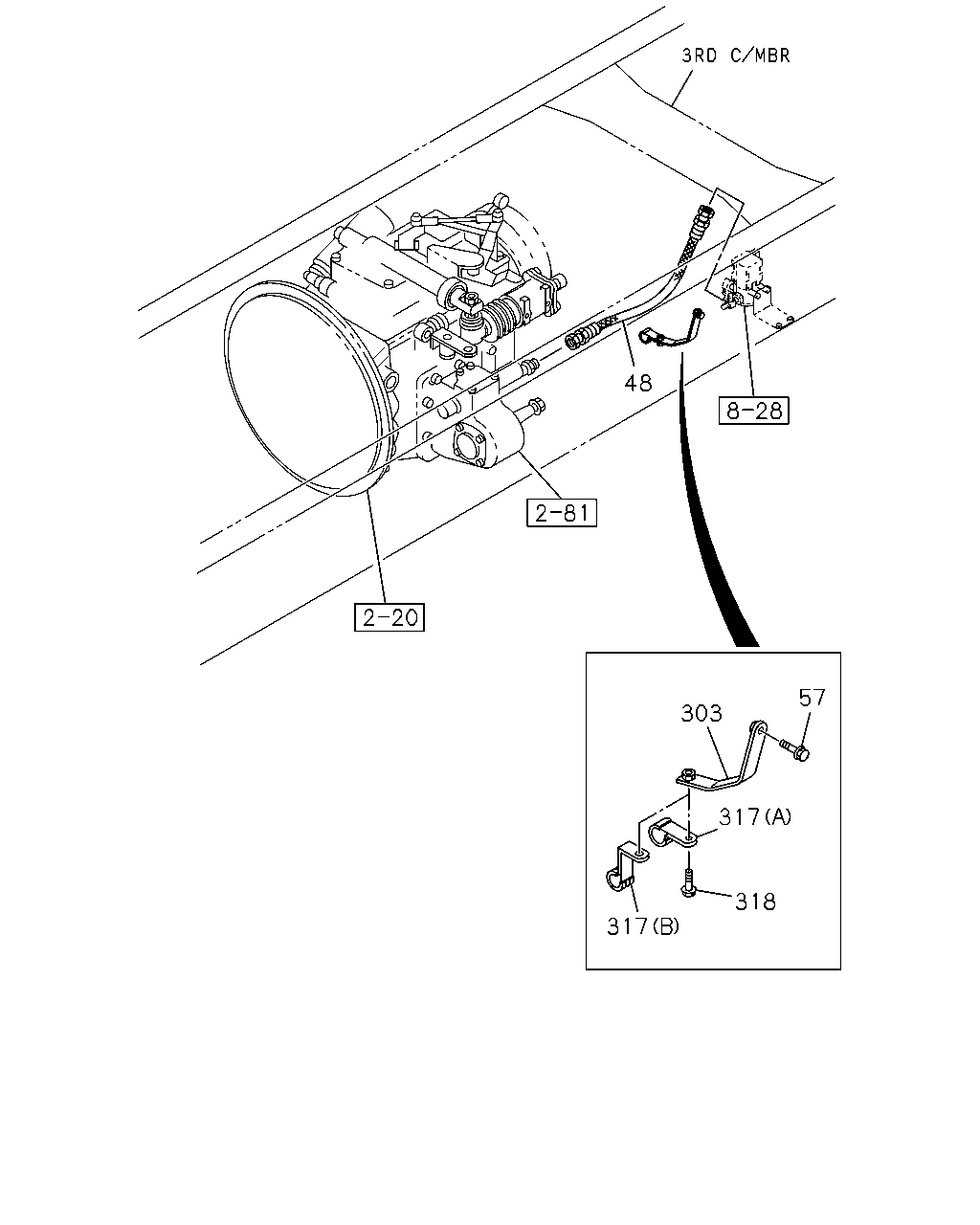

çizim 145762
48 57 303 317 318 317
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
MLD6Q M/T(X5J) WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=580 		1-09363-613-1 01 1 0906- ●
48 HOSE; FLEX,PTO
MLD6Q M/T(X5J) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) L=580 		1-09363-613-1 01 1 0906- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=470 		1-09363-714-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=470 		1-09363-714-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=560 		1-09363-914-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) L=560 		1-09363-914-0 01 1 0907- ●
48 HOSE; FLEX,PTO
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=540 		1-09363-612-1 01 1 0710-0905 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) L=540 		1-09363-612-1 01 1 0710-0905 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=540 		1-09363-612-1 01 1 0906- ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) L=540 		1-09363-612-1 01 1 0906- ●
48 HOSE; FLEX,PTO
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=520 		1-09363-957-0 01 1 0710-0803 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=520 		1-09363-957-0 01 1 0710-0803 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=520 		1-09363-957-0 01 1 0804-0905 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=520 		1-09363-957-0 01 1 0804-0905 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=450 		1-09363-965-0 01 1 0906- ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=450 		1-09363-965-0 01 1 0906- ●
57 BOLT; BRKT
PTO CONTROL<SV6> M10X25 FLANGE 		0-28651-025-0 01 1 0906- ● ●
303 BRACKET; CLIP
MLD6Q M/T(X5J) PTO CONTROL<SV6> 		8-98136-977-0 01 1 0906- ● ●
303 BRACKET; CLIP
MZW6P M/T(RSZ) PTO CONTROL<SV6> 		8-98136-973-0 01 1 0907- ● ●
303 BRACKET; CLIP
MZX6P M/T(RSW) PTO CONTROL<SV6> 		8-98136-974-0 01 1 0906- ● ●
317 CLIP; NYLON TUBE
PTO CONTROL<SV6> (A) ID=11 L=16 		0-95235-025-0 01 1 0906-0907 ● ●
317 CLIP; NYLON TUBE
PTO CONTROL<SV6> (B) ID=15 L=22 H=30 		1-09701-215-1 01 1 0908- ● ●
318 BOLT; CLIP
PTO CONTROL<SV6> M8X16 FLANGE 		0-28050-816-0 01 1 0906-0909 ● ●
318 BOLT; CLIP
PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 01 1 0910- ● ●

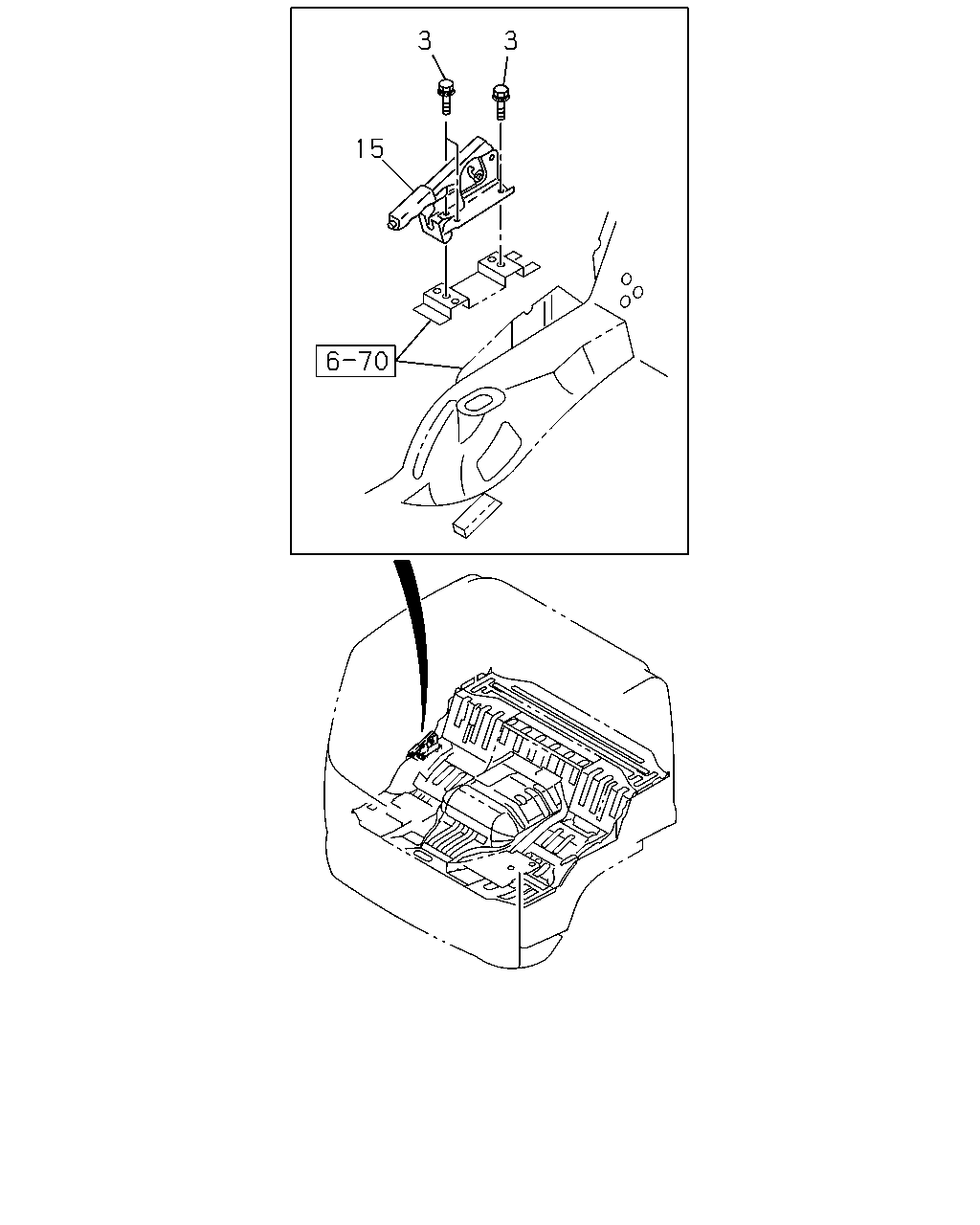

çizim 145763
3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0710- ● ●
