Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#62923) — 73 parça

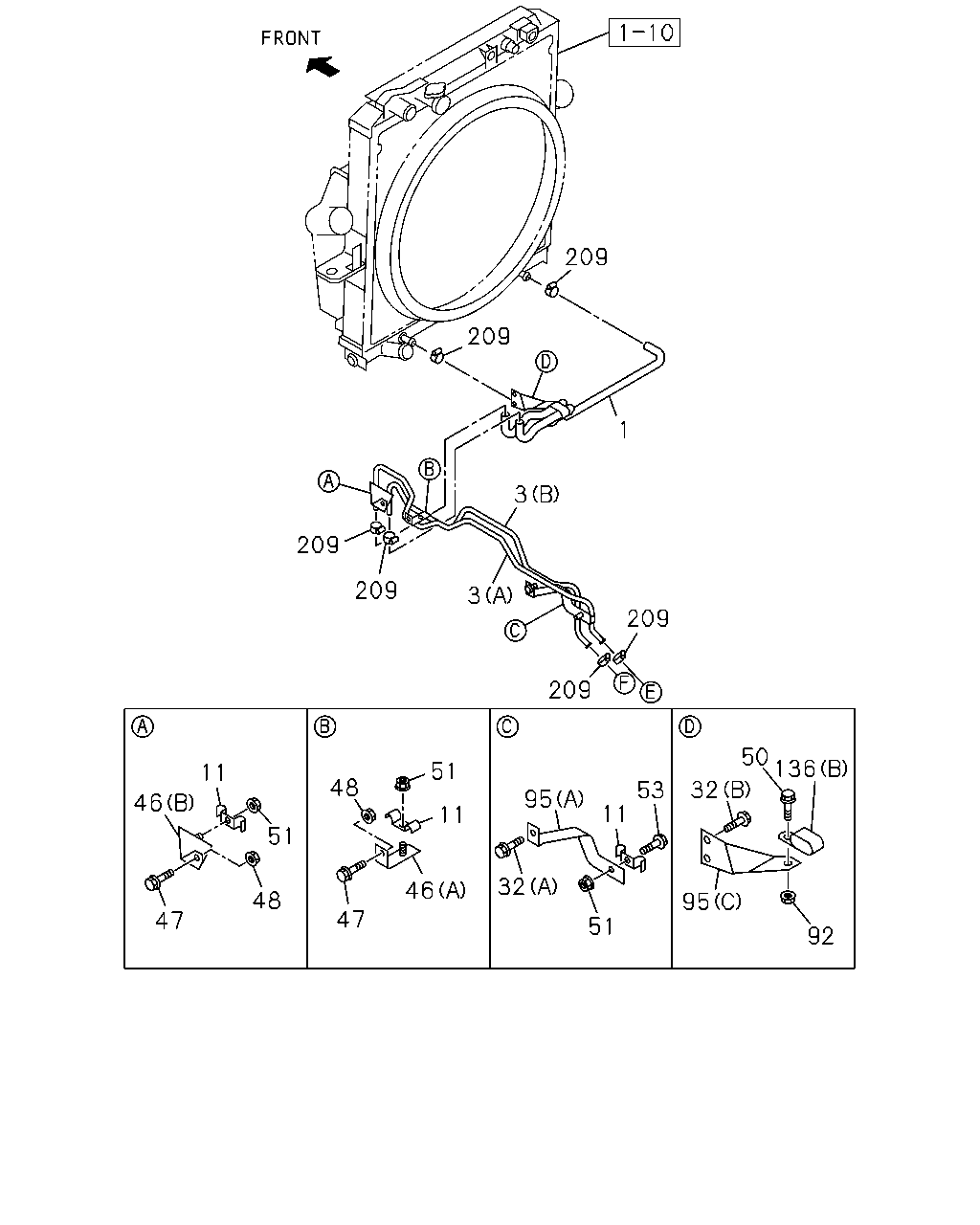

209 209 1 3 209 209 3 209 209 50 136 51 11 48 32 53 95 46 11 11 51 32 46 48 95 47 47 51 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-681-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=890 SERVICED BY L=900	1-47428-873-0	01	1	0710-0710	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=881	8-98065-880-2	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=981 SERVICED BY L=1000	1-47428-874-0	01	1	0710-0710	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=989	8-98065-879-2	01	1	0710-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0710-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=60	1-47475-455-0	01	1	0710-0710	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98081-044-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98045-565-0	01	1	0710-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	0710-0710	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-0710	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-885-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98065-886-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-018-0	01	1	0710-0710	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	0710-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	0710-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	0710-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	04	1	0710-0710	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=13-22.5	8-94426-598-0	04	1	0710-0710	●	●

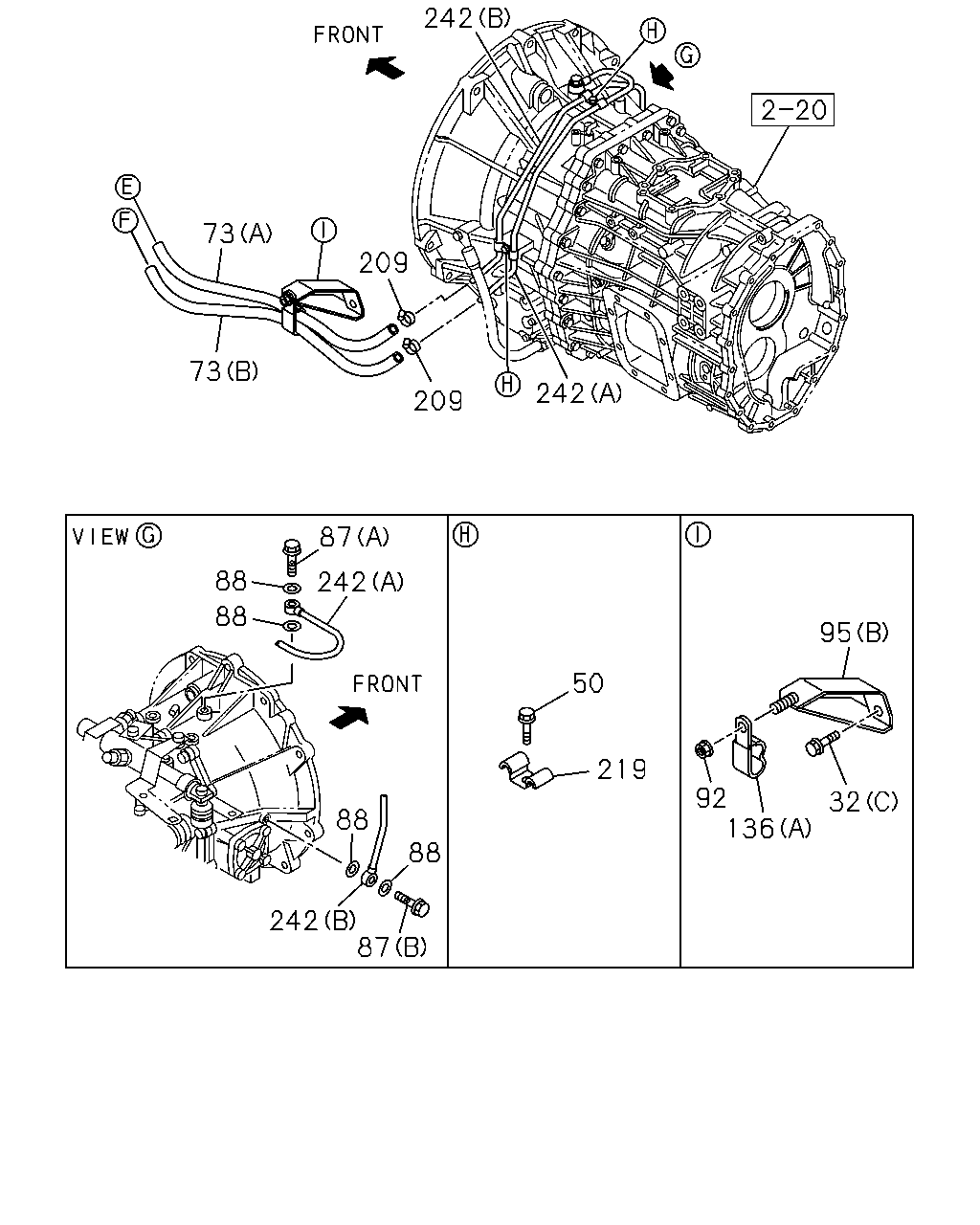

242 73 209 73 242 209 87 88 242 88 95 50 219 92 136 32 88 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0710-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=480	8-98022-184-0	01	1	0710-0710	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98022-184-0	01	1	0710-0710		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=380	8-98081-840-0	01	1	0710-	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=380	8-98081-840-0	01	1	0710-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=400	8-98047-274-0	01	1	0710-0710	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=400	8-98047-274-0	01	1	0710-0710		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=440	8-98081-849-0	01	1	0710-	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=440	8-98081-849-0	01	1	0710-		●
73	HOSE; FLEX,TRANS POWER TAKE OFF-FLYWHEEL(6SZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=440	8-98045-570-0	01	1	0710-0710		●
73	HOSE; FLEX,TRANS POWER TAKE OFF-FLYWHEEL(6SZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=430	8-98081-843-0	01	1	0710-		●
73	HOSE; FLEX,TRANS POWER TAKE OFF-FLYWHEEL(6SZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=510	8-98045-571-0	01	1	0710-0710		●
73	HOSE; FLEX,TRANS POWER TAKE OFF-FLYWHEEL(6SZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98091-651-0	01	1	0710-		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0710-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0710-	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-885-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98065-886-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-018-0	01	1	0710-0710	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	0710-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	0710-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	0710-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	04	1	0710-0710	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=13-22.5	8-94426-598-0	04	1	0710-0710	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0710-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-	●	●

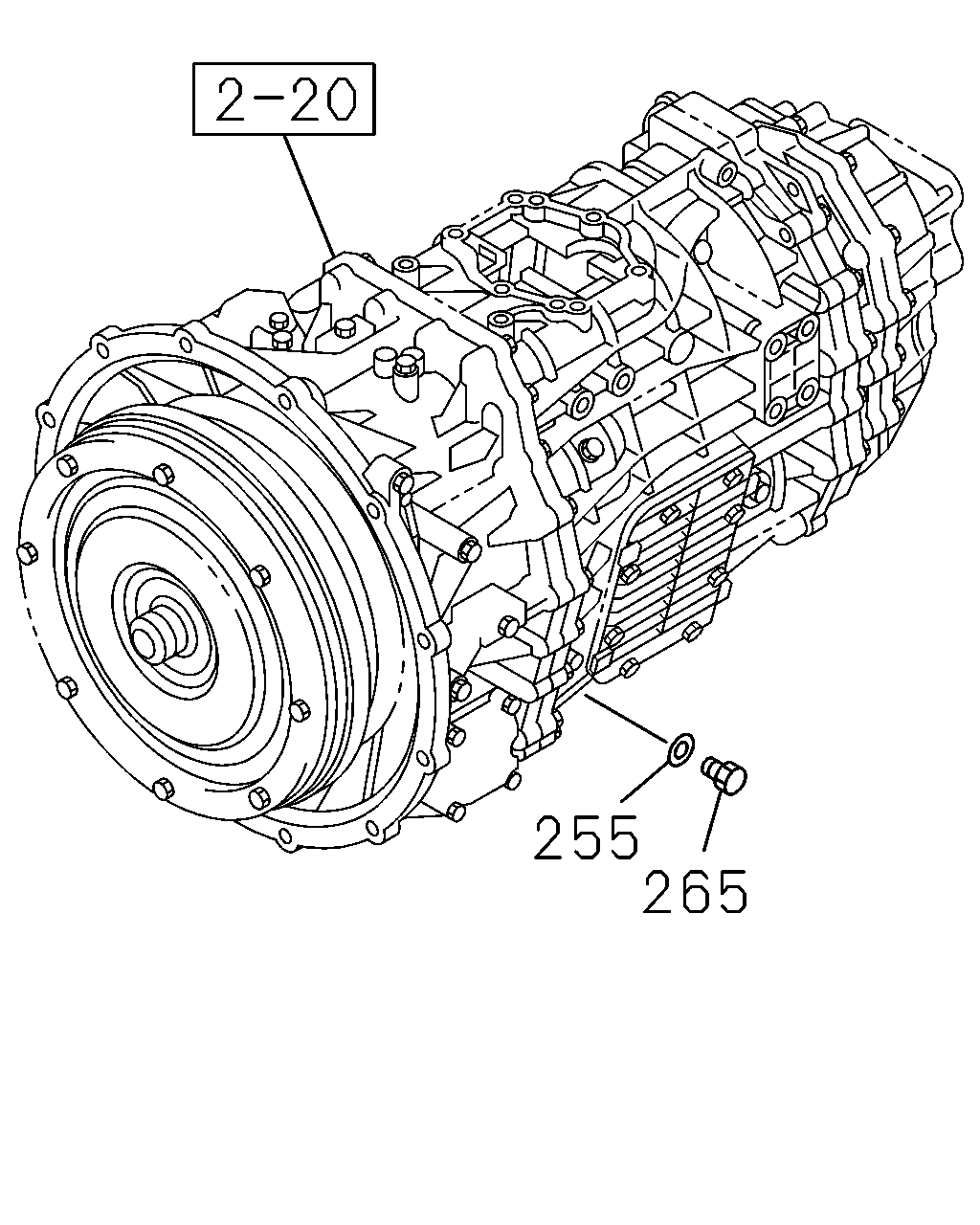

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1405-	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1405-	●	●
