◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#62920) — 33 parça

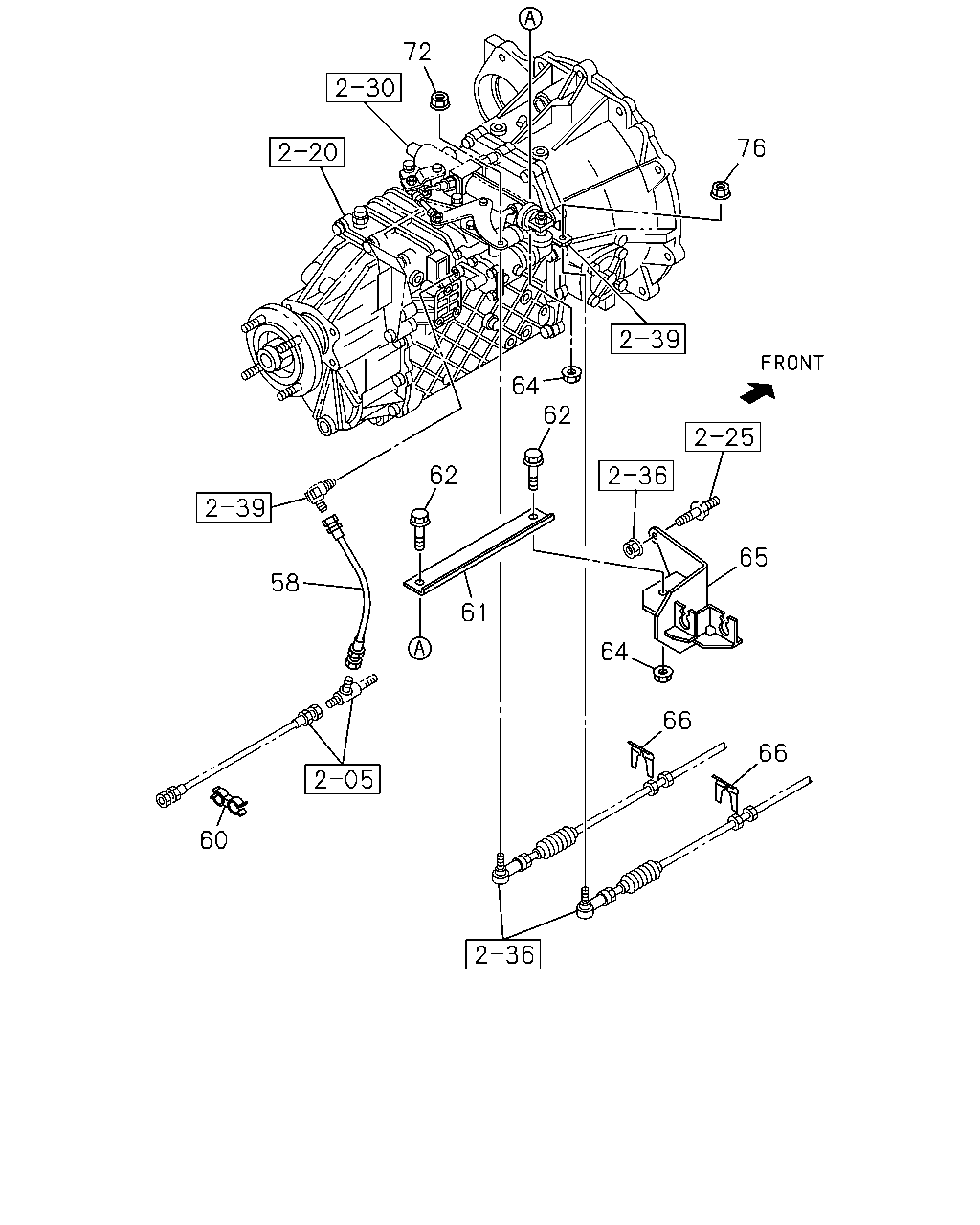

çizim 145759
72 76 64 62 62 65 58 61 64 66 66 60
BalonParca AdiParca NoAdetTipApplied Date A B
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=290 		1-09363-875-0 01 1 0710-0803 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=310 		1-09363-713-0 01 1 0806- ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=290 		1-09363-875-0 01 1 0805-0906 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290 		1-09363-875-0 01 1 0907- ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=11.8 & 7.5 		1-09709-182-0 01 1 0710- ● ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0806- ● ●
61 STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-402-0 01 1 0710-0803 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-402-0 01 1 0804-0805 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-402-0 01 1 0806-0906 ● ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-402-0 01 1 0806-0906 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-402-0 01 1 0907-1003 ● ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-402-0 01 1 0907-1003 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98165-370-0 01 1 1004-1309 ● ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98165-370-0 01 1 1004-1309 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98251-404-0 01 1 1310- ● ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98251-404-0 01 1 1310- ● ●
62 BOLT; STAY
MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0806- ● ●
62 BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0804 ● ●
62 BOLT; STAY
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0805-0805 ● ●
62 BOLT; STAY
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ● ●
62 BOLT; STAY
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ● ●
62 BOLT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
62 BOLT; STAY
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
64 NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98114-255-1 01 1 0806- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98121-278-0 01 1 0806- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-158-1 01 1 0710-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-158-1 01 1 0907- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98050-563-1 01 1 0710-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98050-563-1 01 1 0907- ● ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0710- ● ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710- ● ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710- ● ●
