2-30B — GEAR SHIFTER AND QUADRANT BOX (#6292) — 236 parça

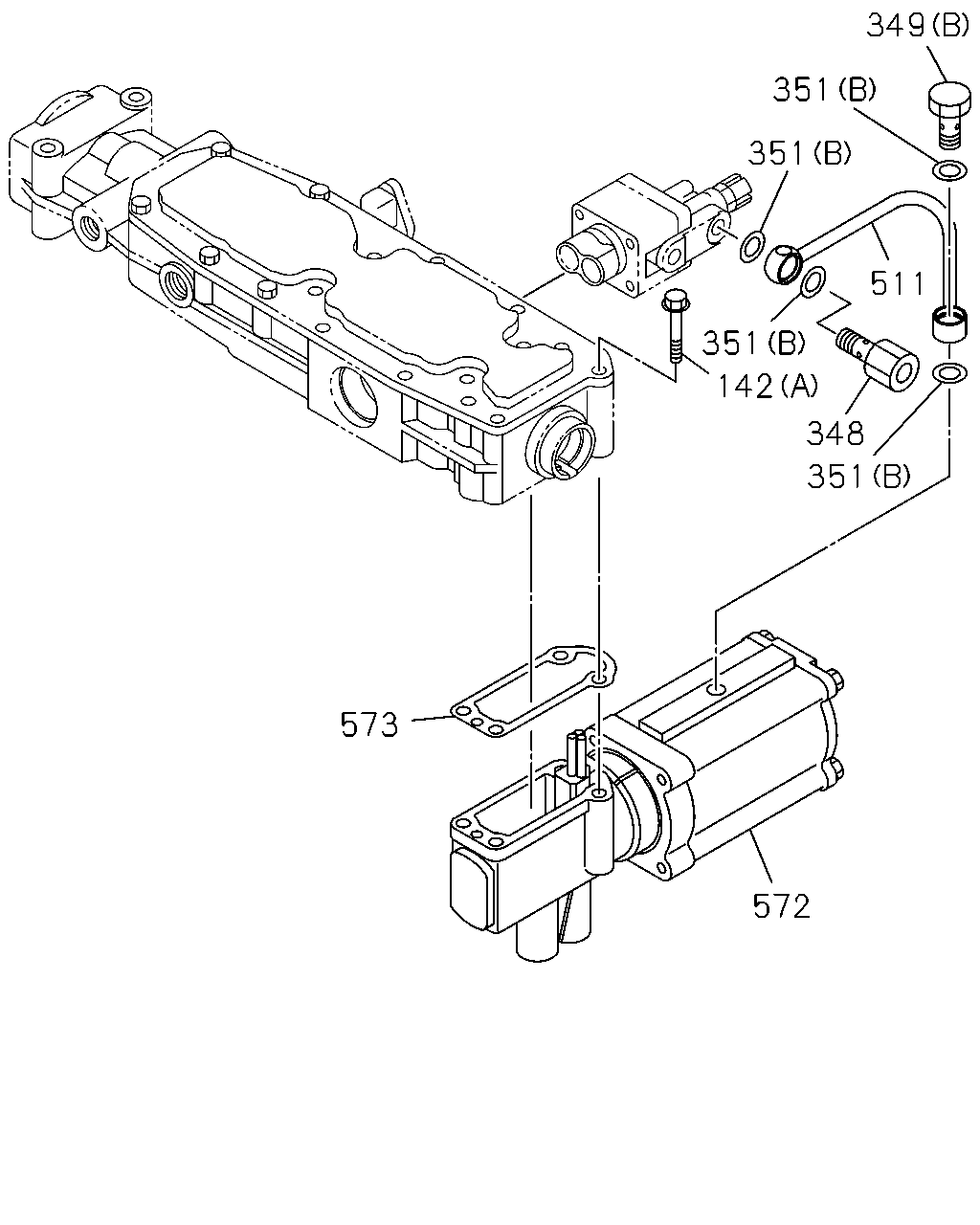

çizim 5941
349 351 351 511 351 142 348 351 573 572
BalonParca AdiParca NoAdetTipApplied Date A B C
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 9906- ● ●
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 9906- ● ●
348 CONNECTOR; AIR HOSE 1-33549-333-0 01 1 9906- ● ●
349 BOLT; EYE,AIR HOSE
(B) 		1-33549-144-0 01 1 9906- ● ●
349 BOLT; EYE,AIR HOSE
(A) 		1-33549-155-0 04 1 9906- ● ●
351 GASKET; CONNECTOR
(A) 		1-33549-184-0 08 1 9906- ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-307-0 04 1 9906- ● ●
511 PIPE; AIR 1-33529-112-0 01 1 9906- ● ●
572 SERVO UNIT; GEAR SHIFT 1-33549-331-0 01 1 9906- ● ●
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 9906- ● ●

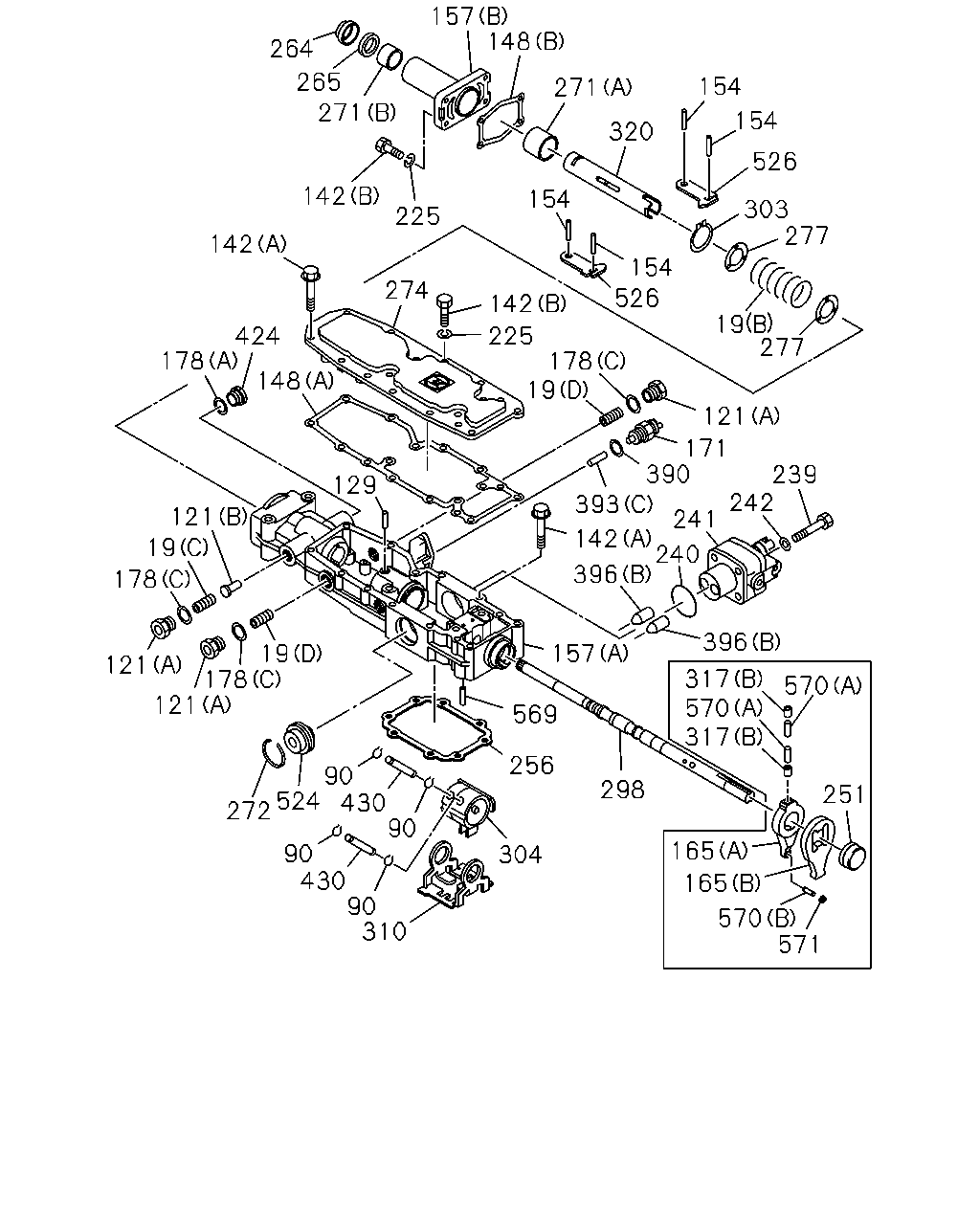

çizim 7031
157 148 264 265 154 271 271 154 320 526 142 154 303 277 225 142 154 142 274 526 19 277 225 424 178 178 19 148 121 171 390 393 129 239 242 121 241 142 240 396 19 178 396 19 178 121 157 121 317 570 317 570 569 256 90 272 90 298 251 165 90 430 90 310 304 165 570 571 524 430
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP
(D) 		1-33549-189-0 02 1 9906-9909 ●
19 SPRING; COIL COMP
EXC. TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33549-189-0 02 1 9906-9909 ●
19 SPRING; COIL COMP
EXC. TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33549-189-0 02 1 9910- ● ●
19 SPRING; COIL COMP
TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33539-022-0 02 1 9906-9909 ●
19 SPRING; COIL COMP
TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33539-022-0 02 1 9910- ● ●
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 9906- ● ●
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 9906- ● ●
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 9906- ● ●
90 RING; SNAP,SHIFT ROD 1-33529-109-0 04 1 9906- ● ●
121 PLUG; DETENT SPR
(A) 		1-33549-194-0 03 1 9906- ● ●
121 PLUG; DETENT SPR
(B) 		1-33549-305-0 01 1 9906- ● ●
129 PIN; SPR,SHIFT 1-33529-107-0 01 1 9906- ● ●
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 9906- ● ●
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 9906- ● ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33544-044-0 01 1 9906- ● ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-319-0 01 1 9906- ● ●
154 PIN; SELECT LEVER 1-33529-040-0 04 1 9906- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33549-313-0 01 1 9906- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33549-326-0 01 1 9906- ● ●
165 LEVER; SHIFT
(A) 		1-33549-321-0 01 1 9906- ● ●
165 LEVER; SHIFT
(B) 		1-33549-325-0 01 1 9906- ● ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 9906- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 9906- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 9906- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9906- ● ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 09 1 9906- ● ●
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 9906- ● ●
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 9906- ● ●
241 VALVE; CUT OFF 1-33549-334-0 01 1 9906- ● ●
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 9906- ● ●
251 COVER; SIDE 1-33549-330-0 01 1 9906- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-057-0 01 1 9906- ● ●
264 SEAL; DUST,SHAFT 1-33549-327-0 01 1 9906- ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-328-0 01 1 9906- ● ●
271 BUSHING; QUAD BOX
(A) 		1-33549-318-0 01 1 9906- ● ●
271 BUSHING; QUAD BOX
(B) 		1-33549-329-0 01 1 9906- ● ●
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 9906- ● ●
274 COVER; SHAFT,QUAD BOX 1-33549-320-0 01 1 9906- ● ●
277 PLATE; SPRING SEAT 1-33539-039-0 02 1 9906- ● ●
298 SHAFT; SHIFT LEVER 1-33549-314-0 01 1 9906- ● ●
303 RING; SNAP,SHAFT 1-33539-040-0 01 1 9906- ● ●
304 BLOCK; SHIFT SHAFT 1-33549-315-0 01 1 9906- ● ●
310 PLATE; LOCK,SHIFT LEVER 1-33549-316-0 01 1 9906- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 04 1 9906- ● ● ●
317 BUSHING; LEVER
(B) 		1-33549-322-0 02 1 9906- ● ●
320 SHAFT; LEVER 1-33549-317-0 01 1 9906- ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9906- ● ●
393 PIN; SW
(D) 		1-33519-098-0 01 1 9906- ●
393 PIN; SW
(A) 		1-33519-029-0 02 1 9906- ● ●
393 PIN; SW
(B) 		1-33519-077-0 01 1 9906- ● ●
393 PIN; SW
(C) 		1-33549-335-0 01 1 9906- ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33519-073-0 01 1 9906- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 9906- ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9906- ● ●
424 PLUG; NEUTRAL SW HOLE 1-33119-171-0 01 1 9906- ● ●
430 PIN; SPR,SHIFT ROD 1-33529-108-0 02 1 9906- ● ●
524 DETENT; QUAD BOX 1-33549-197-0 01 1 9906- ● ●
526 LEVER; DETENT 1-33549-298-0 02 1 9906- ● ●
569 PIN; QUADRANT BOX 1-33529-106-0 01 1 9906- ● ●
570 PIN; SHIFT LEVER
(A) 		1-33529-110-0 02 1 9906- ● ●
570 PIN; SHIFT LEVER
(B) 		1-33529-111-0 01 1 9906- ● ●
571 ROLLER; LEVER 1-33549-324-0 01 1 9906- ● ●

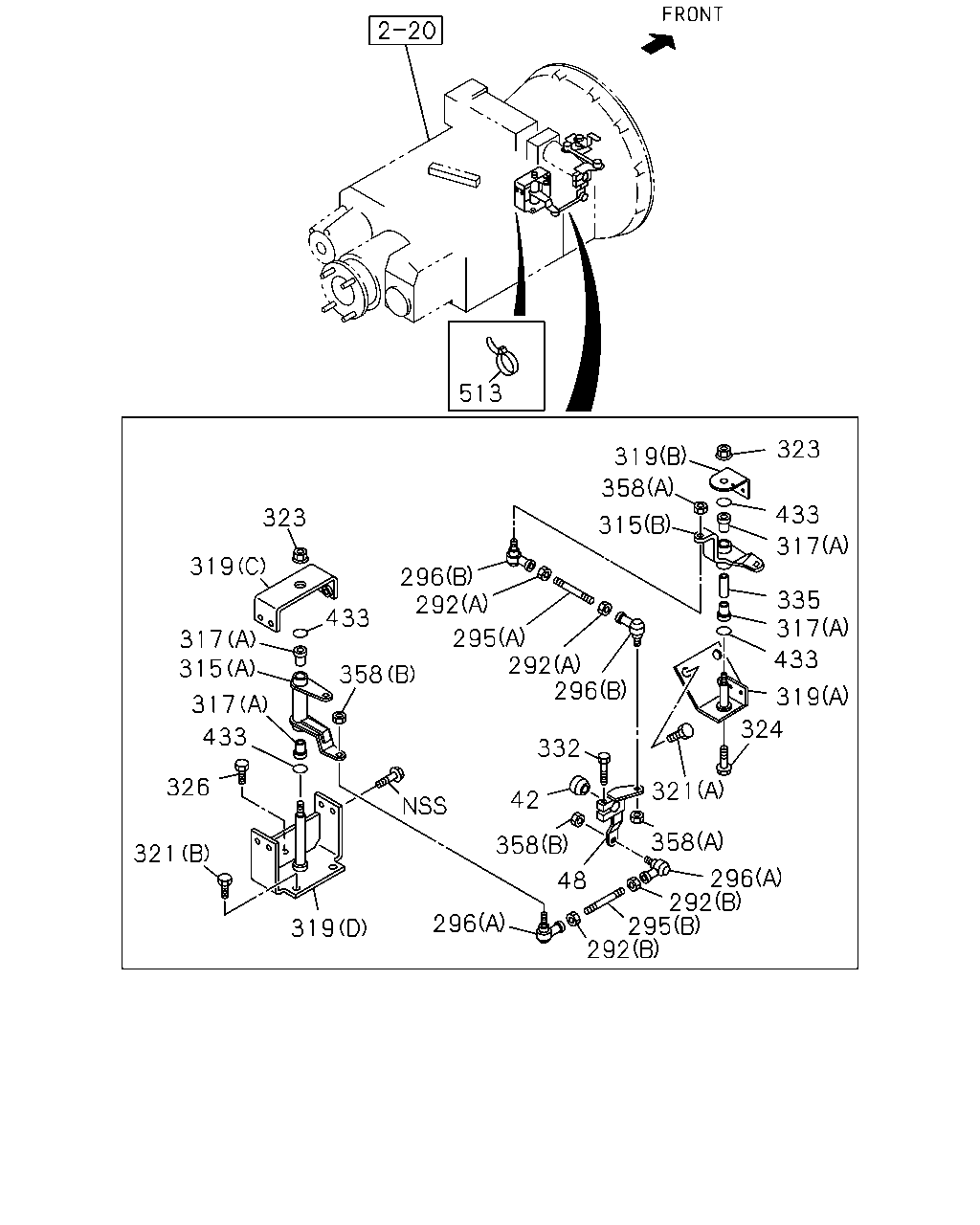

çizim 8216
513 323 319 358 433 323 315 317 319 296 292 335 317 433 295 317 315 433 292 296 358 319 317 324 433 332 326 321 42 358 358 321 296 292 295 292 48 296 319
BalonParca AdiParca NoAdetTipApplied Date A B C
42 CAP; QUAD BOX 1-33549-111-0 01 1 9906- ● ●
48 LEVER; 4TH,SHIFT 1-33651-639-0 01 1 9906- ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9906-9906 ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9907-0002 ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0003- ● ● ●
292 NUT; LINK ROD
(B) M10 		9-09111-410-0 02 1 9906- ● ● ●
295 ROD; LINK,RELAY LEVER
(A) M8 L=50 		9-08400-805-0 01 1 9906- ● ● ●
295 ROD; LINK,RELAY LEVER
(B) M8 L=90 		9-08401-009-0 01 1 9906- ● ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9906-9906 ● ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9907-0002 ● ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0003- ● ● ●
296 ROD END
(B) 		1-09760-124-0 02 1 9906- ● ● ●
315 LEVER; SELECT
(A) 		1-33651-743-0 01 1 9906- ● ● ●
315 LEVER; SELECT
(B) 		1-33651-744-0 01 1 9906- ● ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 04 1 9906- ● ● ●
317 BUSHING; LEVER
(B) 		1-33549-322-0 02 1 9906- ● ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-717-0 01 1 9906- ● ● ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-718-0 01 1 9906- ● ● ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-741-0 01 1 9906- ● ● ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-742-0 01 1 9906- ● ● ●
321 BOLT; BRKT,RELAY LEVER
(B) M12X30 		0-28781-230-0 03 1 9906- ● ● ●
321 BOLT; BRKT,RELAY LEVER
(A) M16X30 FLANGE 		0-28881-630-0 02 1 9906- ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 02 1 9906- ● ● ●
324 BOLT; SHAFT
M10X80 FLANGE 		0-28081-080-0 01 1 9906- ● ● ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 06 1 9906- ● ● ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9906- ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-221-0 01 1 9906- ● ● ●
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9906- ● ● ●
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 9906- ● ●
433 GASKET; BUSHING 1-09623-636-0 04 1 9906- ● ● ●
513 CLIP; BAND
L=250 		5-09707-030-1 01 1 9906-0004 ● ● ●

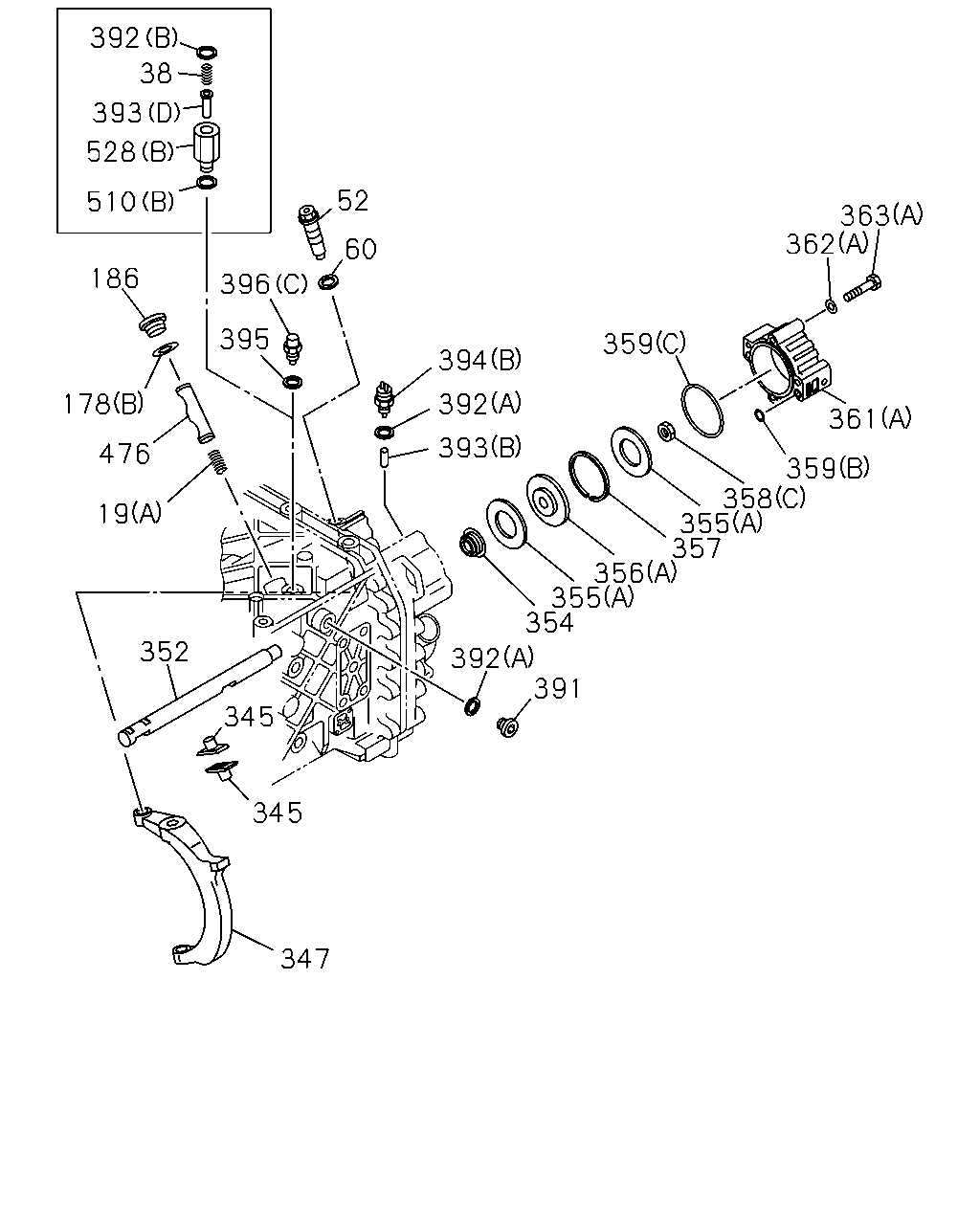

çizim 44454
392 38 393 528 52 510 363 362 60 186 396 395 359 394 178 392 361 393 476 359 358 355 357 19 356 355 354 352 392 391 345 345 347
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP
(D) 		1-33549-189-0 02 1 9906-9909 ●
19 SPRING; COIL COMP
EXC. TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33549-189-0 02 1 9906-9909 ●
19 SPRING; COIL COMP
EXC. TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33549-189-0 02 1 9910- ● ●
19 SPRING; COIL COMP
TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33539-022-0 02 1 9906-9909 ●
19 SPRING; COIL COMP
TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33539-022-0 02 1 9910- ● ●
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 9906- ● ●
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 9906- ● ●
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 9906- ● ●
38 SPRING; DETENT 1-33519-096-0 01 1 9906- ●
52 BOLT; SHIFT ARM 1-33519-058-0 01 1 9906- ●
52 BOLT; SHIFT ARM 1-33519-058-0 02 1 9906- ●
60 WASHER; LK 1-33519-059-0 02 1 9906- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 9906- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 9906- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9906- ● ●
186 PLUG; SHIFTER ROD 1-33519-056-0 01 1 9906- ● ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-037-0 02 1 9906- ● ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-566-0 01 1 9906- ● ●
352 ROD; SHIFT,RANGE CHANGE 1-33511-507-0 01 1 9906- ●
352 ROD; SHIFT,RANGE CHANGE 1-33511-524-0 01 1 9906- ●
354 SEAL; AIR CYL 1-33519-068-0 02 1 9906- ● ●
355 CUP; PISTON,AIR CYL
(B) 		1-33519-070-0 01 1 9906- ● ●
355 CUP; PISTON,AIR CYL
(A) 		1-33519-119-0 02 1 9906- ● ●
356 PISTON; AIR CYL
(A) 		1-33519-060-0 01 1 9906- ● ●
356 PISTON; AIR CYL
(B) 		1-33519-069-0 01 1 9906- ● ●
357 RING; GUIDE,AIR CYL 1-33519-032-0 01 1 9906- ● ●
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9906- ● ● ●
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 9906- ● ●
359 GASKET; AIR CYL
(A) 		1-09623-606-0 01 1 9906- ● ●
359 GASKET; AIR CYL
(B) 		1-33519-034-0 02 1 9906- ● ●
359 GASKET; AIR CYL
(D) 		1-33519-072-0 01 1 9906- ● ●
359 GASKET; AIR CYL
(C) 		1-33519-121-0 01 1 9906- ● ●
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-126-0 01 1 9906- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-117-0 01 1 9906- ●
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-140-0 01 1 9906- ● ●
362 WASHER; AIR CYL
(A) 		1-09469-010-0 04 1 9906- ● ●
362 WASHER; AIR CYL
(B) 		1-33519-076-0 02 1 9906- ● ●
363 BOLT; AIR CYL
(A) 		1-33519-064-0 04 1 9906- ● ●
363 BOLT; AIR CYL
(B) 		1-33519-128-0 02 1 9906- ● ●
391 PLUG; SW HOLE 1-33119-171-0 02 1 9906- ● ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-097-0 01 1 9906- ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 04 1 9906- ● ●
393 PIN; SW
(D) 		1-33519-098-0 01 1 9906- ●
393 PIN; SW
(A) 		1-33519-029-0 02 1 9906- ● ●
393 PIN; SW
(B) 		1-33519-077-0 01 1 9906- ● ●
393 PIN; SW
(C) 		1-33549-335-0 01 1 9906- ● ●
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 02 1 9906- ●
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 01 1 9906- ●
394 SWITCH; RANGE CHANGE
(A) 		1-82440-080-1 01 1 9906- ● ●
395 GASKET; PLUNGER 1-33549-167-0 01 1 9906- ●
395 GASKET; PLUNGER 1-33549-167-0 02 1 9906- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33519-073-0 01 1 9906- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 9906- ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9906- ● ●
476 PIN; SHIFT ROD 1-33519-040-0 01 1 9906- ● ●
510 GASKET; ADAPTER
(B) T=2.20 		1-33529-074-0 01 1 9906- ●
510 GASKET; ADAPTER
(A) T=2.0 		1-82449-010-0 01 1 9906- ● ●
528 ADAPTER; SWITCH
(B) 		1-33519-099-0 01 1 9906- ●
528 ADAPTER; SWITCH
(A) 		1-33119-278-0 01 1 9906- ● ●

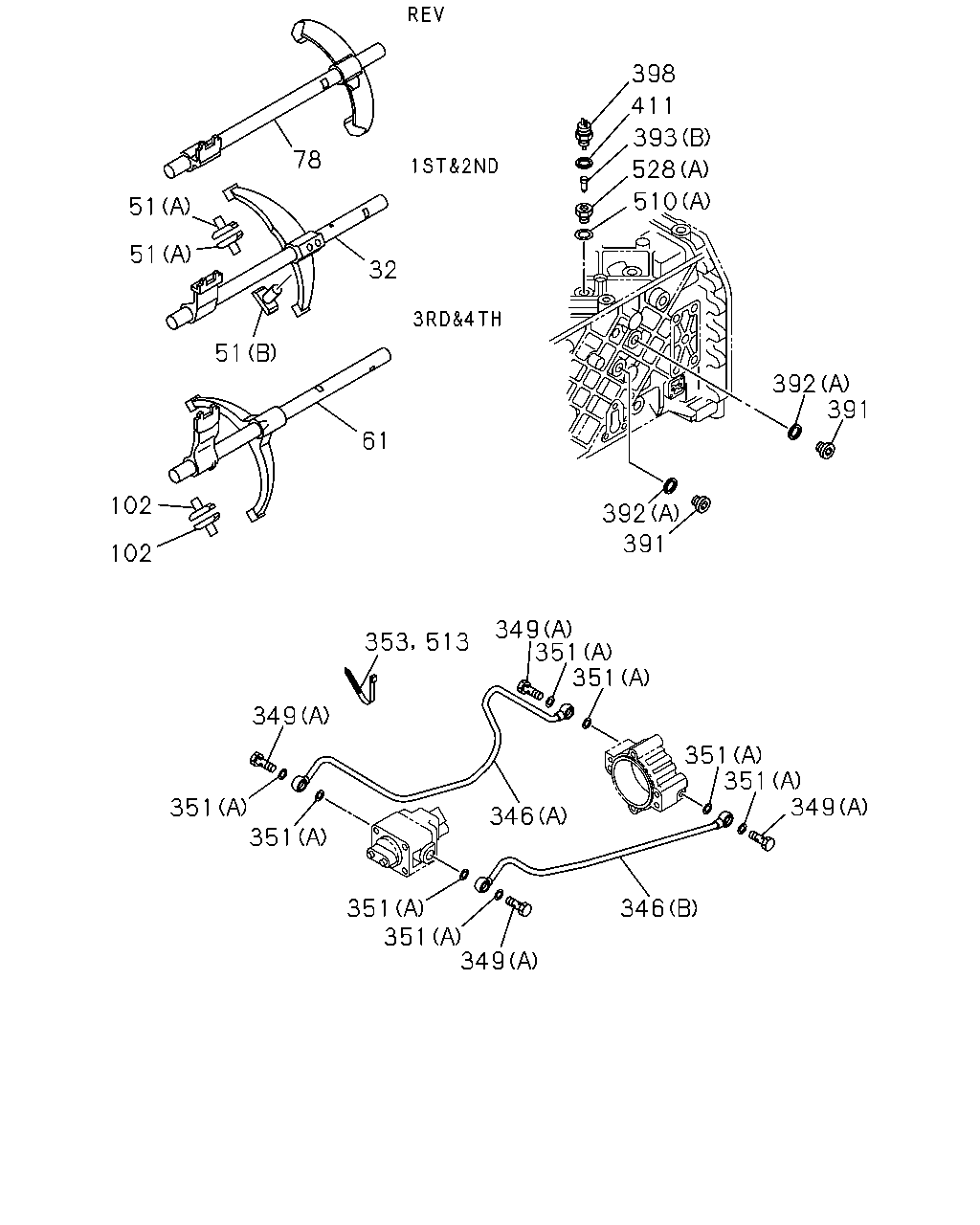

çizim 44822
398 411 393 78 528 510 51 51 32 51 392 391 61 102 392 391 102 349 351 351 353 513 349 351 351 349 351 351 346 351 351 346 349
BalonParca AdiParca NoAdetTipApplied Date A B C
32 ARM; SHIFT,1ST & 2ND 1-33519-127-0 01 1 9906- ●
32 ARM; SHIFT,1ST & 2ND 1-33511-565-0 01 1 9906- ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33519-053-0 02 1 9906- ● ●
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33519-116-0 01 1 9906- ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-510-0 01 1 9906- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-522-0 01 1 9906- ●
78 ARM; SHIFT,REV 1-33511-511-0 01 1 9906- ●
78 ARM; SHIFT,REV 1-33511-523-0 01 1 9906- ●
102 BLOCK; SHIFT,3RD & 4TH 1-33519-053-0 02 1 9906- ● ●
346 HOSE; AIR
(A) 		1-33549-182-0 01 1 9906- ●
346 HOSE; AIR
(B) 		1-33549-183-0 01 1 9906- ●
346 HOSE; AIR
(A) 		1-33549-336-0 01 1 9906- ●
346 HOSE; AIR
(B) 		1-33549-337-0 01 1 9906- ●
349 BOLT; EYE,AIR HOSE
(B) 		1-33549-144-0 01 1 9906- ● ●
349 BOLT; EYE,AIR HOSE
(A) 		1-33549-155-0 04 1 9906- ● ●
351 GASKET; CONNECTOR
(A) 		1-33549-184-0 08 1 9906- ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-307-0 04 1 9906- ● ●
353 CLIP; AIR HOSE 1-33549-142-0 01 1 9906- ● ●
391 PLUG; SW HOLE 1-33119-171-0 02 1 9906- ● ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-097-0 01 1 9906- ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 04 1 9906- ● ●
393 PIN; SW
(D) 		1-33519-098-0 01 1 9906- ●
393 PIN; SW
(A) 		1-33519-029-0 02 1 9906- ● ●
393 PIN; SW
(B) 		1-33519-077-0 01 1 9906- ● ●
393 PIN; SW
(C) 		1-33549-335-0 01 1 9906- ● ●
398 SWITCH; REV LAMP 1-82440-095-0 01 1 9906- ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). T=2.0 		1-82449-010-0 01 1 9906- ● ●
510 GASKET; ADAPTER
(B) T=2.20 		1-33529-074-0 01 1 9906- ●
510 GASKET; ADAPTER
(A) T=2.0 		1-82449-010-0 01 1 9906- ● ●
513 CLIP; BAND
L=250 		5-09707-030-1 01 1 9906-0004 ● ● ●
528 ADAPTER; SWITCH
(B) 		1-33519-099-0 01 1 9906- ●
528 ADAPTER; SWITCH
(A) 		1-33119-278-0 01 1 9906- ● ●

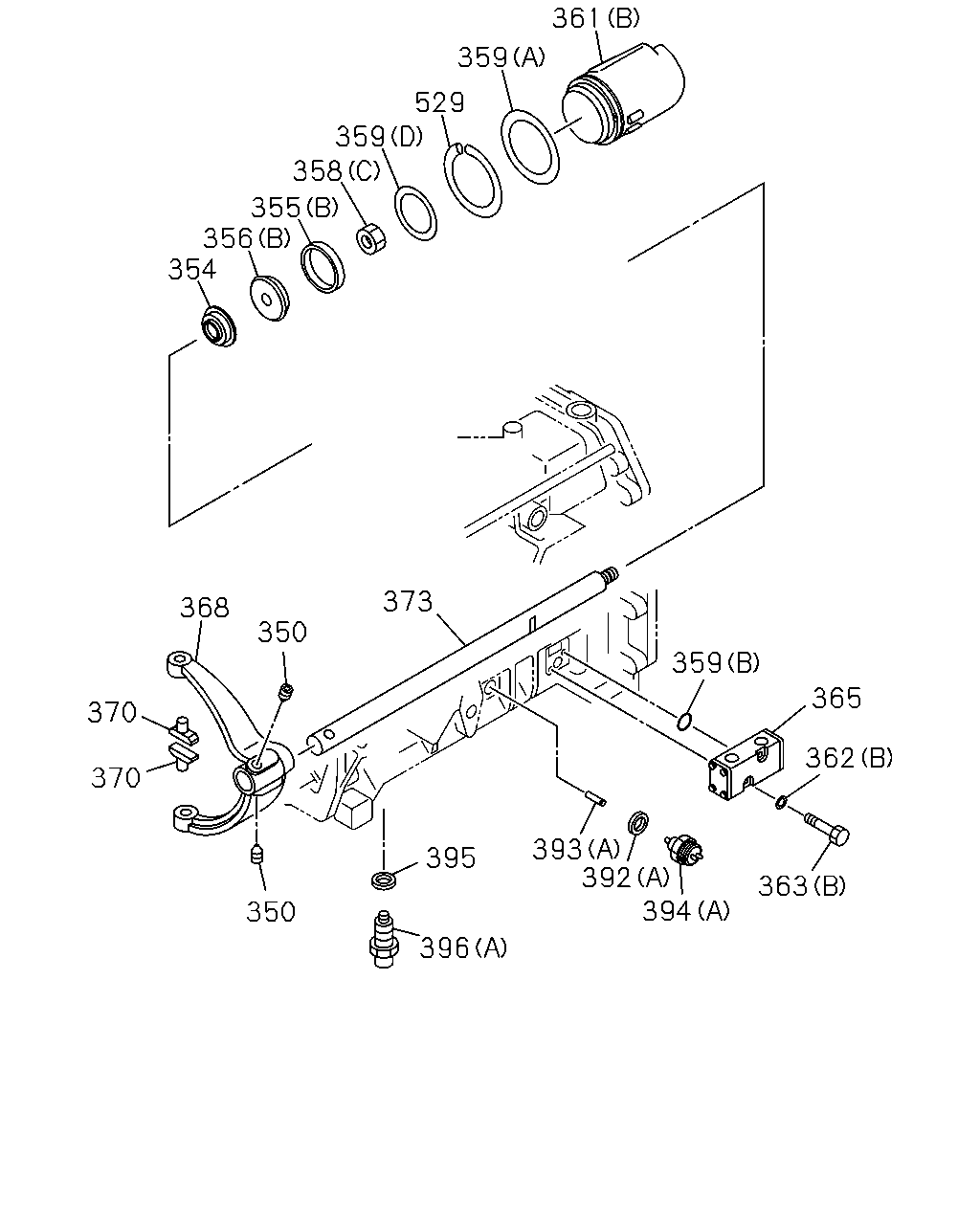

çizim 46041
361 359 529 359 358 355 356 354 373 368 350 359 365 370 362 370 393 392 394 395 363 350 396
BalonParca AdiParca NoAdetTipApplied Date A B C
350 SCREW; SHIFT ARM 1-33519-065-0 02 1 9906- ● ●
354 SEAL; AIR CYL 1-33519-068-0 02 1 9906- ● ●
355 CUP; PISTON,AIR CYL
(B) 		1-33519-070-0 01 1 9906- ● ●
355 CUP; PISTON,AIR CYL
(A) 		1-33519-119-0 02 1 9906- ● ●
356 PISTON; AIR CYL
(A) 		1-33519-060-0 01 1 9906- ● ●
356 PISTON; AIR CYL
(B) 		1-33519-069-0 01 1 9906- ● ●
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 9906- ● ● ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9906- ● ● ●
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 9906- ● ●
359 GASKET; AIR CYL
(A) 		1-09623-606-0 01 1 9906- ● ●
359 GASKET; AIR CYL
(B) 		1-33519-034-0 02 1 9906- ● ●
359 GASKET; AIR CYL
(D) 		1-33519-072-0 01 1 9906- ● ●
359 GASKET; AIR CYL
(C) 		1-33519-121-0 01 1 9906- ● ●
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-126-0 01 1 9906- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-117-0 01 1 9906- ●
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-140-0 01 1 9906- ● ●
362 WASHER; AIR CYL
(A) 		1-09469-010-0 04 1 9906- ● ●
362 WASHER; AIR CYL
(B) 		1-33519-076-0 02 1 9906- ● ●
363 BOLT; AIR CYL
(A) 		1-33519-064-0 04 1 9906- ● ●
363 BOLT; AIR CYL
(B) 		1-33519-128-0 02 1 9906- ● ●
365 VALVE; AIR CYL 1-33519-074-0 01 1 9906- ● ●
368 ARM; SHIFT,SPLITTER GEAR 1-33511-508-0 01 1 9906- ● ●
370 BLOCK; SHIFT,SPLITTER GEAR 1-33519-053-0 02 1 9906- ● ●
373 ROD; SHIFT,SPLITTER GEAR 1-33519-129-0 01 1 9906- ●
373 ROD; SHIFT,SPLITTER GEAR 1-33531-450-0 01 1 9906- ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-097-0 01 1 9906- ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 04 1 9906- ● ●
393 PIN; SW
(D) 		1-33519-098-0 01 1 9906- ●
393 PIN; SW
(A) 		1-33519-029-0 02 1 9906- ● ●
393 PIN; SW
(B) 		1-33519-077-0 01 1 9906- ● ●
393 PIN; SW
(C) 		1-33549-335-0 01 1 9906- ● ●
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 02 1 9906- ●
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 01 1 9906- ●
394 SWITCH; RANGE CHANGE
(A) 		1-82440-080-1 01 1 9906- ● ●
395 GASKET; PLUNGER 1-33549-167-0 01 1 9906- ●
395 GASKET; PLUNGER 1-33549-167-0 02 1 9906- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33519-073-0 01 1 9906- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 9906- ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9906- ● ●
529 SPRING; AIR CYL 1-33519-078-0 01 1 9906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
