2-05 — CLUTCH PIPING (#62910) — 123 parça
çizim 145723
16 28 48 101 28 50 180 106 184 239 207 16 104 23 104 50
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 0806- ● ●
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 02 1 0902- ● ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0710-0901 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0902-0906 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0907- ● ●
23 GROMMET; CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.35 		1-09701-247-1 01 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0710- ● ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0710- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0710-1006 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1007-1009 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0906 ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0801-0906 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0906 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907-1009 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907-1009 ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0907-1009 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1010- ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98072-346-0 01 1 0710- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0806- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0806- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0710-0803 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0804-0906 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0907- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2217 		8-98121-698-0 01 1 0806- ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0710-0803 ● ●
106 UNION; OIL PIPE
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0804-0906 ● ●
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0907- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ● ●
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0710-0910 ● ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 0911- ● ●
207 BOLT; CLIP
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 01 1 0806- ● ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 0710- ● ●

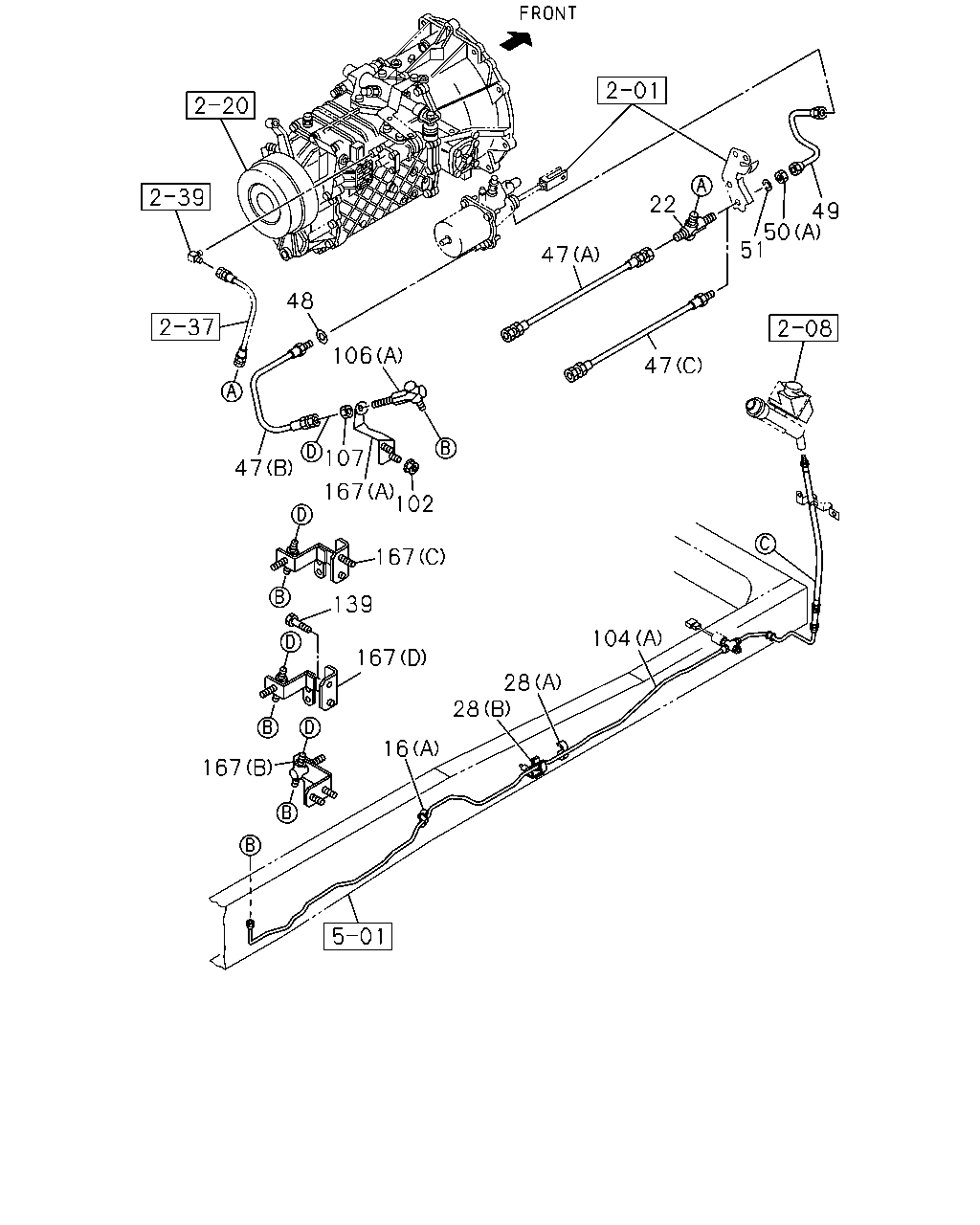

çizim 145726
22 49 50 51 47 48 106 47 107 47 167 102 167 139 104 167 28 28 16 167
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 0806- ● ●
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 02 1 0902- ● ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0710-0901 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0902-0906 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0907- ● ●
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.35 		1-09701-247-1 01 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0710- ● ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=740 		1-09363-674-0 01 1 0712- ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=740 		1-09363-674-0 01 1 0712- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=550 		8-98122-509-0 01 1 0806- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=550 		8-98122-509-0 01 1 0806- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0710-0711 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0710-0711 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0712- ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0712- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390 		8-98080-980-0 01 1 0710-0906 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390 		8-98080-980-0 01 1 0907- ● ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=600 		1-09363-639-0 01 1 0806- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98122-510-0 01 1 0806- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=700 		1-09363-718-0 01 1 0712-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=700 		1-09363-718-0 01 1 0907- ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=620 		1-09363-705-0 01 1 0710-0711 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=620 		1-09363-705-0 01 1 0712-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=620 		1-09363-705-0 01 1 0907- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0710- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 0710- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0710-1006 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1007-1009 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0906 ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0801-0906 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0906 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907-1009 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907-1009 ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0907-1009 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1010- ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0710-0712 ● ●
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0801-0906 ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0801-0906 ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0907-1009 ● ●
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0907-1009 ● ●
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1010- ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 1010- ● ●
102 NUT; FLEX HOSE,CLU CONT
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 0806-0809 ● ●
102 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ● ●
102 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0804-0805 ● ●
102 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0806-0906 ● ●
102 NUT; FLEX HOSE,CLU CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0806-0906 ●
102 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0907- ● ●
102 NUT; FLEX HOSE,CLU CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0907- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0806- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0806- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0710-0803 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0804-0906 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0907- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2217 		8-98121-698-0 01 1 0806- ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0710-0803 ● ●
106 UNION; OIL PIPE
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0804-0906 ● ●
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0907- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ● ●
107 NUT; UNION,OIL PIPE
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 0806-0806 ● ●
107 NUT; UNION,OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0710-0803 ● ●
107 NUT; UNION,OIL PIPE
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0804-0906 ● ●
107 NUT; UNION,OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0907- ● ●
139 BOLT; BRKT
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30 FLANGE 		0-28051-030-0 01 1 0810- ● ●
167 BRACKET; UNION
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98128-622-0 01 1 0807-0809 ●
167 BRACKET; UNION
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98128-622-0 01 1 0807-0809 ●
167 BRACKET; UNION
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98132-086-0 01 1 0810- ●
167 BRACKET; UNION
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98132-086-0 01 1 0810- ●
167 BRACKET; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 0710-0803 ● ●
167 BRACKET; UNION
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 0804-0906 ● ●
167 BRACKET; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 0907- ● ●
167 BRACKET; UNION
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98128-623-0 01 1 0807- ●
167 BRACKET; UNION
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98122-491-0 01 1 0806-0806 ●
167 BRACKET; UNION
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98122-491-0 01 1 0806-0806 ●
167 BRACKET; UNION
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98122-649-0 01 1 0806-0806 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
