◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#62907) — 11 parça

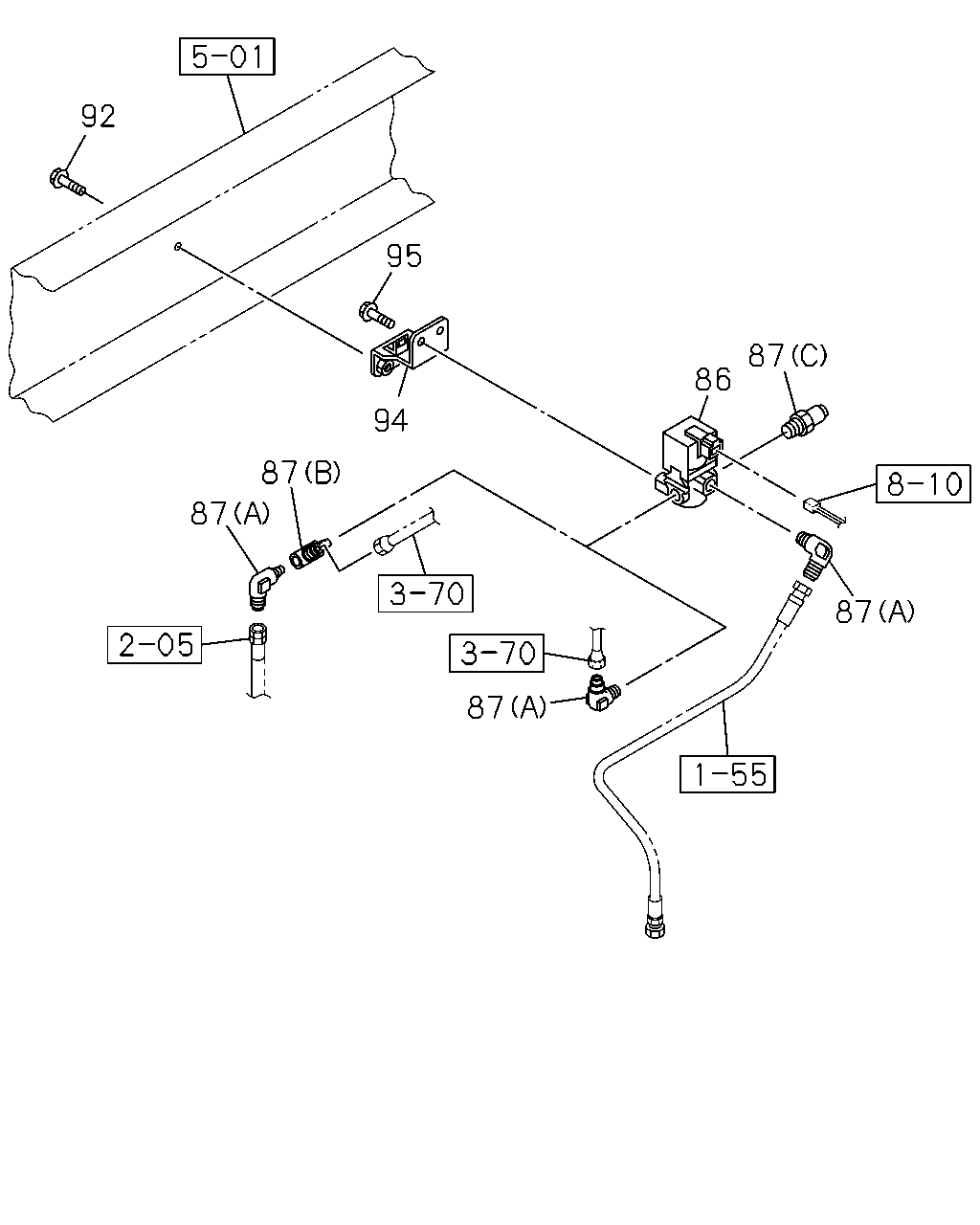

çizim 145710
92 95 87 86 94 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0710-
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0710-0808
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0808
87 CONNECTOR
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0809-
92 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0807
92 BOLT; MAG VLV
M10X25 FLANGE 		0-28651-025-0 02 1 0808-1008
92 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1009-
94 BRACKET; MAG VLV,EXH BRAKE 8-98078-098-0 01 1 0710-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
