◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#62905) — 185 parça

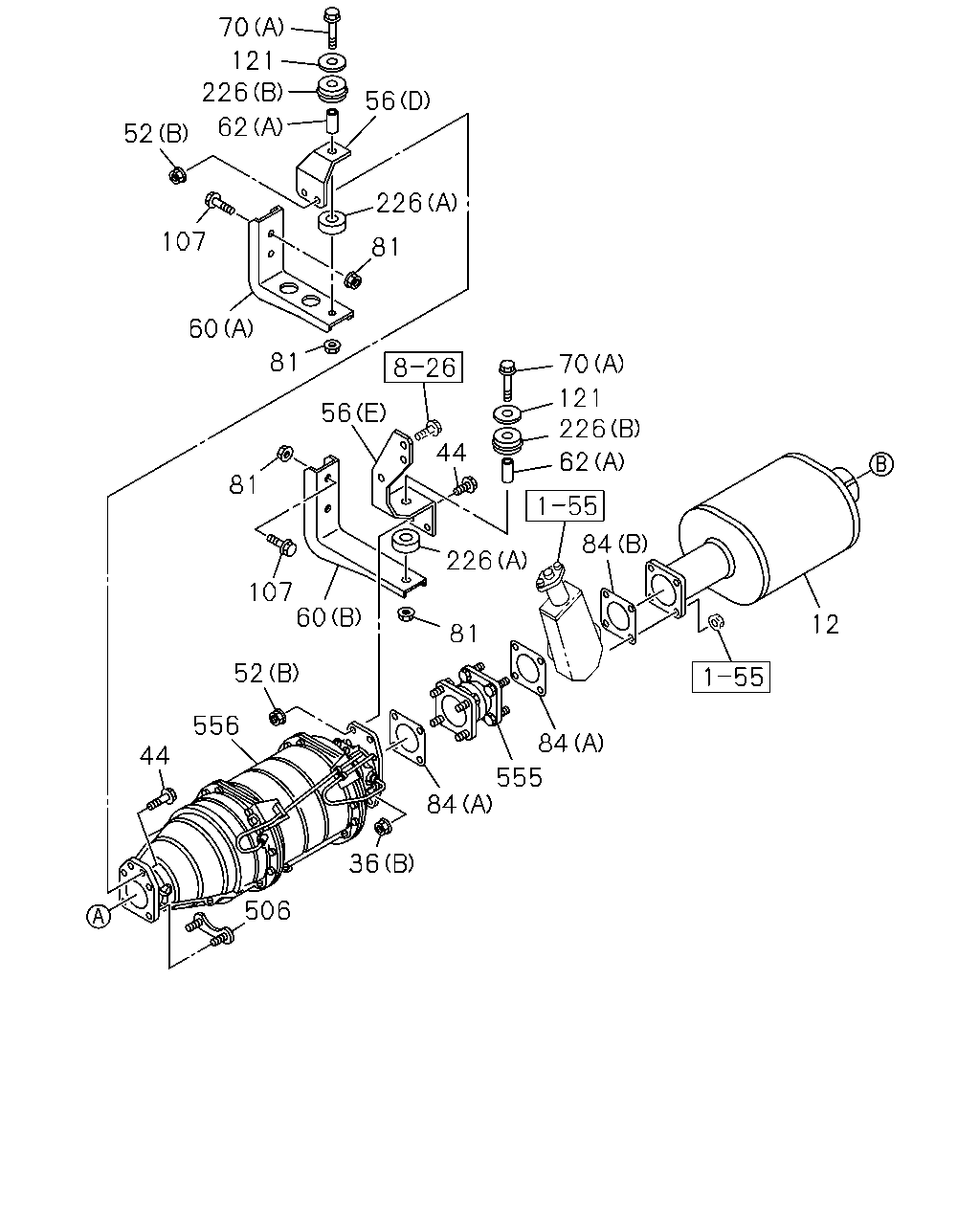

çizim 145713
70 121 226 56 62 52 226 107 81 60 81 70 121 226 56 44 62 81 84 226 107 60 12 81 52 556 84 44 555 84 36 506
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98041-921-0 01 1 0710- ● ●
36 NUT; EXH PIPE
(B) M10 		0-91110-510-0 04 1 0710- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 0710-0809 ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0810- ● ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 0710- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0810- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 0710- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98059-755-0 01 1 0710- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-584-0 01 1 0710-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98074-824-1 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98074-825-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (A) 		8-98059-757-1 01 1 0710- ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0710-1309 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E) 		8-98059-753-1 01 1 0710-1309 ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 0710-1309 ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (C) 		1-22152-305-2 01 1 0710- ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 0710- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0710- ● ●
555 PIPE; EXH,DPD 8-98060-847-0 01 1 0710- ● ●
556 DPD ASM 8-97613-331-6 01 1 0710-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●

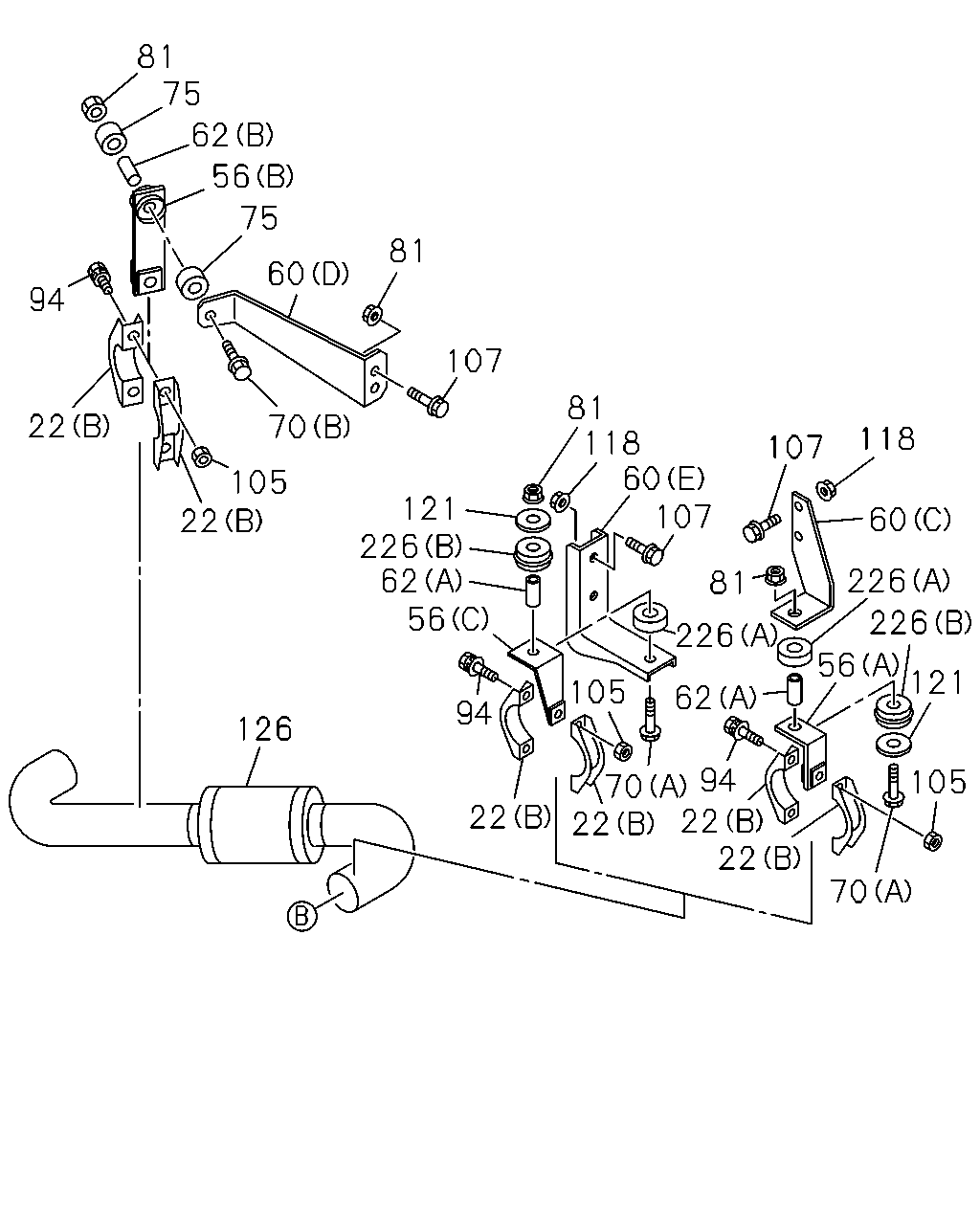

çizim 145716
81 75 62 56 75 81 60 94 107 81 118 60 107 22 70 118 107 105 22 121 226 62 56 60 226 81 226 226 56 121 105 62 94 126 70 22 94 22 22 105 22 70
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 0710- ● ●
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 0710- ● ●
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 0710-1309 ● ●
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 0710- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98059-755-0 01 1 0710- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-584-0 01 1 0710-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98074-824-1 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98074-825-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (A) 		8-98059-757-1 01 1 0710- ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0710-1309 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E) 		8-98059-753-1 01 1 0710-1309 ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 0710-1309 ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (C) 		1-22152-305-2 01 1 0710- ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710- ● ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 0710-1309 ● ●
126 PIPE; EXH,RR 8-98245-503-0 01 1 1310- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710- ● ●

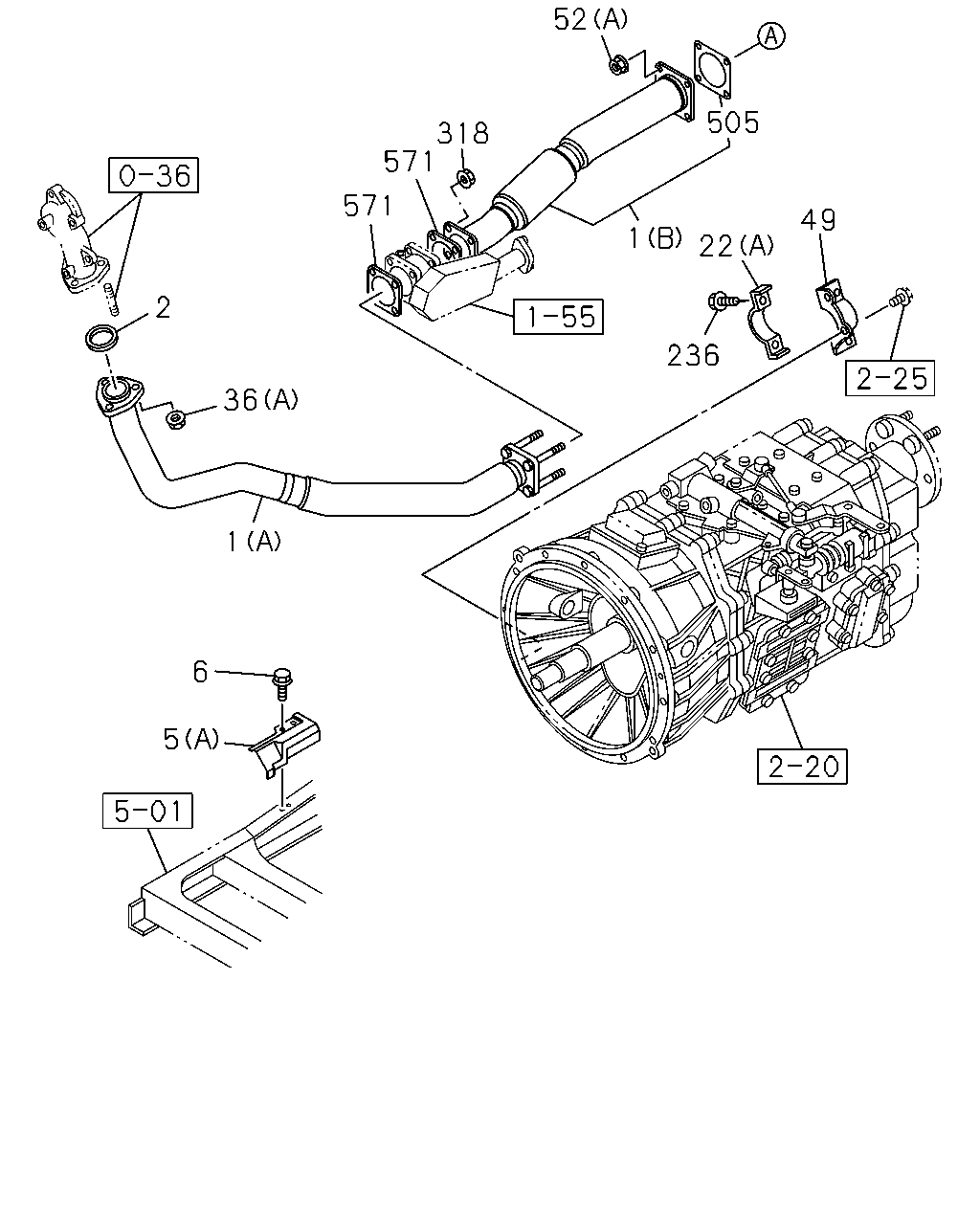

çizim 145720
52 505 318 571 571 49 1 22 2 236 36 1 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(B) 		8-98035-936-4 01 1 0710-1107 ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98035-936-4 01 1 0710-1107 ●
1 PIPE; EXH
(B) 		8-98198-849-0 01 1 1108- ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98198-849-0 01 1 1108- ●
1 PIPE; EXH
(A) 		8-98043-016-3 01 1 0710-0912 ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98043-016-3 01 1 0710-0912 ●
1 PIPE; EXH
(A) 		8-98161-196-0 01 1 1001-1202 ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98161-196-0 01 1 1001-1202 ●
1 PIPE; EXH
(A) 		8-98208-160-0 01 1 1203-1303 ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98208-160-0 01 1 1203-1303 ●
1 PIPE; EXH
(A) 		8-98243-546-0 01 1 1304- ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98243-546-0 01 1 1304- ●
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98070-183-1 01 1 0710-1107 ●
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98198-853-0 01 1 1108- ●
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98070-181-3 01 1 0710-0912 ●
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98161-197-0 01 1 1001-1202 ●
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98208-161-0 01 1 1203-1303 ●
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98243-547-0 01 1 1304- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 0710-0711 ● ●
5 PROTECTOR; HEAT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0712- ● ●
6 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ●
6 BOLT; HEAT PROTECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 0710- ● ●
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 0710- ● ●
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 0710-1309 ● ●
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310- ● ●
36 NUT; EXH PIPE
(B) M10 		0-91110-510-0 04 1 0710- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ●
49 BRACKET; EXH PIPE TO TRANS 8-98042-786-0 01 1 0710-1301 ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98042-786-0 01 1 0710-1301 ●
49 BRACKET; EXH PIPE TO TRANS 8-98234-530-0 01 1 1302- ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98234-530-0 01 1 1302- ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98043-225-0 01 1 0710-1301 ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98234-531-0 01 1 1302- ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 0710-0809 ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0810- ● ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 0710- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0810- ● ●
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710- ● ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 0710- ● ●
505 GASKET; CONV TO EXH PIPE 8-94394-391-0 01 1 0710- ● ●
571 GASKET
ID=64 		8-97373-108-0 02 1 0710- ● ●

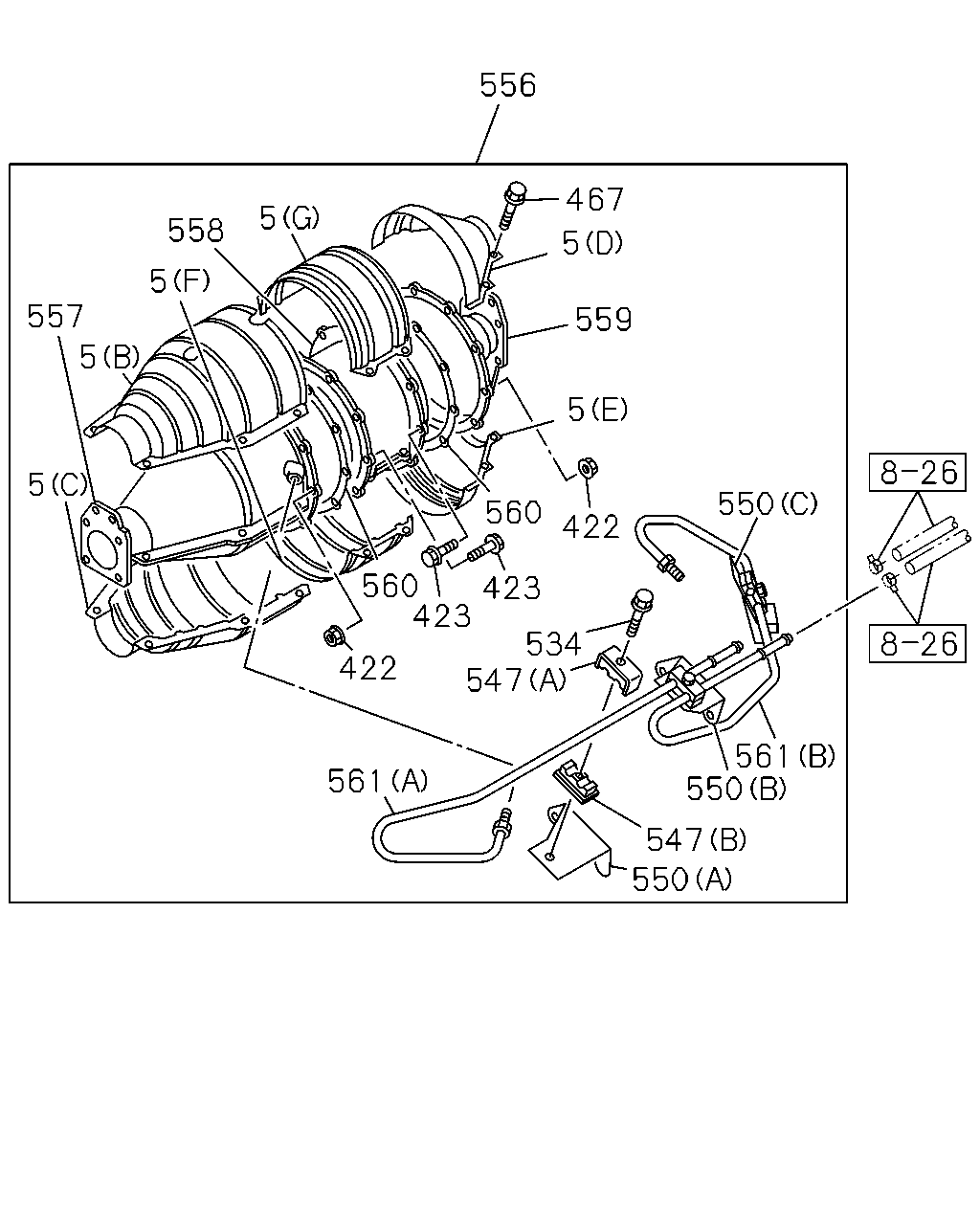

çizim 145721
556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 0710-0711 ● ●
5 PROTECTOR; HEAT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0712- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0710- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0710- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0710- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0710- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0710- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0710- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0710- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0710- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0710- ● ●
556 DPD ASM 8-97613-331-6 01 1 0710-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●
557 CATALYST ASM 8-97608-055-7 01 1 0710- ● ●
558 FILTER ASM 8-97608-057-3 01 1 0710- ● ●
559 COVER; RR 8-97611-078-0 01 1 0710-1010 ● ●
559 COVER; RR 8-97622-887-0 01 1 1011- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 0710- ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0710-1010 ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011- ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0710-1010 ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
