Sayfa 1-41 - Isuzu EPC

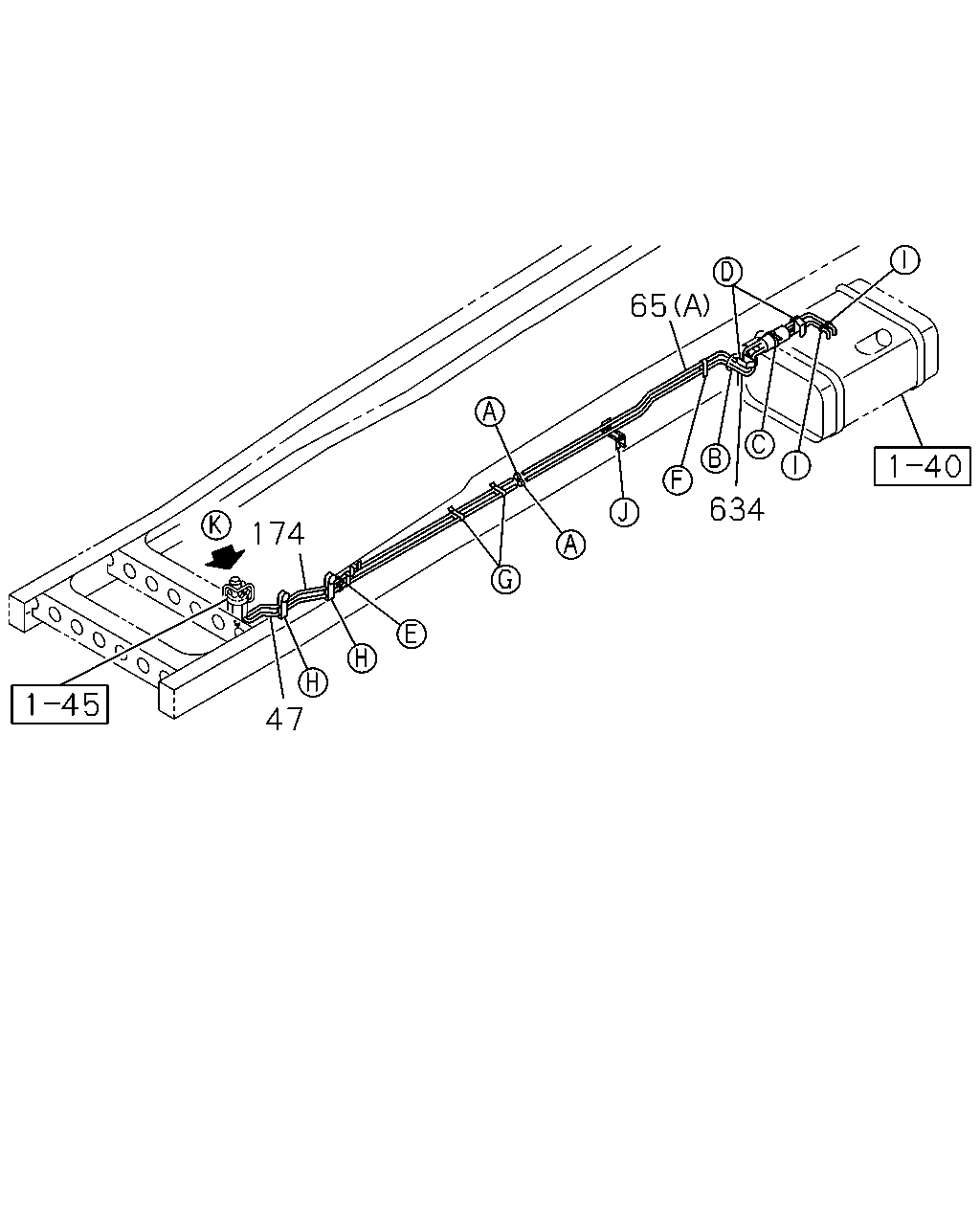

1-41 — FUEL PIPING; CHASSIS (#62903) — 201 parça

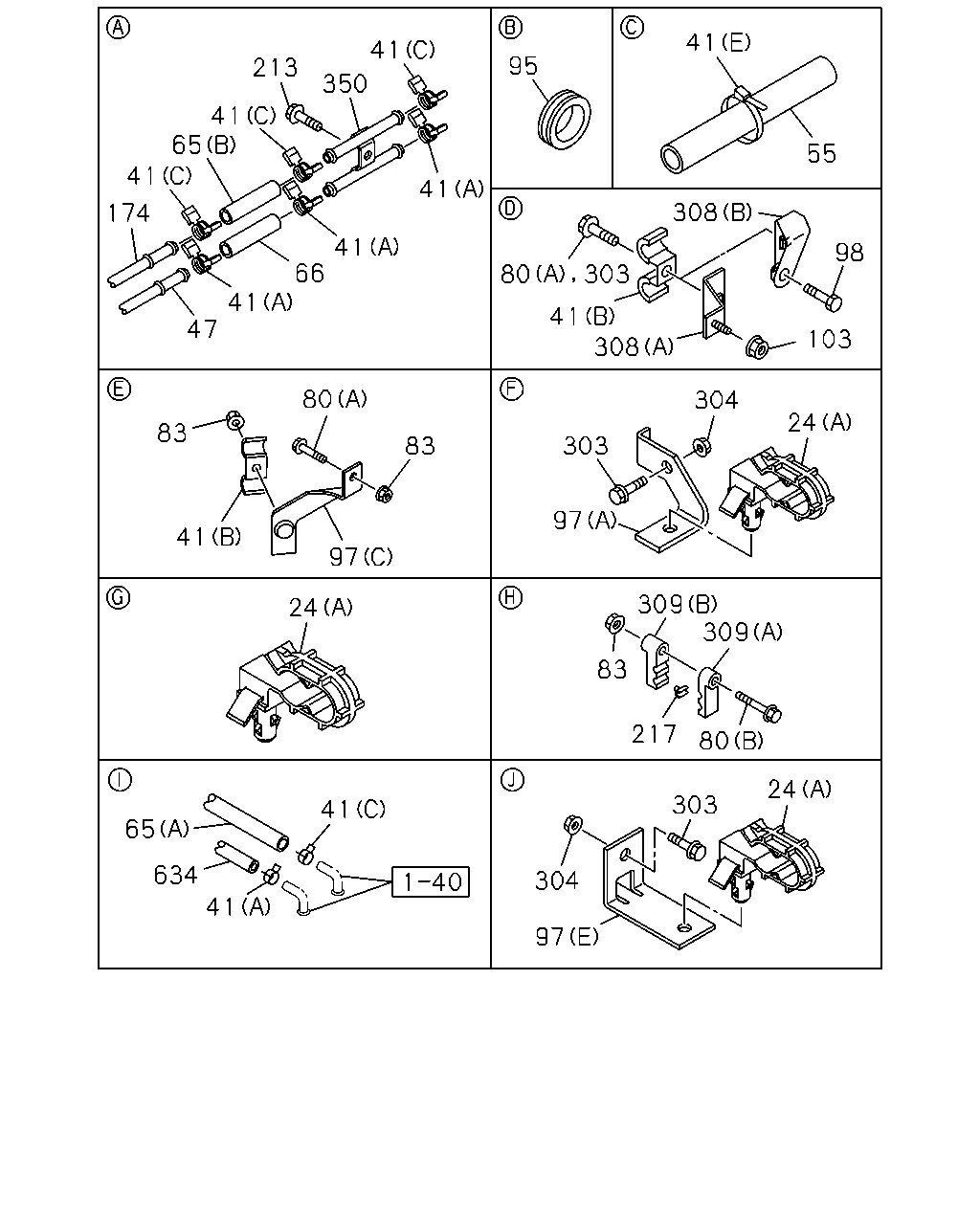

41 41 95 213 350 41 65 41 55 41 308 174 41 66 98 80 303 41 47 41 308 103 80 304 24 83 303 83 97 41 97 309 309 24 83 217 80 24 303 41 65 634 304 41 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-0710	●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0710-	●	●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0710-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (E) L=140	5-09707-031-1	01	1	0801-0804		●
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	0710-	●	●
47	PIPE; FUEL,RETURN L=1496	8-98082-818-0	01	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0710-0712	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0805-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0801-0804		●
65	HOSE; FUEL,DELIVERY PIPE (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
65	HOSE; FUEL,DELIVERY PIPE (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710	●	●
65	HOSE; FUEL,DELIVERY PIPE (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) (A) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
66	HOSE; FUEL,RETURN PIPE L=60 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710	●	●
66	HOSE; FUEL,RETURN PIPE L=60 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X50 FLANGE	0-28050-850-0	01	1	0710-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0710	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	0710-0710	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0710-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	0710-		●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0710-	●	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	0710-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0710-	●	●
97	BRACKET; CLIP (E)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (E)	8-98098-427-1	01	1	0801-0801		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (E)	8-98098-427-1	01	1	0801-0804		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (E)	8-98109-768-0	01	1	0805-0806		●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0807-0808	●	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-0809	●	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-	●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	0809-		●
98	BOLT; BRKT,FUEL PIPE M10X30 FLANGE	0-28651-030-0	01	1	0804-	●	●
103	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0710	●	●
103	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0803	●	●
174	PIPE; FUEL,FEED,FRT	8-98082-817-0	01	1	0710-0710	●	●
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	0710-	●	●
213	BOLT; FUEL PIPE FIX M8X20 FLANGE	0-28650-820-0	01	1	0710-0710	●	●
213	BOLT; FUEL PIPE FIX M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	01	1	0710-	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0805	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0805	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	02	1	0710-0805		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0806-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-	●	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-		●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0801		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0804		●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0806-0808		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-1003	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0710-1003		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1004-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-1003	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0801		●
304	NUT; BRKT WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0804		●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-	●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-		●
308	BRACKET; FUEL PIPE (A)	8-98080-065-0	02	1	0710-0710	●	●
308	BRACKET; FUEL PIPE (A)	8-98080-065-0	01	1	0710-0803	●	●
308	BRACKET; FUEL PIPE (B)	8-98117-691-0	01	1	0804-	●	●
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	01	1	0710-	●	●
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	01	1	0710-	●	●
350	PIPE; FUEL,DEL & RET	8-98084-131-0	01	1	0710-0710	●	●
350	PIPE; FUEL,DEL & RET	8-98084-131-0	01	1	0710-	●	●
634	HOSE; RUBBER RETURN L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0710-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	0710-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0710-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-		●

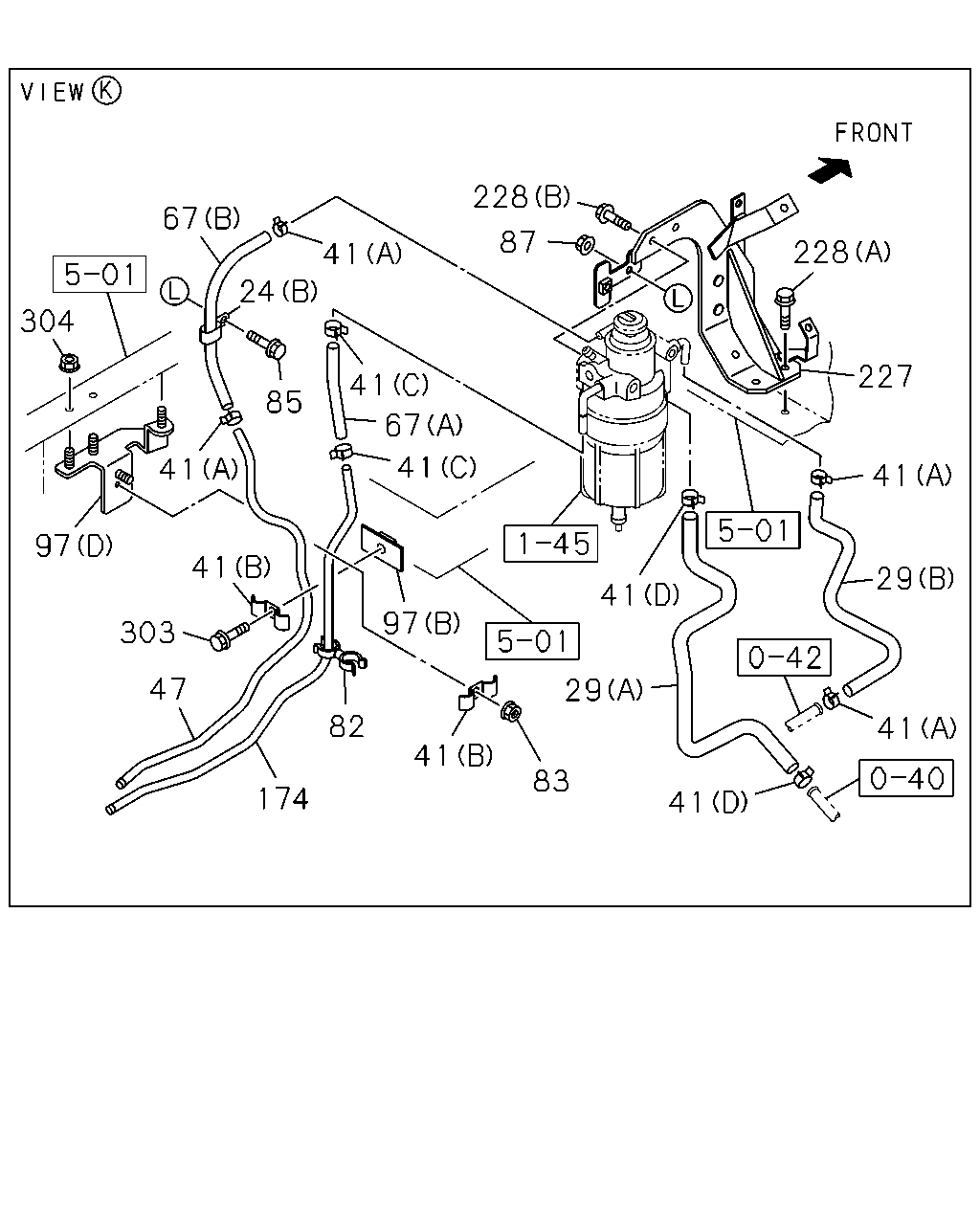

67 304 41 97 41 303 47 174 41 82 97 83 29 41 41 29 41 41 227 228 228 87 41 24 85 41 67 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-0710	●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0710-	●	●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0710-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-		●
29	HOSE; FUEL (A)	8-98078-194-3	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-195-1	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (E) L=140	5-09707-031-1	01	1	0801-0804		●
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	0710-	●	●
47	PIPE; FUEL,RETURN L=1496	8-98082-818-0	01	1	0710-0710	●	●
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	0710-0710	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0710-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	0710-		●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0710-	●	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	0710-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0710-	●	●
97	BRACKET; CLIP (E)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (E)	8-98098-427-1	01	1	0801-0801		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (E)	8-98098-427-1	01	1	0801-0804		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (E)	8-98109-768-0	01	1	0805-0806		●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0807-0808	●	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-0809	●	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-	●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT	8-98082-817-0	01	1	0710-0710	●	●
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	0710-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-367-3	01	1	0710-0808	●	●
227	BRACKET; FUEL SEDIMENTER	8-98130-667-0	01	1	0809-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0805	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0805	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	02	1	0710-0805		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0806-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-	●	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-		●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0801		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0804		●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0806-0808		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-1003	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0710-1003		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1004-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-1003	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0801		●
304	NUT; BRKT WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0804		●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-	●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-		●

65 634 174 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	0710-	●	●
47	PIPE; FUEL,RETURN L=1496	8-98082-818-0	01	1	0710-0710	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
65	HOSE; FUEL,DELIVERY PIPE (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710	●	●
65	HOSE; FUEL,DELIVERY PIPE (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) (A) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
174	PIPE; FUEL,FEED,FRT	8-98082-817-0	01	1	0710-0710	●	●
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	0710-	●	●
634	HOSE; RUBBER RETURN L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0710-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	0710-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0710-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
