0-60 — ENGINE ELECTRICAL CONTROL PARTS (#62889) — 62 parça

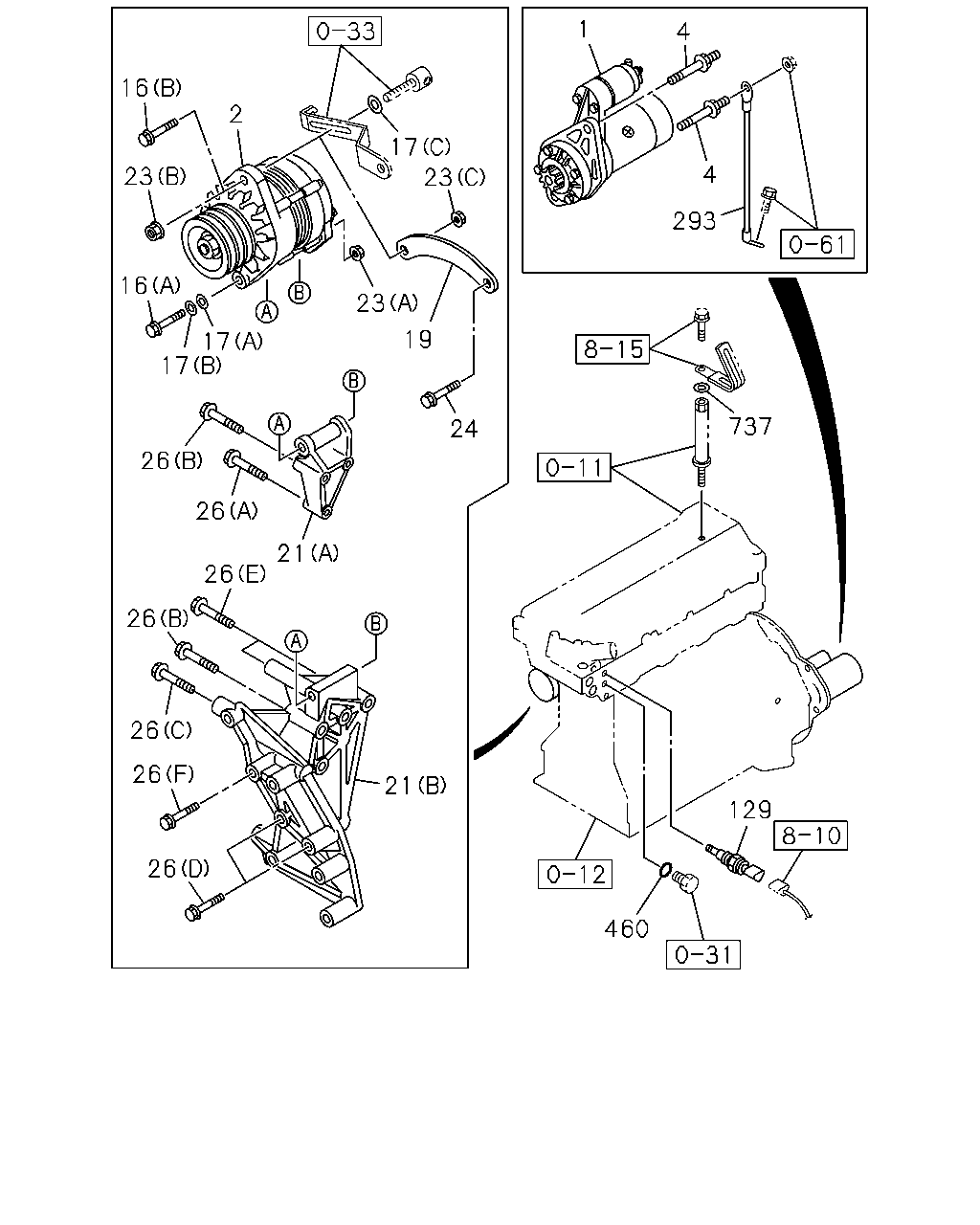

1 4 16 2 17 4 23 23 293 16 23 19 17 17 737 24 26 26 21 26 26 26 26 21 129 26 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-97323-935-4	01	1	0710-1010	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98179-204-1	01	1	1011-1207	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98222-021-0	01	1	1208-1310	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98245-258-0	01	1	1311-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98009-043-2	01	1	0710-1207	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI	8-98245-260-0	01	1	1312-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-3	01	1	0710-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-3	01	1	0710-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-459-3	01	1	0710-	●	●
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	0710-	●	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0710-	●	●
16	BOLT; GEN GENERATOR 24V90A(K44) (B) M10X45 FLANGE	0-28051-045-0	01	1	0710-	●	●
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	0710-	●	●
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	0710-	●	●
17	WASHER; PL,GEN (C) ID=12.5 OD=32	9-09160-712-0	01	1	0710-0803	●	●
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	0804-	●	●
19	BRACKET; GEN GENERATOR 24V90A(K44)	8-98032-273-0	01	1	0710-	●	●
21	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	0710-	●	●
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98032-271-1	01	1	0710-1004	●	●
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1005-	●	●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	0710-	●	●
23	NUT; GEN (B) M12 FLANGE	0-91180-112-0	01	1	0710-0803	●	●
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	0804-	●	●
23	NUT; GEN GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	0710-	●	●
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	02	1	0712-0804	●	●
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	0805-	●	●
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	0710-	●	●
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X80 FLANGE	0-28151-080-0	02	1	0710-0712	●	●
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X70 FLANGE	0-28151-070-0	02	1	0801-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M8X70 FLANGE	0-28050-870-0	01	1	0710-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (D) M8X90 FLANGE	0-28050-890-0	02	1	0710-1004	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (E) M10X60 FLANGE	0-28151-060-0	02	1	0710-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (B) M10X70 FLANGE	0-28151-070-0	01	1	0710-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (F) M10X25 FLANGE	0-28751-025-0	02	1	0710-0803	●	●
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	0710-	●	●
293	CABLE; STARTER EARTH L=410	8-97620-375-0	01	1	0710-	●	●
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	0710-	●	●
737	WASHER; PL ID=6.4 OD=18	0-91610-706-0	01	1	1005-1009	●	●
737	WASHER; PL ID=6.4 OD=18	0-91610-706-0	02	1	1010-	●	●

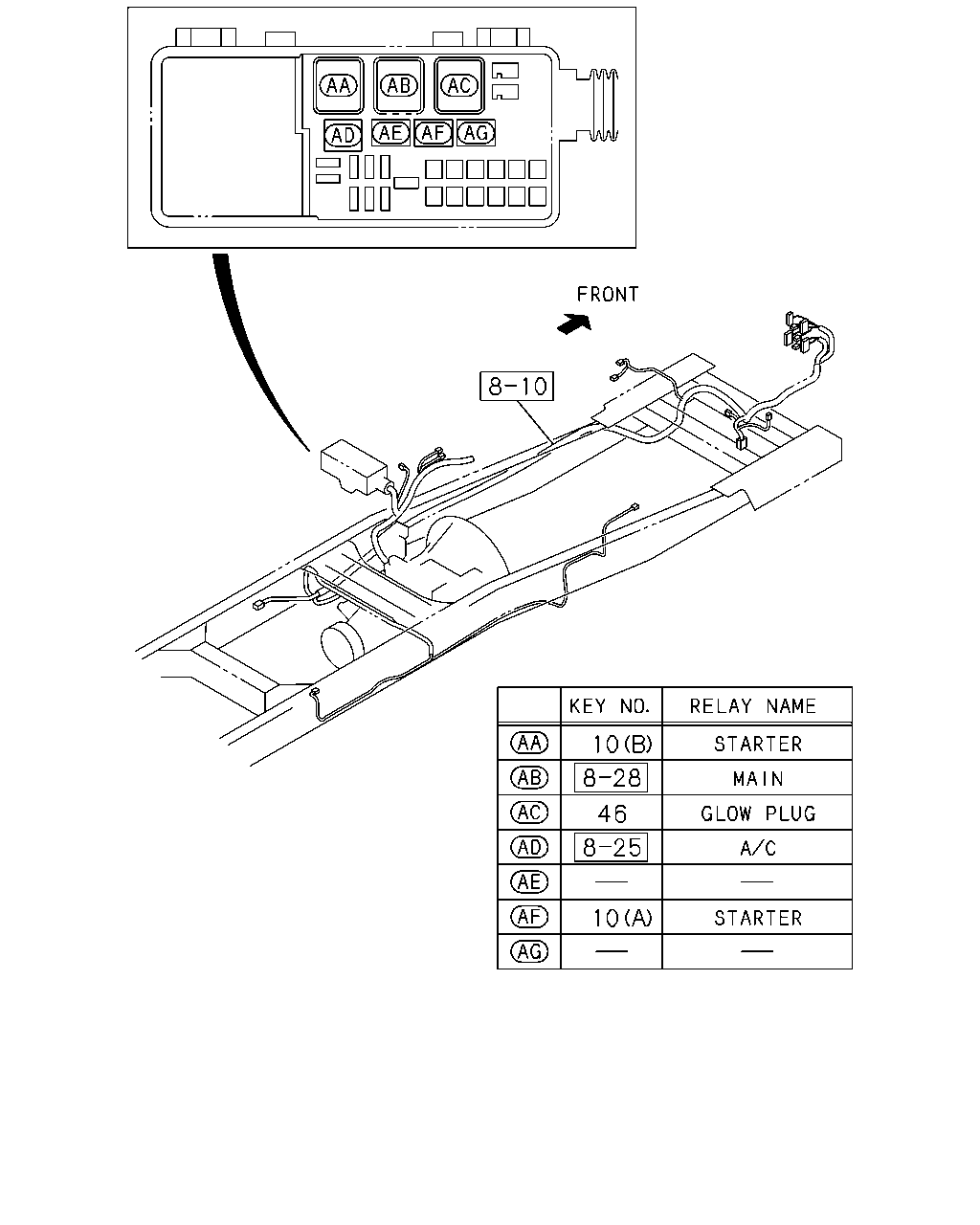

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1005	●	●
10	RELAY; STARTER (A) 24V 10A	8-98167-173-0	01	1	1006-	●	●
10	RELAY; STARTER (B) 24V 50A	8-97264-947-0	01	1	0710-	●	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0710-	●	●

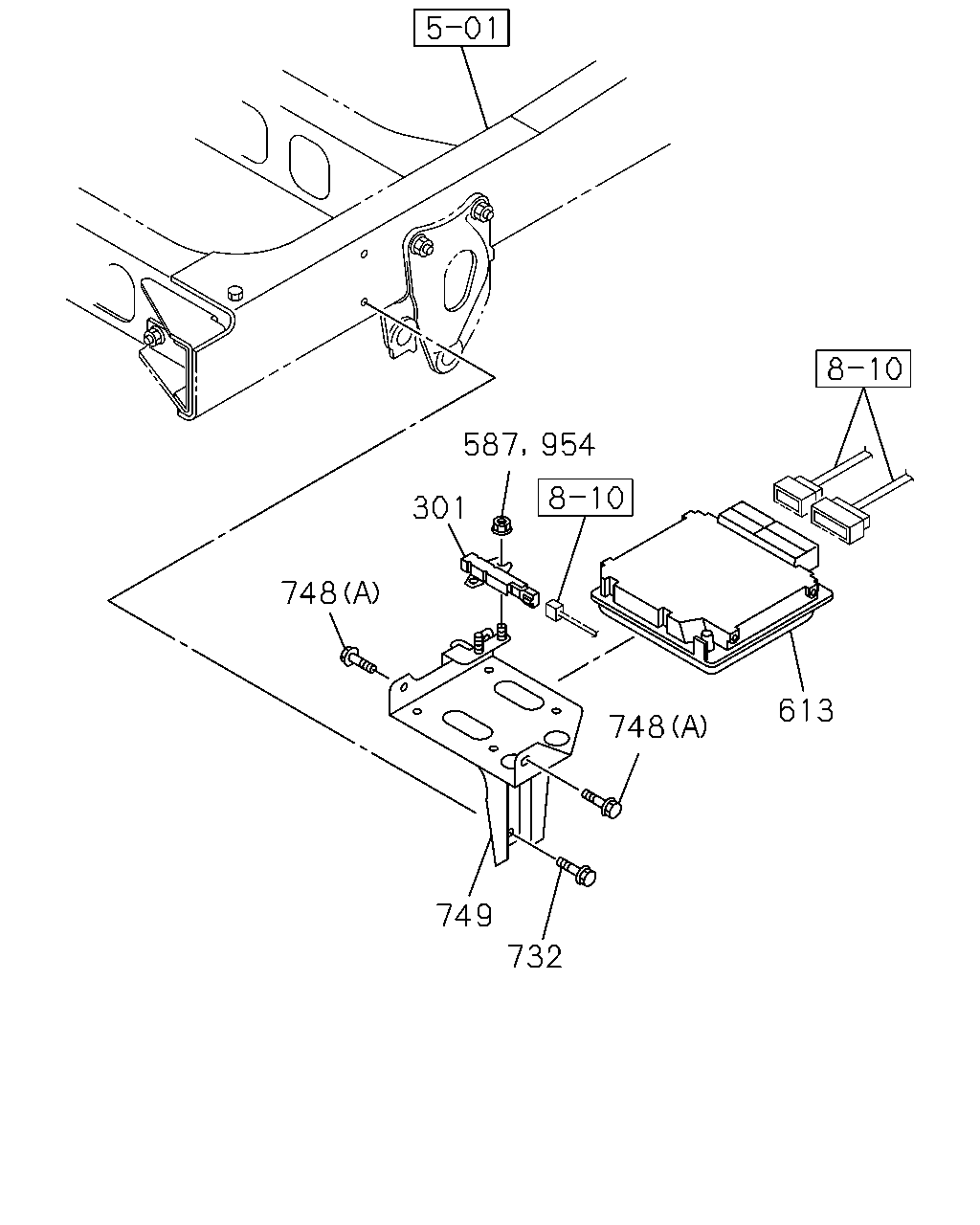

587 954 301 748 613 748 749 732

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0710-	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-140-0	01	1	0710-0710	●	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-140-5	01	1	0710-	●	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98160-223-1	01	1	0911-	●	●
613	CONTROL UNIT; ENG MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98081-137-0	01	1	0710-0710	●	●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98081-137-4	01	1	0710-	●	●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY>	8-98081-133-0	01	1	0710-0710	●	●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98081-133-4	01	1	0710-	●	●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-	●	●
748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	0710-	●	●
749	STAY; CONT UNIT	1-53194-594-1	01	1	0710-	●	●
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	0710-1006	●	●

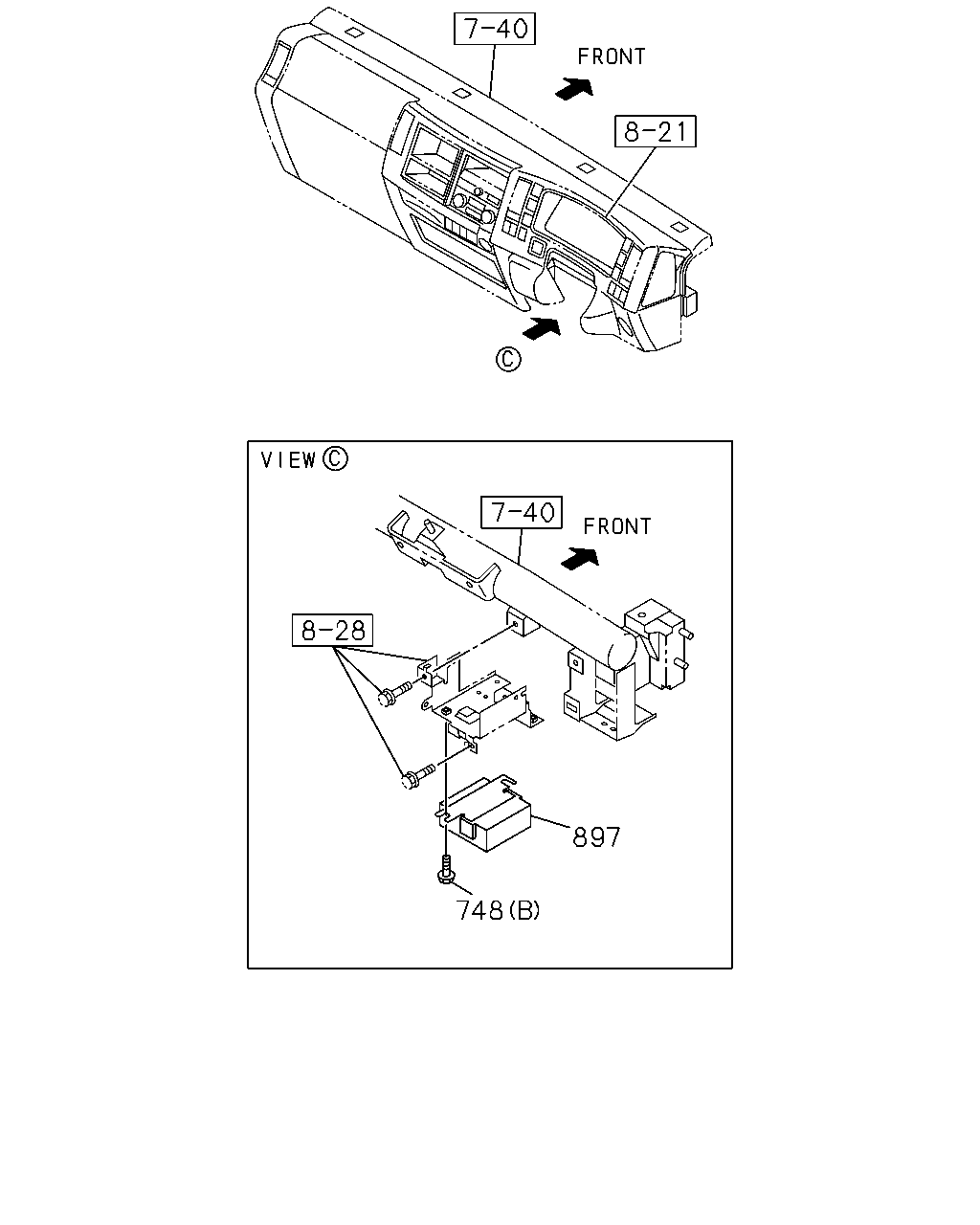

897 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-	●	●
748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	0710-	●	●
897	DRM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98013-144-8	01	1	0710-1401	●	●
897	DRM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98260-912-0	01	1	1402-	●	●
