0-52 — OIL AND VACUUM PIPING; ENGINE (#62887) — 47 parça

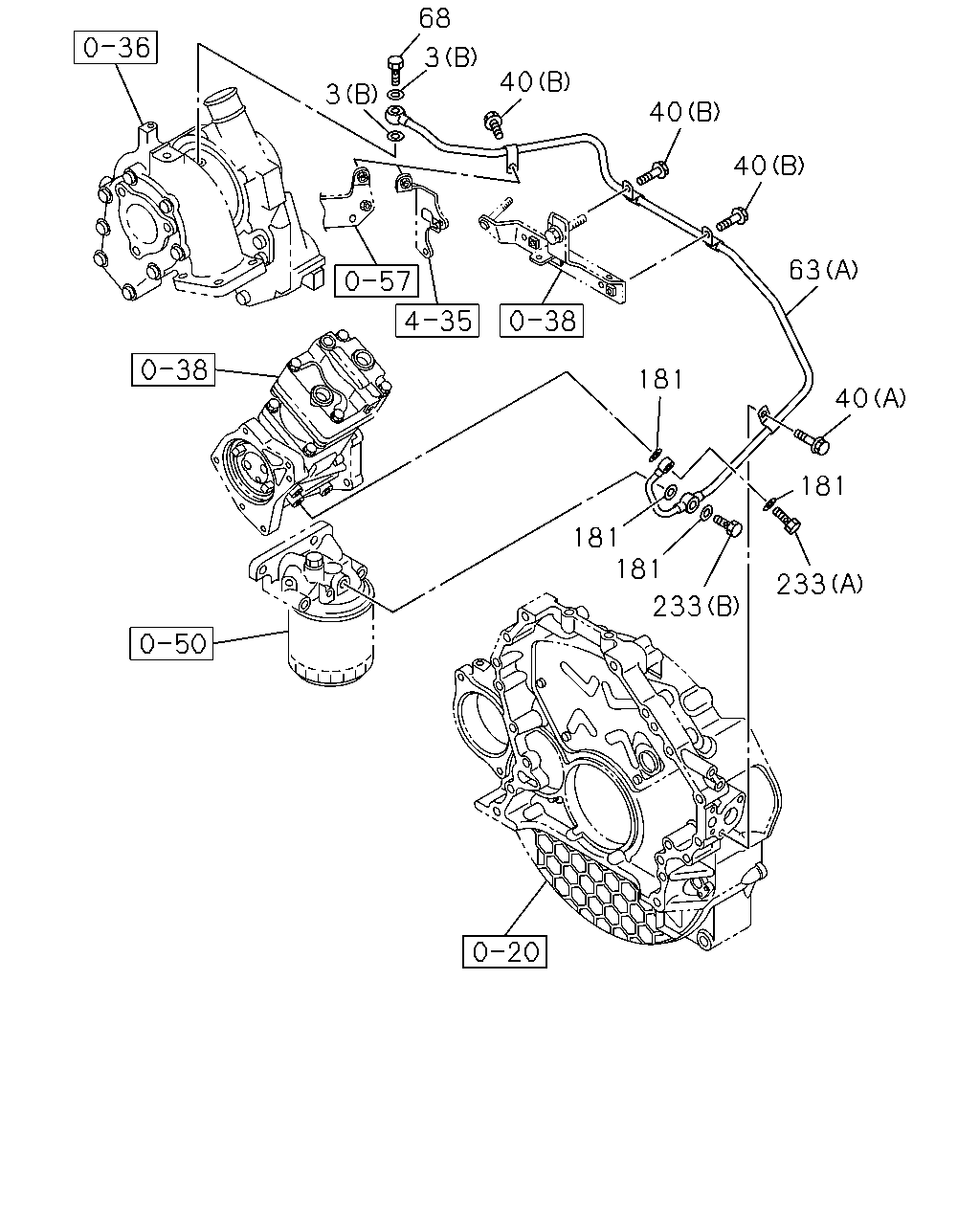

68 3 40 3 40 40 63 181 40 181 181 181 233 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-410-0	02	1	0710-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
40	BOLT; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	03	1	0710-
40	BOLT; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-
40	BOLT; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE	0-28050-820-0	03	1	0710-
63	PIPE; OIL,TURBOCHARGER FEED POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-217-0	01	1	0710-0712
63	PIPE; OIL,TURBOCHARGER FEED POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98095-875-0	01	1	0801-
63	PIPE; OIL,TURBOCHARGER FEED EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-311-0	01	1	0710-
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-97081-817-0	01	1	0710-0805
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-98037-825-0	01	1	0806-
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	0710-
233	BOLT; EYE (A) M10X22	1-09675-028-0	01	1	0710-
233	BOLT; EYE (B) M10X28 FLANGE	8-97149-995-0	01	1	0710-0710
233	BOLT; EYE (B) M10X28	8-98037-823-0	01	1	0711-

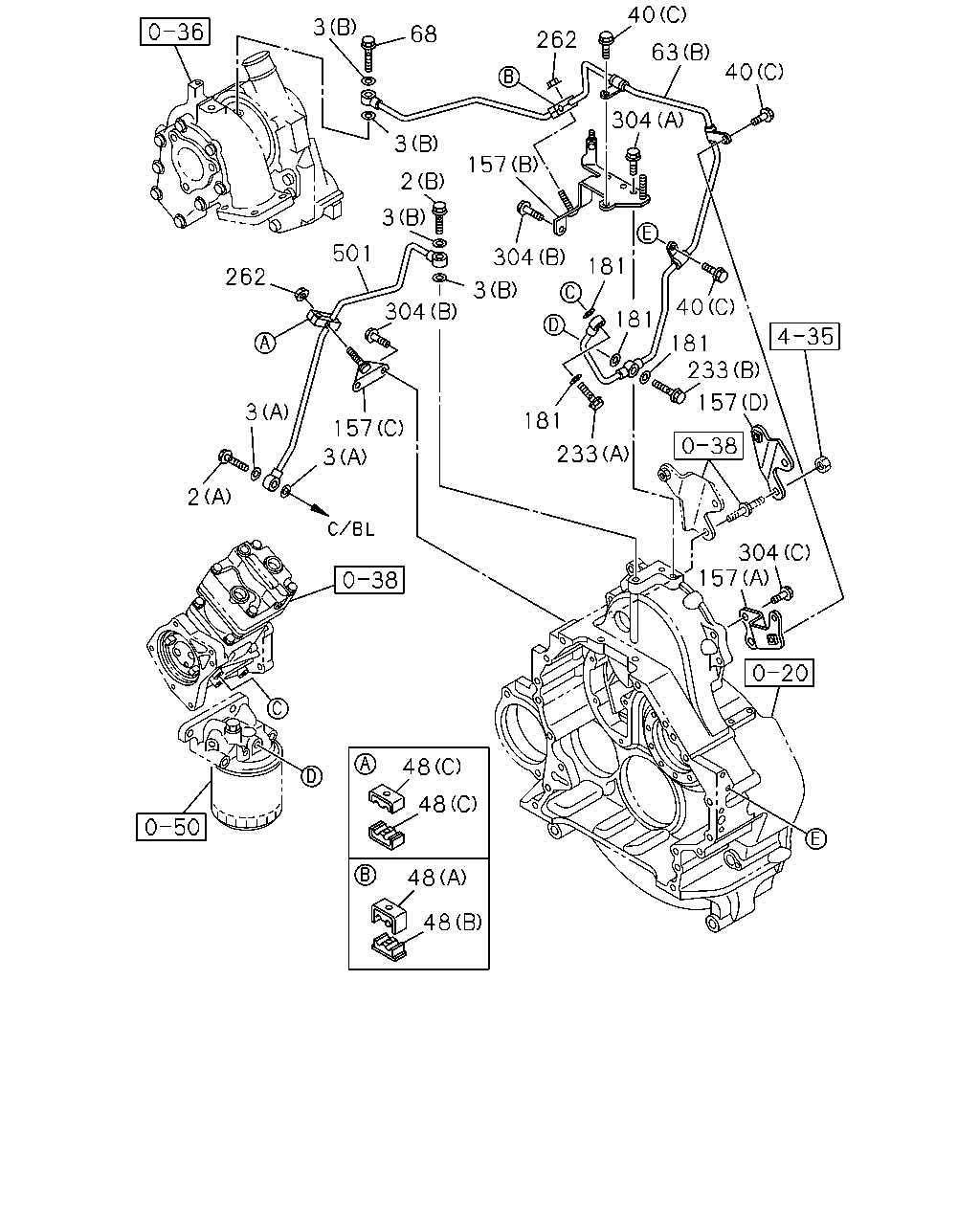

40 3 68 262 63 40 304 3 157 2 3 501 304 181 262 304 3 40 181 181 233 157 3 181 157 233 3 2 304 157 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X25	8-98072-919-0	01	1	0710-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	0710-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-410-0	02	1	0710-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
40	BOLT; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	03	1	0710-
40	BOLT; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-
40	BOLT; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE	0-28050-820-0	03	1	0710-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-240-0	02	1	0710-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97603-522-0	01	1	0710-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97603-523-0	01	1	0710-
63	PIPE; OIL,TURBOCHARGER FEED POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-217-0	01	1	0710-0712
63	PIPE; OIL,TURBOCHARGER FEED POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98095-875-0	01	1	0801-
63	PIPE; OIL,TURBOCHARGER FEED EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-311-0	01	1	0710-
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-97081-817-0	01	1	0710-0805
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-98037-825-0	01	1	0806-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98077-632-2	01	1	0710-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98055-852-0	01	1	0710-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98077-634-0	01	1	0710-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-218-1	01	1	0710-
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	0710-
233	BOLT; EYE (A) M10X22	1-09675-028-0	01	1	0710-
233	BOLT; EYE (B) M10X28 FLANGE	8-97149-995-0	01	1	0710-0710
233	BOLT; EYE (B) M10X28	8-98037-823-0	01	1	0711-
262	NUT; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) M6 FLANGE	0-91180-106-0	02	1	0710-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X20 FLANGE	0-28751-020-0	03	1	0710-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) M10X25 FLANGE	0-28751-025-0	02	1	0710-0711
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) M10X25 FLANGE	0-28751-025-0	01	1	0712-
501	PIPE; OIL,PTO FEED POWER TAKE OFF-FLYWHEEL(6SZ)	8-98055-846-0	01	1	0710-
