Isuzu WW
▶
TRUCKS
▶
FRR
▶
11416 - FRR AUSTRALIA EURO4 SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#62877) — 31 parça
◀

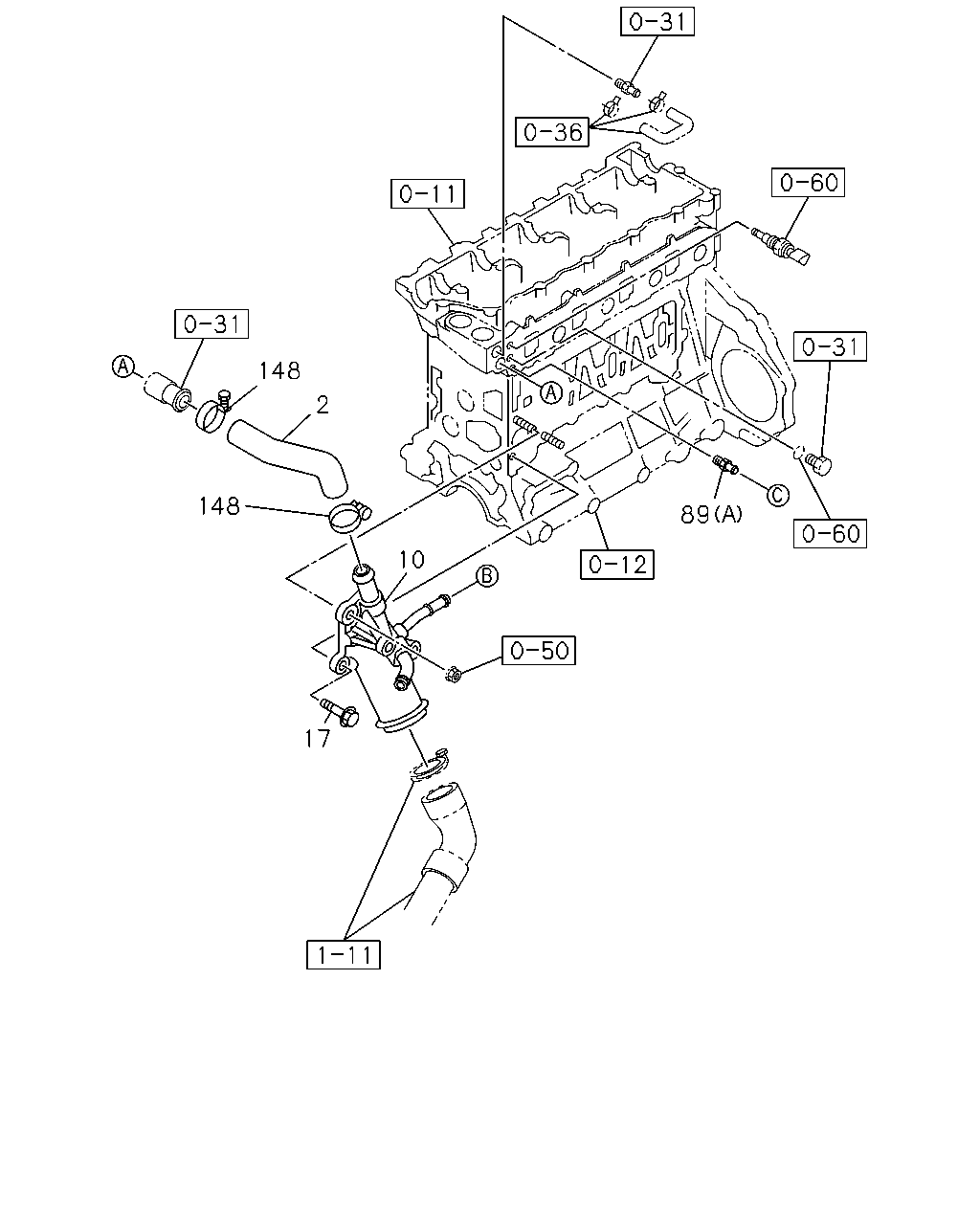

[032A] SUCTION PIPE (7 parça)

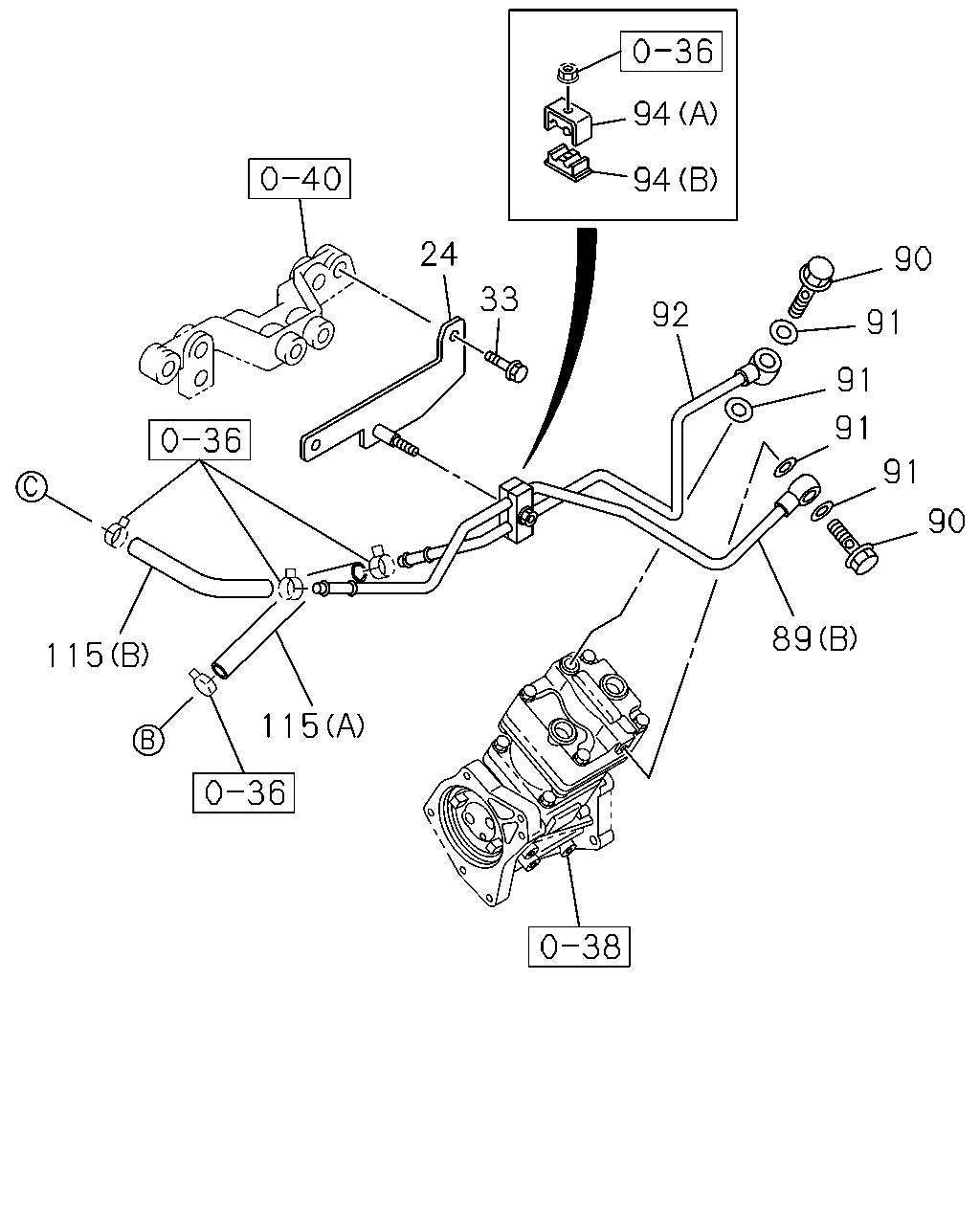

[032A] PIPING NO.2 (15 parça)

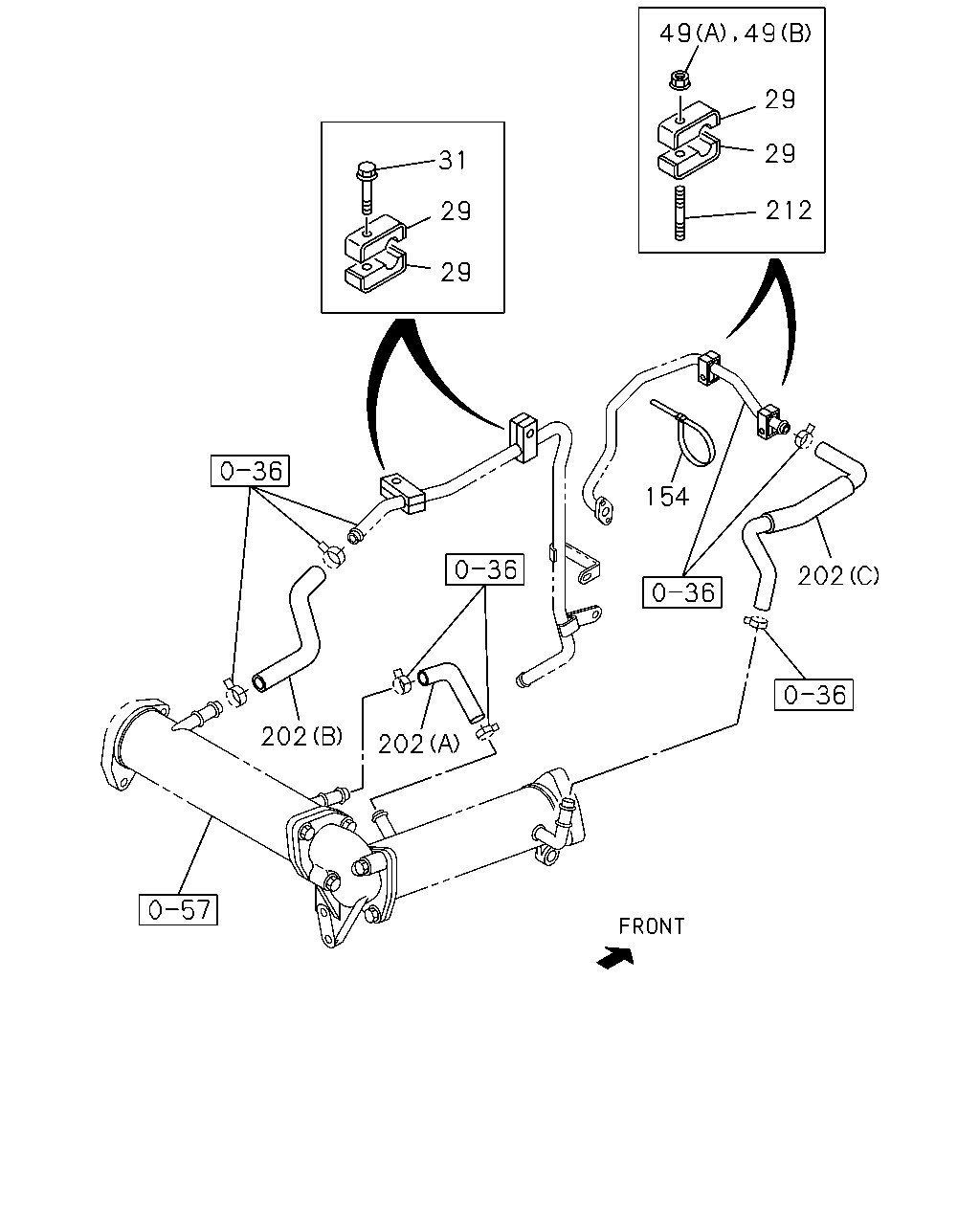

[032A] PIPING NO.1 (9 parça)
▶
148
2
148
89
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; WATER,BY-PASS
8-97379-228-1
01
1
0710-
10
PIPE; SUCTION
8-98084-562-0
01
1
0710-1010
10
PIPE; SUCTION
8-98166-995-0
01
1
1011-
17
BOLT; SUCTION PIPE
M8X48 FLANGE
8-94458-473-1
01
1
0710-
89
PIPE; WATER,AIR CMPR,IN
(A)
8-97358-699-0
01
1
0710-
89
PIPE; WATER,AIR CMPR,IN
(B)
8-97376-783-1
01
1
0710-
148
CLIP; BYPASS HOSE
ID=30
9-09915-315-1
02
1
0710-
94
94
90
91
91
91
91
90
92
89
33
24
115
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
8-97379-140-0
01
1
0710-
33
BOLT; BRKT
M6X10 FLANGE
0-28050-610-0
04
1
0710-0803
33
BOLT; BRKT
M6X10 FLANGE
0-28050-610-0
02
1
0804-
89
PIPE; WATER,AIR CMPR,IN
(A)
8-97358-699-0
01
1
0710-
89
PIPE; WATER,AIR CMPR,IN
(B)
8-97376-783-1
01
1
0710-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
02
1
0710-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
04
1
0710-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
92
PIPE; WATER,AIR CMPR,OUT
8-97376-784-0
01
1
0710-
94
CLIP; WATER PIPE
(B)
1-09701-180-0
01
1
0710-
94
CLIP; WATER PIPE
(A) ID=10 & 10 L=25
8-94393-280-3
03
1
0710-0803
94
CLIP; WATER PIPE
(A) ID=10 & 10 L=25
8-94393-280-3
01
1
0804-
115
HOSE; RUBBER
(A) L=130 SERVICED BY L=3000
0-03559-300-0
01
1
0710-1010
115
HOSE; RUBBER
(A)
8-98136-884-0
01
1
1011-
115
HOSE; RUBBER
(B)
8-98009-361-0
01
1
0710-
49
49
29
29
31
212
29
29
154
202
202
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CLIP; PIPE
1-09701-284-0
08
1
0710-
31
BOLT; CLIP
M8X40 FLANGE
0-28050-840-0
02
1
0710-
49
NUT; WATER PIPE
(A) M8 FLANGE
0-91180-108-0
02
1
0710-
49
NUT; WATER PIPE
(B) M8 FLANGE
0-91180-208-0
01
1
0710-0803
154
CLIP; WATER HOSE
L=170.3
1-09987-182-0
01
1
0710-
202
HOSE; RUBBER,EGR COOLER
(A)
8-97386-585-0
01
1
0710-
202
HOSE; RUBBER,EGR COOLER
(B)
8-97386-586-1
01
1
0710-
202
HOSE; RUBBER,EGR COOLER
(C)
8-97386-587-1
01
1
0710-
212
STUD; PIPE
M8X45 L=55
8-94217-227-0
02
1
0710-
