0-14 — CAMSHAFT AND VALVE (#62868) — 62 parça

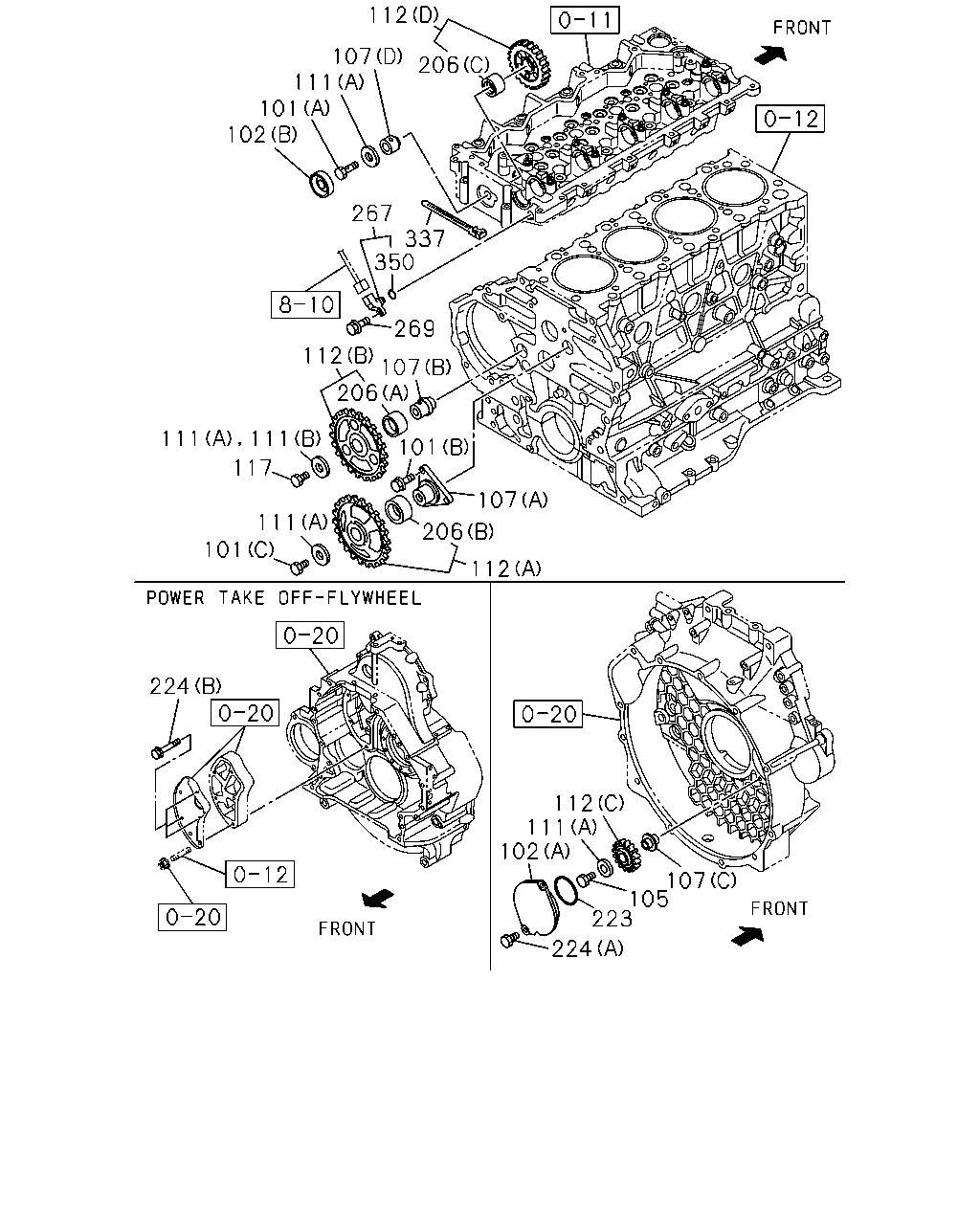

112 107 111 101 102 206 337 350 267 269 112 107 206 111 111 101 117 107 111 101 206 112 224 112 111 102 107 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0710-
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0710-
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0710-1310
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0710-
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0710-
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0710-
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	0710-
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0710-
107	SHAFT; IDLE GEAR (D)	8-97606-990-1	01	1	0710-
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98060-780-0	01	1	0710-
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	03	1	0710-
111	COLLAR; THRUST,IDLE GEAR POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=24 OD=60	8-94396-897-0	01	1	0710-
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=14.5 OD=46	8-97209-728-2	01	1	0710-
112	GEAR; IDLE (C) Z=34	8-97120-005-1	01	1	0710-
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0710-
112	GEAR; IDLE (D) Z=41	8-98058-320-1	01	1	0710-
112	GEAR; IDLE POWER TAKE OFF-FLYWHEEL(6SZ) (B) Z=72-60-30	8-97306-086-1	01	1	0710-0711
112	GEAR; IDLE POWER TAKE OFF-FLYWHEEL(6SZ) (B) Z=72-60-30	8-98021-069-0	01	1	0712-
112	GEAR; IDLE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) Z=72-60-30	8-97600-586-1	01	1	0710-1402
112	GEAR; IDLE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) Z=72-60-30	8-98254-970-0	01	1	1403-
117	BOLT; FLANGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M14X65 FLANGE	8-97113-167-0	01	1	0710-
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0710-
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0710-
206	BUSHING; IDLE GEAR POWER TAKE OFF-FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	8-94396-047-0	01	1	0710-0711
206	BUSHING; IDLE GEAR POWER TAKE OFF-FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	8-98021-070-0	01	1	0712-
206	BUSHING; IDLE GEAR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0710-1402
206	BUSHING; IDLE GEAR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0710-
224	BOLT; COVER (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-
224	BOLT; COVER POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X50 FLANGE	0-28050-850-0	03	1	0710-
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	0710-
269	BOLT; SENSOR M6X12 FLANGE	0-28050-612-0	01	1	0710-
337	CLIP; SENSOR L=170	5-09707-054-0	01	1	0710-0711
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8	8-97369-404-0	01	1	0710-

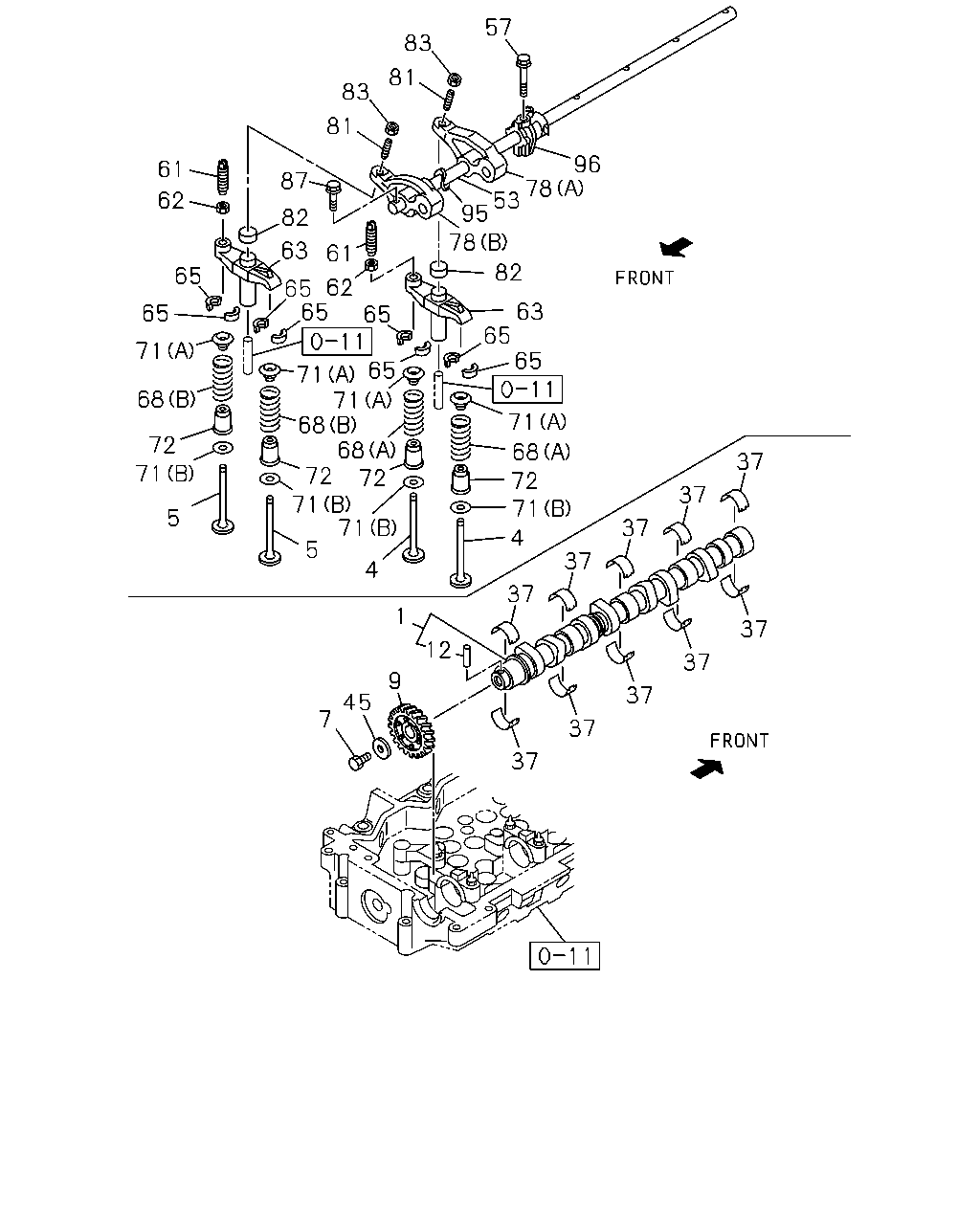

57 83 81 83 81 96 87 61 78 53 95 62 82 78 63 61 82 65 65 63 65 65 65 65 71 65 71 71 68 68 72 72 71 71 68 71 72 68 37 71 72 71 37 5 37 4 5 37 4 37 1 37 12 37 9 37 45 7 37 37 65 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAMSHAFT	8-97262-166-0	01	1	0710-
4	VALVE; INL	8-94395-882-2	08	1	0710-
5	VALVE; EXH	8-97209-876-3	08	1	0710-
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0710-
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	0710-
12	KEY; CAM GEAR SET	8-94399-487-0	02	1	0710-
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0710-
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	0710-
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	0710-
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	0710-
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0710-
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	0710-
63	BRIDGE	8-94392-002-3	08	1	0710-
65	COLLAR; SPLIT	5-12565-004-0	32	1	0710-
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	0710-
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	0710-
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	0710-
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	0710-
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0710-
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	0710-
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	0710-
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0710-
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	0710-
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0710-
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	0710-
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0710-
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	0710-
