◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11398 - FSR(LHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#62831) — 17 parça

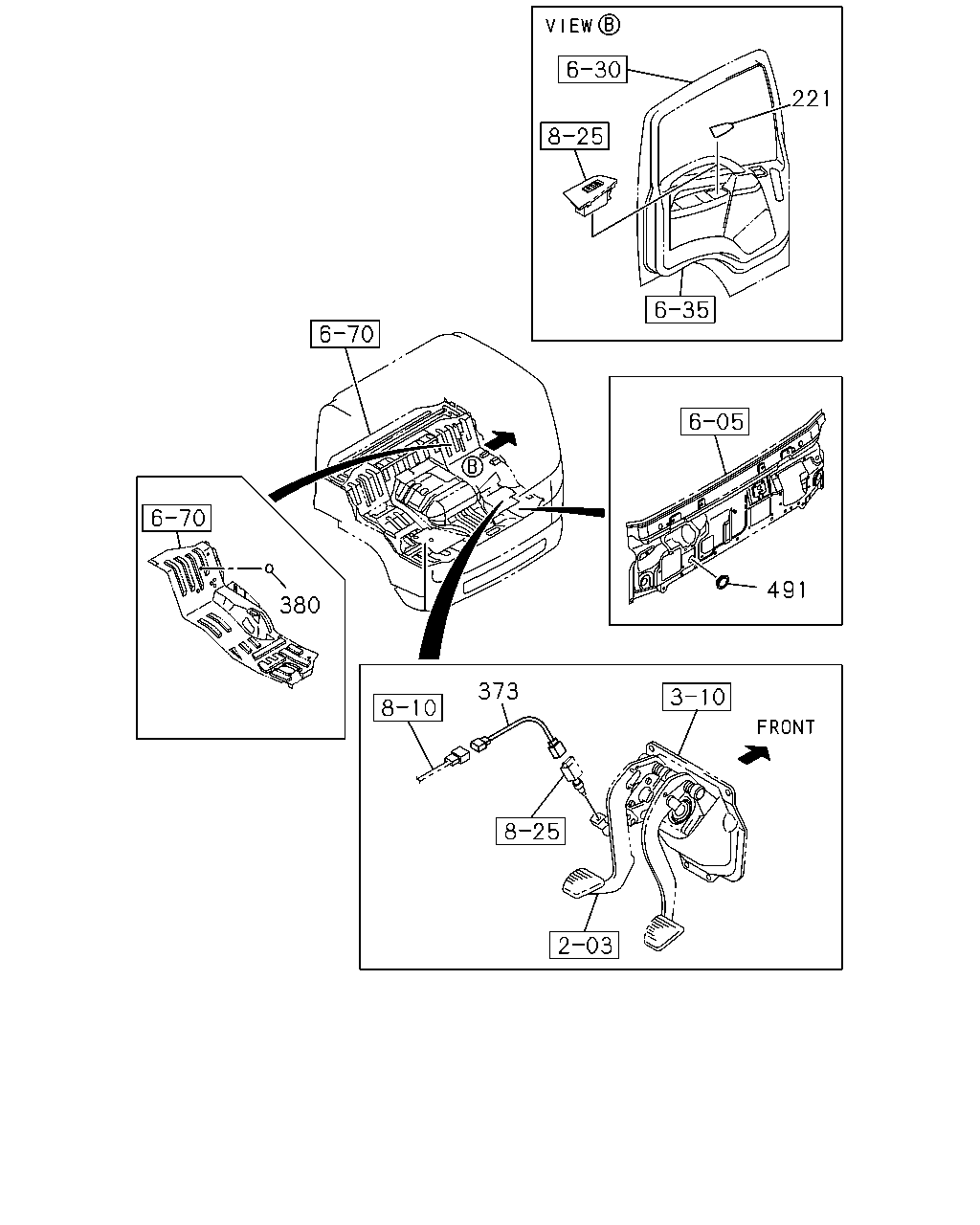

çizim 150328
221 491 380 373
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1110-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1110-
373 HARNESS; CLU SWITCH 8-98110-720-0 01 1 1110-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1110-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1110-

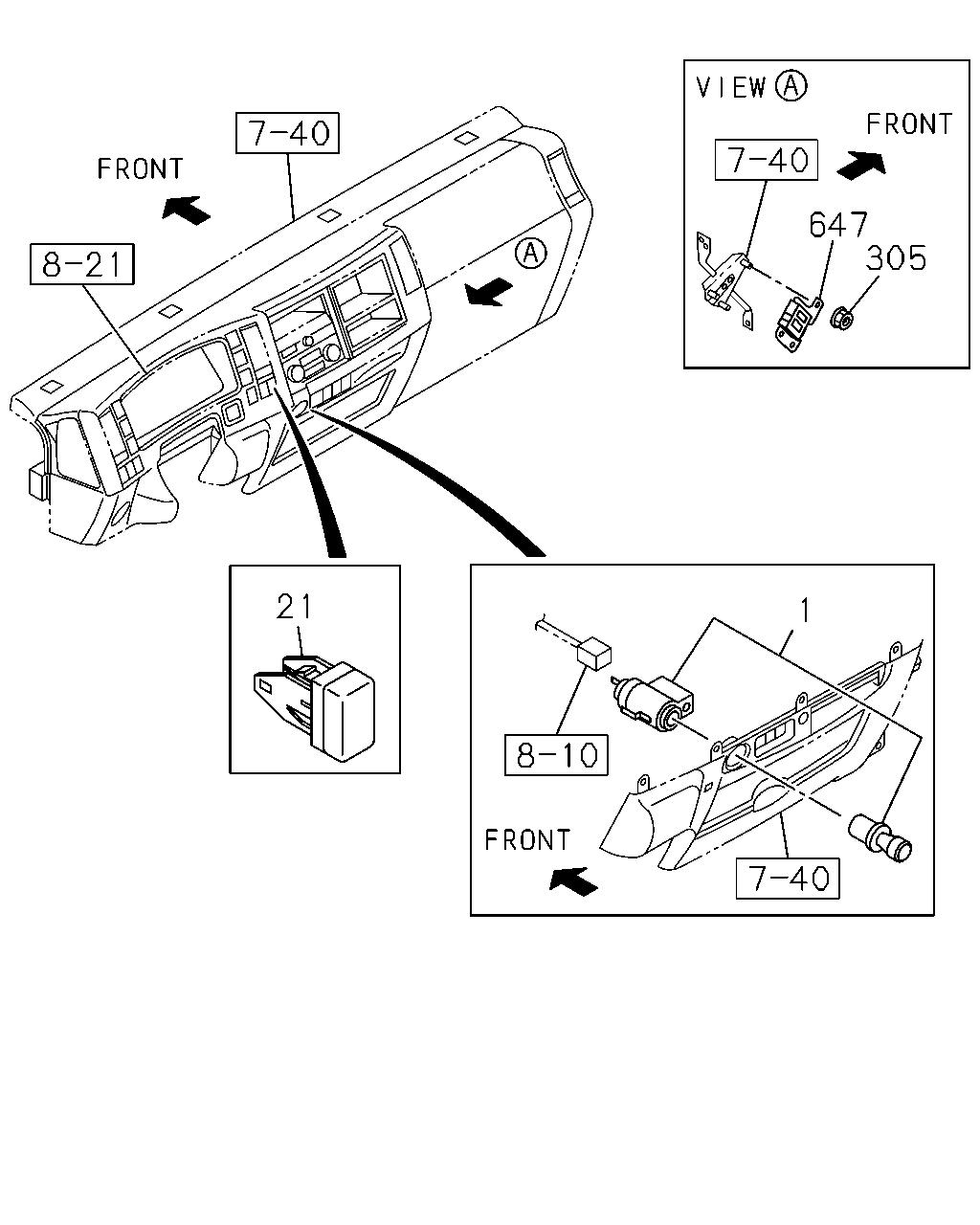

çizim 150341
647 305 21 1
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1110-
21 COVER; HOLE 8-98025-954-1 01 1 1110-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 03 1 1110-
647 CONTROL UNIT; GLOW PLIG 8-98175-424-0 01 1 1110-

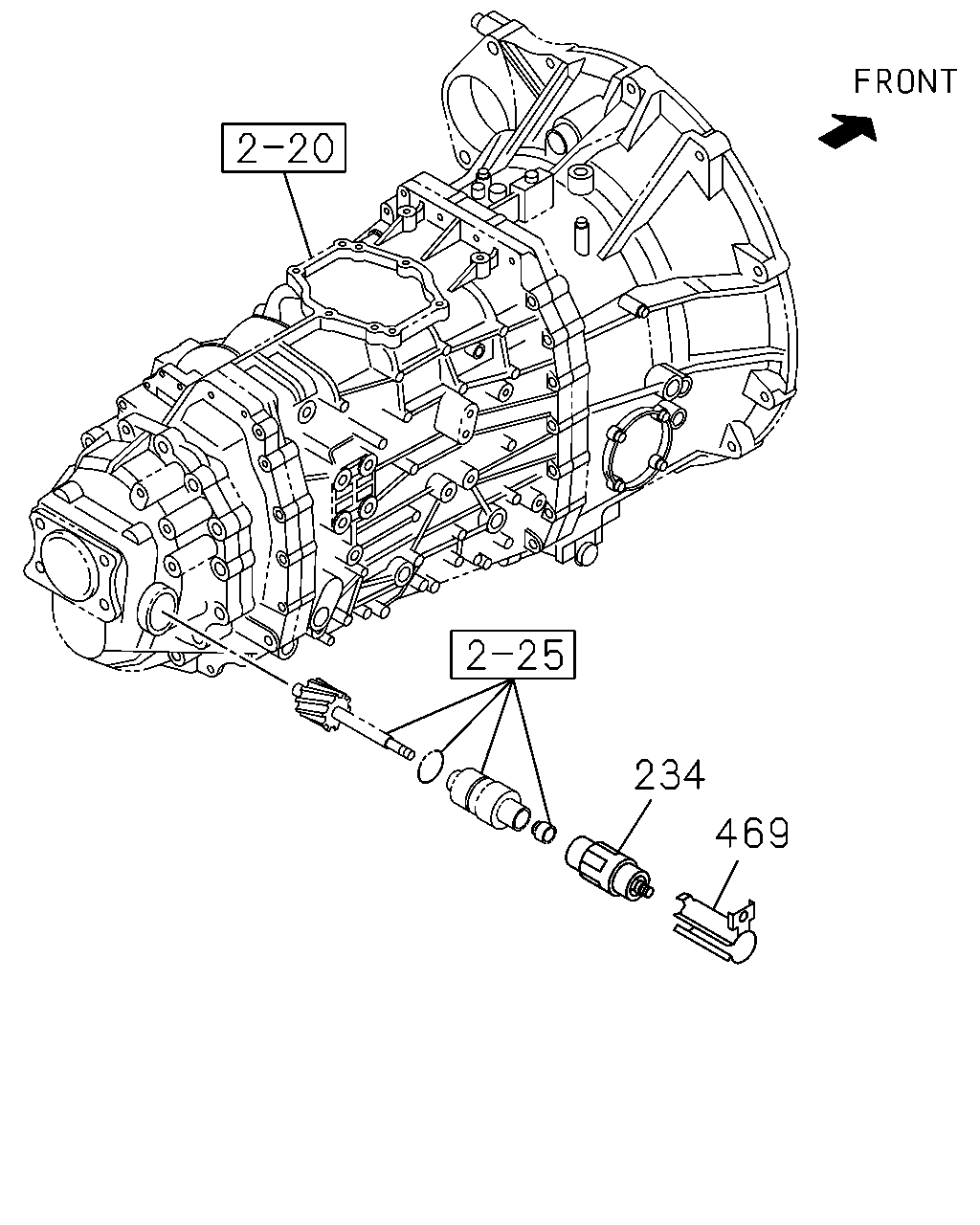

çizim 150351
234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1110-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1110-

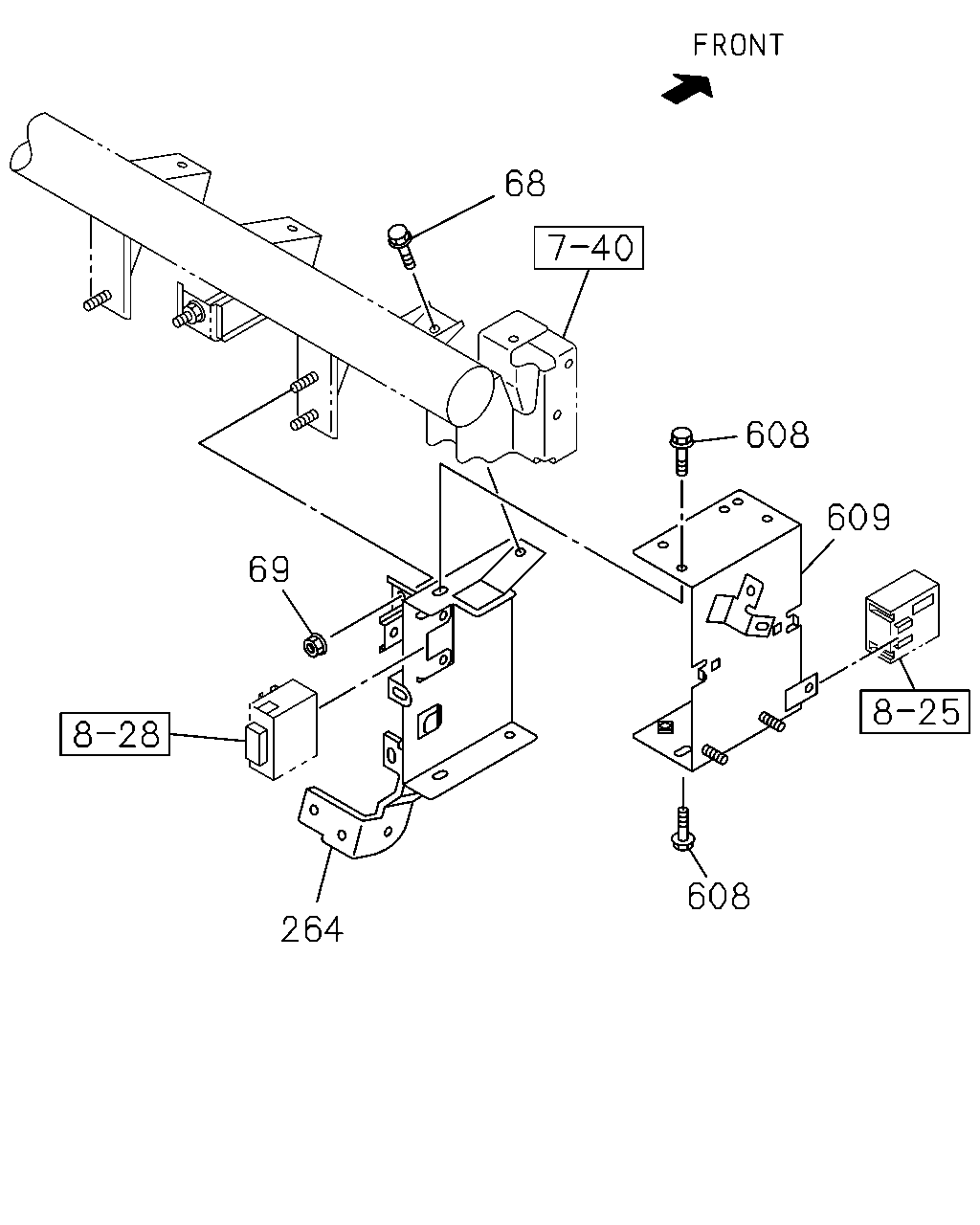

çizim 150355
68 608 609 69 608 264
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1110-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1110-
264 BRACKET; CONT UNIT 8-97616-354-5 01 1 1110-
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1110-
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98095-336-0 01 1 1110-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98226-231-1 01 1 1309-
