◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11398 - FSR(LHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#62830) — 42 parça

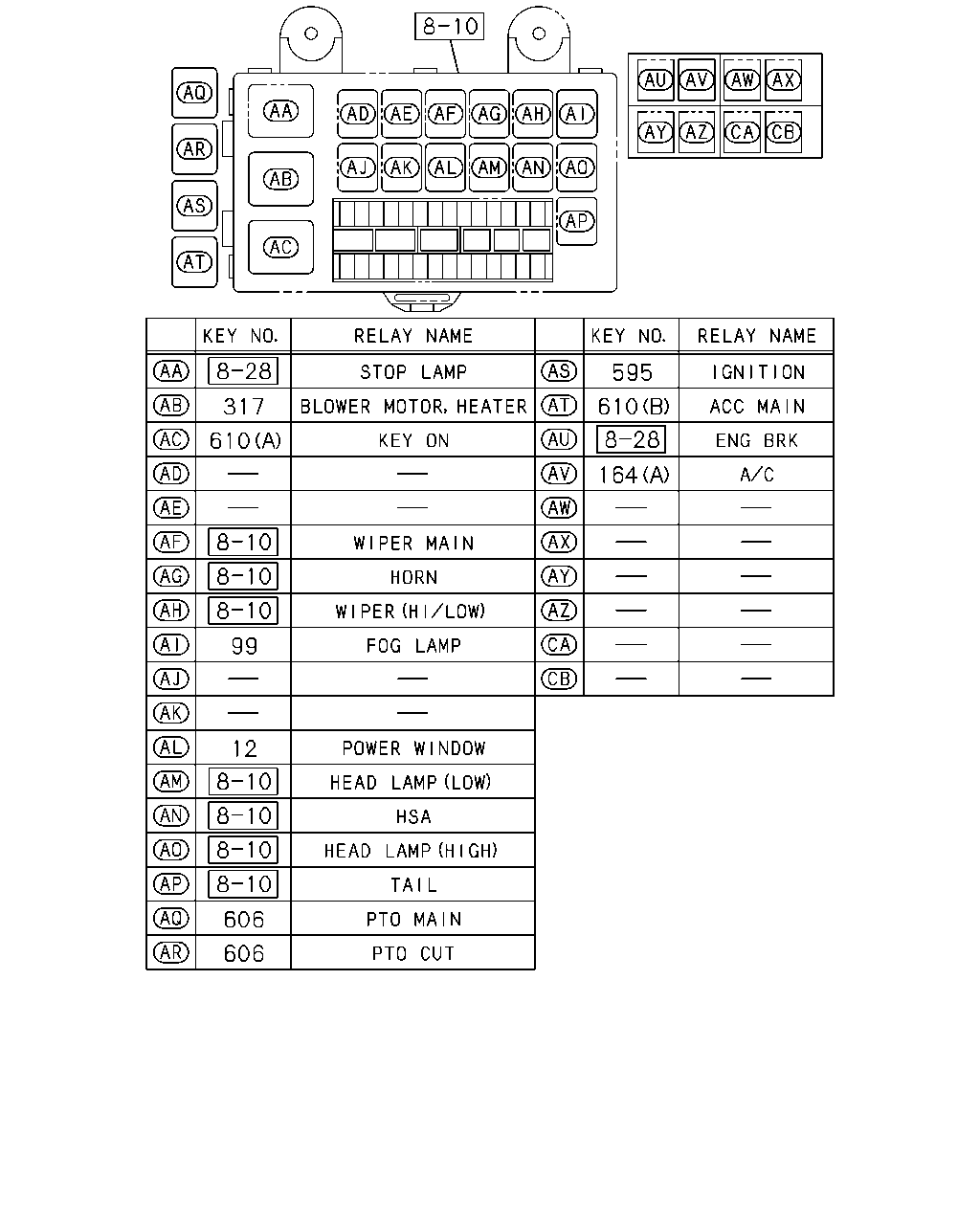

çizim 150318
317 12 606 606 595 610 164 99 610
BalonParca AdiParca NoAdetTipApplied Date
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1110-
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1110-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1110-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1110-
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1110-
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 02 1 1110-
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1110-

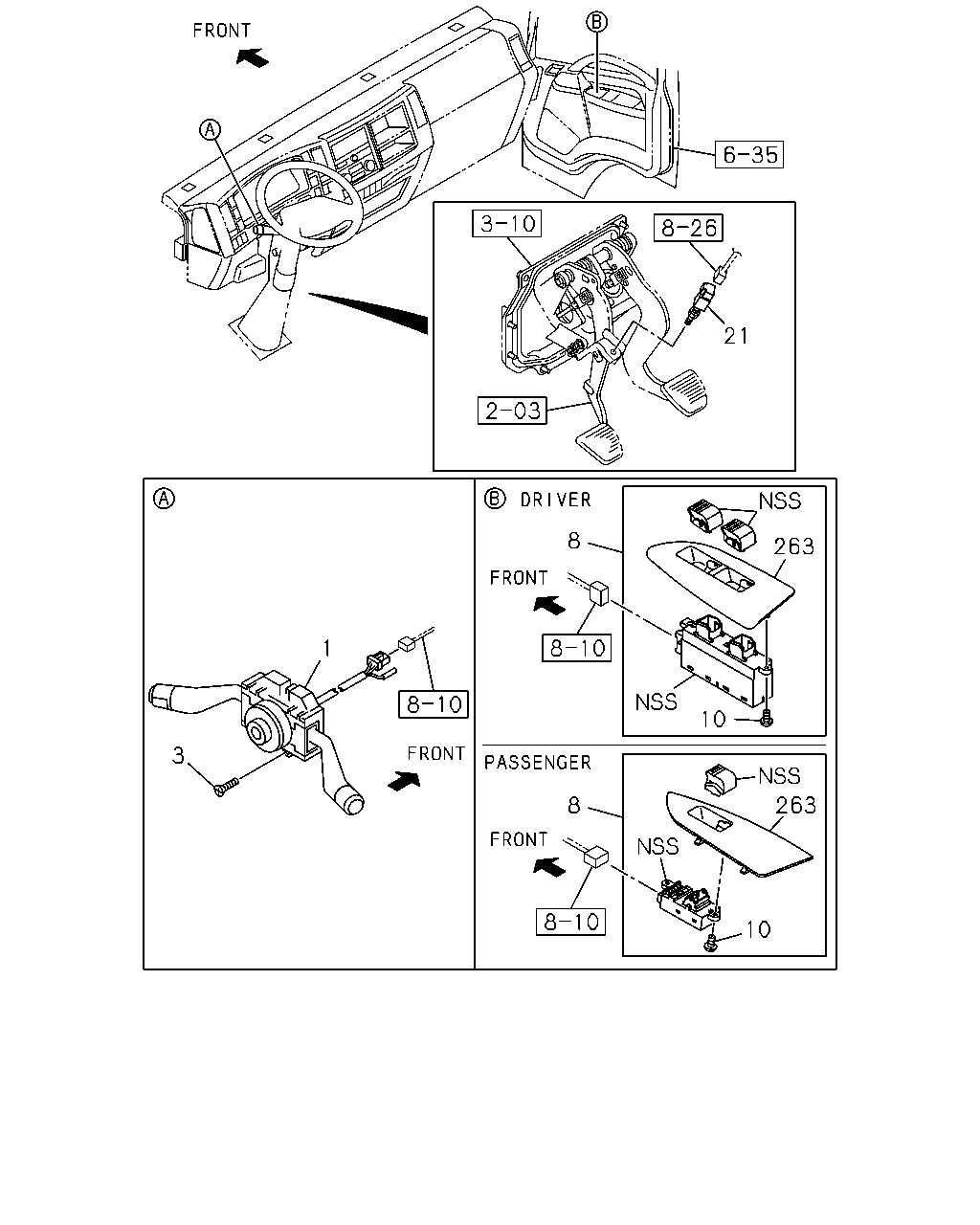

çizim 150324
21 8 263 1 10 3 263 8 10
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 8-98114-825-0 01 1 1110-1310
1 SWITCH; COMB 8-98243-720-0 01 1 1311-
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1110-
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98001-737-2 01 1 1110-1509
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98298-751-0 01 1 1510-
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98159-544-0 01 1 1110-1509
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98316-418-0 01 1 1510-
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1110-
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-94337-761-0 01 1 1110-
21 SWITCH; CLU
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1110-
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-838-0 01 1 1110-
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-843-0 01 1 1110-
çizim 150325
164
BalonParca AdiParca NoAdetTipApplied Date
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1110-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1110-

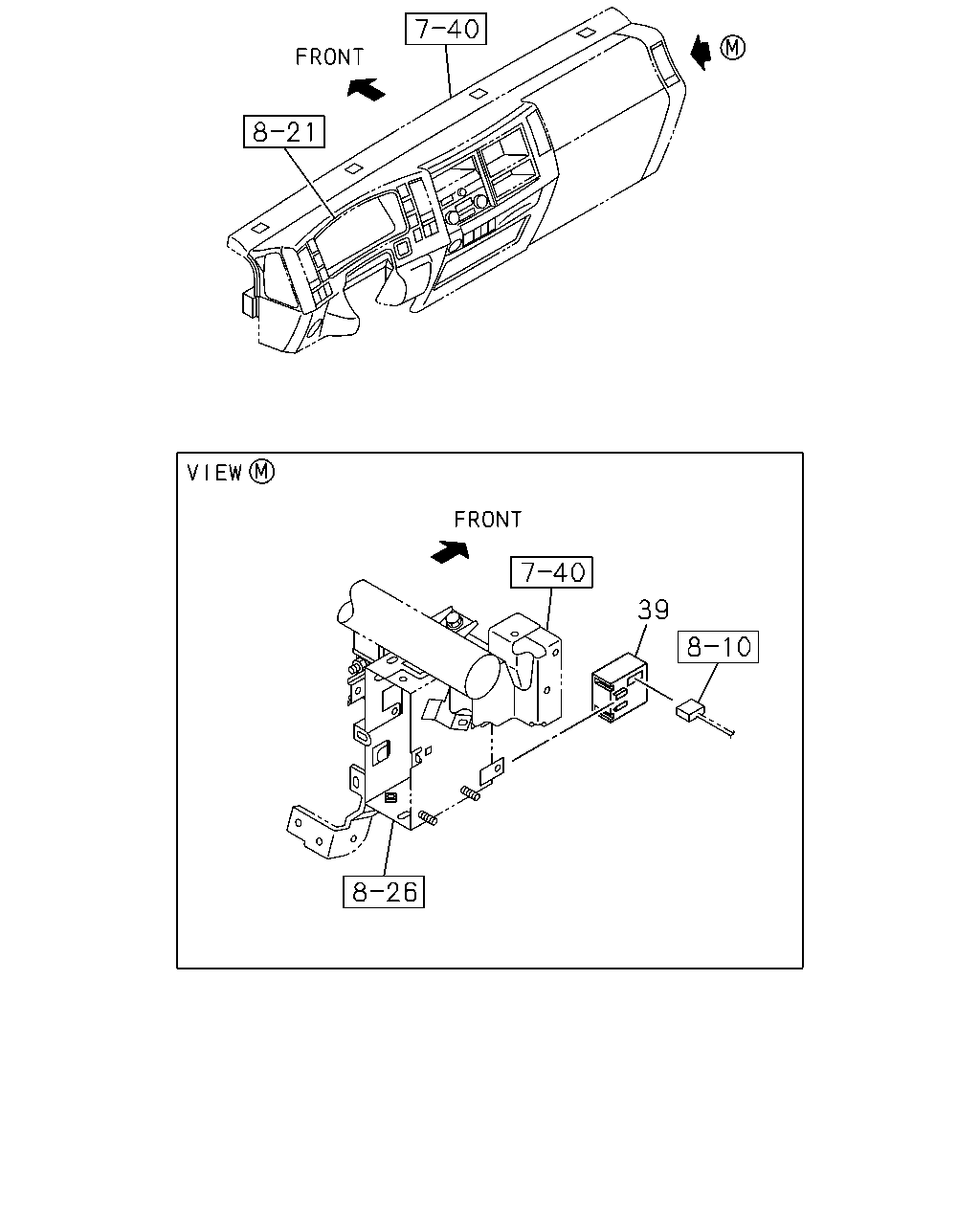

çizim 150332
39
BalonParca AdiParca NoAdetTipApplied Date
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1110-

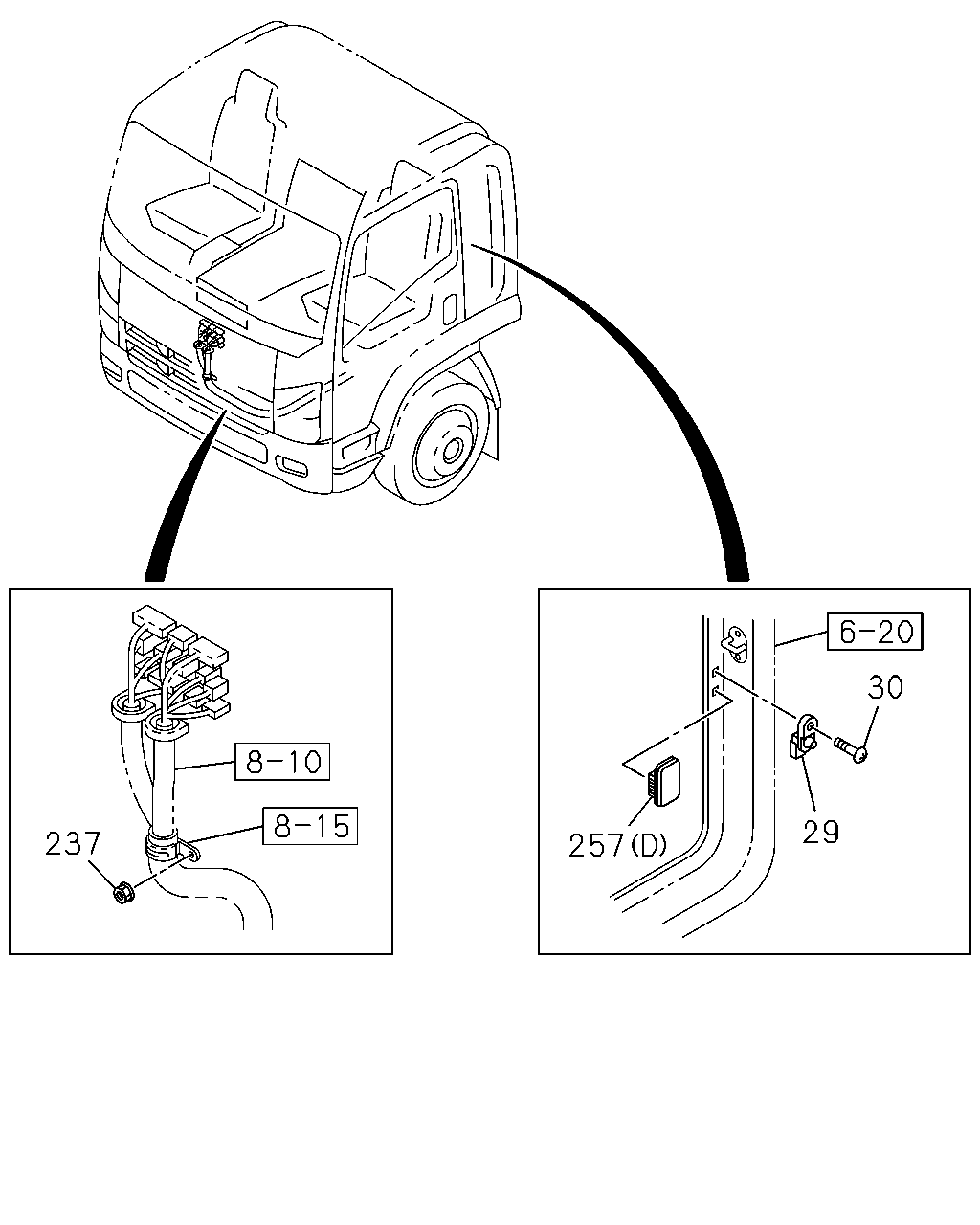

çizim 150333
30 29 237 257
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1110-
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1110-
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1110-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 09 1 1110-
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1110-
257 COVER; HOLE,SW
(D) 		8-98029-917-0 01 1 1110-
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 1110-
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1110-

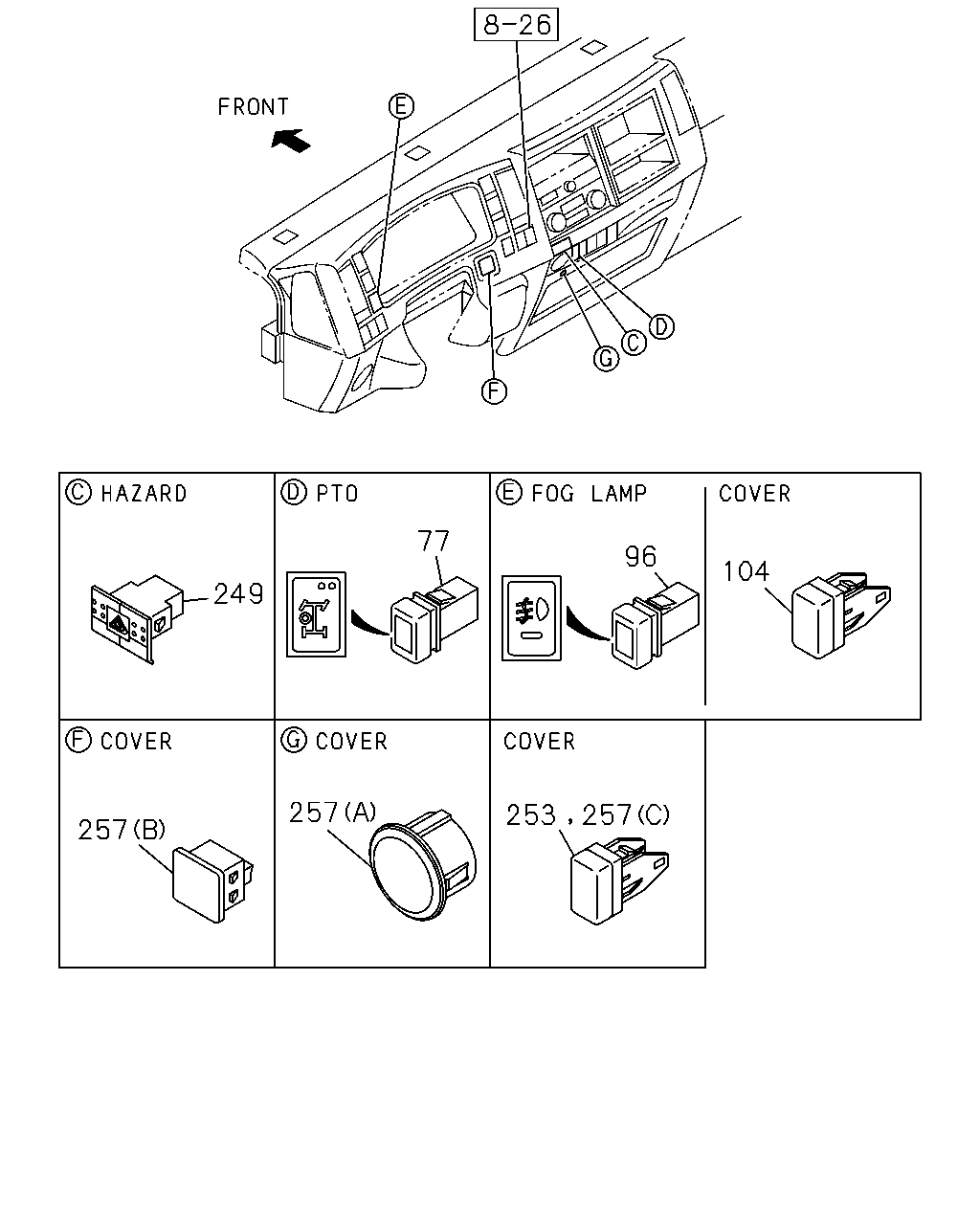

çizim 150334
77 96 104 249 257 253 257 257
BalonParca AdiParca NoAdetTipApplied Date
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 1110-
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1110-
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1110-
249 SWITCH; HAZARD 8-97386-922-1 01 1 1110-
253 COVER; SW HOLE 8-98025-954-1 04 1 1110-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 09 1 1110-
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1110-
257 COVER; HOLE,SW
(D) 		8-98029-917-0 01 1 1110-
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 1110-
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
