Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#6283) — 315 parça

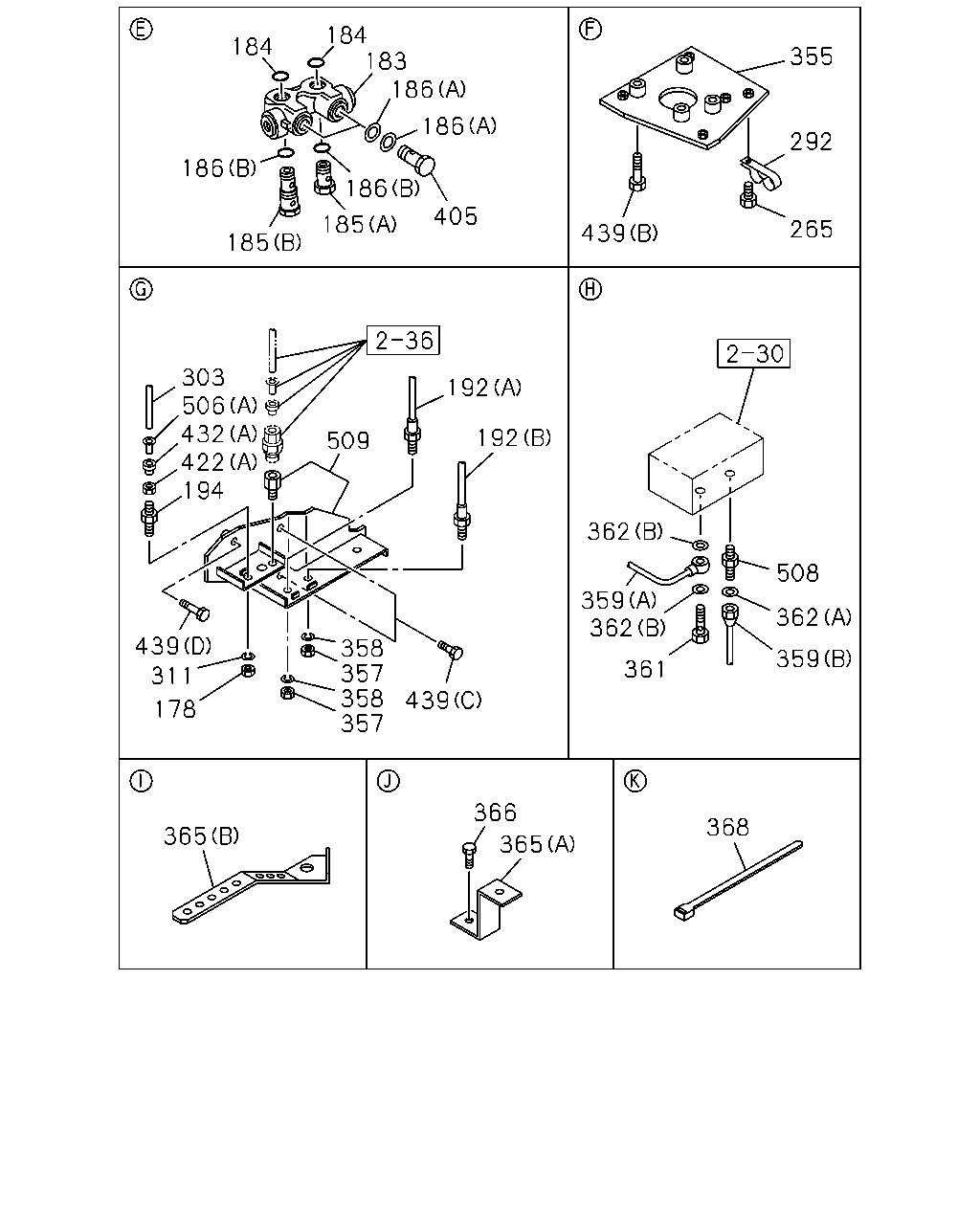

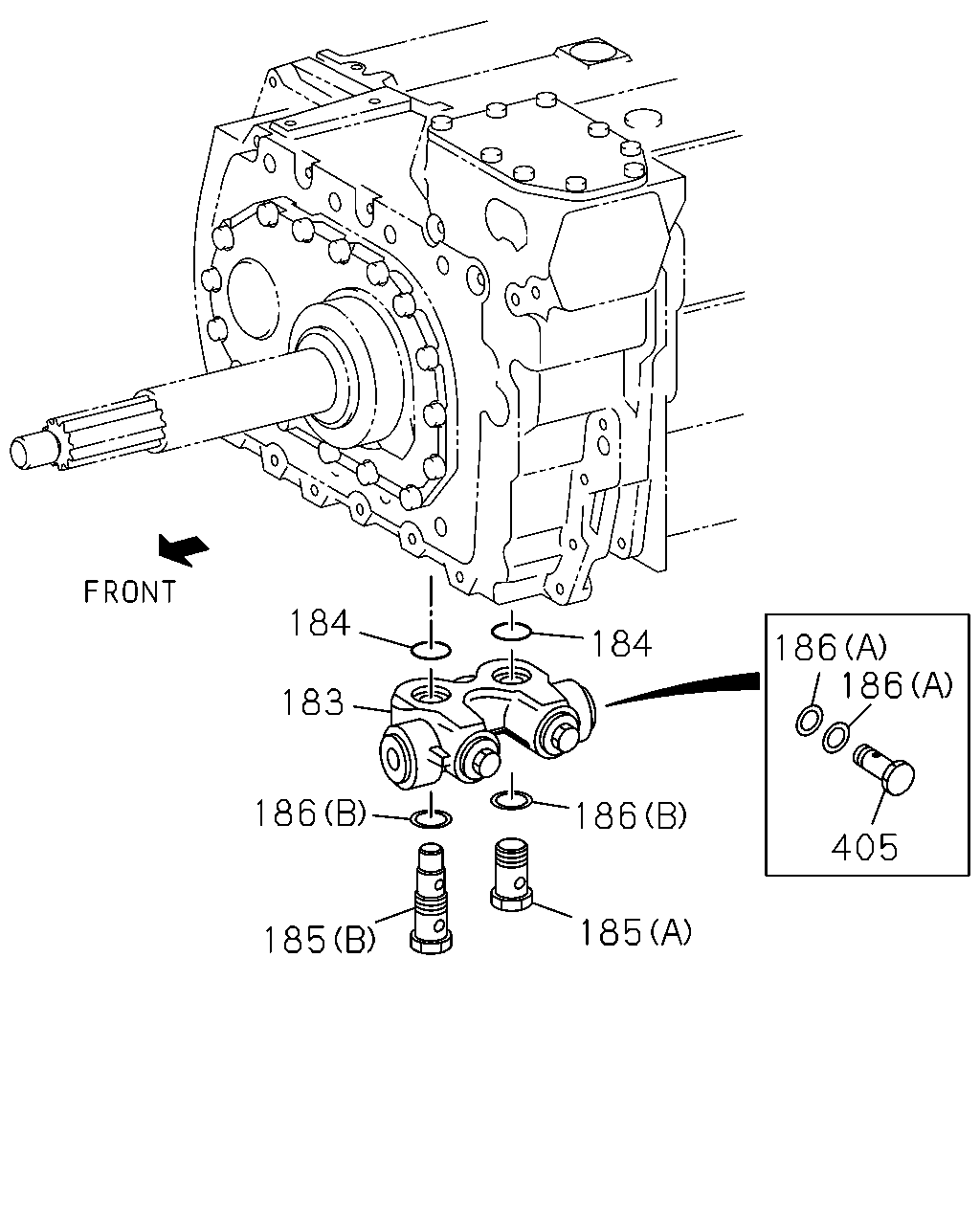

184 184 186 186 183 186 186 405 185 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	9906-	●	●	●
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	9906-	●	●	●
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	9906-	●	●	●
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	9906-	●	●	●
186	RING; SEAL (B) ID=22	1-32568-001-0	04	1	9906-	●	●	●
186	RING; SEAL (A) ID=22	1-32568-002-0	02	1	9906-	●	●	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9906-	●	●	●

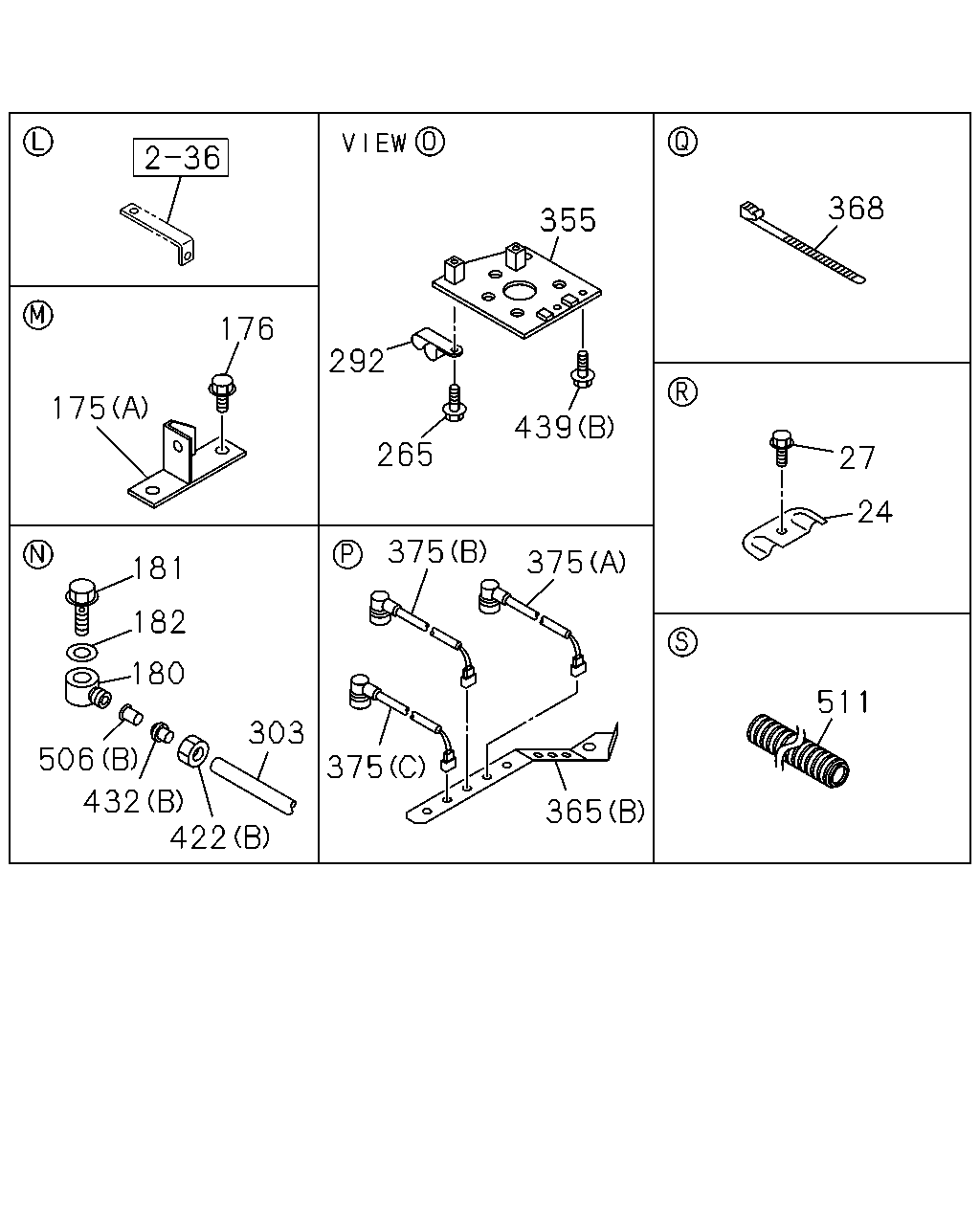

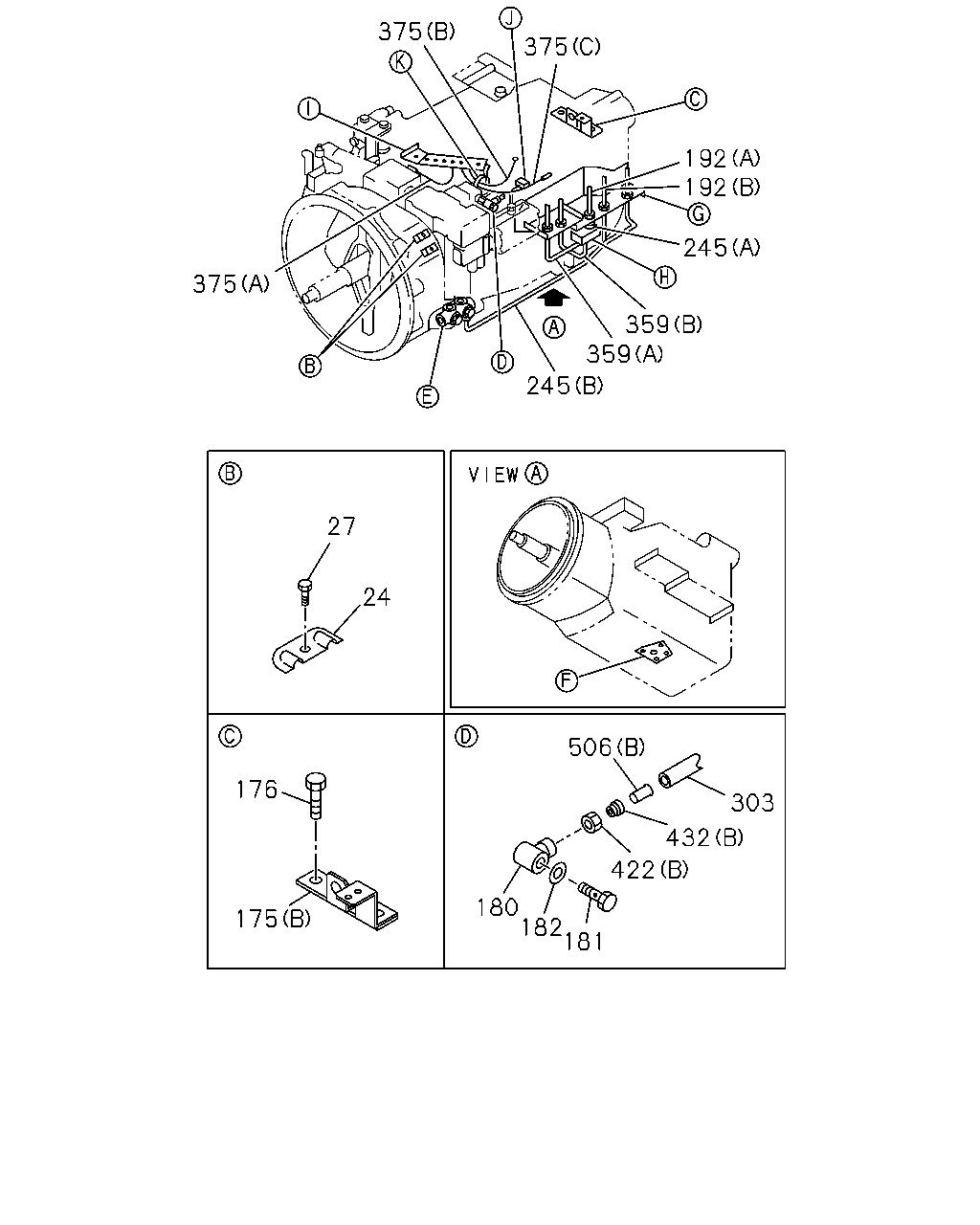

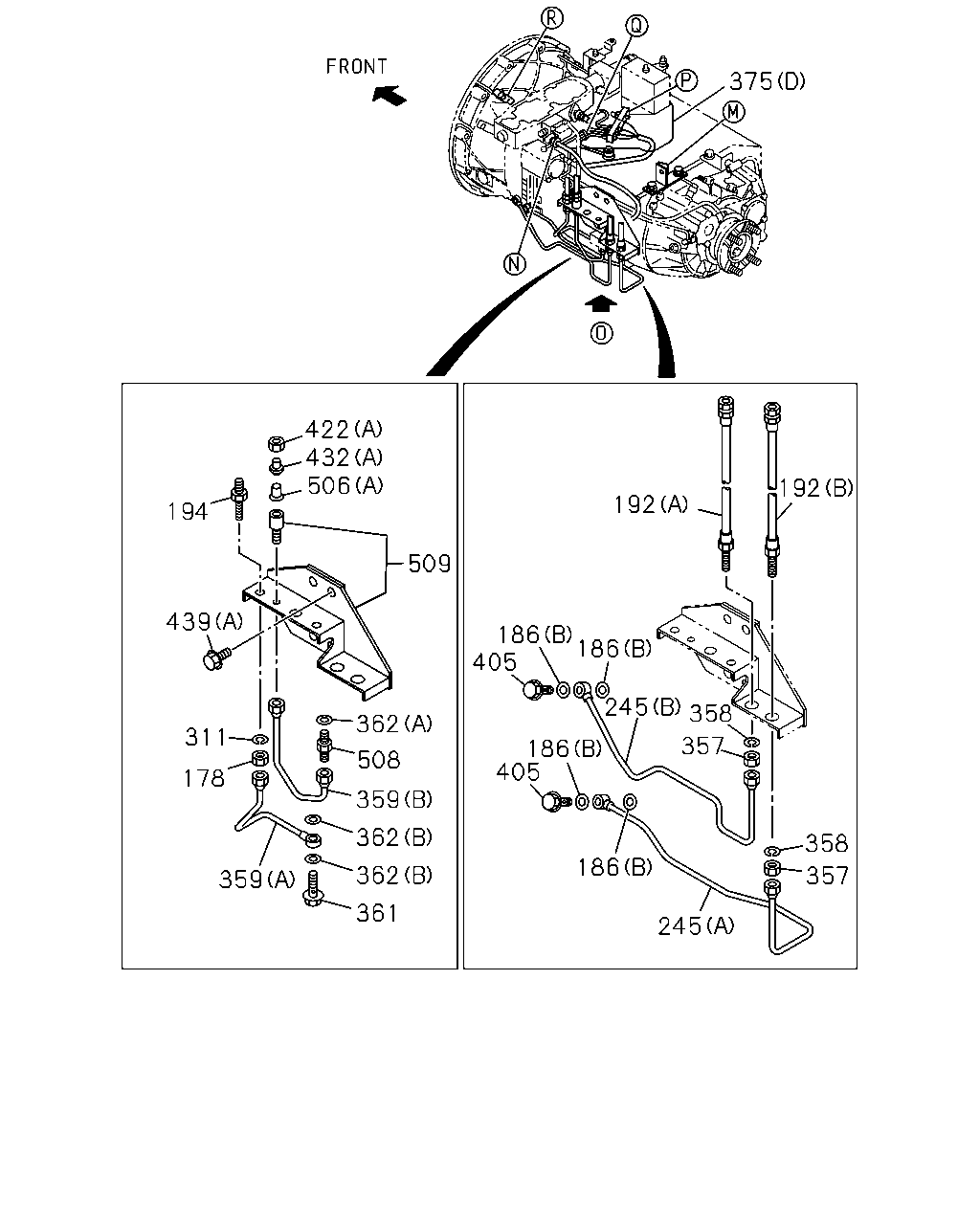

184 183 186 184 355 186 292 186 186 405 185 265 439 185 303 506 432 422 194 192 192 509 362 508 359 362 362 439 358 357 358 357 359 361 311 439 178 366 368 365 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	NUT; UNION M14	9-99111-414-0	01	1	9906-	●	●
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	9906-	●	●	●
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	9906-	●	●	●
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	9906-	●	●	●
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	9906-	●	●	●
186	RING; SEAL (B) ID=22	1-32568-001-0	04	1	9906-	●	●	●
186	RING; SEAL (A) ID=22	1-32568-002-0	02	1	9906-	●	●	●
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	9906-9911	●
192	HOSE; FLEX,TRANS (B) L=400	1-09364-913-0	01	1	9912-0003	●
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	0004-	●
192	HOSE; FLEX,TRANS (A) L=500	1-09364-914-0	01	1	9912-0003	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	9906-9911	●	●	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	9912-0003		●	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	0004-	●	●	●
192	HOSE; FLEX,TRANS (B) L=535	1-09364-936-0	01	1	9906-		●	●
194	UNION; NYLON TUBE M14	1-09664-230-0	01	1	9906-	●	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9906-9906	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9907-0002	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0003-	●
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9906-		●	●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	9906-	●	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	9906-	●	●
355	BRACKET; OIL PIPE	1-47477-500-1	01	1	9906-	●
355	BRACKET; OIL PIPE	1-47478-217-1	01	1	9906-		●	●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	9906-	●	●	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9906-	●	●	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	9906-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	9906-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9906-		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9906-		●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9906-	●	●
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	9906-	●	●
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9906-	●	●
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	9906-	●	●
365	BRACKET; HARNESS (A)	1-47478-012-0	01	1	9906-0008	●
365	BRACKET; HARNESS (A)	1-47479-047-0	01	1	0009-	●
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	9906-	●	●	●
366	BOLT; BRKT,HARNESS M10X16 FLANGE	0-28181-016-0	01	1	9906-0008	●
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28181-225-0	01	1	0009-	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	9906-	●	●	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9906-	●	●	●
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	9906-	●	●	●
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9906-	●	●	●
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9906-	●	●	●
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9906-	●	●	●
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	9906-	●
439	BOLT; BRKT (D) M16X40 FLANGE	0-28881-640-0	01	1	9906-	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9906-	●	●	●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	9906-		●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9906-	●	●	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9906-	●	●	●
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	9906-	●	●
509	BRACKET; PIPE	1-47477-447-2	01	1	9906-	●
509	BRACKET; PIPE	1-47478-215-2	01	1	9906-		●	●

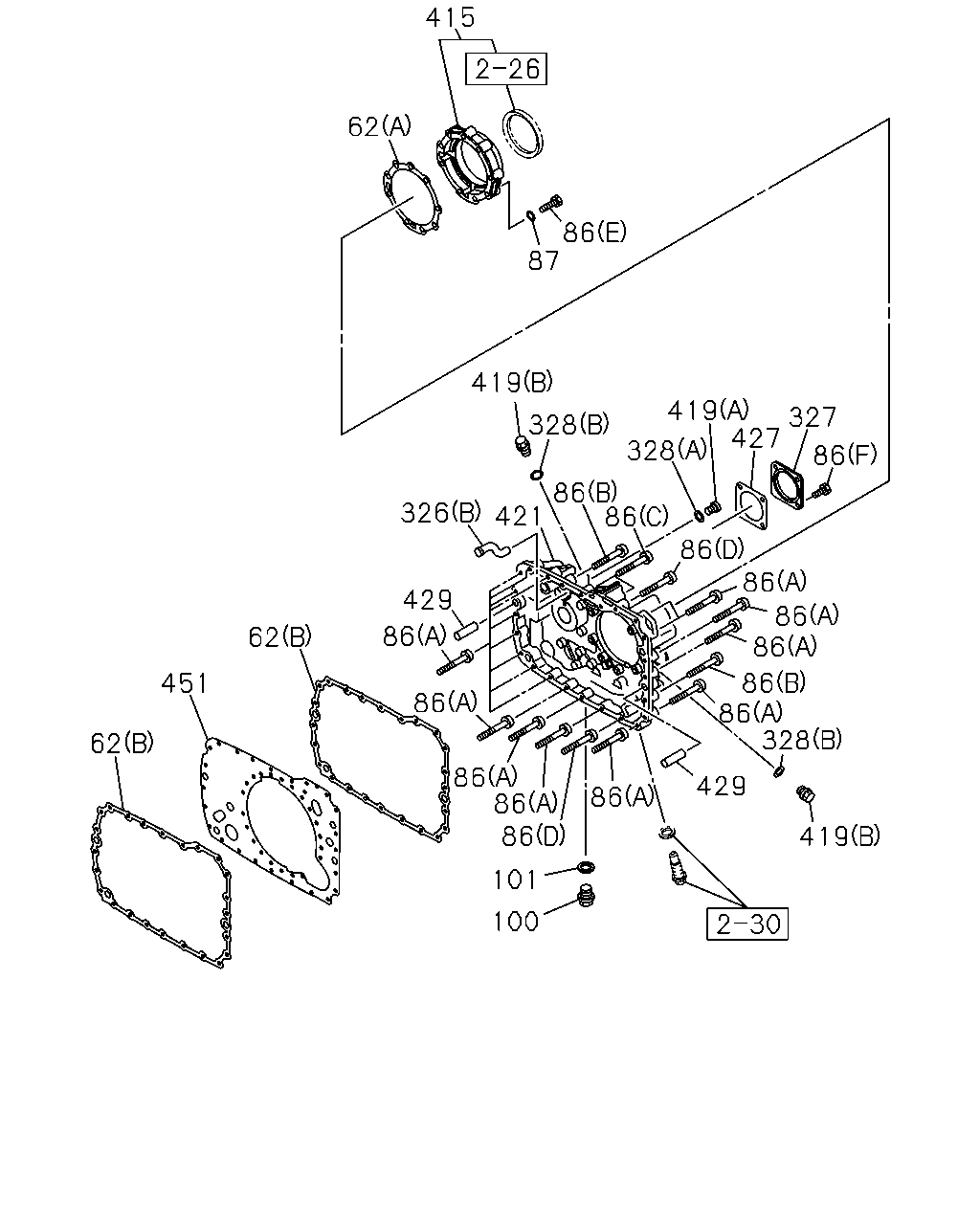

415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 86 429 86 419 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-399-0	02	1	9906-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-053-0	01	1	9906-	●	●
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (F) M12X25	1-33119-400-0	04	1	9906-	●	●
86	BOLT; RR COVER (A)	1-33119-266-0	18	1	9906-	●	●
86	BOLT; RR COVER (E)	1-33139-054-0	09	1	9906-	●	●
86	BOLT; RR COVER (B)	1-33139-056-0	02	1	9906-	●	●
86	BOLT; RR COVER (C) M10X110	1-33139-057-0	02	1	9906-	●	●
86	BOLT; RR COVER (D) M10X50	1-33139-058-0	02	1	9906-	●	●
87	WASHER; LK,RR COVER	1-09469-010-0	09	1	9906-	●	●
100	PLUG; DRAIN RR COVER	1-33119-268-0	01	1	9906-	●	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9906-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	9906-	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	9906-		●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9906-	●	●
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-165-0	01	1	9906-	●	●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9906-	●	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9906-	●	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9906-	●	●
415	COVER; BRG	1-33159-039-0	01	1	9906-	●	●
419	PLUG; RR COVER (B)	1-33119-171-0	02	1	9906-	●	●
419	PLUG; RR COVER (A)	1-34119-008-0	01	1	9906-	●	●
421	COVER; RR,TRANS	1-33131-244-0	01	1	9906-	●	●
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	9906-	●	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	9906-	●	●
451	PLATE; RR COVER	1-33139-055-0	01	1	9906-	●	●

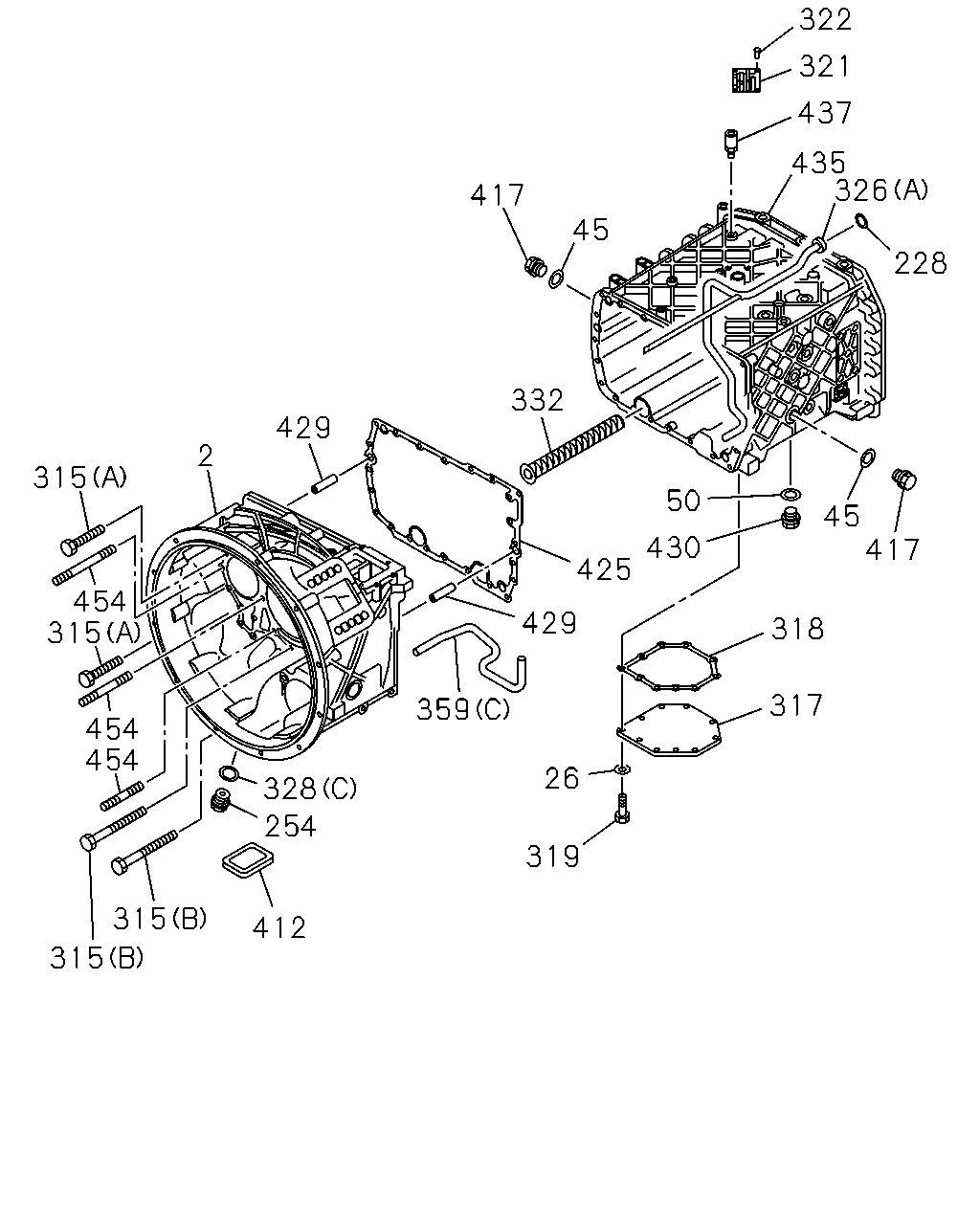

322 321 437 435 326 417 45 228 332 429 2 315 50 45 417 430 425 429 454 315 318 317 359 454 454 26 328 254 319 315 412 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-194-0	01	1	9906-	●	●
26	WASHER; PL,COVER	1-09469-010-0	10	1	9906-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	02	1	9906-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9906-	●	●
228	GASKET; NOZZLE	1-33119-273-0	01	1	9906-	●	●
254	PLUG; DRAIN,OIL	1-33119-376-0	01	1	9906-	●	●
315	BOLT; CASE (A)	1-33119-266-0	15	1	9906-	●	●
315	BOLT; CASE (B)	1-33119-267-0	07	1	9906-	●	●
317	COVER; CASE	1-33119-274-0	01	1	9906-	●	●
318	GASKET; COVER	1-33119-409-0	01	1	9906-	●	●
319	BOLT; COVER	1-33119-276-0	10	1	9906-	●	●
321	PLATE; NAME	1-33119-277-0	01	1	9906-	●	●
322	RIVET; NAME PLATE	1-33119-398-0	04	1	9906-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	9906-	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	9906-		●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9906-	●	●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9906-	●	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9906-	●	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9906-	●	●
332	FILTER; OIL	1-33119-370-0	01	1	9906-	●	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	9906-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	9906-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9906-		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9906-		●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9906-	●	●
412	CAP; CLU HSG	1-31119-022-0	01	1	9906-	●	●
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	02	1	9906-	●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-262-0	01	1	9906-	●	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	9906-	●	●
430	PLUG; OIL DRAIN	1-33119-268-0	01	1	9906-	●	●
435	CASE; TRANS	1-33111-290-0	01	1	9906-	●
435	CASE; TRANS	1-33111-286-0	01	1	9906-		●
437	BREATHER; TRANS	1-36122-004-0	01	1	9906-	●	●
454	STUD; CLU HSG M10 L=50	1-33119-381-0	04	1	9906-	●	●
454	STUD; CLU HSG M10 L=80	1-33119-393-0	08	1	9906-	●	●
454	STUD; CLU HSG M10 L=25	1-33119-394-0	11	1	9906-	●	●

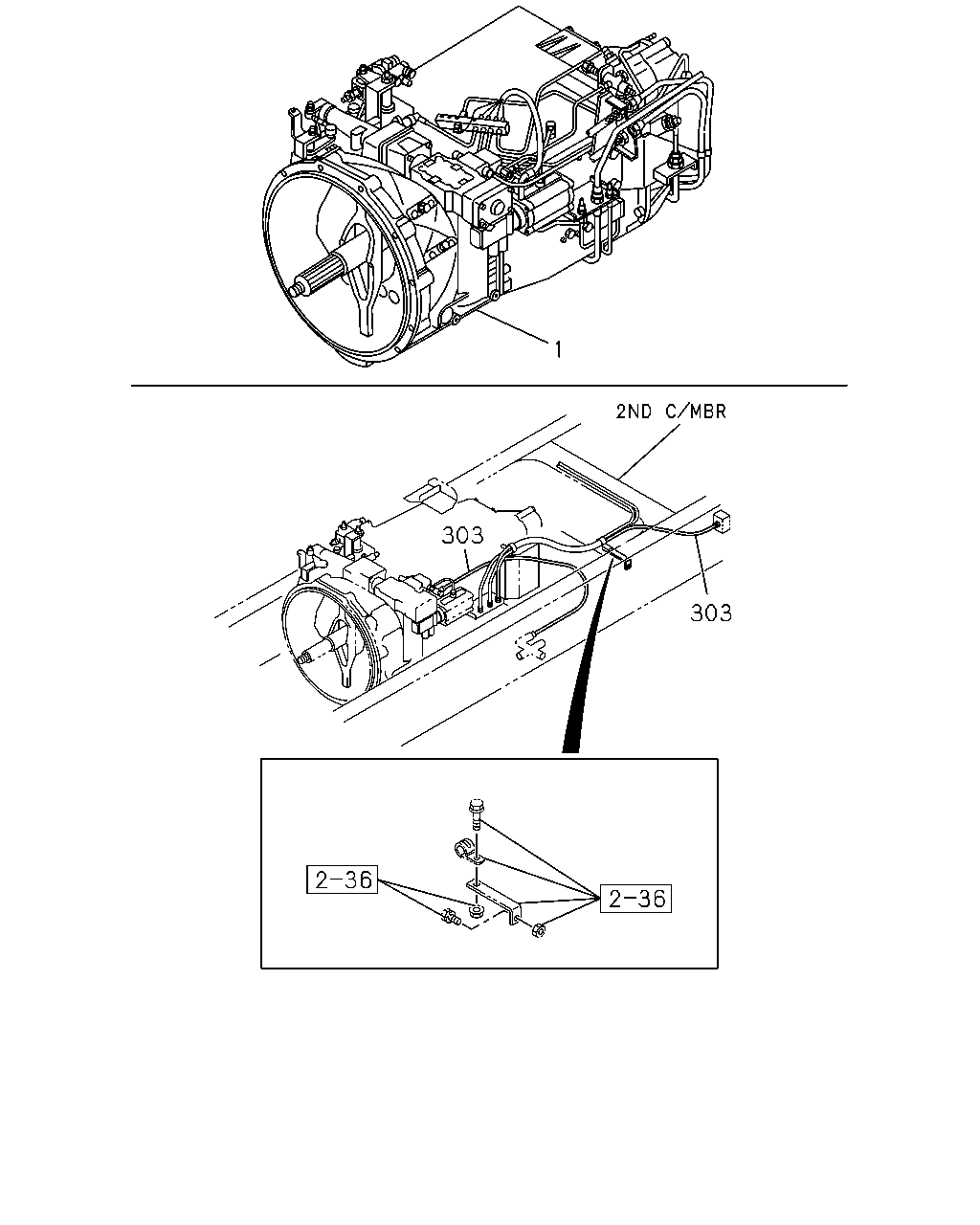

1 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) PTO ZF TRANS RR(BDM)	1-33042-033-0	01	1	9906-9909	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-033-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33042-017-0	01	1	9906-9909	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-017-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) PTO ZF TRANS RR(BDM)	1-33042-034-0	01	1	9906-9909	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-034-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33042-018-0	01	1	9906-9909	●
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-018-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-021-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33043-023-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33043-020-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33043-022-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33042-165-0	01	1	9906-		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-011-0	01	1	9906-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-012-0	01	1	9906-		●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-166-0	01	1	9906-		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33042-163-0	01	1	9906-			●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-019-0	01	1	9906-			●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-020-0	01	1	9906-			●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-164-0	01	1	9906-			●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●

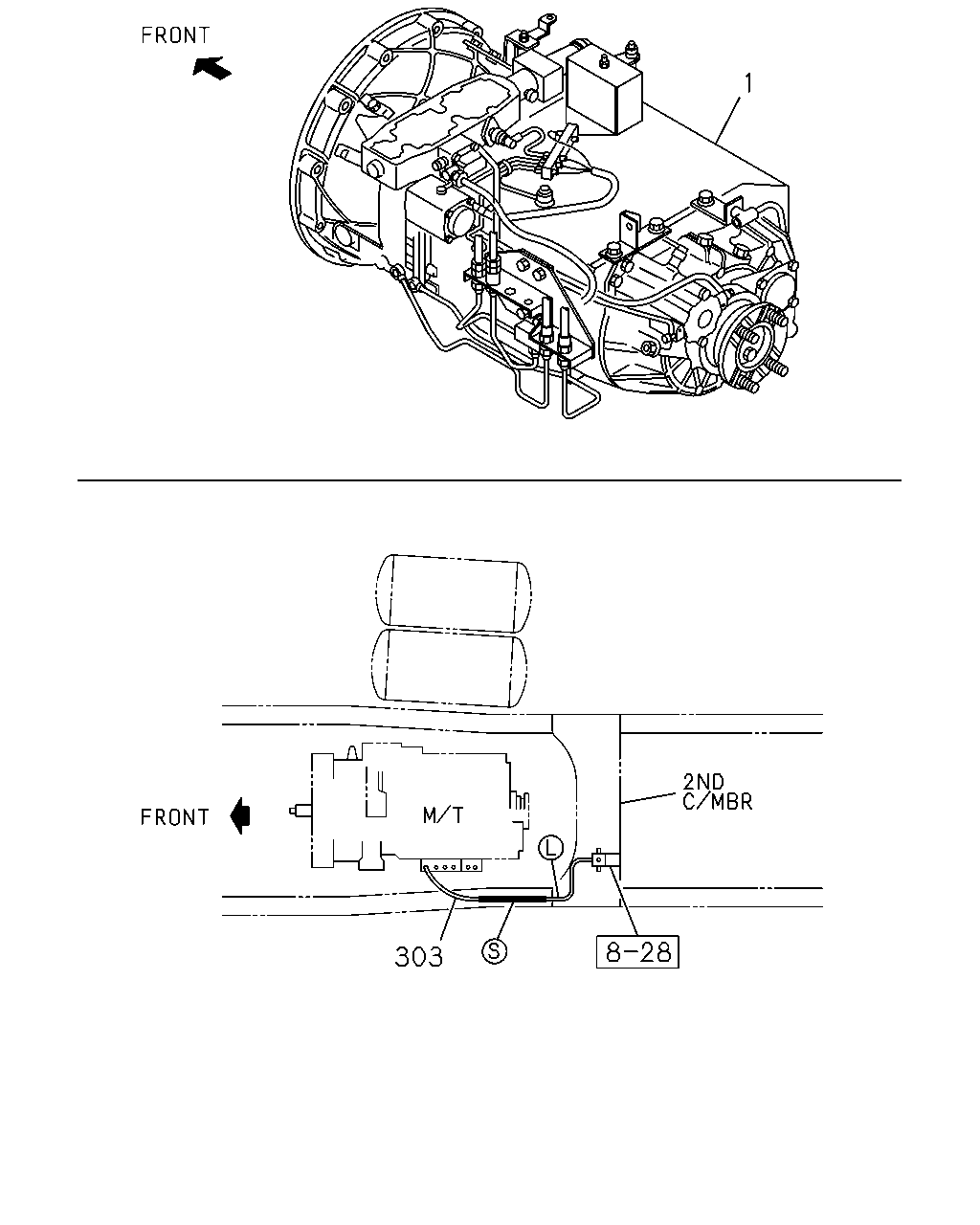

1 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) PTO ZF TRANS RR(BDM)	1-33042-033-0	01	1	9906-9909	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-033-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33042-017-0	01	1	9906-9909	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-017-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) PTO ZF TRANS RR(BDM)	1-33042-034-0	01	1	9906-9909	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-034-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33042-018-0	01	1	9906-9909	●
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-018-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-021-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33043-023-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33043-020-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33043-022-0	01	1	9910-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33042-165-0	01	1	9906-		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-011-0	01	1	9906-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-012-0	01	1	9906-		●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-166-0	01	1	9906-		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33042-163-0	01	1	9906-			●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-019-0	01	1	9906-			●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-020-0	01	1	9906-			●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-164-0	01	1	9906-			●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●

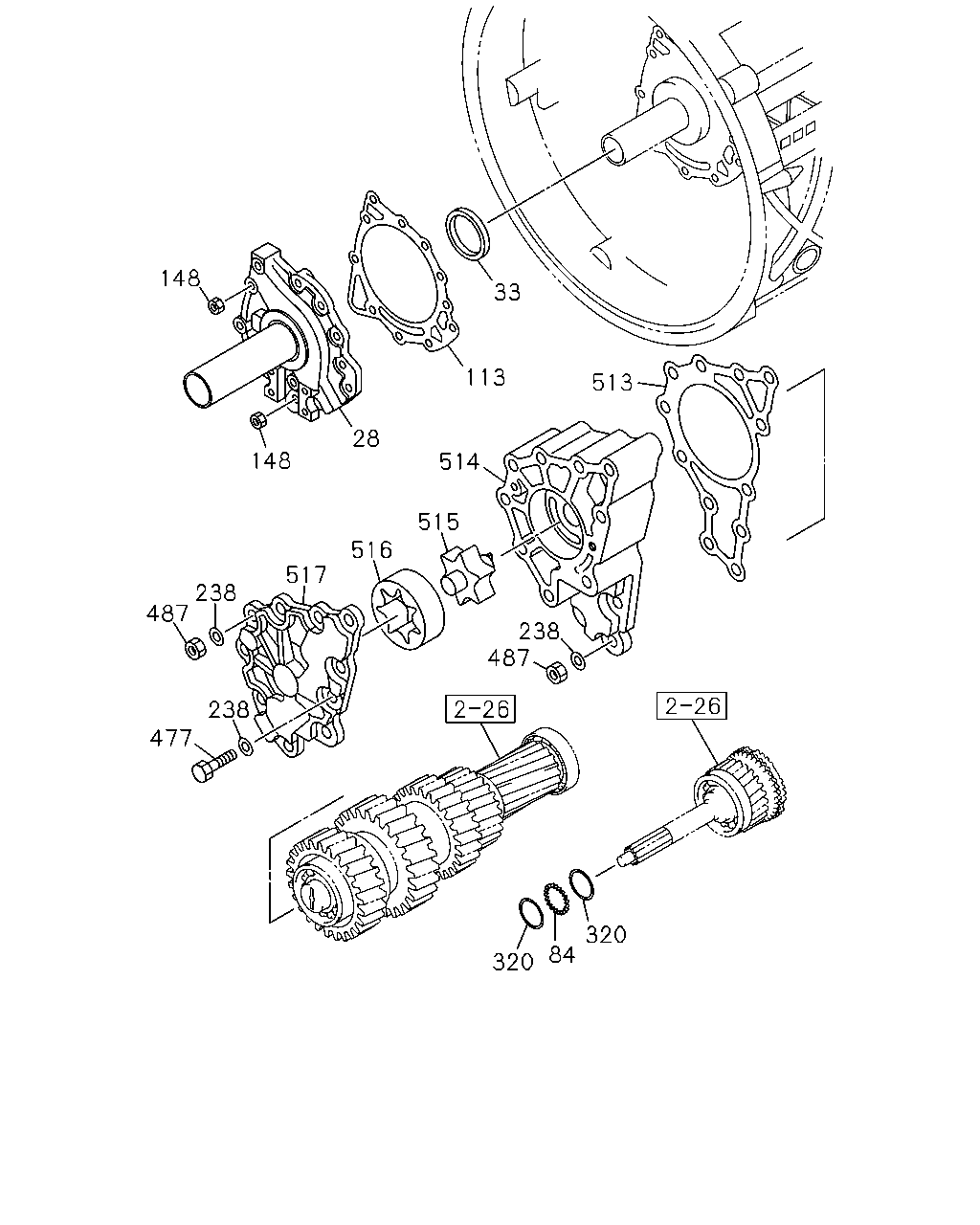

148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 320 84 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	COVER; FRT,TRANS CASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33121-149-0	01	1	9906-	●
28	COVER; FRT,TRANS CASE	1-33121-149-0	01	1	9906-		●
28	COVER; FRT,TRANS CASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33121-146-0	01	1	9906-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-248-0	01	1	9906-	●	●
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	9906-	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-018-0	01	1	9906-	●	●
148	NUT	1-33529-056-0	11	1	9906-	●	●
238	WASHER; PL	1-09469-010-0	14	1	9906-	●	●
320	WASHER; COVER	1-33129-007-0	02	1	9906-	●	●
477	BOLT; OIL PUMP	1-33529-055-0	02	1	9906-	●	●
487	NUT; COVER,OIL PUMP	1-33529-056-0	12	1	9906-	●	●
513	GASKET; HOUSING	1-34159-058-0	01	1	9906-	●	●
514	HOUSING; OIL PUMP	1-34155-027-0	01	1	9906-	●	●
515	SHAFT; OIL PUMP	1-34159-070-0	01	1	9906-	●	●
516	ROTOR; OIL PUMP	1-34159-060-0	01	1	9906-	●	●
517	COVER; OIL PUMP	1-34159-071-0	01	1	9906-	●	●

375 422 432 506 192 192 194 509 439 186 186 405 245 358 362 311 357 186 405 508 178 359 362 358 186 362 357 359 361 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	NUT; UNION M14	9-99111-414-0	01	1	9906-	●	●
186	RING; SEAL (B) ID=22	1-32568-001-0	04	1	9906-	●	●	●
186	RING; SEAL (A) ID=22	1-32568-002-0	02	1	9906-	●	●	●
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	9906-9911	●
192	HOSE; FLEX,TRANS (B) L=400	1-09364-913-0	01	1	9912-0003	●
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	0004-	●
192	HOSE; FLEX,TRANS (A) L=500	1-09364-914-0	01	1	9912-0003	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	9906-9911	●	●	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	9912-0003		●	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	0004-	●	●	●
192	HOSE; FLEX,TRANS (B) L=535	1-09364-936-0	01	1	9906-		●	●
194	UNION; NYLON TUBE M14	1-09664-230-0	01	1	9906-	●	●
245	PIPE; OIL (A)	1-49161-055-0	01	1	9906-	●
245	PIPE; OIL (B)	1-49161-061-0	01	1	9906-	●
245	PIPE; OIL (A)	1-49119-467-1	01	1	9906-9906		●	●
245	PIPE; OIL (A)	1-49122-031-0	01	1	9907-		●	●
245	PIPE; OIL (B)	1-49119-468-1	01	1	9906-		●	●
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	9906-	●	●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	9906-	●	●	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9906-	●	●	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	9906-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	9906-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9906-		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9906-		●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9906-	●	●
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	9906-	●	●
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9906-	●	●
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	9906-	●	●
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	9906-	●	●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	9906-	●	●	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	9906-	●	●	●
375	CABLE; TRANS SHIFT INDICATOR T/M GEAR POSITION<WS1> (D) L=700	1-82659-136-1	01	1	9906-9912		●
375	CABLE; TRANS WARNING BUZZER-SPEED<RF8> (D) L=700	1-82659-136-1	01	1	0001-	●
375	CABLE; TRANS SHIFT INDICATOR T/M GEAR POSITION<WS1> (D) L=700	1-82659-136-1	01	1	0001-		●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9906-	●	●	●
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	9906-	●	●	●
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9906-	●	●	●
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9906-	●	●	●
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9906-	●	●	●
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	9906-	●
439	BOLT; BRKT (D) M16X40 FLANGE	0-28881-640-0	01	1	9906-	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9906-	●	●	●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	9906-		●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9906-	●	●	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9906-	●	●	●
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	9906-	●	●
509	BRACKET; PIPE	1-47477-447-2	01	1	9906-	●
509	BRACKET; PIPE	1-47478-215-2	01	1	9906-		●	●

368 355 176 292 175 439 265 27 24 375 375 181 182 180 511 303 506 375 432 422 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	9906-	●	●	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	9906-	●	●	●
175	BRACKET; UNION (B)	1-47478-002-0	01	1	9906-9906	●
175	BRACKET; UNION (B)	1-47478-633-0	01	1	9906-9912	●
175	BRACKET; UNION (A)	1-47477-545-0	01	1	9906-9912		●	●
175	BRACKET; UNION (A)	1-47477-545-0	01	1	0001-	●	●	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	9906-	●	●	●
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	9906-	●	●	●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	9906-	●	●	●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	9906-	●	●	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9906-9906	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9907-0002	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0003-	●
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9906-		●	●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	9906-	●	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●
355	BRACKET; OIL PIPE	1-47477-500-1	01	1	9906-	●
355	BRACKET; OIL PIPE	1-47478-217-1	01	1	9906-		●	●
365	BRACKET; HARNESS (A)	1-47478-012-0	01	1	9906-0008	●
365	BRACKET; HARNESS (A)	1-47479-047-0	01	1	0009-	●
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	9906-	●	●	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	9906-	●	●	●
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	9906-	●	●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	9906-	●	●	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	9906-	●	●	●
375	CABLE; TRANS SHIFT INDICATOR T/M GEAR POSITION<WS1> (D) L=700	1-82659-136-1	01	1	9906-9912		●
375	CABLE; TRANS WARNING BUZZER-SPEED<RF8> (D) L=700	1-82659-136-1	01	1	0001-	●
375	CABLE; TRANS SHIFT INDICATOR T/M GEAR POSITION<WS1> (D) L=700	1-82659-136-1	01	1	0001-		●
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	9906-	●	●	●
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9906-	●	●	●
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9906-	●	●	●
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9906-	●	●	●
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	9906-	●
439	BOLT; BRKT (D) M16X40 FLANGE	0-28881-640-0	01	1	9906-	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9906-	●	●	●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	9906-		●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9906-	●	●	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9906-	●	●	●
511	TUBE; CORRUGATE L=800	1-83129-031-1	01	1	9906-	●	●	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	9906-	●	●	●

375 375 192 192 245 375 359 359 245 27 24 506 176 303 432 422 180 182 181 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	9906-	●	●	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	9906-	●	●	●
175	BRACKET; UNION (B)	1-47478-002-0	01	1	9906-9906	●
175	BRACKET; UNION (B)	1-47478-633-0	01	1	9906-9912	●
175	BRACKET; UNION (A)	1-47477-545-0	01	1	9906-9912		●	●
175	BRACKET; UNION (A)	1-47477-545-0	01	1	0001-	●	●	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	9906-	●	●	●
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	9906-	●	●	●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	9906-	●	●	●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	9906-	●	●	●
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	9906-9911	●
192	HOSE; FLEX,TRANS (B) L=400	1-09364-913-0	01	1	9912-0003	●
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	0004-	●
192	HOSE; FLEX,TRANS (A) L=500	1-09364-914-0	01	1	9912-0003	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	9906-9911	●	●	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	9912-0003		●	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	0004-	●	●	●
192	HOSE; FLEX,TRANS (B) L=535	1-09364-936-0	01	1	9906-		●	●
245	PIPE; OIL (A)	1-49161-055-0	01	1	9906-	●
245	PIPE; OIL (B)	1-49161-061-0	01	1	9906-	●
245	PIPE; OIL (A)	1-49119-467-1	01	1	9906-9906		●	●
245	PIPE; OIL (A)	1-49122-031-0	01	1	9907-		●	●
245	PIPE; OIL (B)	1-49119-468-1	01	1	9906-		●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9906-	●	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	9906-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	9906-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9906-		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9906-		●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9906-	●	●
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	9906-	●	●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	9906-	●	●	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	9906-	●	●	●
375	CABLE; TRANS SHIFT INDICATOR T/M GEAR POSITION<WS1> (D) L=700	1-82659-136-1	01	1	9906-9912		●
375	CABLE; TRANS WARNING BUZZER-SPEED<RF8> (D) L=700	1-82659-136-1	01	1	0001-	●
375	CABLE; TRANS SHIFT INDICATOR T/M GEAR POSITION<WS1> (D) L=700	1-82659-136-1	01	1	0001-		●
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	9906-	●	●	●
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	9906-	●	●	●
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9906-	●	●	●
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	9906-	●	●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9906-	●	●	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9906-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
