Isuzu WW
▶
TRUCKS
▶
FSR
▶
11398 - FSR(LHD)EURO1
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

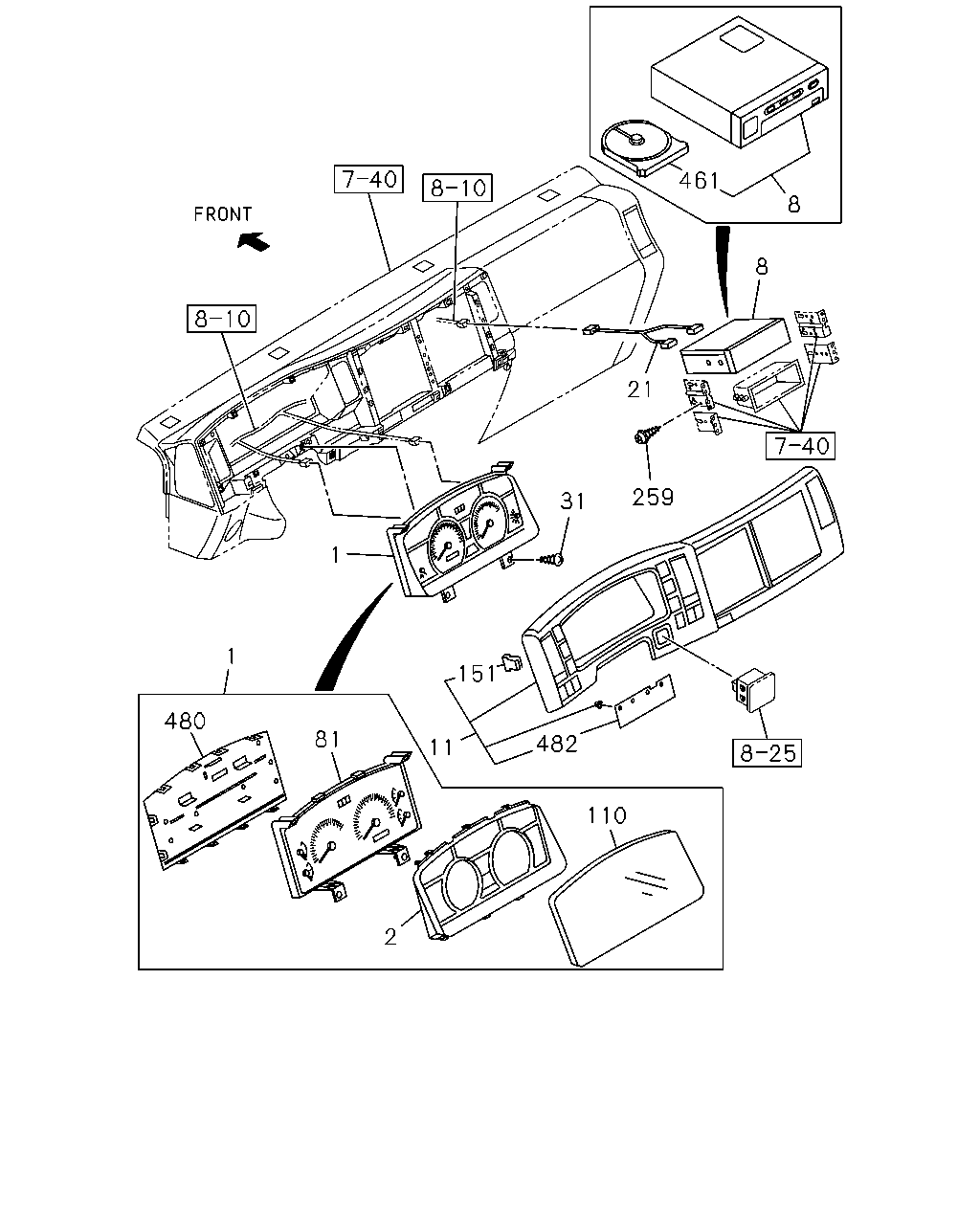

8-21 — METER ASM
(#62829) — 13 parça
461
8
8
21
259
31
1
1
151
480
81
482
11
110
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98106-240-2
01
1
1110-
2
PANEL; CLUSTER
8-98054-432-0
01
1
1110-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
8-97387-082-2
01
1
1110-
11
CLUSTER ASM; METER
DARK GRAY
8-97406-005-6
01
1
1110-
21
HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
8-98074-077-0
01
1
1110-
31
SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1110-
81
METER SUB ASM
8-98178-596-0
01
1
1110-
110
GLASS; CLUSTER METER
8-98054-431-0
01
1
1110-
151
CLIP; METER CLUSTER
8-98021-271-0
13
1
1110-
259
SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1110-
461
CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
1-83129-433-0
01
1
1110-
480
COVER; METER
BLACK
8-98054-433-0
01
1
1110-
482
SEAL; CLUSTER METER
8-98116-843-0
01
1
1110-
