◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11398 - FSR(LHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#62828) — 110 parça
çizim 150323
16 16 48 16 16 16 16 16 16 48 213 48 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 01 1 1110-
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 01 1 1110-
16 CLIP; HARNESS
(J) ID=11 H=45 L=25 		1-09700-866-0 02 1 1110-
16 CLIP; HARNESS
(F) ID=35 L=33 		1-09700-945-0 01 1 1110-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 1110-
16 CLIP; HARNESS
(I) L=175 		1-09707-178-0 01 1 1110-
16 CLIP; HARNESS
(E) ID=10 & 10 		1-09709-277-1 01 1 1110-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1110-
48 CLIP; FRAME HARNESS
(F) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1110-
48 CLIP; FRAME HARNESS
(E) ID=32 L=50 		1-09701-055-1 01 1 1110-
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1110-
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 13 1 1110-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1110-1201
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (C) ID=5-12 L=18 		1-09709-287-0 02 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (B) ID=14 L=44 		9-09917-427-0 03 1 1110-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1110-

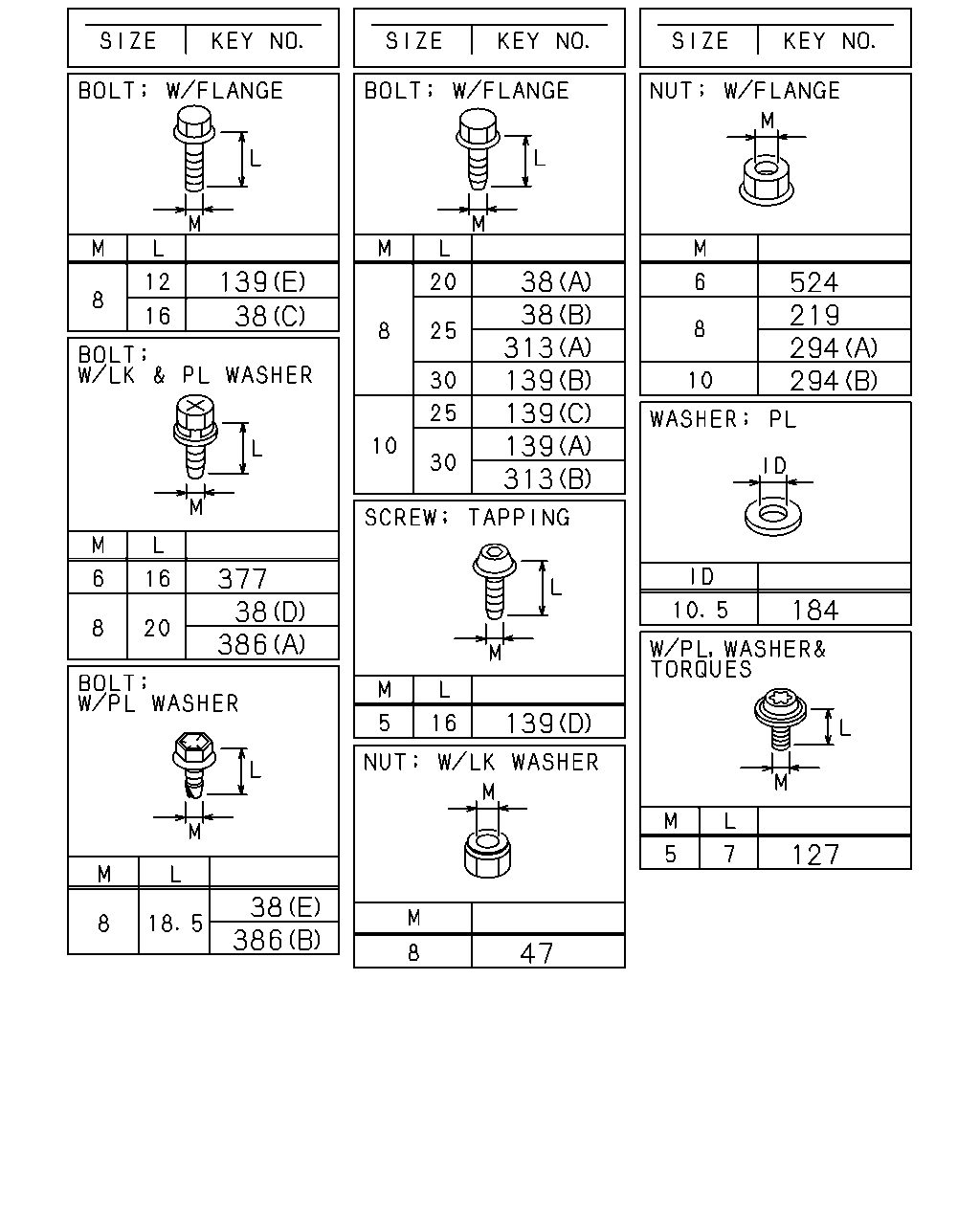

çizim 150329
139 38 386 38 386 38 38 313 139 139 139 313 139 294 294 377 47 127 524 184 38 219
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1110-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1110-1201
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1110-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1110-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1110-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 01 1 1110-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 03 1 1110-
139 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1110-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1110-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1110-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1110-
294 NUT
(B) 8N M10 FLANGE 		0-91180-110-0 01 1 1110-
294 NUT
(B) 10N M10 FLANGE 		0-91180-210-0 01 1 1110-
294 NUT
(B) 10N M10 FLANGE 		0-91180-210-0 02 1 1110-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1110-
313 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1110-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1110-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1110-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1110-

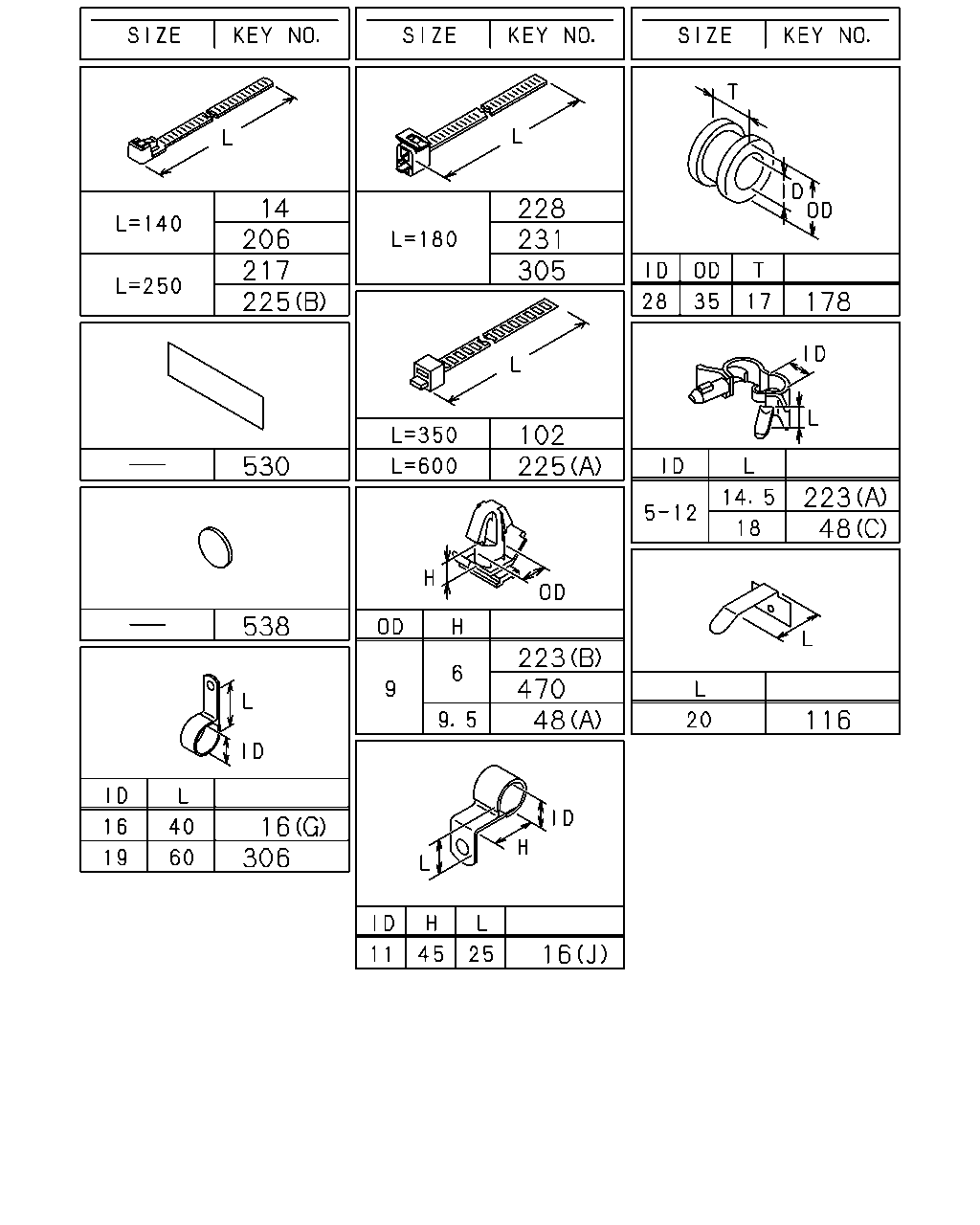

çizim 150331
14 206 225 217 530 538 16 306 228 305 231 102 223 225 470 48 16 178 223 116 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=250 		5-09707-030-1 01 1 1110-1205
14 CLIP; BAND,HARNESS
L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 01 1 1110-
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 01 1 1110-
16 CLIP; HARNESS
(J) ID=11 H=45 L=25 		1-09700-866-0 02 1 1110-
16 CLIP; HARNESS
(F) ID=35 L=33 		1-09700-945-0 01 1 1110-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 1110-
16 CLIP; HARNESS
(I) L=175 		1-09707-178-0 01 1 1110-
16 CLIP; HARNESS
(E) ID=10 & 10 		1-09709-277-1 01 1 1110-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1110-
48 CLIP; FRAME HARNESS
(F) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1110-
48 CLIP; FRAME HARNESS
(E) ID=32 L=50 		1-09701-055-1 01 1 1110-
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1110-
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 13 1 1110-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1110-1201
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (C) ID=5-12 L=18 		1-09709-287-0 02 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (B) ID=14 L=44 		9-09917-427-0 03 1 1110-
102 CLIP; BAND
L=350 		1-09707-183-0 02 1 1110-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1110-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1110-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1110-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 03 1 1110-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1110-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1508-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1110-
225 CLIP; AIR TANK HARNESS
(A) L=600 		1-09707-107-1 01 1 1110-
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 03 1 1110-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1110-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 1110-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 1110-
306 CLIP; HARNESS,ELEC GOV
ID=19 L=60 		0-95235-896-0 01 1 1110-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1110-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1110-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 17 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1110-1305
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1110-

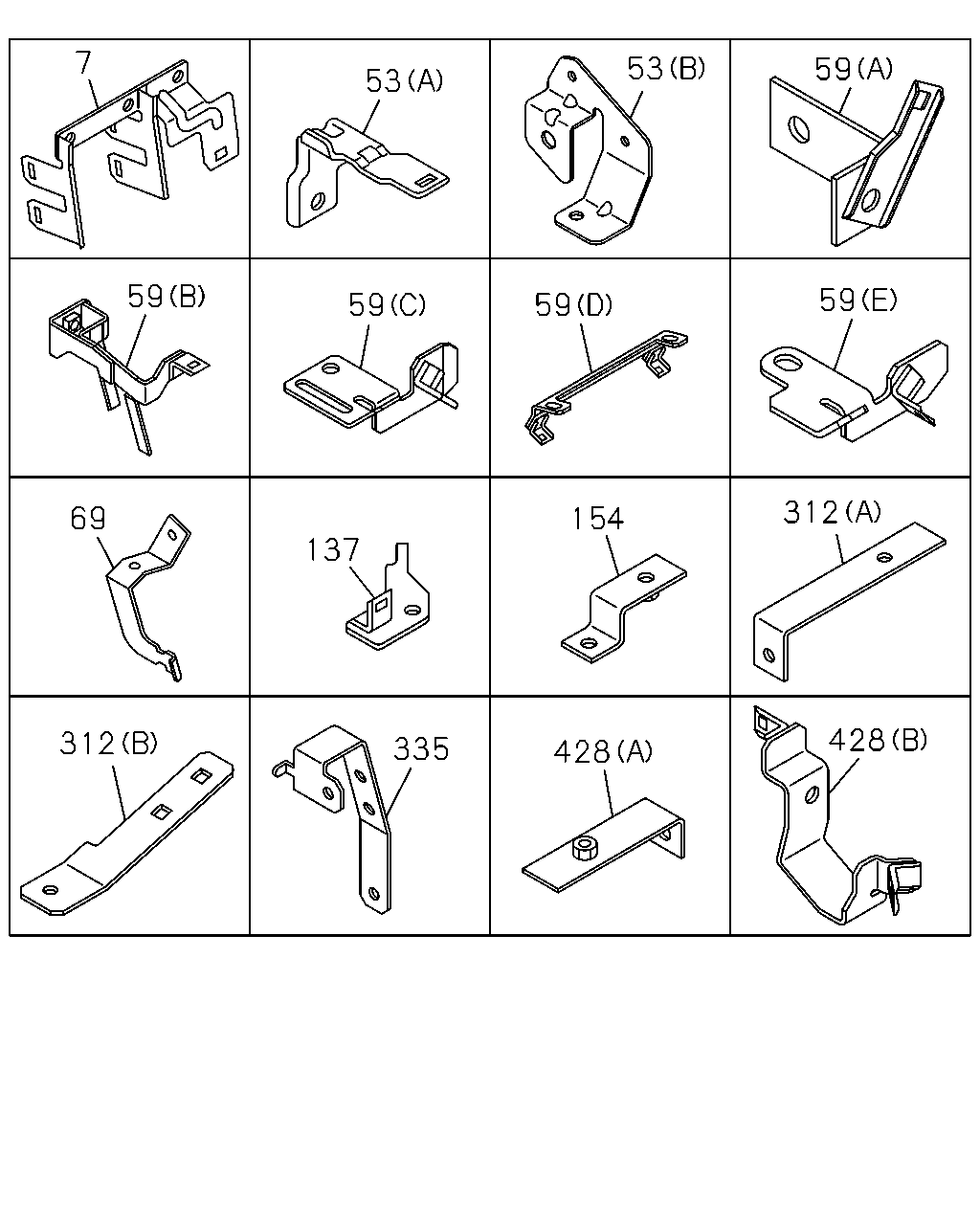

çizim 150337
7 53 53 59 59 59 59 59 69 137 154 312 312 335 428 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1110-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1110-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98084-699-0 01 1 1110-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1110-
59 BRACKET; FRAME HARNESS
(D) 		8-97619-533-0 01 1 1110-
59 BRACKET; FRAME HARNESS
(C) 		8-97616-305-0 01 1 1110-1502
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(A) 		8-98178-675-0 01 1 1110-
69 BRACKET; CLIP 8-97616-357-3 01 1 1110-
137 BRACKET; HARNESS CLAMP 8-98047-277-1 01 1 1110-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 1110-
312 BRACKET; CLIP HARNESS
(A) 		1-34656-009-0 01 1 1110-
312 BRACKET; CLIP HARNESS
(B) 		8-98097-366-0 01 1 1110-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1110-
428 BRACKET
(A) 		1-47475-519-0 01 1 1110-
428 BRACKET
(B) 		8-98090-952-0 01 1 1110-
