Isuzu WW
▶
TRUCKS
▶
FSR
▶
11398 - FSR(LHD)EURO1
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

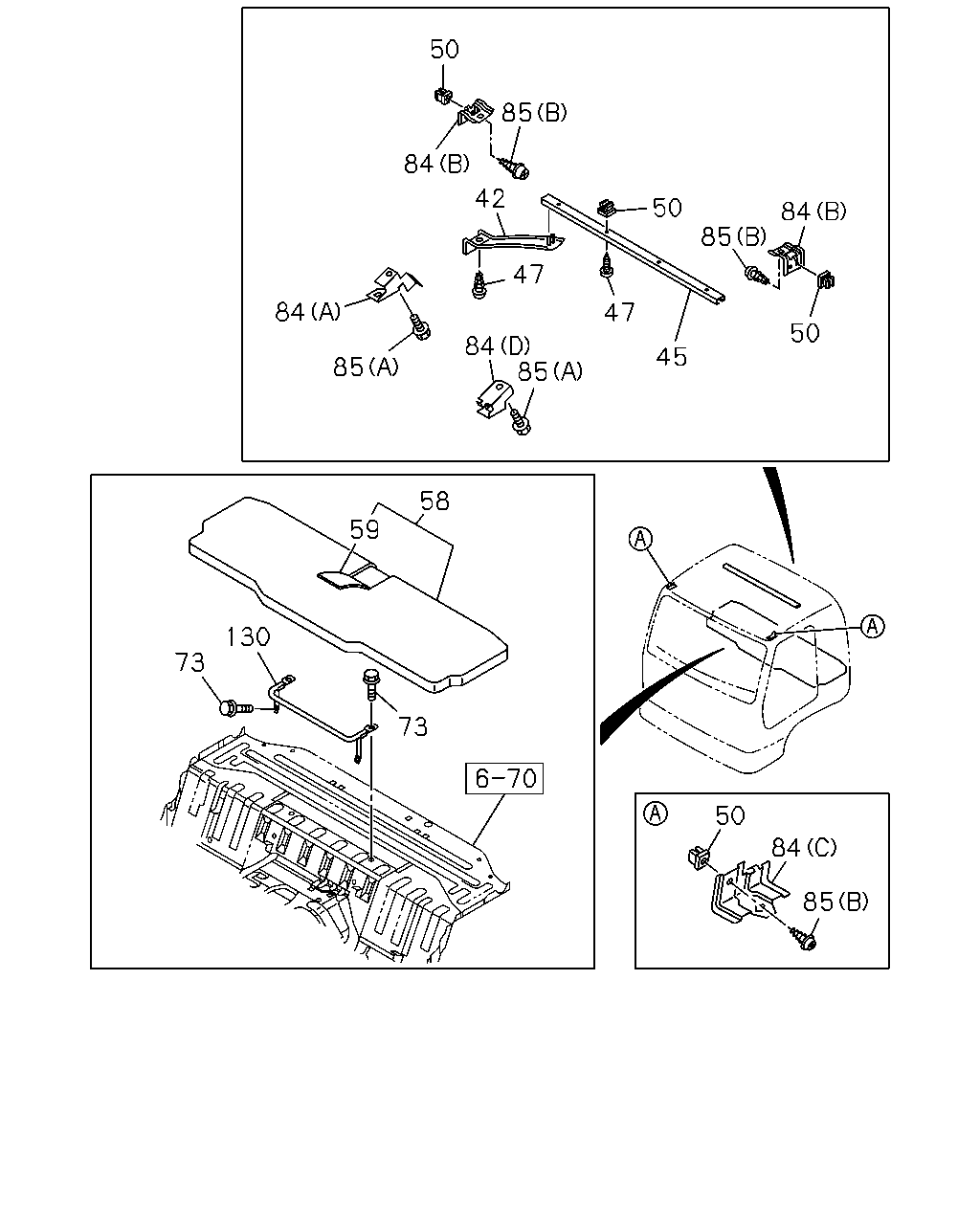

7-70 — SEPARATER AND BED
(#62823) — 21 parça
50
85
84
42
50
84
85
47
84
47
50
84
85
45
85
58
59
130
73
73
50
84
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1110-
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1110-
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-485-0
01
1
1110-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1110-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1406-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1110-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1110-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1406-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY
8-97407-382-2
01
1
1110-
58
BED; MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97409-772-1
01
1
1110-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY
8-97412-045-1
01
1
1110-
59
COVER ASM; TRIM,BED MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97414-106-0
01
1
1110-
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
1110-
84
BRACKET; CURTAIN RAIL
(C)
8-98028-326-1
02
1
1110-1405
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
04
1
1110-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-98049-289-1
01
1
1110-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)
8-98074-739-0
01
1
1110-
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
06
1
1110-1405
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
04
1
1406-
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE
8-97108-669-0
02
1
1110-
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
1110-
