Isuzu WW
▶
TRUCKS
▶
FSR
▶
11398 - FSR(LHD)EURO1
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

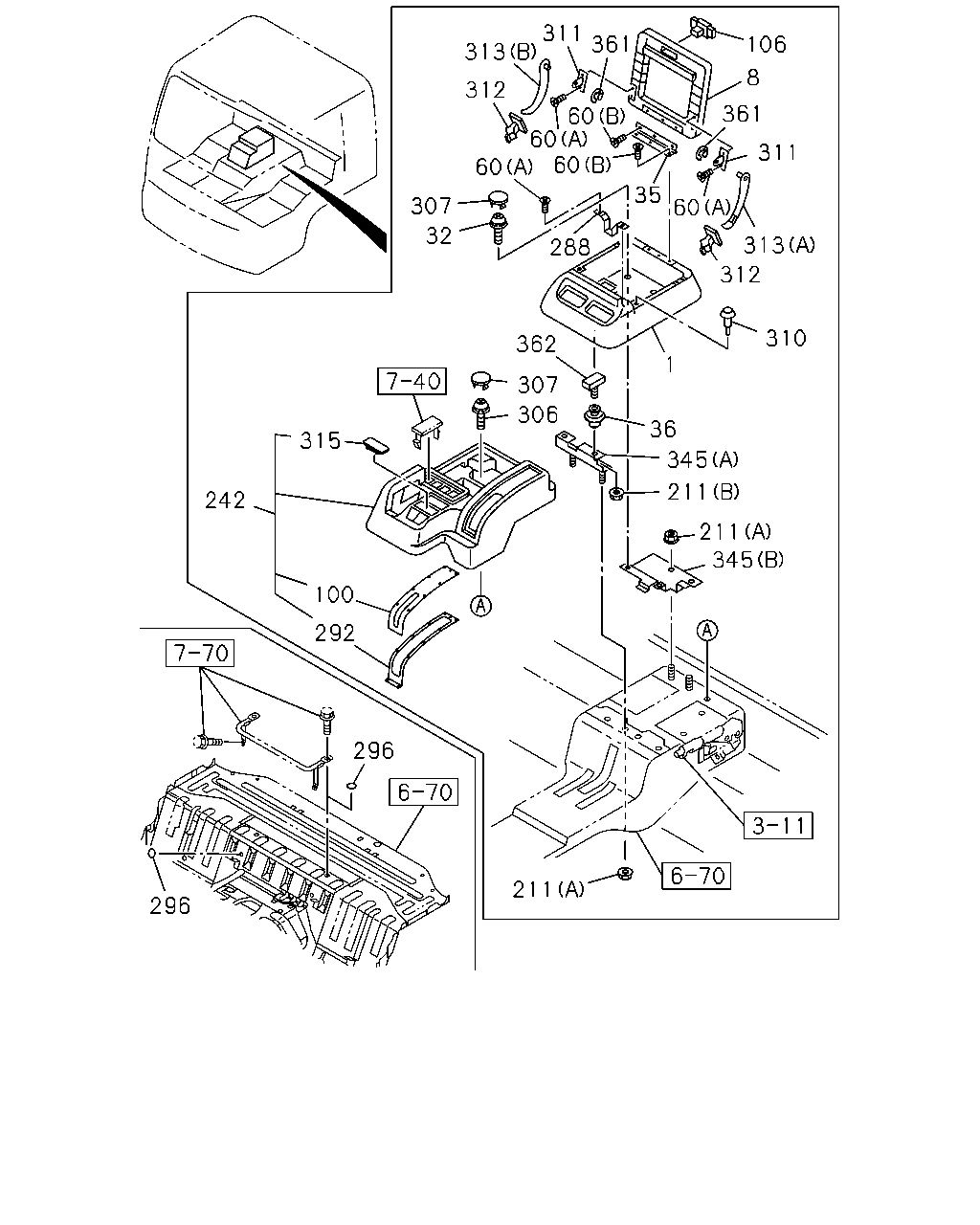

7-45 — CONSOLE BOX
(#62820) — 28 parça
313
311
312
60
60
288
32
307
60
60
311
361
8
106
60
35
313
312
310
1
362
307
306
36
211
345
211
345
100
292
242
315
296
296
211
361
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY
8-97408-710-0
01
1
1110-
8
LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97408-712-0
01
1
1110-
32
SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16
0-38050-616-0
02
1
1110-
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-182-1
01
1
1110-
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-09984-190-0
02
1
1110-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
06
1
1110-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14
8-94279-325-0
04
1
1110-
100
RUBBER; CONSOLE,FRT
1-72538-161-3
01
1
1110-
106
LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9>
1-72538-312-0
01
1
1110-
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (A) M8 FLANGE
0-91180-108-0
04
1
1110-
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (B) M8 FLANGE
8-94279-518-0
02
1
1110-
242
TRAY ASM; CTR CONSOLE
GRAY
8-97409-818-1
01
1
1110-
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-190-0
01
1
1110-
292
RETAINER; COVER
1-72538-162-1
01
1
1110-
296
SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK
1-76798-019-0
04
1
1110-
306
SCREW; TRAY
M6X16
0-38050-616-0
03
1
1110-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97407-951-0
02
1
1110-
307
COVER; HOLE,CTR CONSOLE
GRAY
8-97407-951-0
02
1
1110-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-187-0
02
1
1110-
311
HOLDER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-188-2
02
1
1110-
312
STOPPER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-186-1
02
1
1110-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A)
1-72538-184-3
01
1
1110-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B)
1-72538-185-3
01
1
1110-
315
COVER; HOLE,SW
GRAY
8-97409-339-0
01
1
1110-
345
BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A)
1-72538-232-1
01
1
1110-
345
BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B)
1-72538-233-0
01
1
1110-
361
RING; SNAP
CENTER SEAT DELETE<SP9> ID=5
9-09185-405-0
02
1
1110-
362
STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9>
1-72538-308-0
02
1
1110-
