7-40 — INSTRUMENT PANEL AND BOX (#62817) — 129 parça

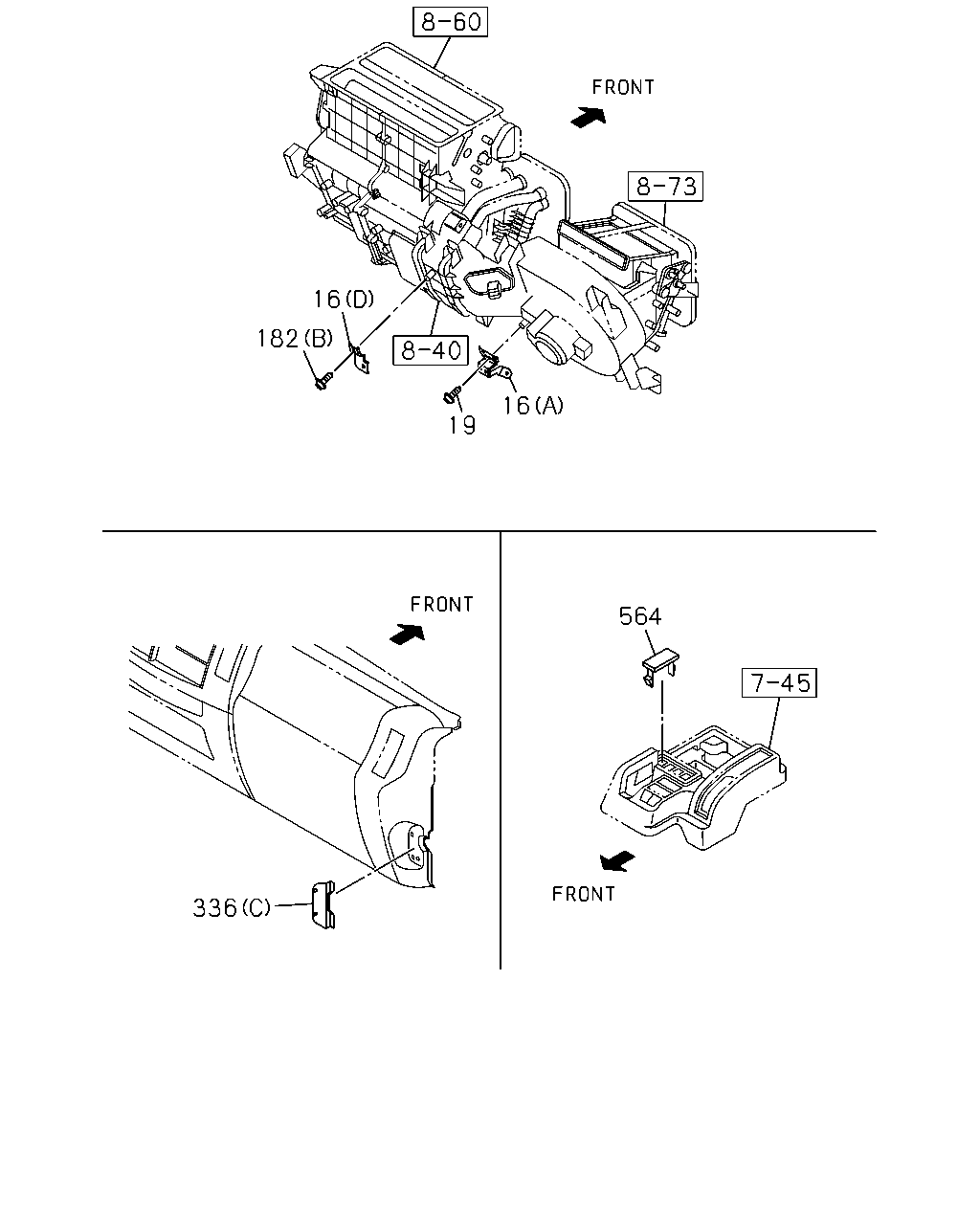

çizim 150286
16 182 16 19 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1110-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1110-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1110-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1110-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-527-0 01 1 1110-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1110-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1110-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1110-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1110-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 1110-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1110-
336 COVER; INST PANEL SIDE
(B) 		8-97422-220-3 01 1 1110-
564 COVER; SW 8-97043-732-1 04 1 1110-

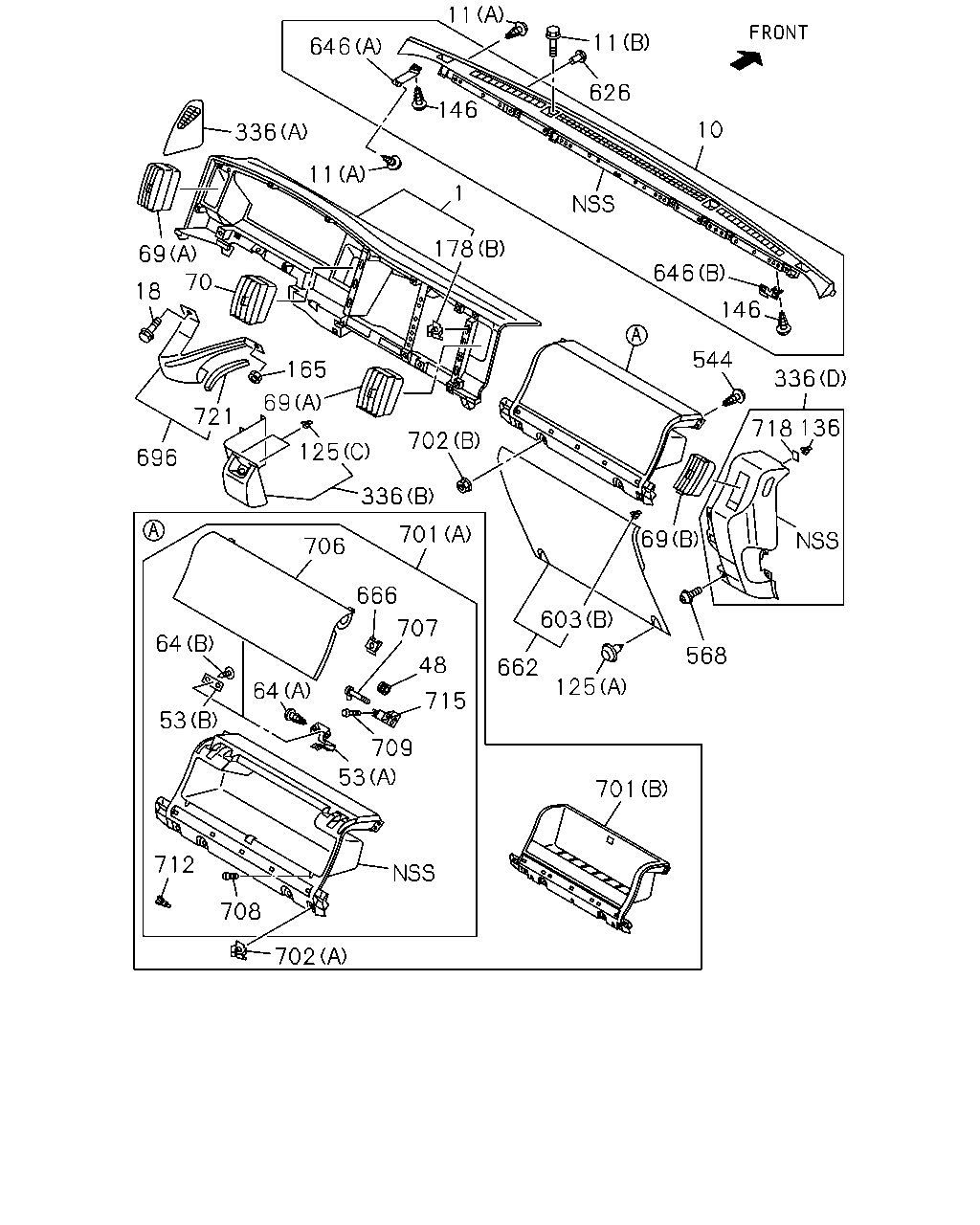

çizim 150295
11 11 626 10 646 146 544 336 718 136 69 568 125 603 662 701 701 666 707 48 715 709 53 702 708 712 53 64 64 706 336 702 125 69 165 70 18 721 696 336 11 178 1 146 646 69
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1110-
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1110-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1110-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1110-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1110-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1110-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THAI LOCAL PART 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1110-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THAI LOCAL PART 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1110-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1110-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1110-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1110-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1110-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1110-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1110-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1110-
136 CLIP; INST COVER 8-98076-254-0 02 1 1110-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1110-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1110-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1110-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1110-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1110-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 1110-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1110-
336 COVER; INST PANEL SIDE
(B) 		8-97422-220-3 01 1 1110-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1110-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1110-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1110-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1110-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1110-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1110-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1110-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 1110-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1110-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THAI LOCAL PART M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98057-569-0 01 1 1110-1110
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1110-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1110-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1110-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1110-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1110-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1110-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THAI LOCAL PART 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1110-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1110-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1110-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1110-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THAI LOCAL PART 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1110-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THAI LOCAL PART 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1209-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 1110-1110

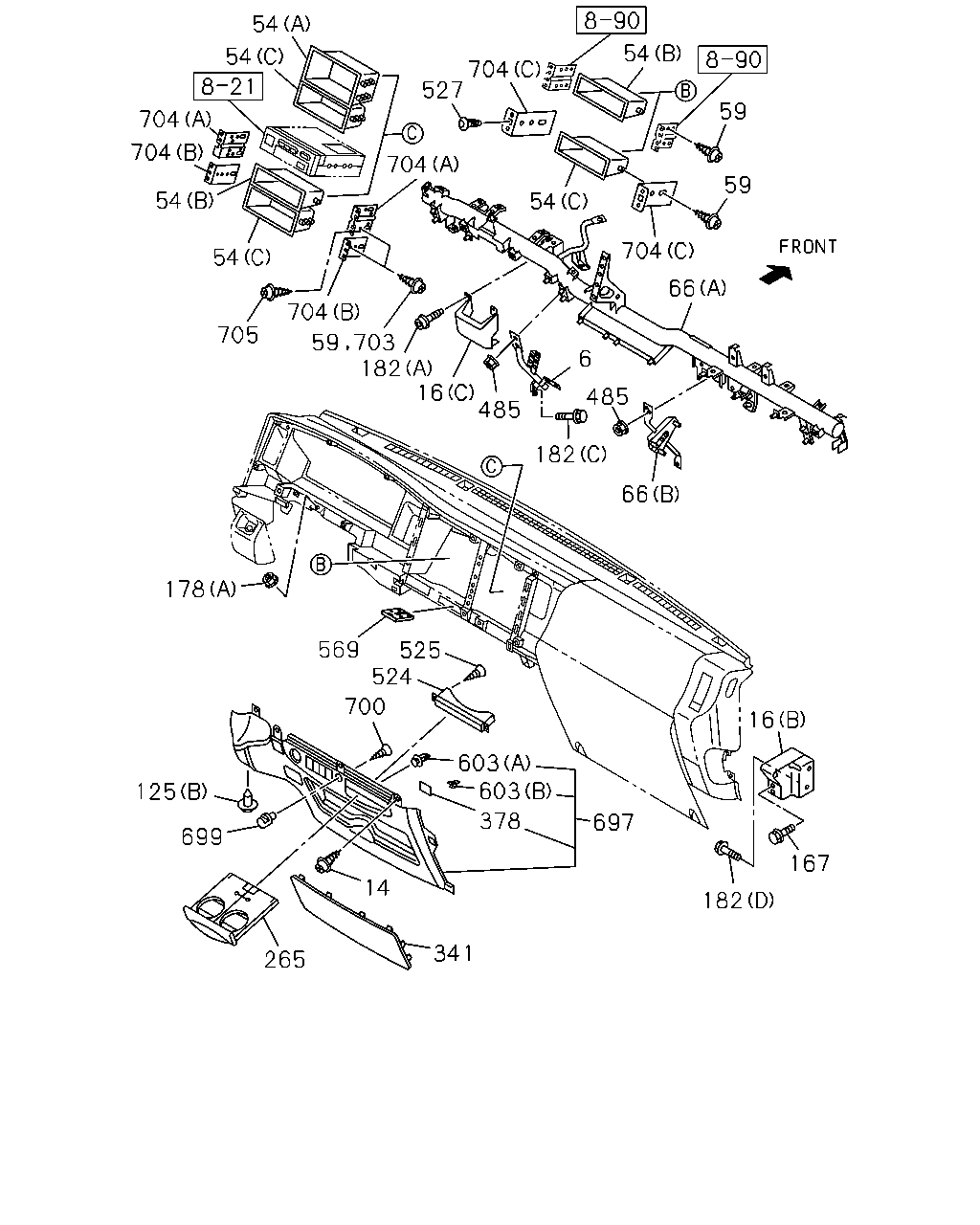

çizim 150307
704 704 705 704 704 704 704 703 54 54 54 54 54 54 59 527 66 6 16 182 182 485 485 66 59 59 16 167 182 697 378 603 603 524 569 700 525 178 125 699 265 14 341
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1110-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1110-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1110-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1110-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1110-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-527-0 01 1 1110-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1110-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1110-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1110-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1110-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1110-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1110-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1110-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1110-
66 REINFORCEMENT; INST PANEL
(A) 		8-97585-569-7 01 1 1110-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-606-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98082-466-1 01 1 1110-
66 REINFORCEMENT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98139-662-0 01 1 1110-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1110-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1110-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1110-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1110-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1110-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1110-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1110-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1110-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1110-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1110-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1110-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1110-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1110-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1110-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1110-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1110-
569 HOLDER; CARD 8-97410-276-1 01 1 1110-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1110-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1110-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1110-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1110-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1110-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1110-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1110-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1110-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1110-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1110-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1110-
