◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11398 - FSR(LHD)EURO1 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#62814) — 16 parça
çizim 150270
35 49 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1110-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1110-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 1110-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1110-
35 PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7> 		8-98070-107-0 01 1 1110-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98065-363-0 01 1 1110-
35 PLATE; CAUTION,CAB
CAUTIONS FRENCH<WJ8> 		8-98070-108-0 01 1 1110-
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> 		8-98070-109-0 01 1 1110-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		8-98178-792-0 01 1 1110-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98178-788-0 01 1 1110-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		8-98178-791-0 01 1 1110-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-98178-790-0 01 1 1110-

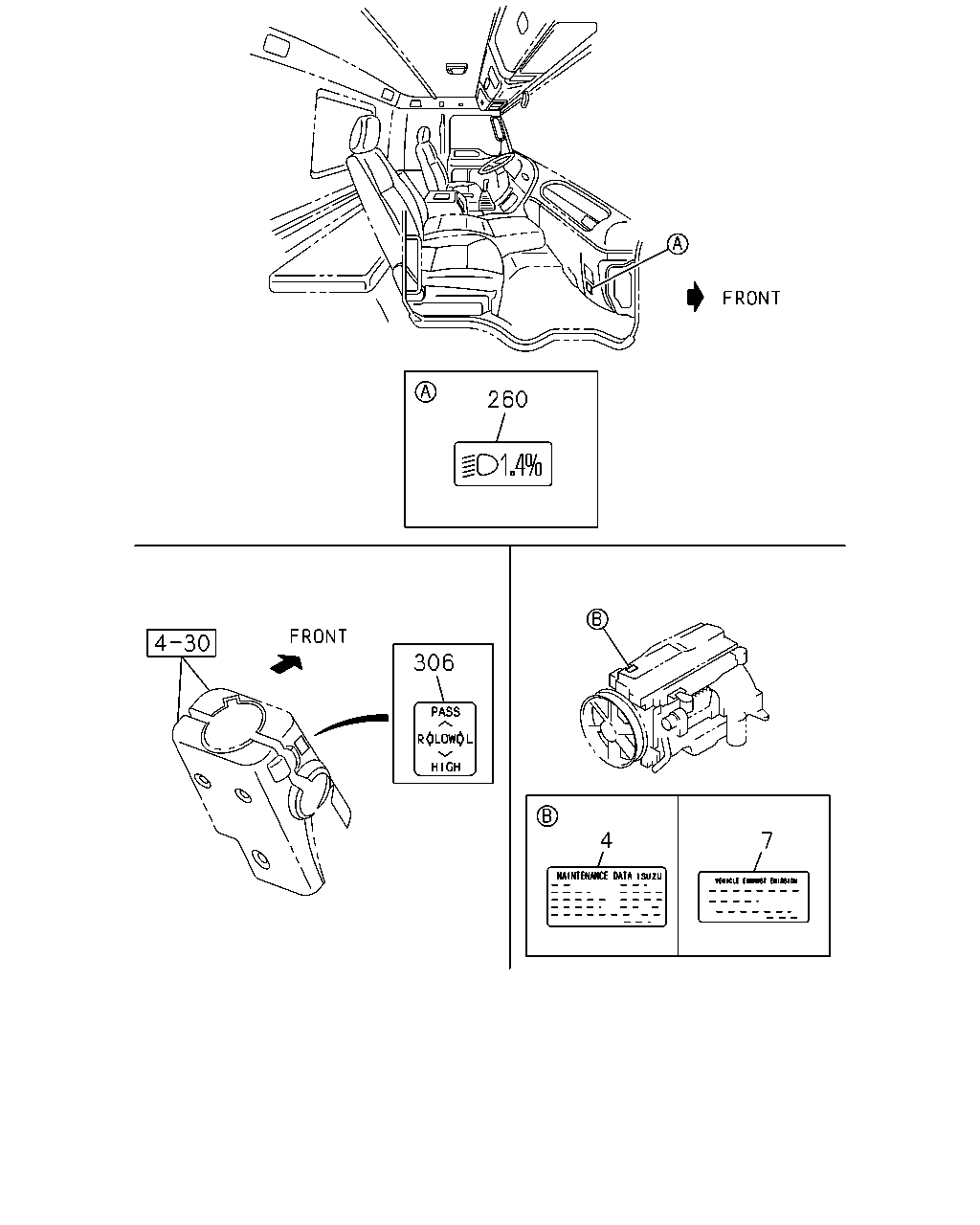

çizim 150283
260 306 4 7
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE 8-94390-593-0 01 1 1110-
7 LABEL; EMISSION 8-94391-418-0 01 1 1110-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1110-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
