◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#6280) — 12 parça

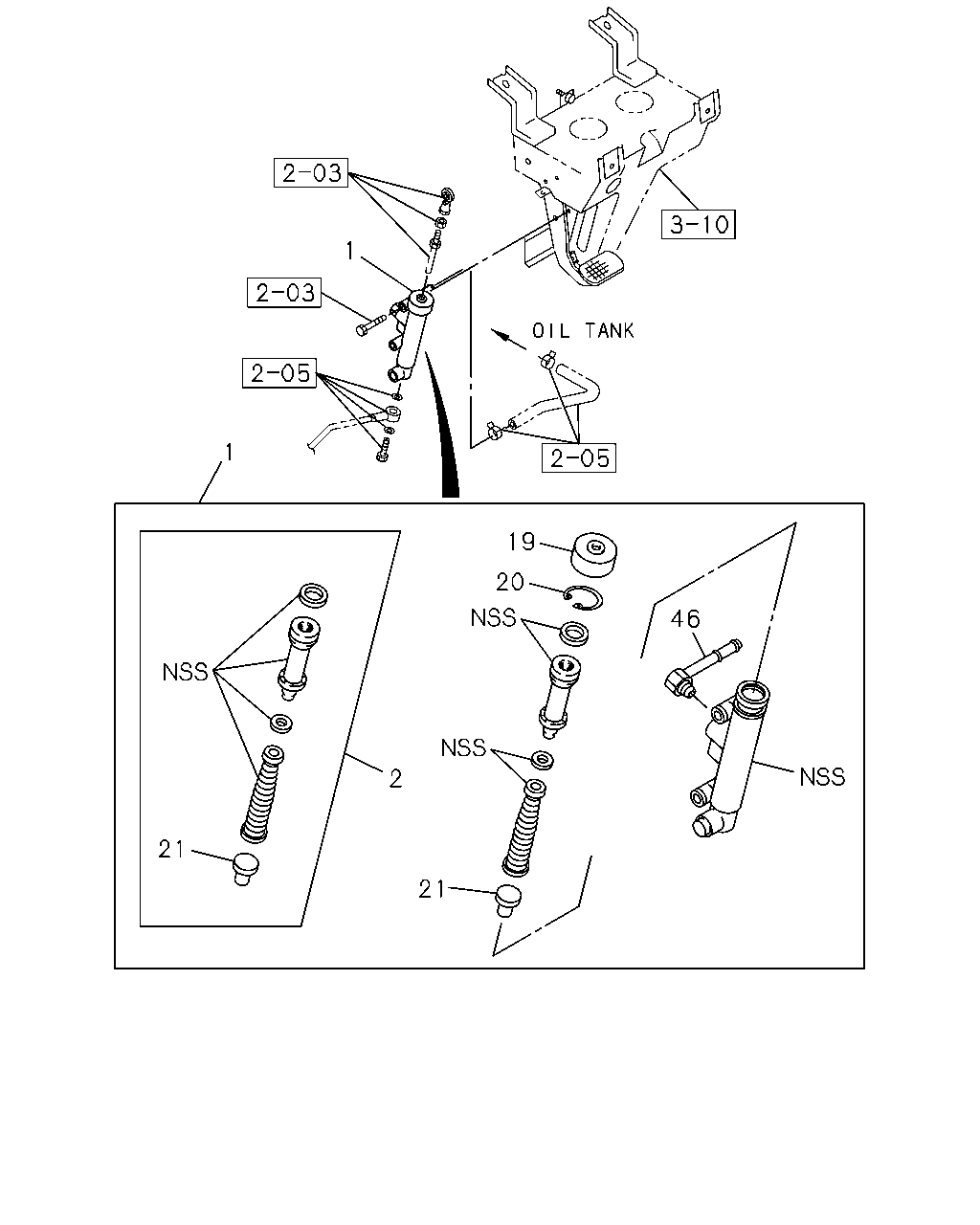

çizim 44450
1 1 19 20 46 2 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; CLUTCH MASTER
MJA7U M/T(X6G),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-47500-232-2 01 1 9906- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-47500-242-2 01 1 9906- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-47500-243-2 01 1 9906- ● ● ●
2 REPAIR KIT; CLU M/CYL
MJA7U M/T(X6G),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-85576-114-0 01 1 9906- ● ● ●
2 REPAIR KIT; CLU M/CYL
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-47550-046-0 01 1 9906- ● ● ●
2 REPAIR KIT; CLU M/CYL
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-47550-048-0 01 1 9906- ● ● ●
19 BOOT; CLU M/CYL
MJA7U M/T(X6G),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S) 		9-47545-032-0 01 1 9906- ● ● ●
19 BOOT; CLU M/CYL
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-47545-011-0 01 1 9906- ● ● ●
20 RING; SNAP,BODY
MJA7U M/T(X6G),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S) OD=26.9 		9-09180-125-0 01 1 9906- ● ● ●
20 RING; SNAP,BODY
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-47515-009-0 01 1 9906- ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9906- ● ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9906- ● ● ●
