Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

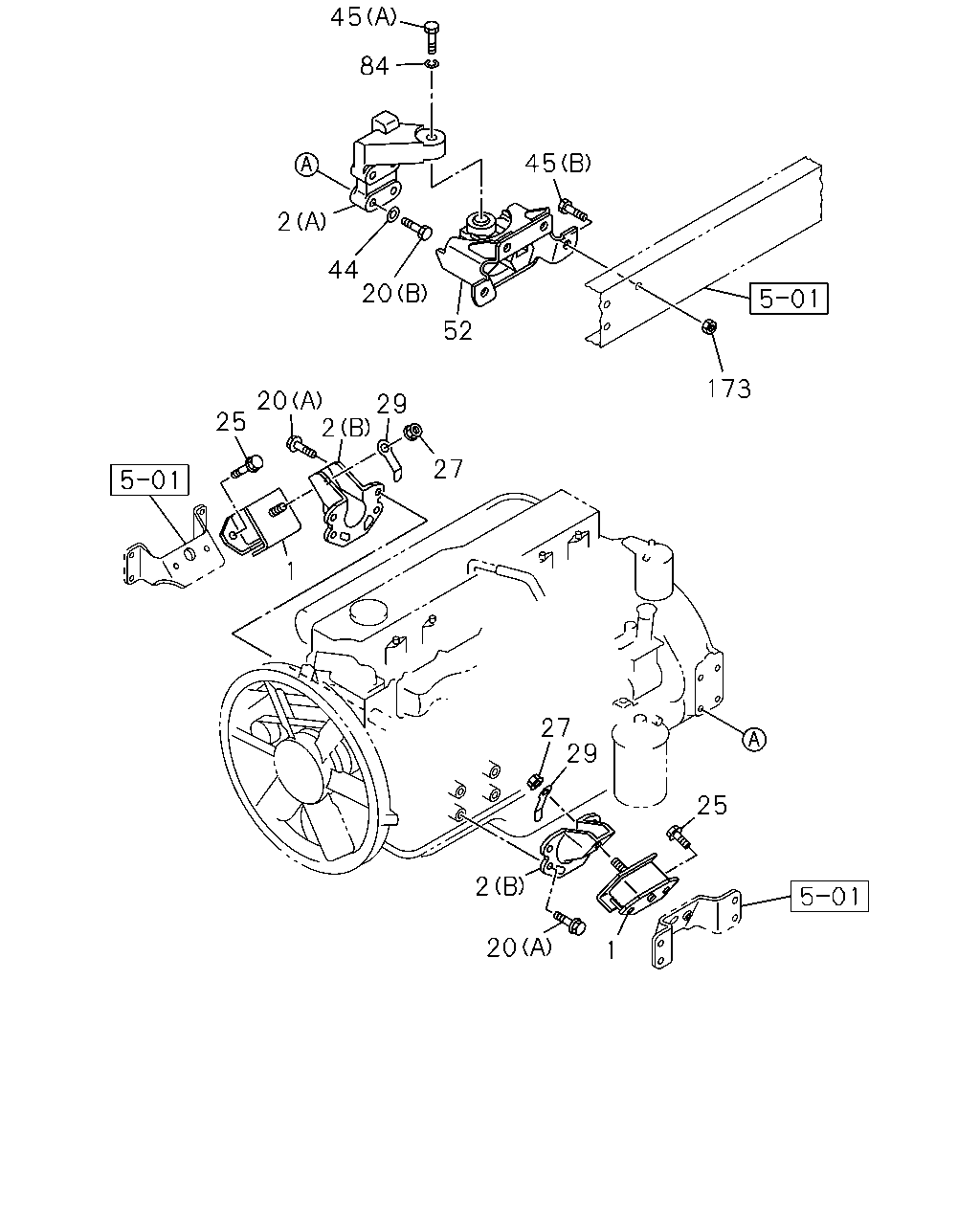

0-22 — ENGINE MOUNTING
(#62797) — 19 parça
45
84
45
52
20
44
2
27
29
2
20
25
1
27
29
25
1
20
2
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1108-
2
FOOT; ENG
KD ENGINE<7MB> (A)
8-97520-875-0
01
1
1411-
2
FOOT; ENG
KD ENGINE<7MB> (A)
8-97520-876-0
01
1
1411-
2
FOOT; ENG
(B)
8-97602-589-1
02
1
1108-
2
FOOT; ENG
(A)
8-97611-988-0
01
1
1108-1410
2
FOOT; ENG
EXC. KD ENGINE<7MB> (A)
8-97611-988-0
01
1
1411-
2
FOOT; ENG
(A)
8-97611-989-0
01
1
1108-1410
2
FOOT; ENG
EXC. KD ENGINE<7MB> (A)
8-97611-989-0
01
1
1411-
20
BOLT; ENG FOOT
(B) M12X50
0-16956-250-0
08
1
1108-
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1108-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1108-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1108-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1108-
44
WASHER; LK,ENG FOOT
ID=12.5
0-91614-512-0
08
1
1108-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M14X50
0-29261-450-0
08
1
1108-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M18X65
8-94393-260-1
02
1
1108-
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-021-1
02
1
1108-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=19 OD=36
0-91614-618-0
02
1
1108-
173
NUT; ENG MTG RR TO FRAME
M14 FLANGE
0-91180-214-0
08
1
1108-
