Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#62791) — 53 parça
◀

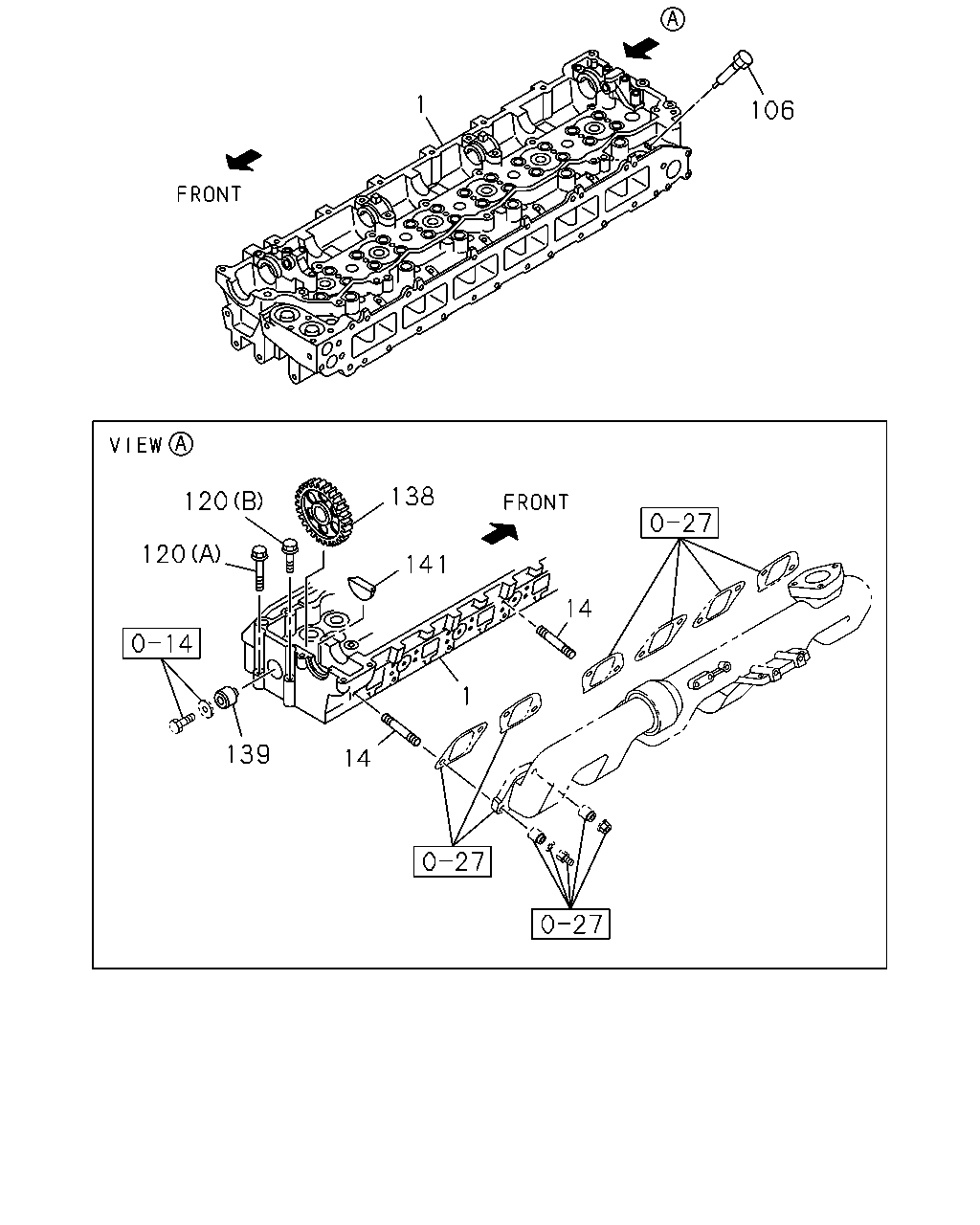

[011A] IDLE GEAR (9 parça)

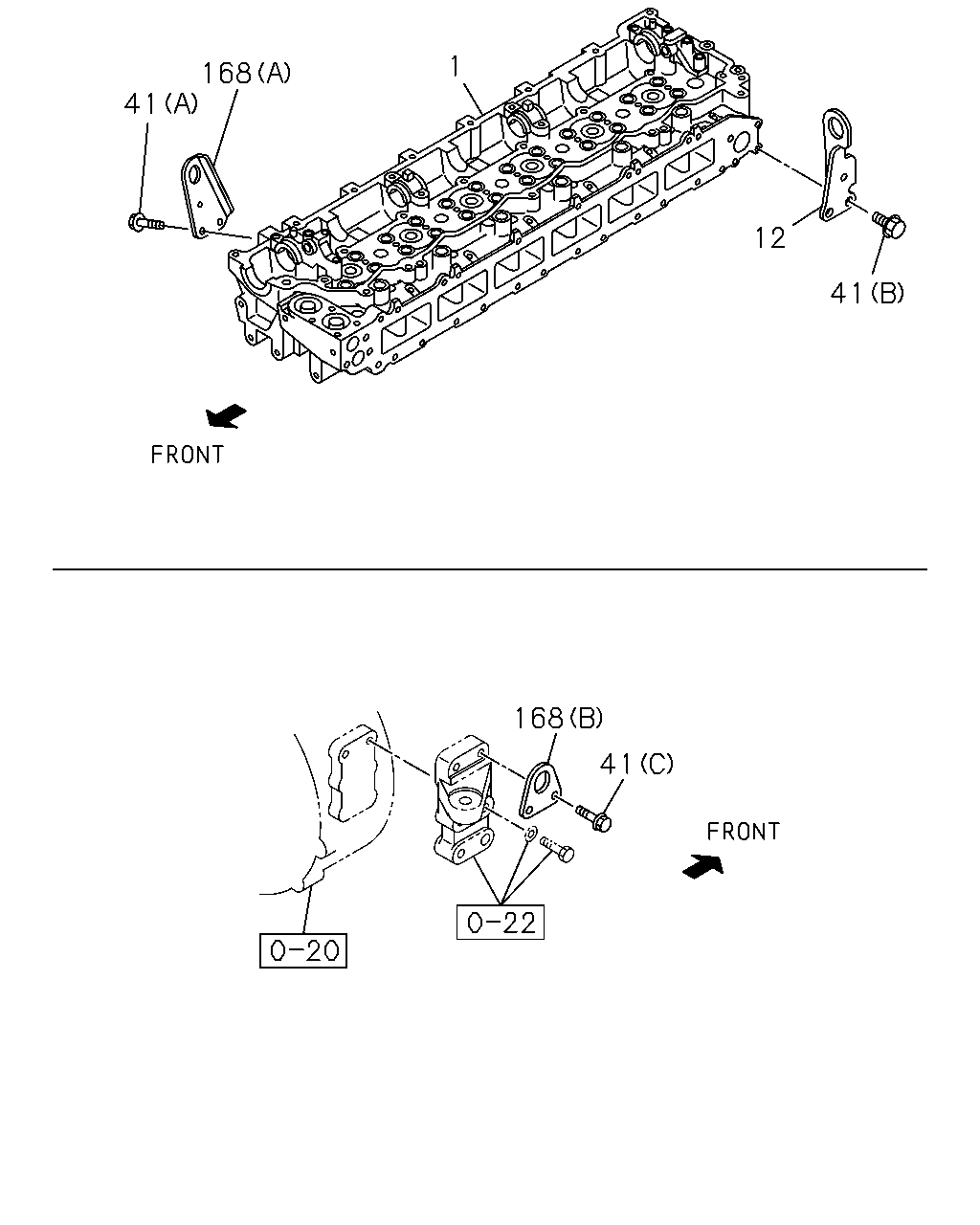

[011A] ENG HANGER FIXING (14 parça)

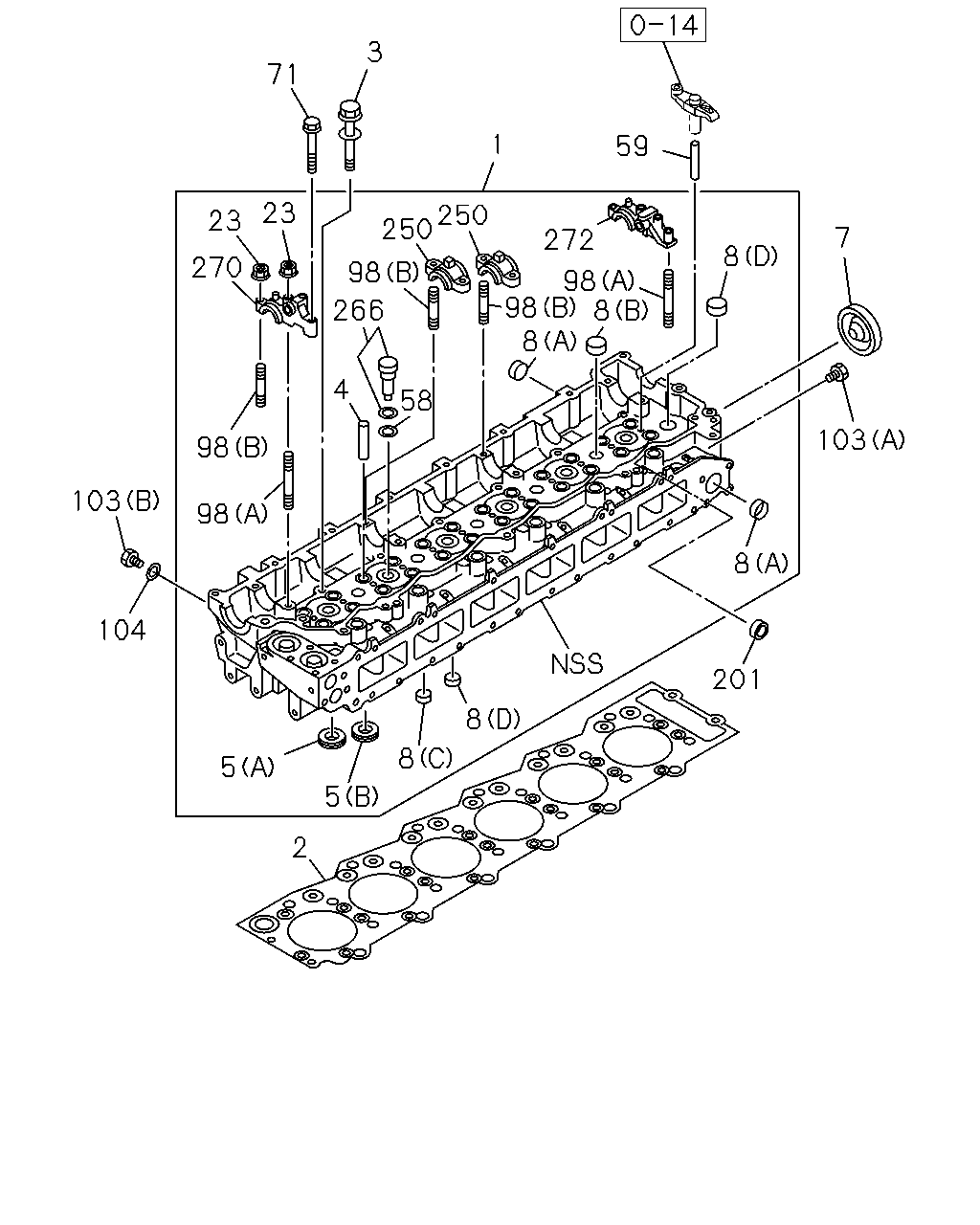

[011A] CYL HEAD COMPONENT (30 parça)
▶
14
139
120
120
138
141
1
14
106
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-97604-903-7
01
1
1108-1305
1
HEAD ASM; CYL
8-98243-824-0
01
1
1306-
14
STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
12
1
1108-
106
PLUG; GLOW PLUG HOLE
8-94392-236-0
06
1
1108-
120
BOLT; CYL HD TO HSG
(A) M10X73
8-94399-554-0
01
1
1108-
120
BOLT; CYL HD TO HSG
(B) M10X43
8-94399-555-0
01
1
1108-
138
GEAR; IDLE
Z=41
8-97606-929-0
01
1
1108-
139
SHAFT; IDLE GEAR
8-97186-398-1
01
1
1108-
141
PLUG; RUBBER,CYL HD
8-98163-813-0
02
1
1108-
41
168
1
12
41
41
168
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-97604-903-7
01
1
1108-1305
1
HEAD ASM; CYL
8-98243-824-0
01
1
1306-
12
HANGER; ENG,RR
KD ENGINE<7MB>
8-97520-814-0
01
1
1411-
12
HANGER; ENG,RR
8-94392-081-1
01
1
1108-1410
12
HANGER; ENG,RR
EXC. KD ENGINE<7MB>
8-94392-081-1
01
1
1411-
41
BOLT; ENG HANGER
(A) M10X20 FLANGE
0-28151-020-0
02
1
1108-
41
BOLT; ENG HANGER
(B) M10X25 FLANGE
0-28751-025-0
02
1
1108-
41
BOLT; ENG HANGER
(C) M12X25 FLANGE
0-28751-225-0
02
1
1108-
168
HANGER; ENG,FRT
KD ENGINE<7MB> (A)
8-97520-813-0
01
1
1411-
168
HANGER; ENG,FRT
KD ENGINE<7MB> (B)
8-97520-848-0
01
1
1411-
168
HANGER; ENG,FRT
(A)
8-94394-071-2
01
1
1108-1410
168
HANGER; ENG,FRT
EXC. KD ENGINE<7MB> (A)
8-94394-071-2
01
1
1411-
168
HANGER; ENG,FRT
(B)
8-94394-398-1
01
1
1108-1410
168
HANGER; ENG,FRT
EXC. KD ENGINE<7MB> (B)
8-94394-398-1
01
1
1411-
71
3
1
59
250
250
23
23
270
98
266
272
98
98
8
4
98
103
98
104
5
5
2
8
8
201
8
103
7
8
8
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-97604-903-7
01
1
1108-1305
1
HEAD ASM; CYL
8-98243-824-0
01
1
1306-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-819-5
01
1
1108-
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-97077-638-0
26
1
1108-1407
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-98260-005-0
26
1
1408-
4
GUIDE; VLV
L=57
8-97376-719-2
24
1
1108-
5
SEAT; VLV INSERT
(A) ID=32 OD=38
8-98028-874-0
12
1
1108-
5
SEAT; VLV INSERT
(B) ID=31 OD=38
8-98028-875-0
12
1
1108-
7
CUP; SEALING,CYL HEAD
KD ENGINE<7MB> OD=51
8-98209-813-0
01
1
1402-
7
CUP; SEALING,CYL HEAD
OD=51
8-97096-826-0
01
1
1108-1401
7
CUP; SEALING,CYL HEAD
EXC. KD ENGINE<7MB> OD=51
8-97096-826-0
01
1
1402-
8
CUP; SEALING,WATER JACKET
(A) OD=32
1-09600-012-2
07
1
1108-
8
CUP; SEALING,WATER JACKET
(B) OD=25
1-09600-016-0
06
1
1108-
8
CUP; SEALING,WATER JACKET
(C) OD=16
5-11129-006-0
07
1
1108-
8
CUP; SEALING,WATER JACKET
(D) OD=20
9-11129-128-0
11
1
1108-
23
NUT; CAM BRKT
M8 FLANGE IDN
0-91180-208-0
08
1
1108-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4
8-97604-916-0
06
1
1108-
59
GUIDE; BRIDGE
8-97381-603-1
12
1
1108-
71
BOLT; CAM BRKT
M8X35 FLANGE
0-28050-835-0
02
1
1108-
98
STUD; CAM BRKT
(A) M8X54 L=79
8-94322-512-2
02
1
1108-
98
STUD; CAM BRKT
(B) M8X41 L=66
8-94322-513-2
06
1
1108-
103
PLUG; HD
(A) M8X10
8-98003-416-0
01
1
1108-
103
PLUG; HD
(B) M14X14 IDN
9-09862-156-0
01
1
1108-
104
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
01
1
1108-1312
104
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
201
GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30
1-09639-034-0
06
1
1108-
250
CAP
8-94393-196-0
02
1
1108-
266
SLEEVE ASM; NOZZLE HOLDER
8-98018-462-0
06
1
1108-
270
BRACKET; CAM,FRONT
8-94395-626-2
01
1
1108-
272
BRACKET; CAM,RR
8-94395-627-1
01
1
1108-
