◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#62785) — 48 parça

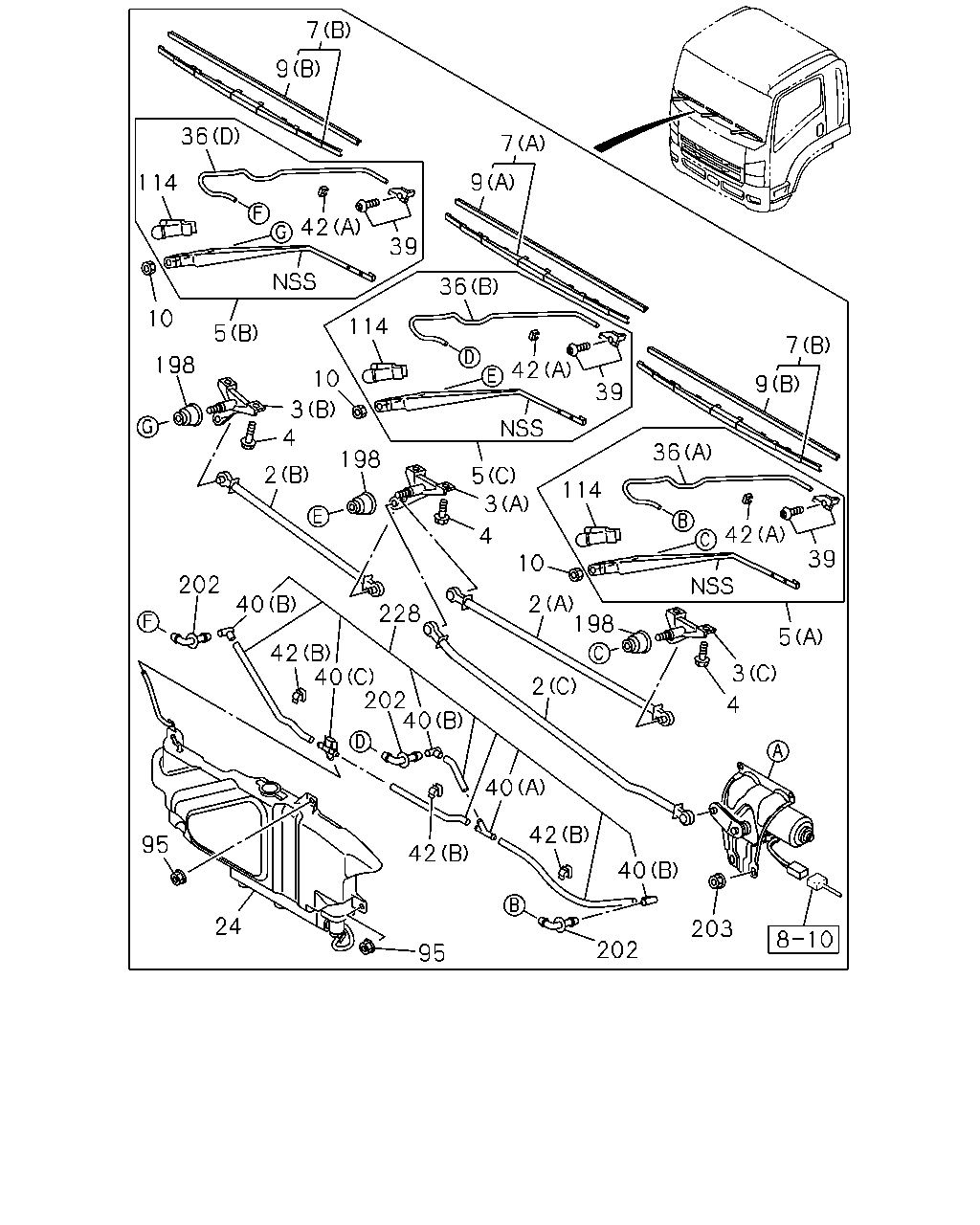

çizim 145797
7 9 36 42 114 39 5 3 4 198 2 2 10 203 202 40 42 40 42 95 24 95 40 39 42 5 3 4 198 2 10 3 4 114 36 9 7 39 42 36 9 7 114 10 198 202 40 2 40 202 228 5
BalonParca AdiParca NoAdetTipApplied Date
2 LINK; FRT WIPER
(A) 		8-98078-812-0 01 1 1108-
2 LINK; FRT WIPER
(B) 		8-98078-813-0 01 1 1108-
2 LINK; FRT WIPER
(C) 		8-98078-814-1 01 1 1108-
3 PIVOT ASM; FRT WIPER
(C) 		8-98068-140-1 01 1 1108-
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-817-1 01 1 1108-
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-818-1 01 1 1108-
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE IDN 		0-28650-820-0 06 1 1108-
5 ARM; WIPER
(B) 		8-98078-821-1 01 1 1108-
5 ARM; WIPER
(C) 		8-98078-822-1 01 1 1108-
5 ARM; WIPER
(A) 		8-98078-823-1 01 1 1108-
7 BLADE; WIPER
(B) 		1-83315-047-2 02 1 1108-
7 BLADE; WIPER
(A) 		1-83315-048-2 01 1 1108-
7 BLADE; WIPER
(B) BEST VALUE PARTS IDN 		5-87610-034-0 02 1 1108-
9 RUBBER; FRT WIPER BLADE
(B) L=500 		1-83355-015-0 02 1 1108-
9 RUBBER; FRT WIPER BLADE
(A) L=475 		1-83355-016-0 01 1 1108-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 1108-
24 TANK ASM; WASHER 8-98039-661-4 01 1 1108-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1108-
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1108-
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 1108-
36 HOSE; WASHER
(A) 		8-98078-826-0 01 1 1108-
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 03 1 1108-
40 JOINT; WASHER HOSE
(C) 		8-97167-258-0 01 1 1108-
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 03 1 1108-
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1108-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 1108-
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1108-
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 1108-
114 COVER; FRT WIPER ARM 1-83318-126-0 03 1 1108-
198 COVER; PIVOT,WIPER 8-98038-892-1 03 1 1108-
202 GROMMET; WIPER 1-86815-003-2 03 1 1108-
203 NUT; WIPER MOTOR
M8 FLANGE IDN 		0-91180-208-0 04 1 1108-
228 HOSE ASM; WASHER 8-98039-703-1 01 1 1108-

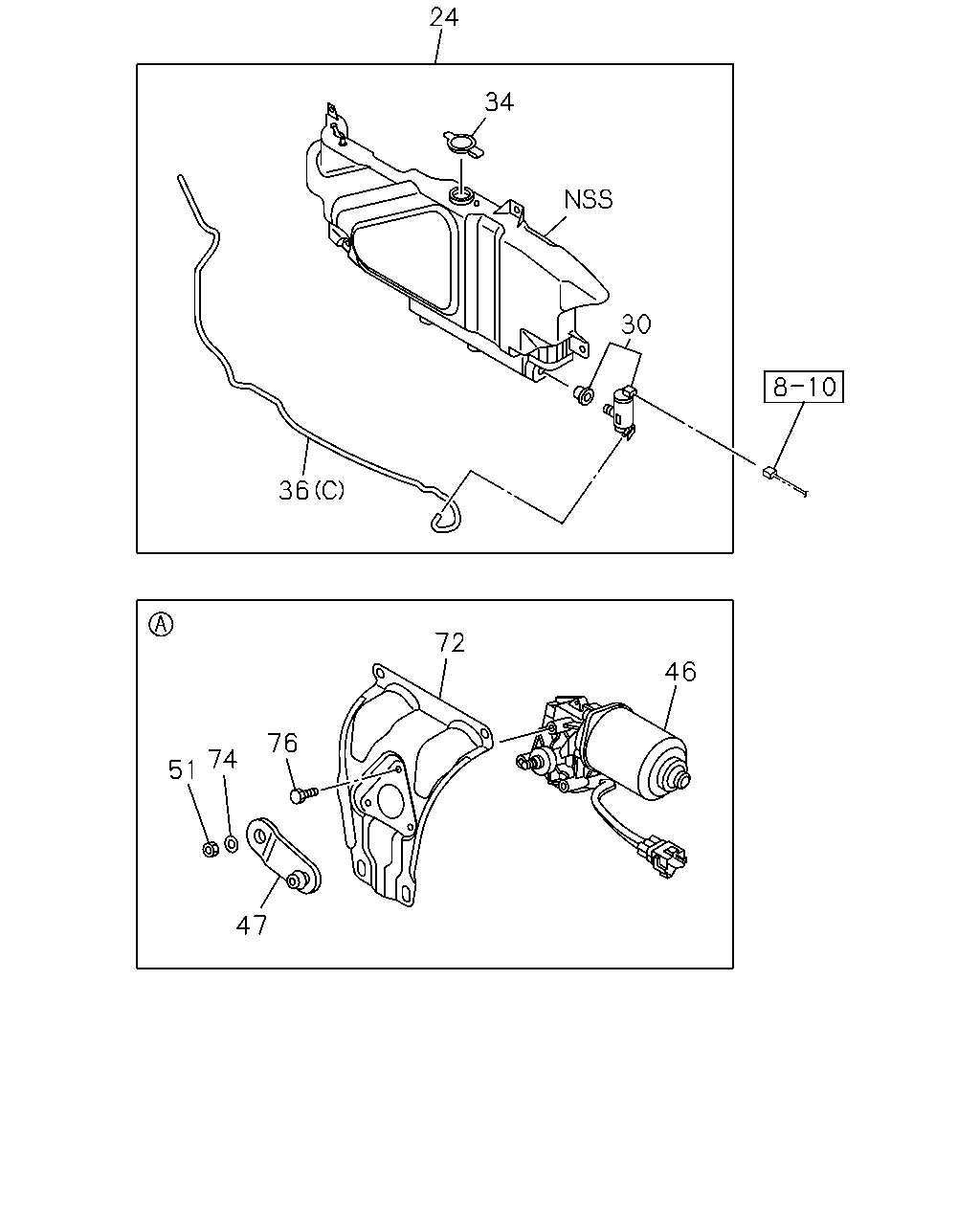

çizim 146040
30 34 24 36 72 46 76 74 51 47
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER 8-98039-661-4 01 1 1108-
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 1108-
34 CAP; WASHER TANK
IDN 		8-97855-140-0 01 1 1108-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1108-
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1108-
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 1108-
36 HOSE; WASHER
(A) 		8-98078-826-0 01 1 1108-
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-808-1 01 1 1108-
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 1108-
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 1108-
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 1108-
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 1108-
76 SCREW; BRKT TO WIPER MOTOR
BOLT M6X14 W/WASHER 		1-86810-062-0 03 1 1108-

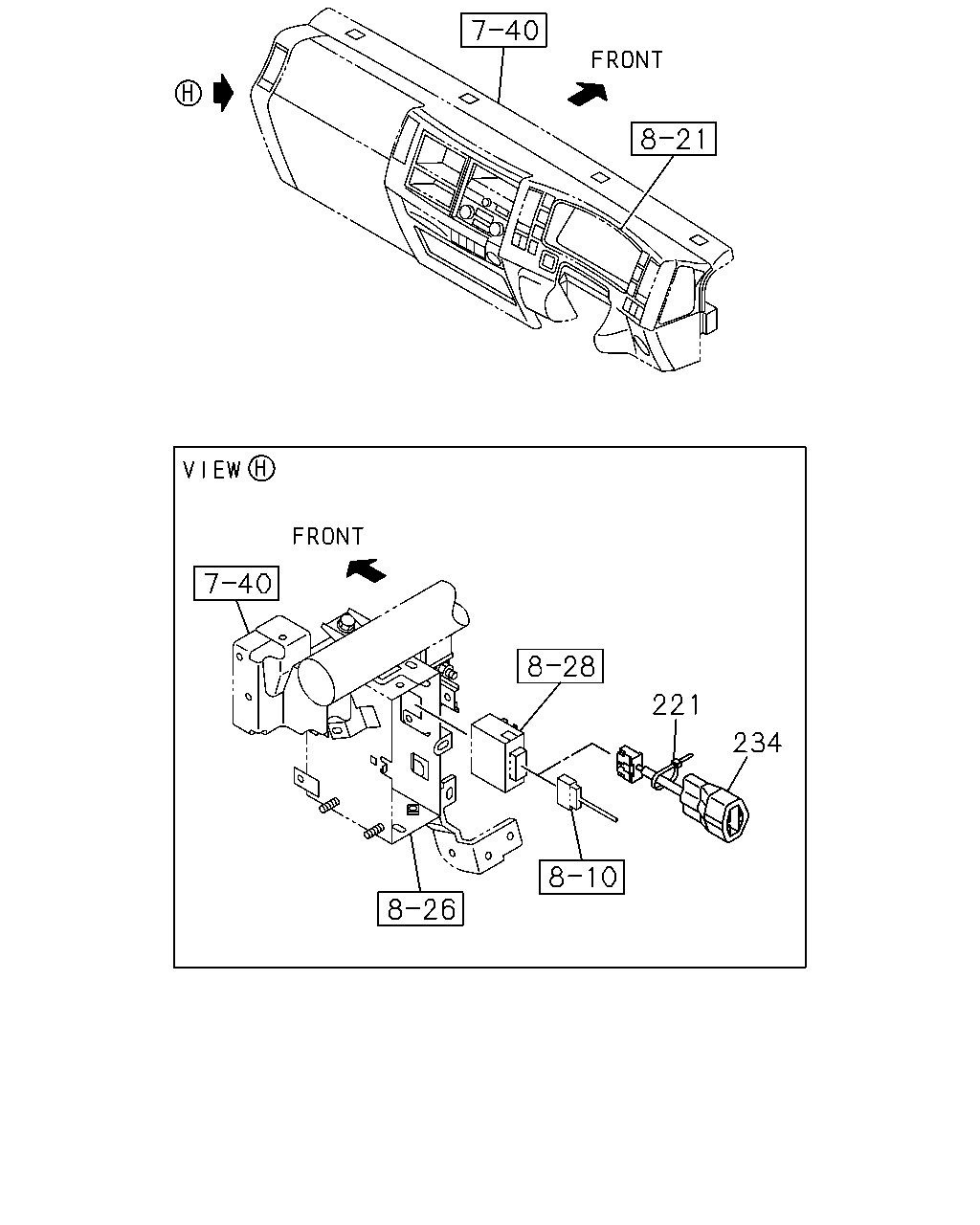

çizim 339214
221 234
BalonParca AdiParca NoAdetTipApplied Date
221 CLIP
L=140 IDN 		5-09707-031-1 01 1 1302-1308
234 HARNESS; EXT,WIPER 8-98236-609-0 01 1 1302-1308
