◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#62783) — 11 parça

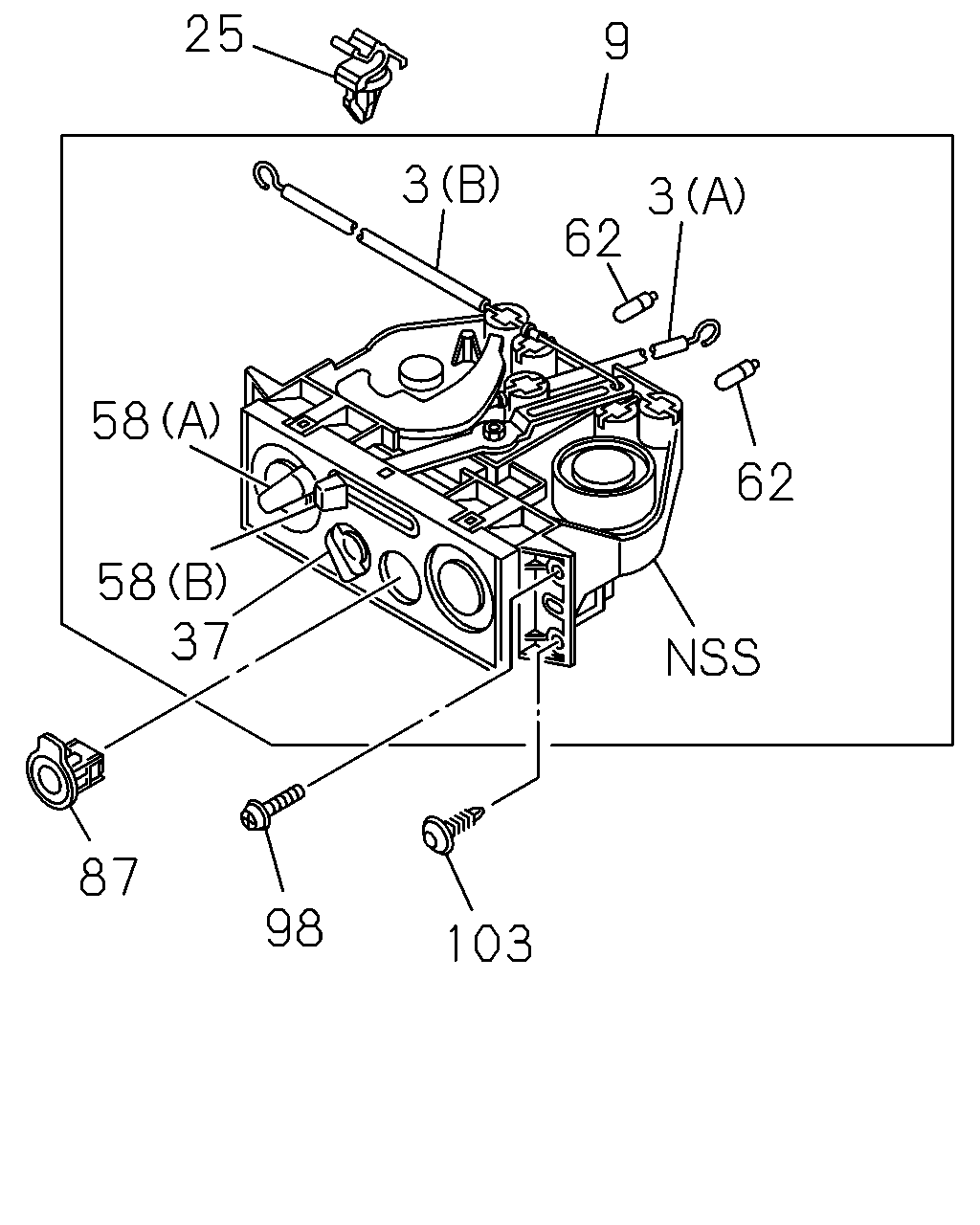

çizim 146037
103 62 3 9 3 62 25 58 58 37 87 98
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) MODE 		8-98041-503-1 01 1 1108-
3 CABLE; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) R/F 		8-98041-505-2 01 1 1108-
9 LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98062-807-1 01 1 1108-
25 CLIP; CABLE,CONT LEVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=4.8 		8-94128-483-0 03 1 1108-
37 KNOB; SW,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98037-368-0 01 1 1108-
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98037-369-0 01 1 1108-
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98037-370-0 01 1 1108-
62 BULB; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 1.1W 		8-98037-371-0 02 1 1108-
87 CAP; A/C SWITCH
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98006-089-0 01 1 1108-
98 SCREW; CONT PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1108-
103 CLIP
VENTILATOR & DEFROSTER WO/HEATER<SAZ> DARK GRAY 		8-97098-326-0 01 1 1108-
