◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#62775) — 166 parça

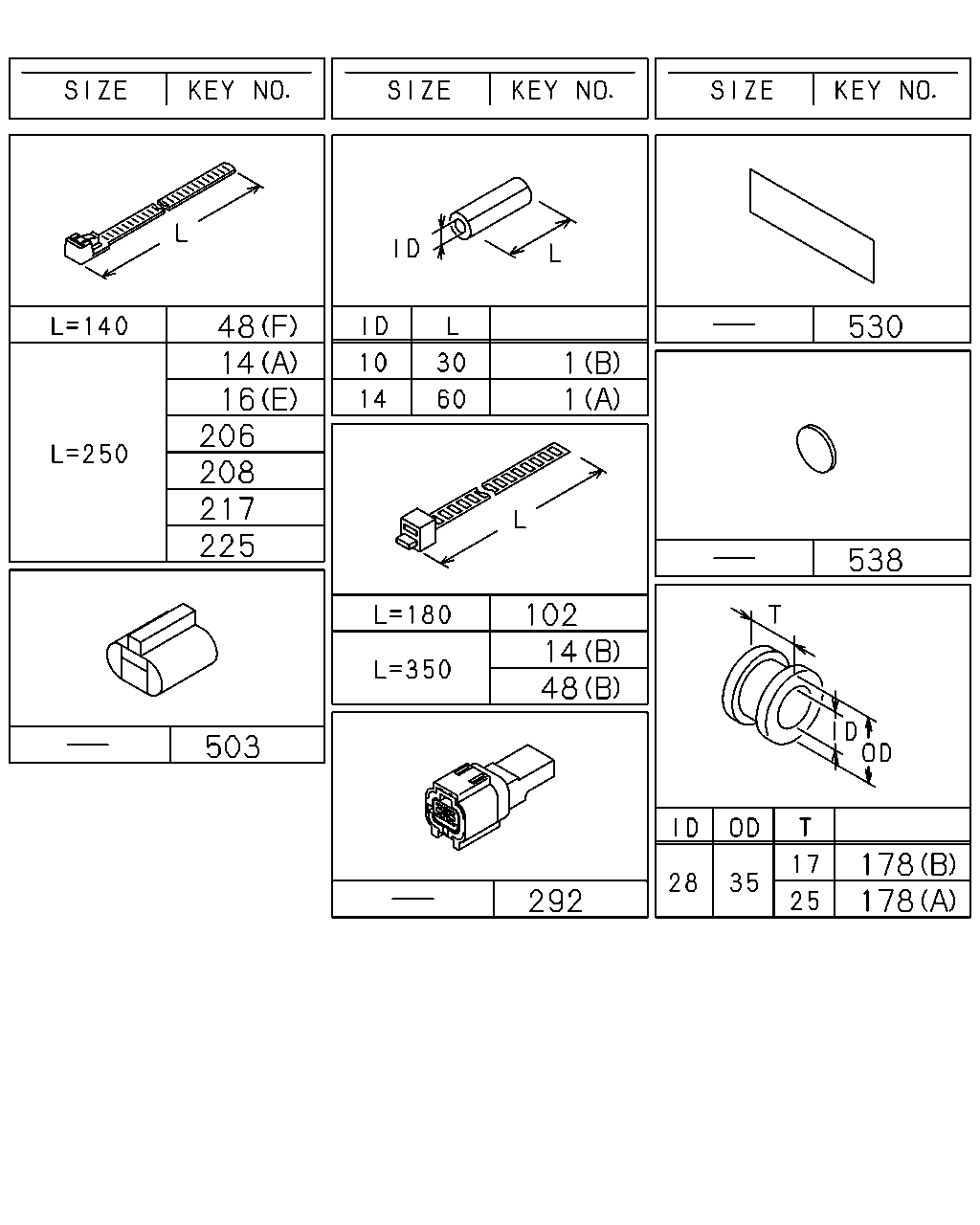

çizim 145799
48 14 16 206 208 217 225 503 1 1 102 14 48 292 530 538 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
KD ENGINE<7MB> (A) ID=14 OD=18 L=60 		8-97520-856-0 01 1 1411-
1 SLEEVE; RUBBER
KD ENGINE<7MB> (B) ID=10 OD=14 L=30 IDN 		8-97520-857-0 04 1 1411-
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1108-1410
1 SLEEVE; RUBBER
EXC. KD ENGINE<7MB> (A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1411-
1 SLEEVE; RUBBER
(B) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1108-1410
1 SLEEVE; RUBBER
EXC. KD ENGINE<7MB> (B) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1411-
14 CLIP; BAND,HARNESS
KD ENGINE<7MB> (A) L=250 		8-98216-430-0 13 1 1411-
14 CLIP; BAND,HARNESS
(A) L=250 IDN 		5-09707-030-1 09 1 1108-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1206-1410
14 CLIP; BAND,HARNESS
EXC. KD ENGINE<7MB> (A) L=250 		8-98216-430-0 09 1 1411-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1108-
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1108-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1108-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 03 1 1108-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1108-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1108-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1108-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1108-
48 CLIP; FRAME HARNESS
ZF9S1110 DD M/T(Y5P) (J) ID=16X2 L=50 		0-95325-586-0 01 1 1310-
48 CLIP; FRAME HARNESS
ZF9S1110 DD M/T(Y5P) (K) ID=14.5 L=40 		1-09701-014-0 01 1 1310-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (G) ID=15 L=65 		1-09700-466-0 20 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (G) ID=15 L=65 		1-09700-466-0 30 1 1108-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1108-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 01 1 1108-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1108-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1108-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1108-
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=26 		1-09709-289-0 01 1 1108-
48 CLIP; FRAME HARNESS
(C) ID=13-18 L=26 		1-09709-293-0 02 1 1108-
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=26 		1-09709-296-0 02 1 1108-
48 CLIP; FRAME HARNESS
(F) L=140 IDN 		5-09707-031-1 02 1 1108-
102 CLIP; BAND
6HK1-TCS ENG(80L) L=180 		1-09707-162-1 01 1 1310-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1108-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1108-
206 CLIP; FUEL TANK HARNESS
L=250 IDN 		5-09707-030-1 02 1 1108-
208 CLIP; HARNESS,MAG VLV
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> L=250 IDN 		5-09707-030-1 01 1 1310-
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 1108-
225 CLIP; AIR TANK HARNESS
L=250 IDN 		5-09707-030-1 04 1 1108-
292 CAP; RUBBER
6HK1-TCS ENG(80L) 		1-82691-191-0 01 1 1310-
503 CONNECTOR 1-82690-668-0 01 1 1108-
530 SEAL; HARNESS
180X40 		1-72498-019-1 11 1 1108-1402
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1108-
çizim 146004
16 305 305 48 48 48 223 223 305 470 252 305 16 116 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1108-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1108-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 03 1 1108-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1108-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1108-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1108-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1108-
48 CLIP; FRAME HARNESS
ZF9S1110 DD M/T(Y5P) (J) ID=16X2 L=50 		0-95325-586-0 01 1 1310-
48 CLIP; FRAME HARNESS
ZF9S1110 DD M/T(Y5P) (K) ID=14.5 L=40 		1-09701-014-0 01 1 1310-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (G) ID=15 L=65 		1-09700-466-0 20 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (G) ID=15 L=65 		1-09700-466-0 30 1 1108-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1108-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 01 1 1108-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1108-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1108-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1108-
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=26 		1-09709-289-0 01 1 1108-
48 CLIP; FRAME HARNESS
(C) ID=13-18 L=26 		1-09709-293-0 02 1 1108-
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=26 		1-09709-296-0 02 1 1108-
48 CLIP; FRAME HARNESS
(F) L=140 IDN 		5-09707-031-1 02 1 1108-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1108-
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 1108-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1108-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=26 		1-09709-289-0 03 1 1108-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 1108-
252 CLIP; CONNECTOR FIX
OD=9 H=17.5 		1-09709-181-0 01 1 1108-
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1108-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1108-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1108-
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1108-
305 CLIP; ENG HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1108-
305 CLIP; ENG HARNESS
(G) ID=19 L=39 H=21 		1-09700-972-1 01 1 1108-
305 CLIP; ENG HARNESS
(H) ID=25 L=60 		1-09701-041-1 01 1 1108-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1108-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1108-
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 01 1 1108-1310
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 02 1 1311-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1108-

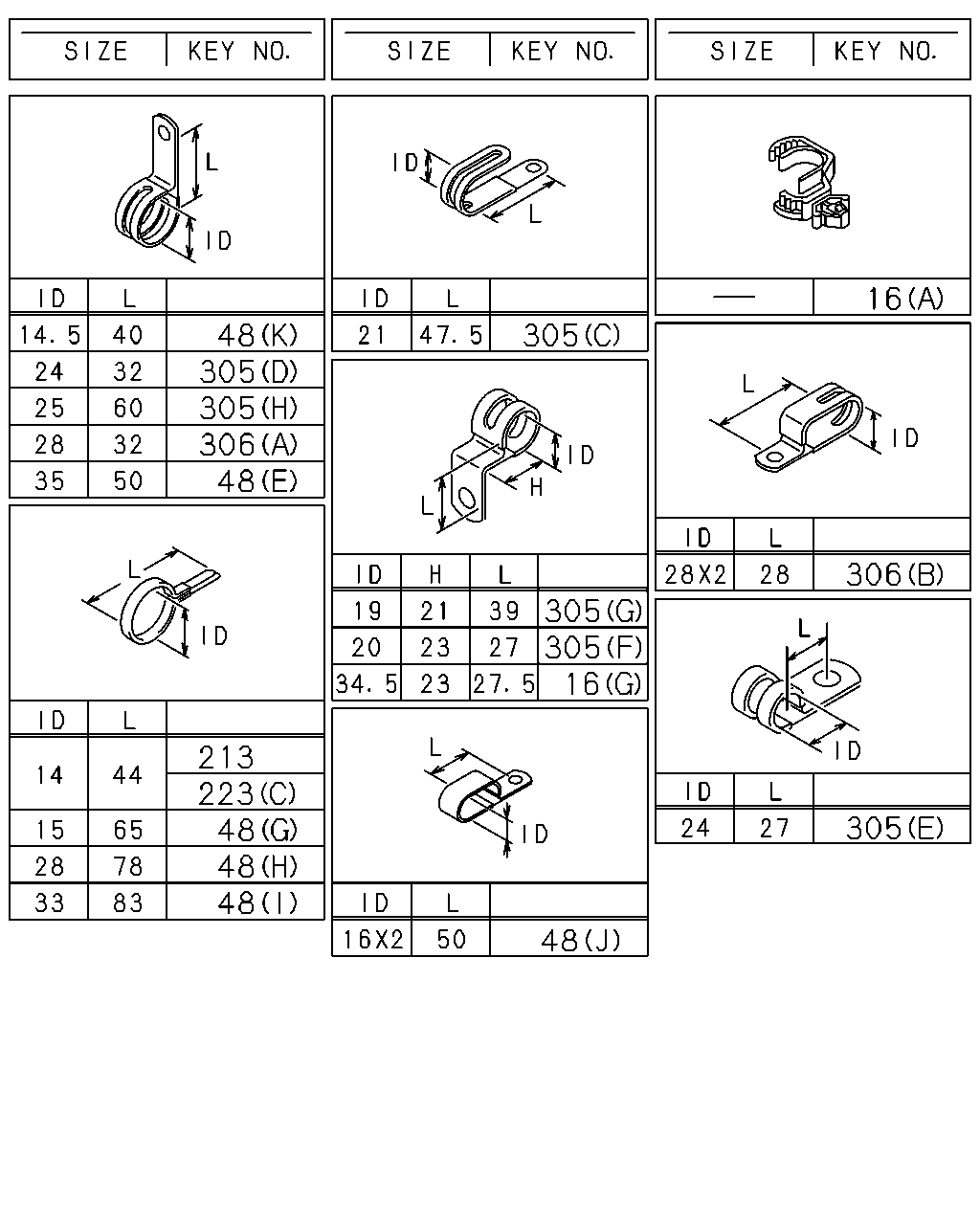

çizim 146019
48 305 305 306 213 48 48 48 48 223 305 305 16 305 48 16 306 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1108-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1108-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 03 1 1108-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1108-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1108-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1108-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1108-
48 CLIP; FRAME HARNESS
ZF9S1110 DD M/T(Y5P) (J) ID=16X2 L=50 		0-95325-586-0 01 1 1310-
48 CLIP; FRAME HARNESS
ZF9S1110 DD M/T(Y5P) (K) ID=14.5 L=40 		1-09701-014-0 01 1 1310-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (G) ID=15 L=65 		1-09700-466-0 20 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (G) ID=15 L=65 		1-09700-466-0 30 1 1108-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1108-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 01 1 1108-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1108-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1108-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1108-
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=26 		1-09709-289-0 01 1 1108-
48 CLIP; FRAME HARNESS
(C) ID=13-18 L=26 		1-09709-293-0 02 1 1108-
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=26 		1-09709-296-0 02 1 1108-
48 CLIP; FRAME HARNESS
(F) L=140 IDN 		5-09707-031-1 02 1 1108-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1108-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1108-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=26 		1-09709-289-0 03 1 1108-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 1108-
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1108-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1108-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1108-
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1108-
305 CLIP; ENG HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1108-
305 CLIP; ENG HARNESS
(G) ID=19 L=39 H=21 		1-09700-972-1 01 1 1108-
305 CLIP; ENG HARNESS
(H) ID=25 L=60 		1-09701-041-1 01 1 1108-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1108-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1108-
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 01 1 1108-1310
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 02 1 1311-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1108-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1108-

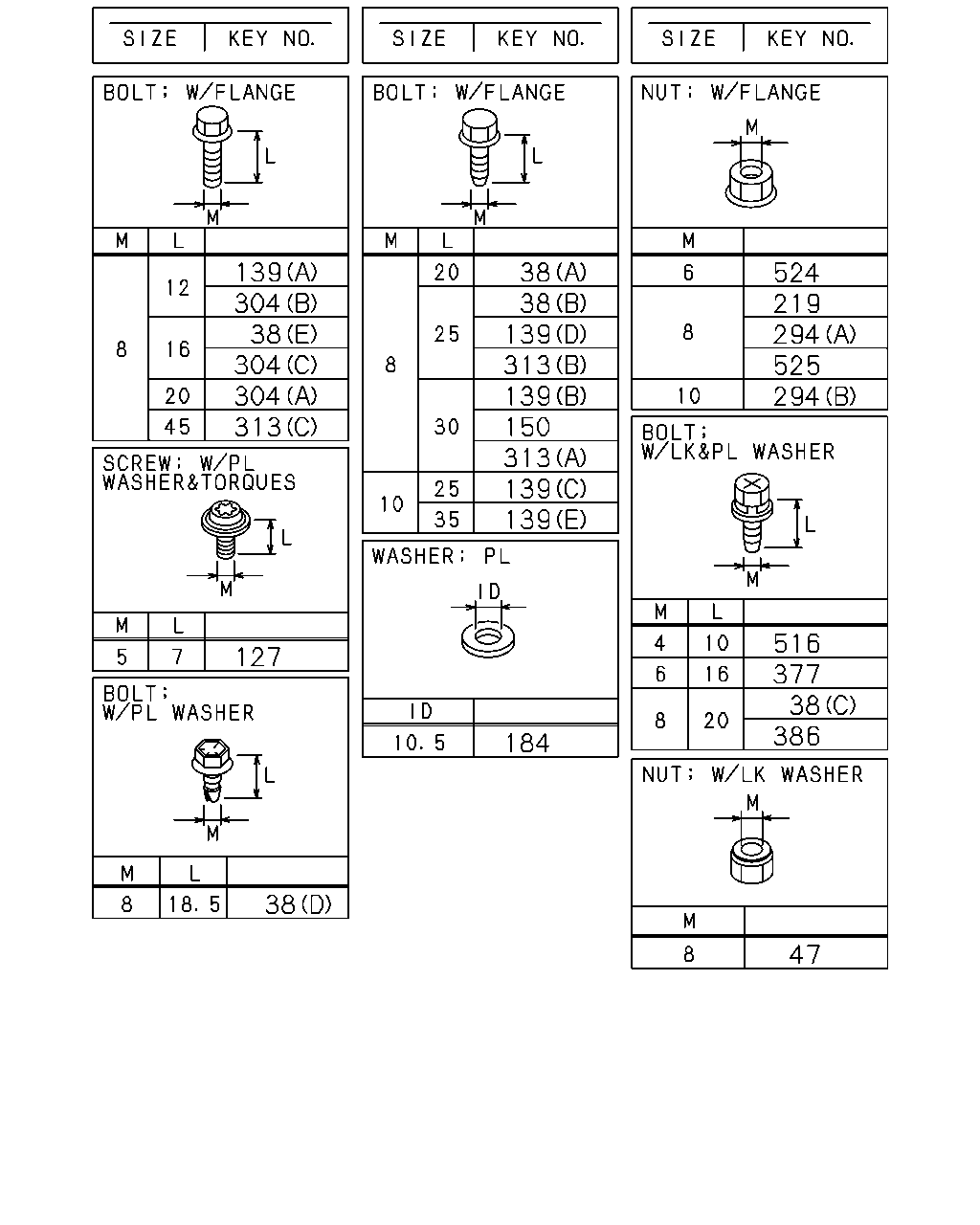

çizim 146032
139 304 304 304 313 127 38 184 47 516 377 38 386 294 525 294 219 524 139 139 313 150 139 313 139 38 38 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
ZF9S1110 DD M/T(Y5P) (E) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 05 1 1108-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 03 1 1108-1202
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 03 1 1203-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET IDN 		8-98063-767-0 01 1 1108-
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1108-
139 BOLT; BRKT
(D) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1108-
139 BOLT; BRKT
(C) M10X25 FLANGE IDN 		0-28651-025-0 02 1 1108-
139 BOLT; BRKT
(E) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1108-
150 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1108-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1108-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1108-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1108-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1108-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1108-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1108-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 05 1 1108-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1108-
313 BOLT; BRKT
(C) M8X45 FLANGE 		0-28050-845-0 01 1 1108-
313 BOLT; BRKT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1108-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1108-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1108-
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 02 1 1108-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1108-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1108-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1108-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1108-

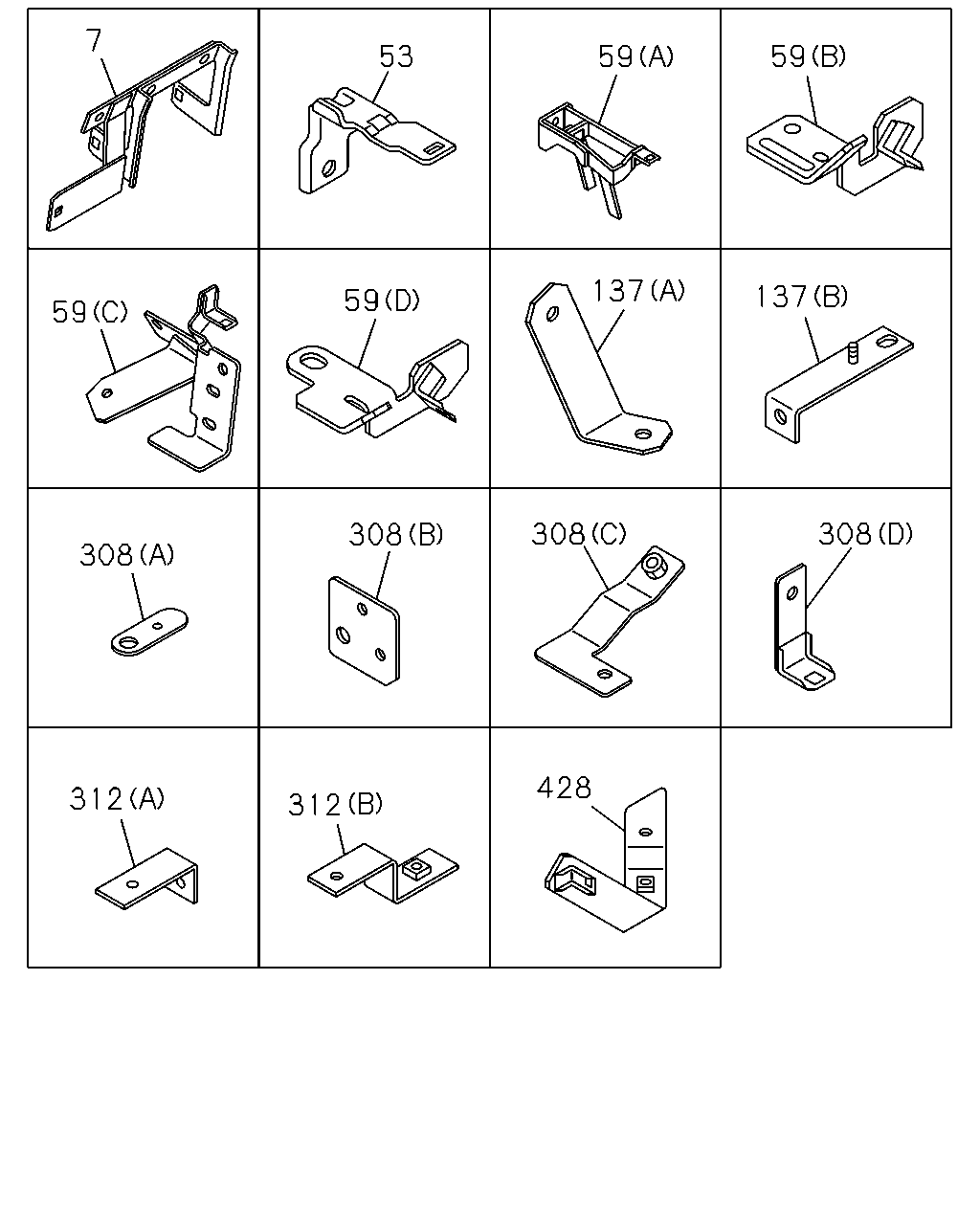

çizim 146039
308 137 59 59 137 308 428 312 308 59 53 7 59 308 312
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1108-
53 BRACKET; HARNESS
IDN 		8-98052-458-0 01 1 1108-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1108-
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 1108-1502
59 BRACKET; FRAME HARNESS
(D) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1108-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1108-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1108-
308 BRACKET; CLIP,ENG HARNESS
KD ENGINE<7MB> (C) 		8-97520-855-0 01 1 1411-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1108-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 1108-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 1108-1410
308 BRACKET; CLIP,ENG HARNESS
EXC. KD ENGINE<7MB> (C) 		8-98032-178-0 01 1 1411-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98075-824-0 01 1 1108-
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1108-
312 BRACKET; CLIP HARNESS
(B) 		8-97609-110-1 01 1 1108-
428 BRACKET 8-97620-514-0 01 1 1108-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
