◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#62769) — 12 parça

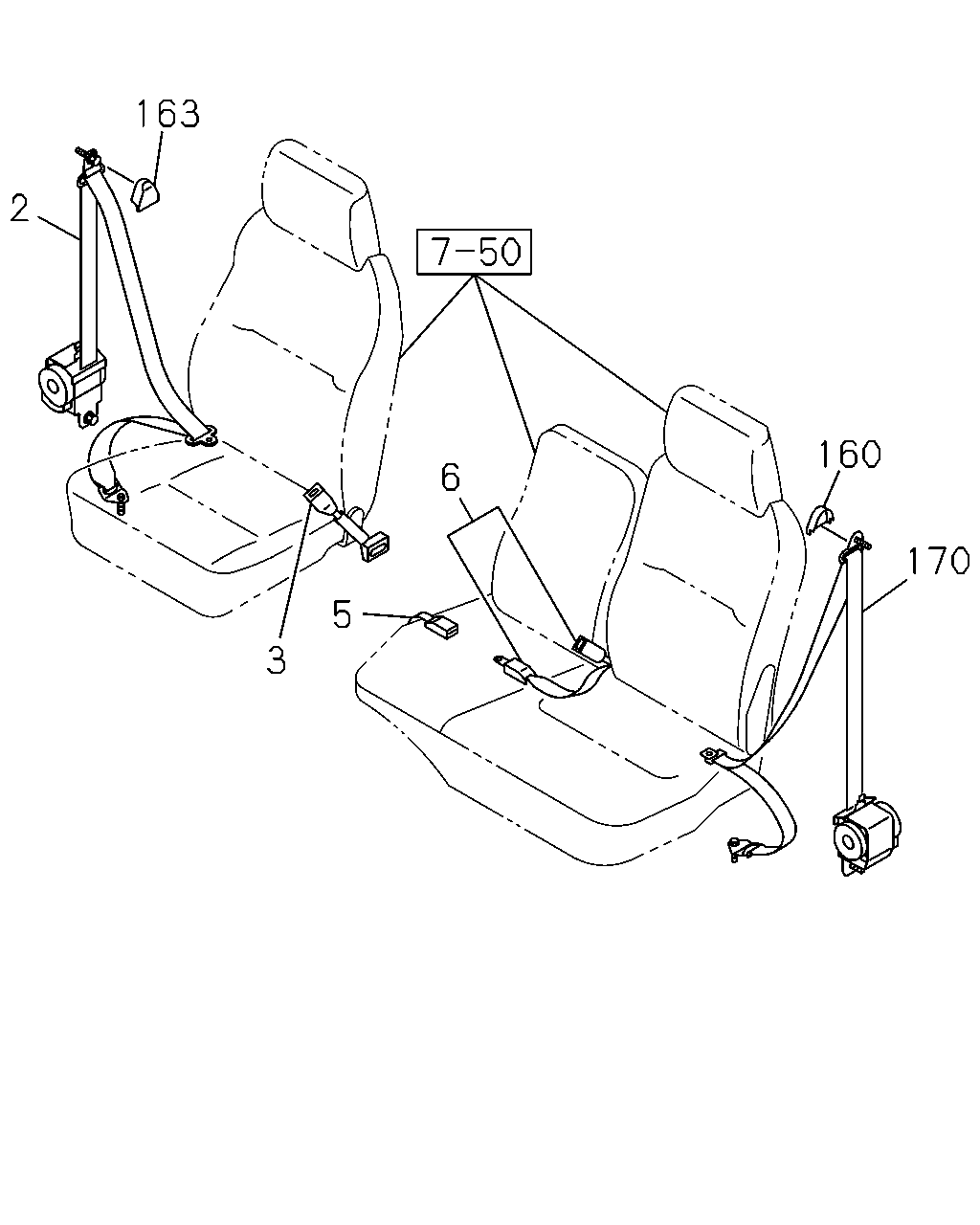

çizim 145994
163 2 3 5 6 160 170
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY IDN 		8-97407-770-4 01 1 1108-1209
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1407
2 BELT; SEAT,TONGUE SIDE
GRAY IDN 		8-97428-435-0 01 1 1408-
3 BELT; SEAT,BUCKLE SIDE
GRAY IDN 		8-97407-375-4 01 1 1108-
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY IDN 		8-97407-377-1 01 1 1108-
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY IDN 		8-97409-768-3 01 1 1108-1209
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1210-
160 COVER; THROUGH ANCHOR
GRAY IDN 		8-97405-991-0 01 1 1108-
163 COVER; ADJUSTER
GRAY IDN 		8-97405-991-0 01 1 1108-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY IDN 		8-97407-770-4 01 1 1108-1209
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1407
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY IDN 		8-97428-435-0 01 1 1408-
