7-20 — MIRROR AND MIRROR STAY (#62762) — 90 parça

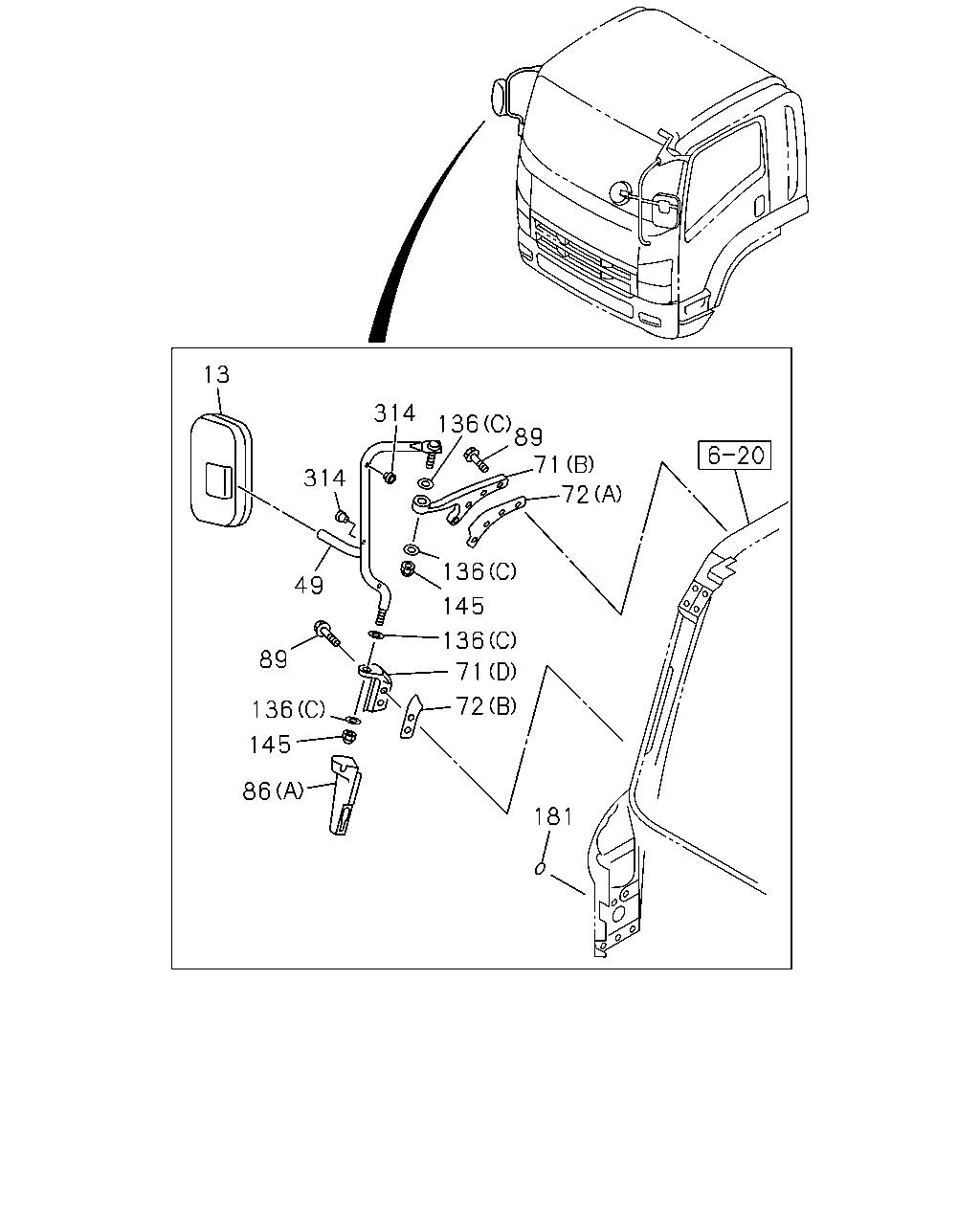

13 314 314 136 145 136 71 72 181 86 136 145 89 49 136 71 72 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1108-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1108-
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1108-
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1108-1502
49	STAY; MIRROR SIDE	8-98305-582-0	01	1	1503-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1108-
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1108-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1108-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1108-
71	BRACKET; OUTSIDE MIRROR (E)	8-98040-544-2	01	1	1108-1112
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1201-
72	SHEET (A)	8-98040-351-0	01	1	1108-
72	SHEET (B)	8-98040-353-1	01	1	1108-
72	SHEET (C)	8-98040-535-0	01	1	1108-
72	SHEET (D)	8-98040-537-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1108-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1108-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1108-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1108-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1108-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1108-
181	SEAL; BRKT OD=25 BLACK	1-76798-019-0	01	1	1108-
181	SEAL; BRKT 25X25	8-94272-533-0	01	1	1108-
314	BUFFER; STOPPER	8-94314-317-0	02	1	1108-

13 53 53 71 26 25 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1108-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1108-
14	MIRROR ASM; OUTSIDE	8-98045-690-0	01	1	1108-
14	MIRROR ASM; OUTSIDE	8-98108-511-0	01	1	1108-
25	SCREW; OUTSIDE MIRROR M6X40	1-71707-223-0	04	1	1108-
26	COVER; OUTSIDE MIRROR	1-71707-221-0	01	1	1108-
26	COVER; OUTSIDE MIRROR	1-71707-222-0	01	1	1108-
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	04	1	1108-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1108-
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1108-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1108-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1108-
71	BRACKET; OUTSIDE MIRROR (E)	8-98040-544-2	01	1	1108-1112
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1201-

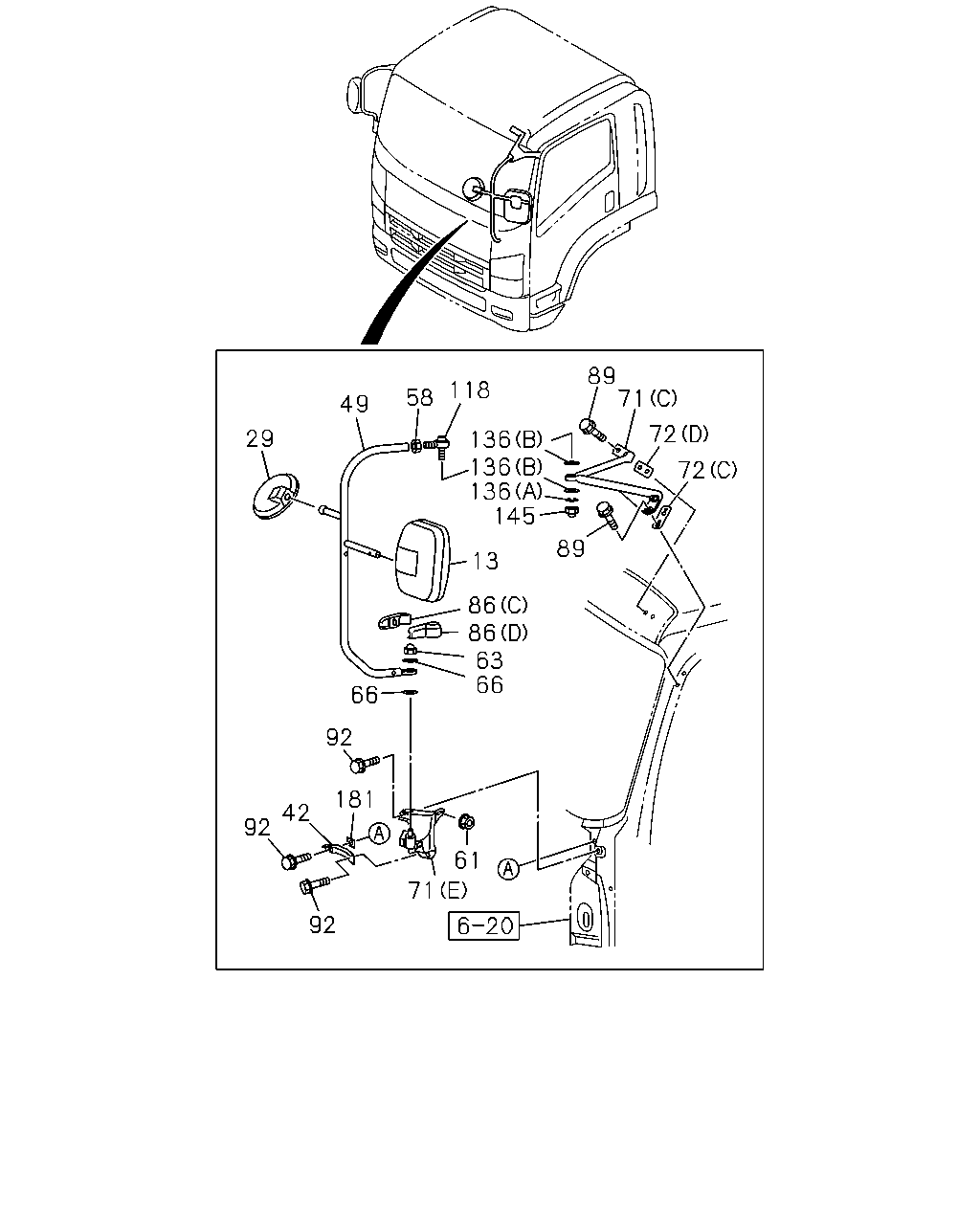

71 181 92 92 42 92 29 49 58 118 89 72 71 72 89 13 136 136 136 86 86 63 66 145 66 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1108-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1108-
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1108-
42	ATTACHMENT; OUTSIDE MIRROR	8-98070-643-0	01	1	1108-
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1108-
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1108-1502
49	STAY; MIRROR SIDE	8-98305-582-0	01	1	1503-
58	NUT; MIRROR STAY M12	8-98061-883-0	01	1	1108-
61	NUT; STAY,OUTSIDE MIRROR M8 FLANGE	0-91180-108-0	01	1	1108-
63	NUT; STAY M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1108-
66	WASHER; PL LOWER	0-91610-614-0	01	1	1108-
66	WASHER; PL UPPER	8-98174-337-0	01	1	1108-1112
66	WASHER; PL UPPER	8-98201-756-0	01	1	1201-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1108-
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1108-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1108-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1108-
71	BRACKET; OUTSIDE MIRROR (E)	8-98040-544-2	01	1	1108-1112
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1201-
72	SHEET (A)	8-98040-351-0	01	1	1108-
72	SHEET (B)	8-98040-353-1	01	1	1108-
72	SHEET (C)	8-98040-535-0	01	1	1108-
72	SHEET (D)	8-98040-537-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1108-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1108-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	04	1	1108-
118	JOINT ASM; BALL	1-71798-356-2	01	1	1108-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1108-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1108-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1108-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1108-
181	SEAL; BRKT OD=25 BLACK	1-76798-019-0	01	1	1108-
181	SEAL; BRKT 25X25	8-94272-533-0	01	1	1108-

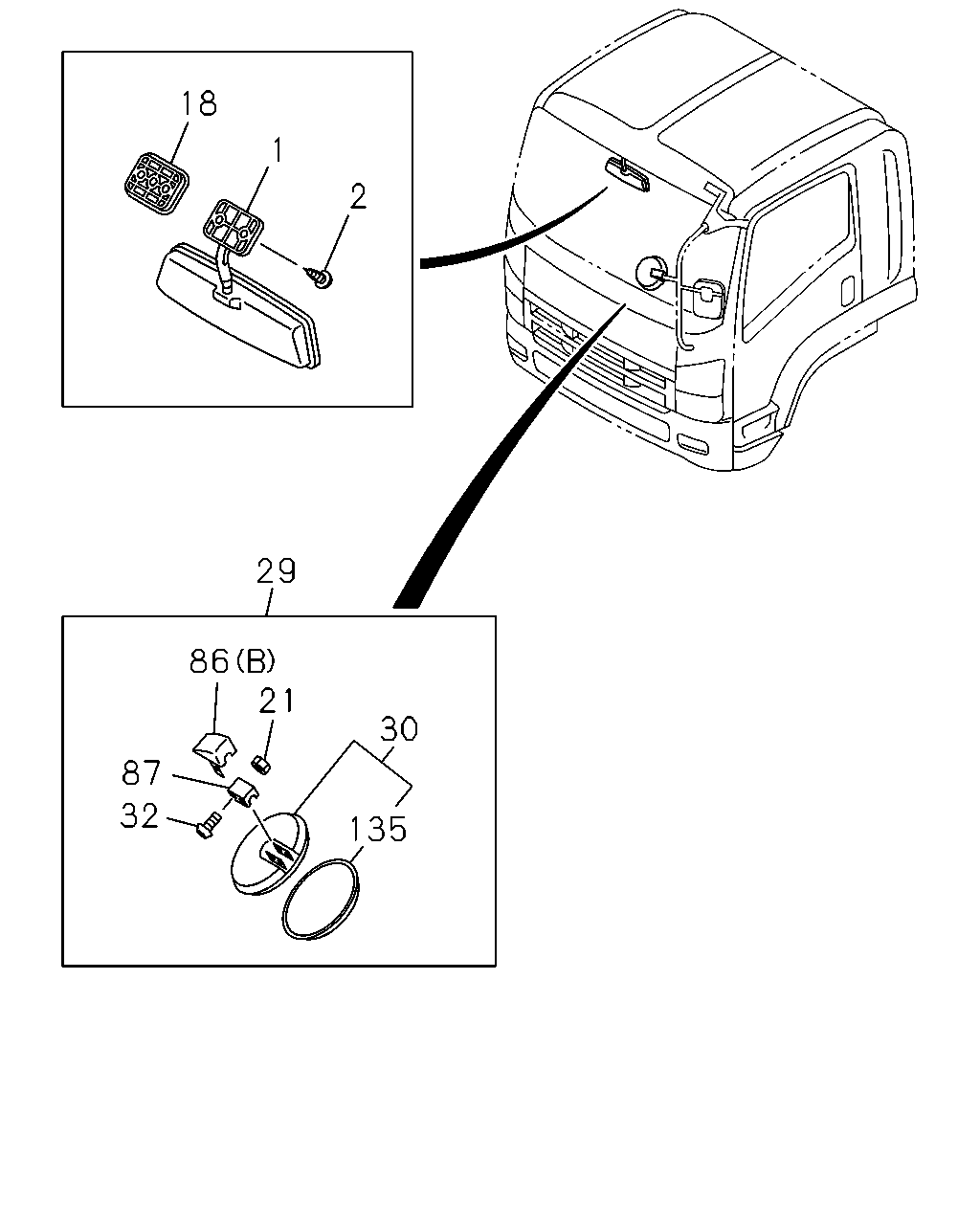

18 1 2 29 86 21 30 135 87 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY IDN	8-98097-534-1	01	1	1108-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1108-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1108-
21	NUT; MIRROR M5	1-09984-124-0	02	1	1108-
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1108-
30	MIRROR; UNDER	1-71798-591-1	01	1	1108-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1108-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1108-
87	SPACER	1-71737-646-2	01	1	1108-
135	LENS; MIRROR,SIDE UNDER	1-71798-838-0	01	1	1108-
