◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05C - CLUTCH PIPING ▶
2-05C — CLUTCH PIPING (#6276) — 89 parça

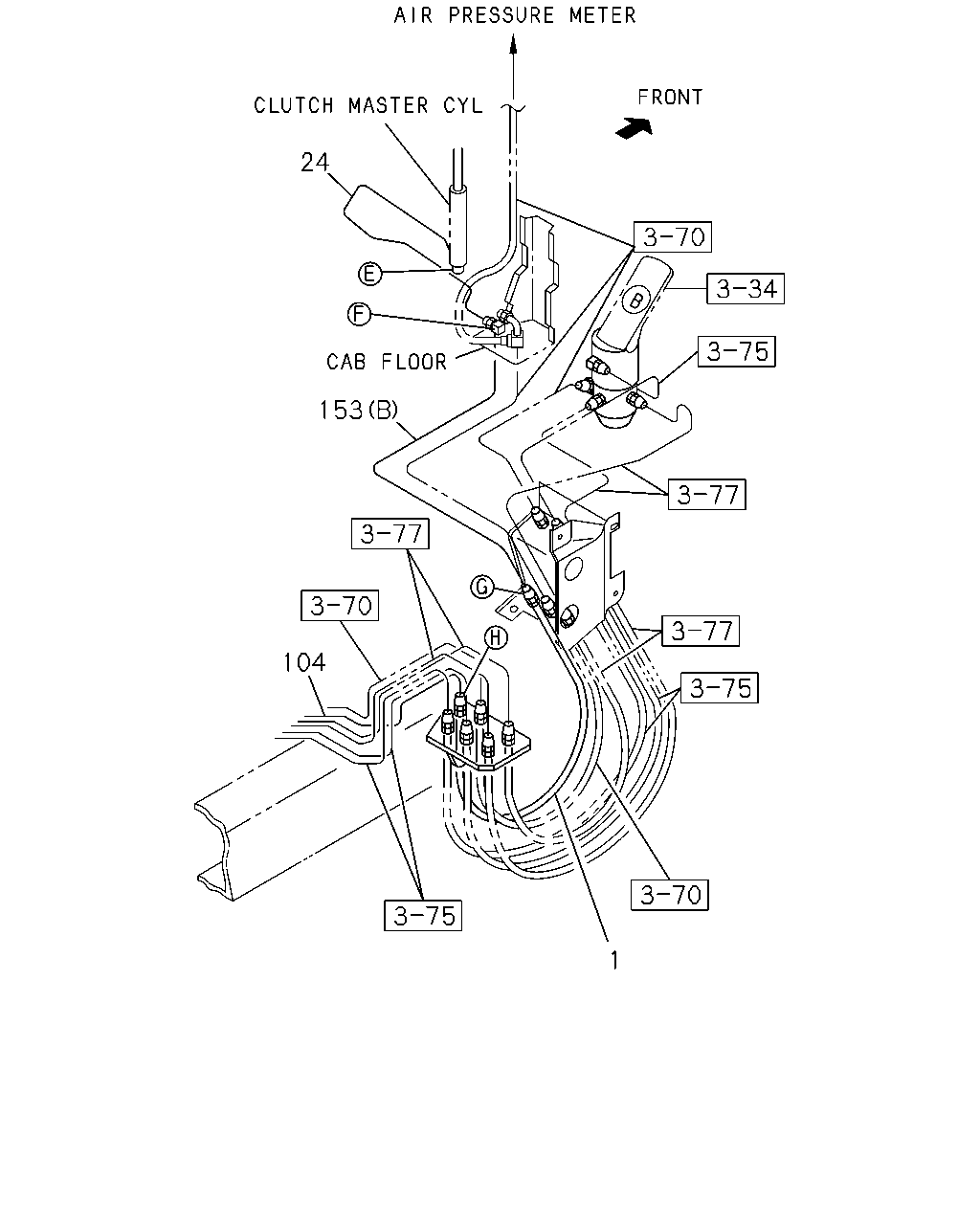

çizim 42385
24 153 104 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 9906- ● ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-1 01 1 9906- ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9906- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1589 		1-49164-423-0 01 1 9906-0002 ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1595 		1-49165-436-0 01 1 0003- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9906-9912 ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1544 SERVICED BY L=1550 		1-47426-390-0 01 1 0001- ● ● ●

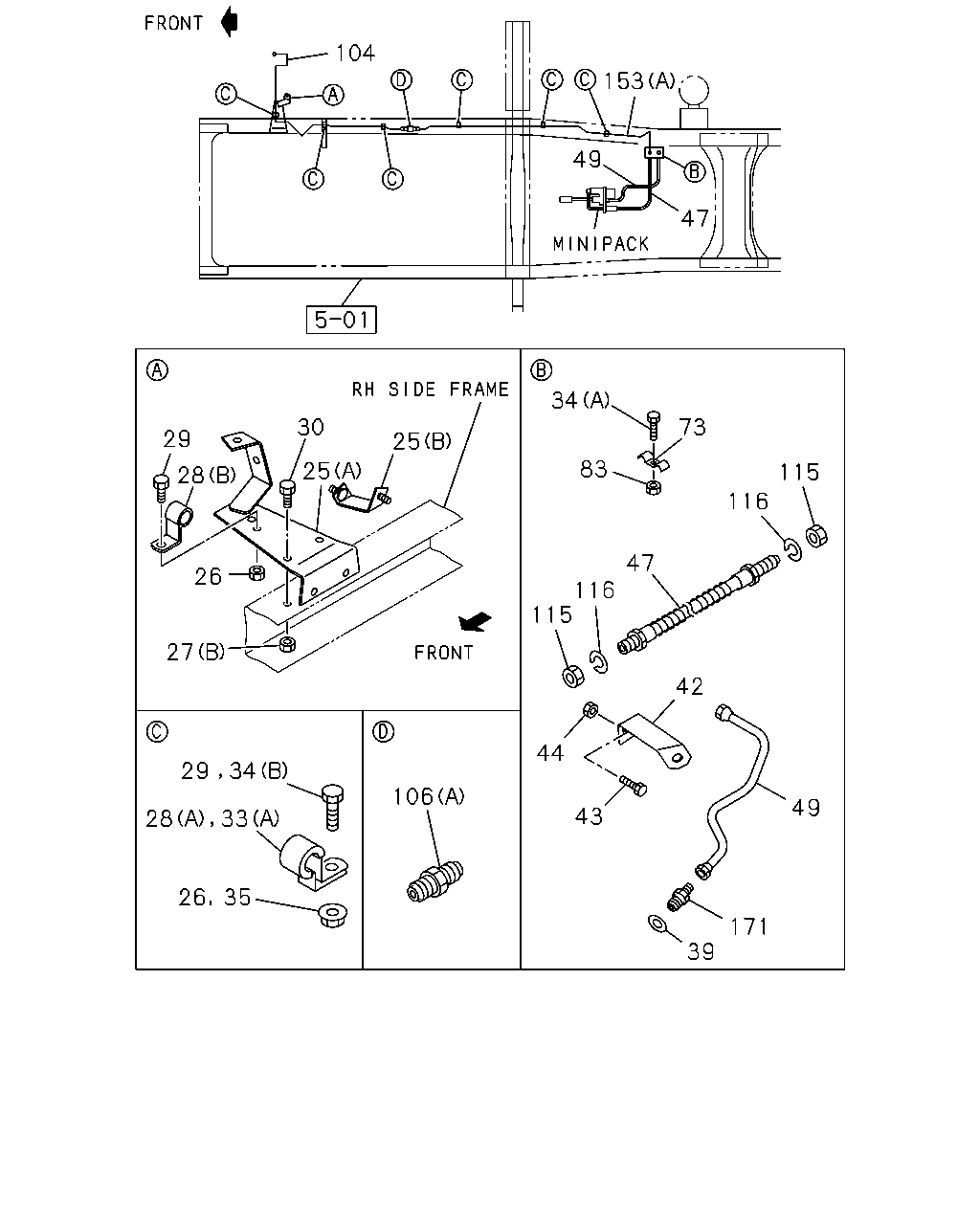

çizim 42634
104 153 49 47 34 73 30 29 25 83 25 115 28 116 47 26 116 115 27 42 44 29 34 106 49 43 28 33 26 35 171 39
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BRACKET; OIL PIPE
(B) 		1-47477-597-2 01 1 9906-0002 ● ● ●
25 BRACKET; OIL PIPE
(A) 		1-47477-604-2 01 1 9906- ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 9906-0002 ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0003- ● ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9906-0002 ● ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9906- ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9906-0002 ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0003- ● ● ●
28 CLIP; OIL PIPE
(B) ID=9 		9-09524-845-0 01 1 9906-0002 ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9906-0002 ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0003- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0003- ● ● ●
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9906- ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 9906-0002 ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 04 1 0003-0101 ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0102- ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 03 1 9906-0002 ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 04 1 0003-0101 ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9906-9906 ● ● ●
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9906- ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0102- ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9906-0002 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0003-0101 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9906-9906 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0102- ● ● ●
39 GASKET; CONNECTOR
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9906- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-724-0 01 1 9906-9912 ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47478-796-0 01 1 0001- ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9906-9906 ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9907- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9906-9906 ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9907-9912 ● ● ●
47 HOSE; FLEX,CLU CONT
L=420 		1-09364-615-0 01 1 9906-9912 ● ● ●
47 HOSE; FLEX,CLU CONT
L=445 		1-09364-478-0 01 1 0001- ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-49161-120-0 01 1 9906- ● ● ●
73 CLIP; OIL PIPE
ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9906- ● ● ●
83 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9906- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1589 		1-49164-423-0 01 1 9906-0002 ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1595 		1-49165-436-0 01 1 0003- ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9906- ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 02 1 9906- ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 02 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9906-9912 ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1544 SERVICED BY L=1550 		1-47426-390-0 01 1 0001- ● ● ●
171 CONNECTOR; CLU BOOSTER 1-09650-256-1 01 1 9906- ● ● ●

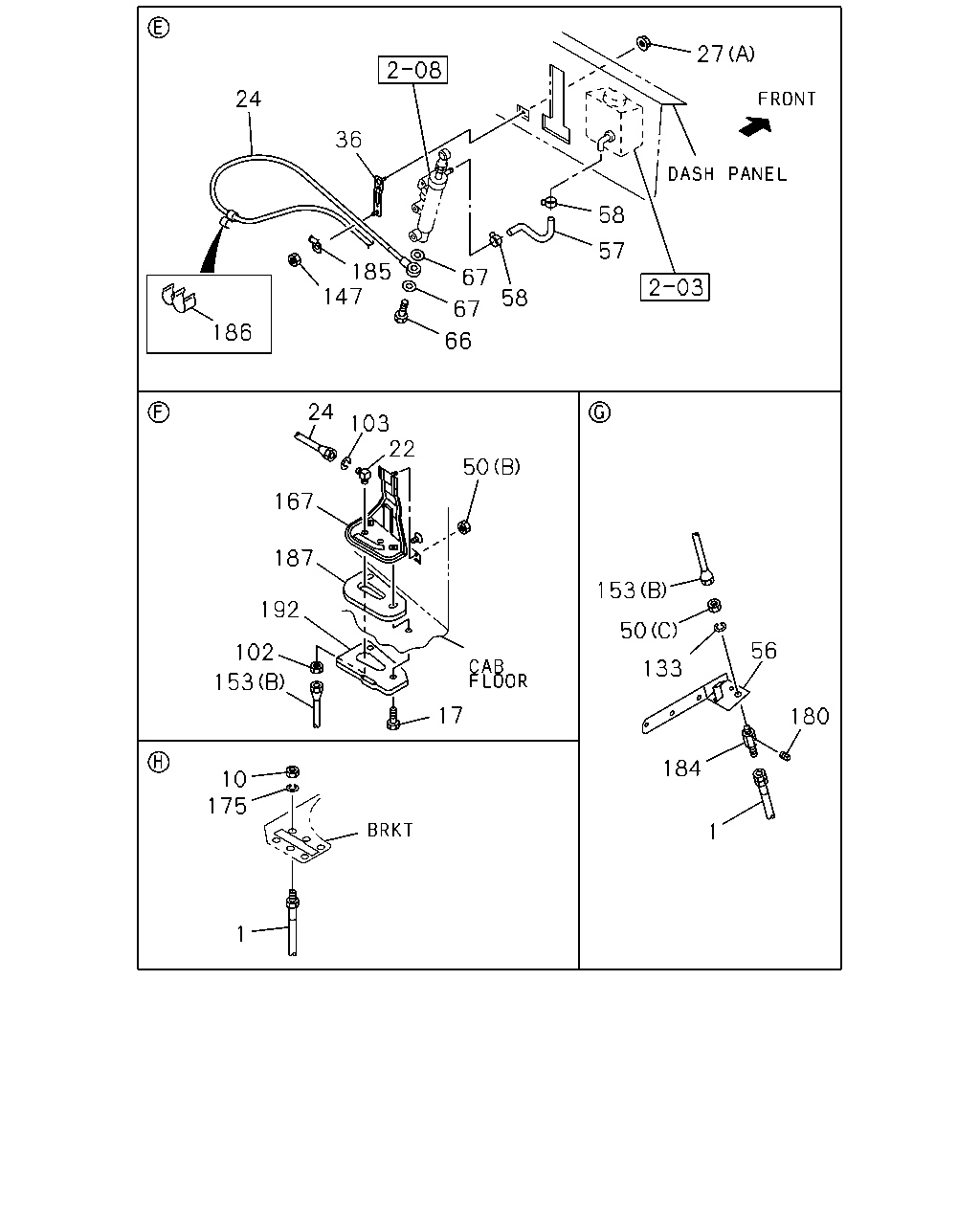

çizim 43112
27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 56 102 133 153 17 180 184 10 175 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 9906- ● ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-1 01 1 9906- ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906- ● ● ●
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 9906- ● ● ●
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 9906- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9906- ● ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9906-0002 ● ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9906- ● ● ●
36 BRACKET; CLIP 1-71117-191-1 01 1 9906- ● ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906- ● ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9906- ● ● ●
56 BRACKET; FLEX HOSE 1-47477-602-1 01 1 9906- ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9906- ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9906- ● ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9906- ● ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9906- ● ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906- ● ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9906-9912 ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1544 SERVICED BY L=1550 		1-47426-390-0 01 1 0001- ● ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 9906- ● ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9906- ● ● ●
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9906- ● ● ●
185 CLIP; BRKT
ID=9 L=20 		9-09545-108-0 01 1 9906- ● ● ●
186 HOLDER; CLIP
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 9906- ● ● ●
187 SEAL; BRKT 1-71117-222-0 01 1 9906- ● ● ●
192 PLATE 1-71117-221-0 01 1 9906- ● ● ●
