◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#62752) — 61 parça

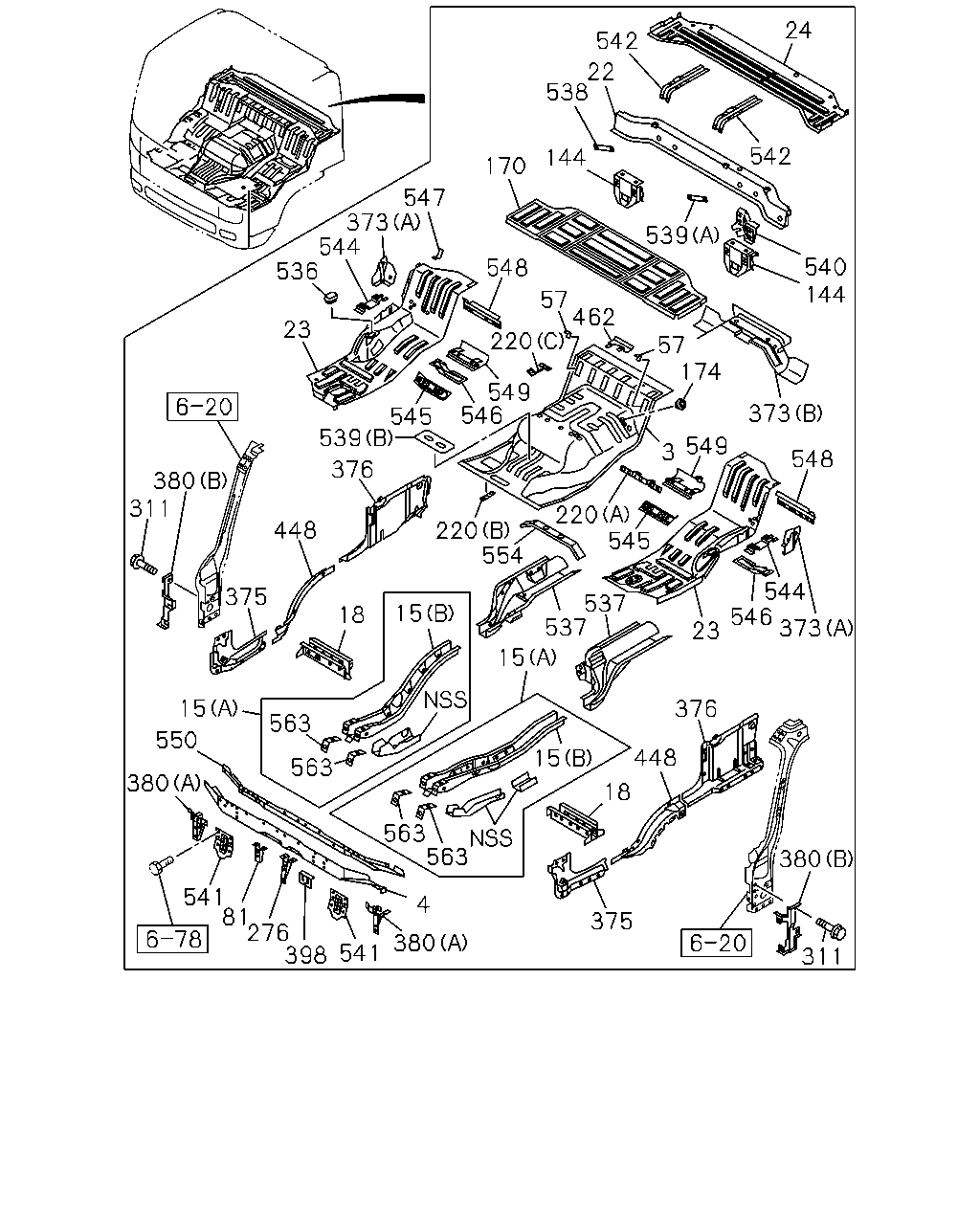

çizim 145955
542 22 538 170 144 24 542 539 540 373 548 544 373 546 174 549 23 547 373 544 536 23 548 220 57 57 462 3 220 549 545 546 545 376 380 311 448 537 18 375 15 15 554 220 539 448 18 376 380 311 375 15 563 563 15 537 563 563 550 380 541 81 276 398 541 380 4 144
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98167-036-0 01 1 1108-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1108-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1108-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1108-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1108-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1108-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1108-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1108-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1108-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1108-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1108-
24 PANEL; BED PAN 8-97584-378-6 01 1 1108-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1108-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1108-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1108-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1108-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1108-
174 GROMMET; AIR PIPE
OD=35 IDN 		8-94122-971-0 01 1 1108-
220 PATCH
(A) 		8-97588-840-4 01 1 1108-
220 PATCH
(B) 		8-97589-603-3 01 1 1108-
220 PATCH
(C) 		8-97589-627-2 01 1 1108-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1108-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1108-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1108-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1108-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1108-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1108-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1108-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1108-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1108-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1108-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1108-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1108-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1108-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1108-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1108-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1108-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1108-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1108-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1108-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1108-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1108-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1108-
539 PATCH ASM; SAFTY HOOK
(B) IDN 		8-98131-661-0 01 1 1108-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1108-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1108-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1108-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1108-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1108-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1108-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1108-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1108-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1108-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1108-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1108-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1108-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1108-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1108-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1108-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1108-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
