◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05B - CLUTCH PIPING ▶
2-05B — CLUTCH PIPING (#6275) — 160 parça

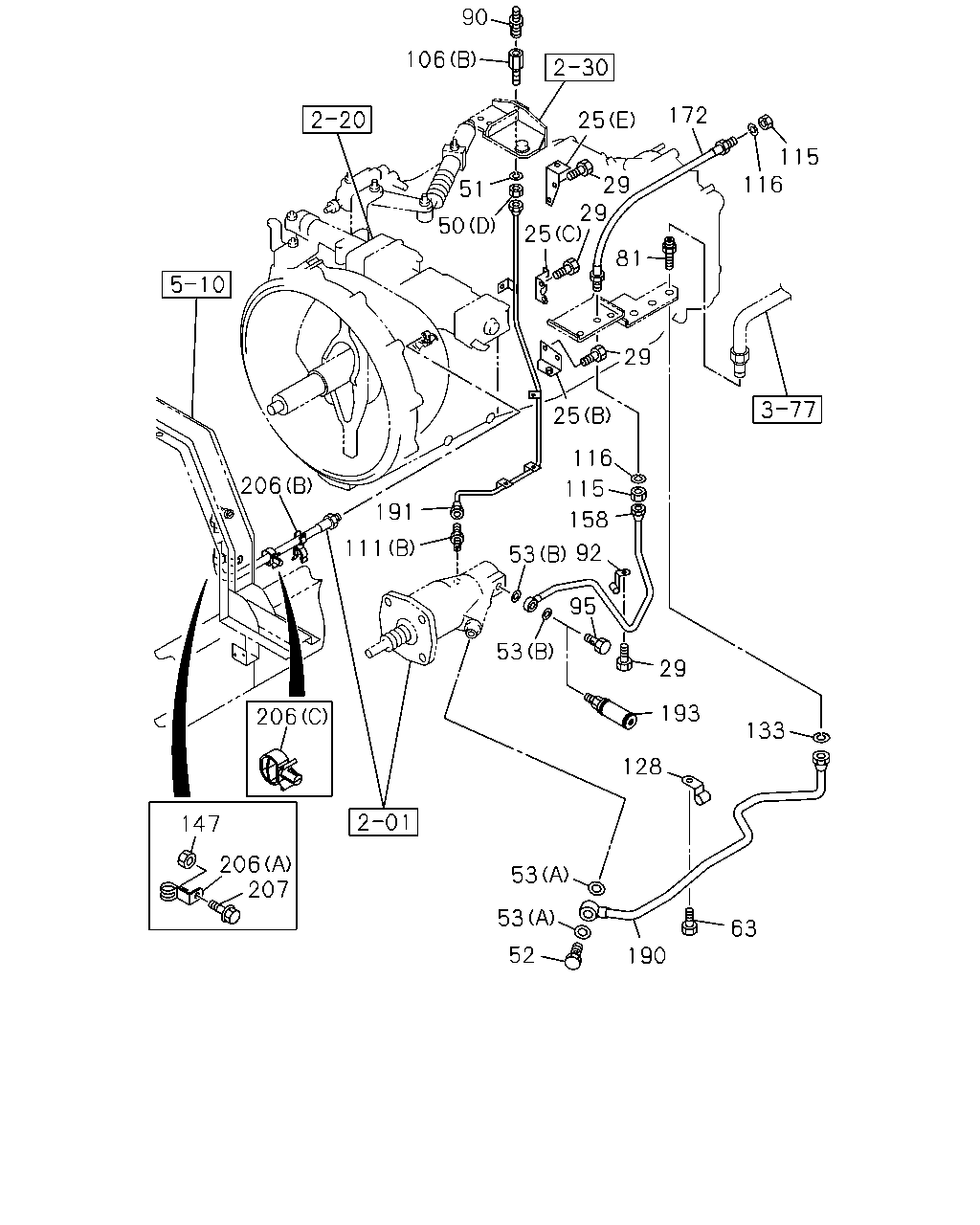

çizim 10832
90 106 172 25 115 116 29 29 25 51 50 81 29 25 116 206 115 191 158 111 92 53 95 53 29 193 206 133 128 147 206 207 53 53 63 52 190
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BRACKET; OIL PIPE
(A) 		1-47477-604-2 01 1 9906- ● ● ●
25 BRACKET; OIL PIPE
(D) L=50 		1-47475-299-2 03 1 9906- ● ● ●
25 BRACKET; OIL PIPE
(B) 		1-47477-498-1 01 1 9906- ● ● ●
25 BRACKET; OIL PIPE
(C) 		1-47477-499-1 01 1 9906- ● ● ●
25 BRACKET; OIL PIPE
(E) 		1-47478-406-0 01 1 9906- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9906-0002 ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 9906- ●
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 04 1 9906- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 9906-0002 ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 03 1 0003- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0003- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9906- ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906- ● ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9906- ● ● ●
50 NUT; UNION
(E) M12 FLANGE 		0-91150-212-0 01 1 9906- ● ● ●
50 NUT; UNION
(D) M12 		9-09840-280-0 01 1 9906- ● ● ●
51 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9906- ● ● ●
52 BOLT; EYE,AIR PIPE
M16X30 		1-09675-026-0 01 1 9906- ● ● ●
53 GASKET; JOINT BOLT
(A) ID=16.2 		1-09630-086-0 02 1 9906- ● ● ●
53 GASKET; JOINT BOLT
(B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 9906- ● ● ●
63 BOLT; CLIP,PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9906- ● ● ●
81 UNION; AIR PIPE 1-09664-233-0 01 1 9906- ● ● ●
90 NIPPLE; OIL PIPE 1-31829-485-0 01 1 9910- ● ● ●
92 CLIP; OIL PIPE
ID=9 H=32 L=24 		1-09701-221-0 01 1 9906- ●
92 CLIP; OIL PIPE
ID=9 L=32 		9-09524-865-0 01 1 9906- ● ●
95 BOLT; EYE,OIL PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 9906-9912 ● ●
95 BOLT; EYE,OIL PIPE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14X27 FLANGE 		1-09675-086-0 01 1 0001- ●
95 BOLT; EYE,OIL PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0001- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9906- ● ● ●
106 UNION; OIL PIPE
(B) 		1-09654-384-0 01 1 9906- ● ● ●
111 UNION; OIL PIPE
(A) M14 2WAY 		1-09654-176-2 01 1 9906- ● ● ●
111 UNION; OIL PIPE
(B) M8 & M12 STRAIGHT 		1-09654-383-0 01 1 9906- ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906- ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906- ● ●
128 CLIP; AIR PIPE
ID=13 H=18 L=20 		1-09701-232-0 01 1 9906- ●
128 CLIP; AIR PIPE
ID=13 		1-09701-030-1 01 1 9906- ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9906- ● ● ●
147 NUT; CLIP FIX
M8 FLANGE 		0-91150-208-0 01 1 9906- ● ● ●
158 PIPE; OIL,FLEX HOSE TO CLU BOOSTER 1-49161-054-0 01 1 9906- ●
158 PIPE; OIL,FLEX HOSE TO CLU BOOSTER 1-49119-466-2 01 1 9906- ● ●
172 HOSE; FLEX,CLU BOOSTER
L=420 		1-09364-615-0 01 1 9906-9912 ●
172 HOSE; FLEX,CLU BOOSTER
L=380 		1-09364-261-0 01 1 0001- ●
172 HOSE; FLEX,CLU BOOSTER
L=470 		1-09364-929-0 01 1 9906- ● ●
190 PIPE; AIR,UNION TO MINIPAC 1-49161-730-0 01 1 9906- ●
190 PIPE; AIR,UNION TO MINIPAC 1-49119-465-1 01 1 9906- ● ●
191 PIPE; OIL,UNION TO MINIPAC 1-49163-428-0 01 1 9906- ●
191 PIPE; OIL,UNION TO MINIPAC 1-49163-427-0 01 1 9906- ● ●
193 ABSORBER; CLU
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-31820-023-0 01 1 9906- ●
206 CLIP; TUBE
(A) ID=18 L=28 H=30 		1-09701-110-0 01 1 9906- ● ● ●
206 CLIP; TUBE
(B) ID=13 & 12 		8-94178-797-0 01 1 9906- ● ● ●
206 CLIP; TUBE
(C) ID=13-18 L=14.5 		1-09709-290-0 01 1 0008- ● ● ●
207 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9906- ● ● ●

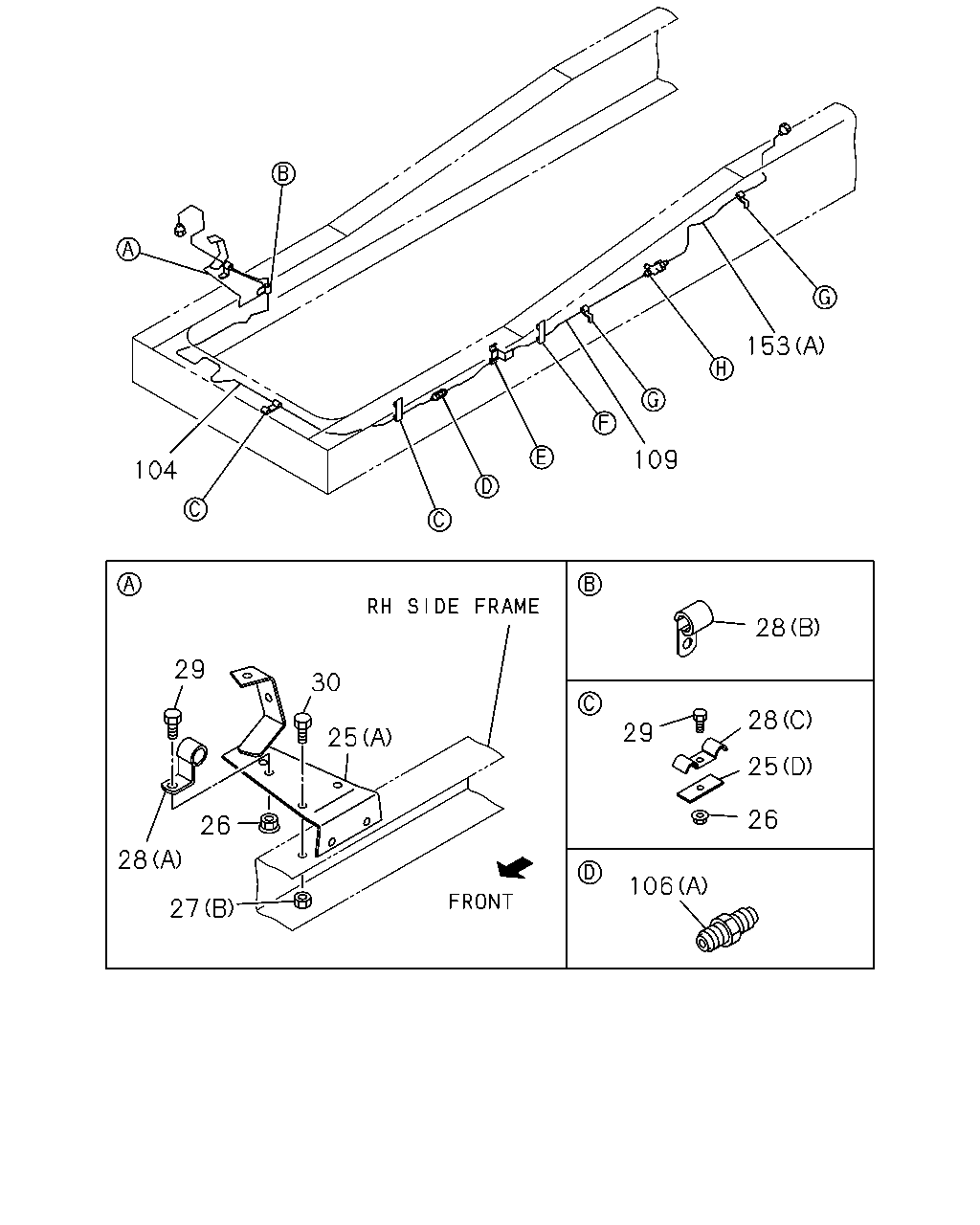

çizim 40950
153 109 104 28 29 30 28 29 25 25 26 26 28 27 106
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BRACKET; OIL PIPE
(A) 		1-47477-604-2 01 1 9906- ● ● ●
25 BRACKET; OIL PIPE
(D) L=50 		1-47475-299-2 03 1 9906- ● ● ●
25 BRACKET; OIL PIPE
(B) 		1-47477-498-1 01 1 9906- ● ● ●
25 BRACKET; OIL PIPE
(C) 		1-47477-499-1 01 1 9906- ● ● ●
25 BRACKET; OIL PIPE
(E) 		1-47478-406-0 01 1 9906- ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 9906-0002 ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 04 1 0003- ● ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9906- ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9906- ● ● ●
28 CLIP; OIL PIPE
(C) ID=16 & 9 L=21 & 18 		1-09700-676-0 03 1 9906- ● ● ●
28 CLIP; OIL PIPE
(B) ID=9 L=20 		9-09524-835-0 01 1 9906- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9906-0002 ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 9906- ●
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 04 1 9906- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 9906-0002 ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 03 1 0003- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0003- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9906- ● ●
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9906- ● ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9906- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2889 		1-49164-483-0 01 1 9906- ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9906- ● ● ●
106 UNION; OIL PIPE
(B) 		1-09654-384-0 01 1 9906- ● ● ●
109 PIPE; AIR,UNION TO UNION
L=1106 SERVICED BY L=1100 		1-47426-387-0 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=955 		1-49163-430-0 01 1 9906- ● ● ●

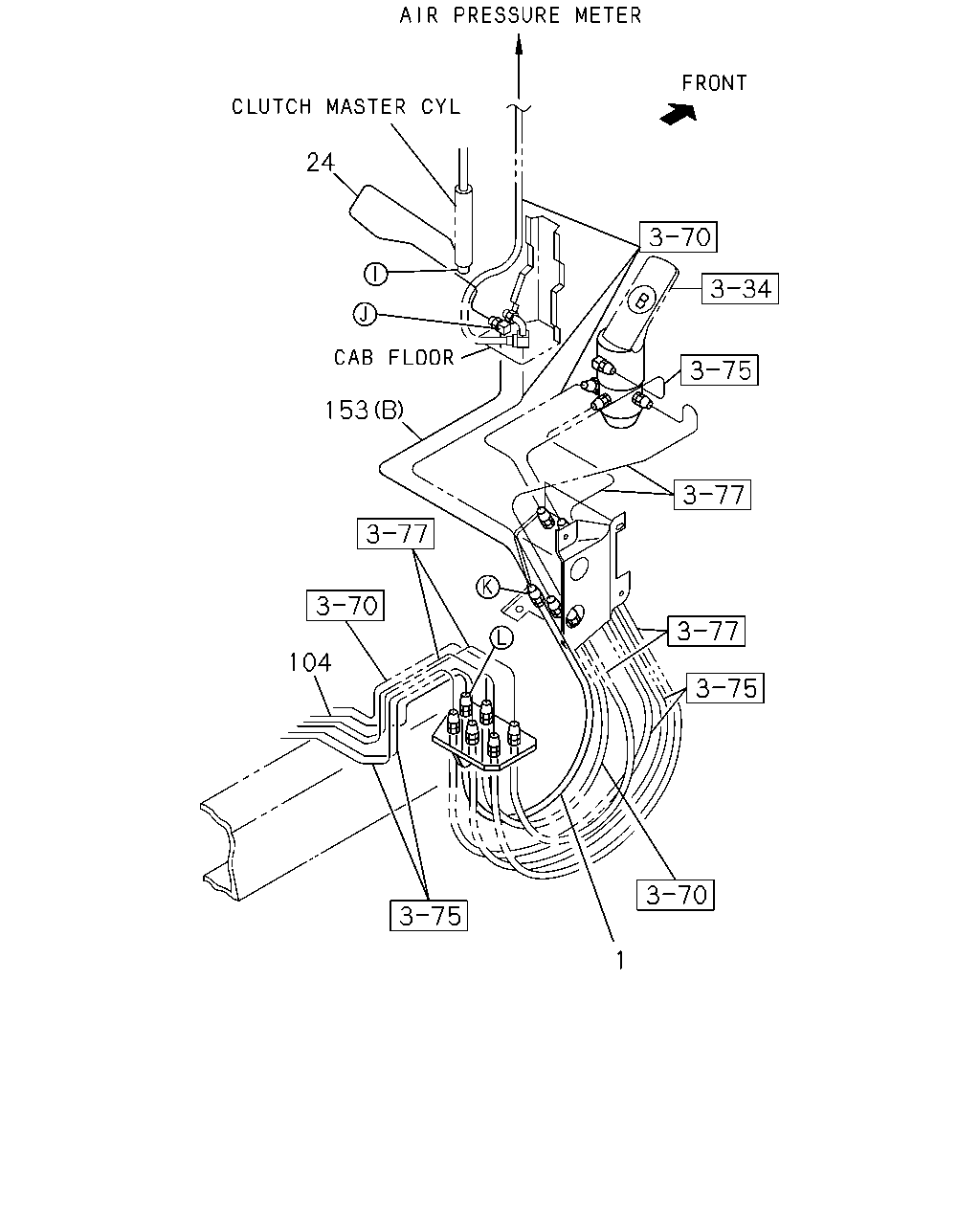

çizim 43218
24 153 104 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 9906- ●
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9906- ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9906- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION 1-47427-608-0 01 1 9906- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2889 		1-49164-483-0 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=955 		1-49163-430-0 01 1 9906- ● ● ●
çizim 43548
33 33 30 34 35 32 33 34 31 32 50 111
BalonParca AdiParca NoAdetTipApplied Date A B C
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9906- ● ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9906- ● ● ●
31 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
32 BRACKET; CLIP OIL PIPE
(A) L=50 		1-47475-299-2 01 1 9906- ● ● ●
32 BRACKET; CLIP OIL PIPE
(B) 		1-47475-881-0 01 1 9906- ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9906-0002 ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9906-0002 ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 0003- ● ● ●
33 CLIP; OIL PIPE
(B) ID=16 & 9 L=18 & 17 		1-09700-669-0 01 1 9906- ● ● ●
33 CLIP; OIL PIPE
(C) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9906- ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9906-9906 ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9906-9906 ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9906-9906 ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9906-9906 ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9907-0002 ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9907-0002 ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9907-0002 ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0003- ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0003- ● ● ●
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9906- ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9906-9906 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9906-9906 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9906-9906 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9906-9906 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9907-0002 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9907-0002 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9907-0002 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0003- ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0003- ● ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906- ● ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9906- ● ● ●
50 NUT; UNION
(E) M12 FLANGE 		0-91150-212-0 01 1 9906- ● ● ●
50 NUT; UNION
(D) M12 		9-09840-280-0 01 1 9906- ● ● ●
111 UNION; OIL PIPE
(A) M14 2WAY 		1-09654-176-2 01 1 9906- ● ● ●
111 UNION; OIL PIPE
(B) M8 & M12 STRAIGHT 		1-09654-383-0 01 1 9906- ● ● ●

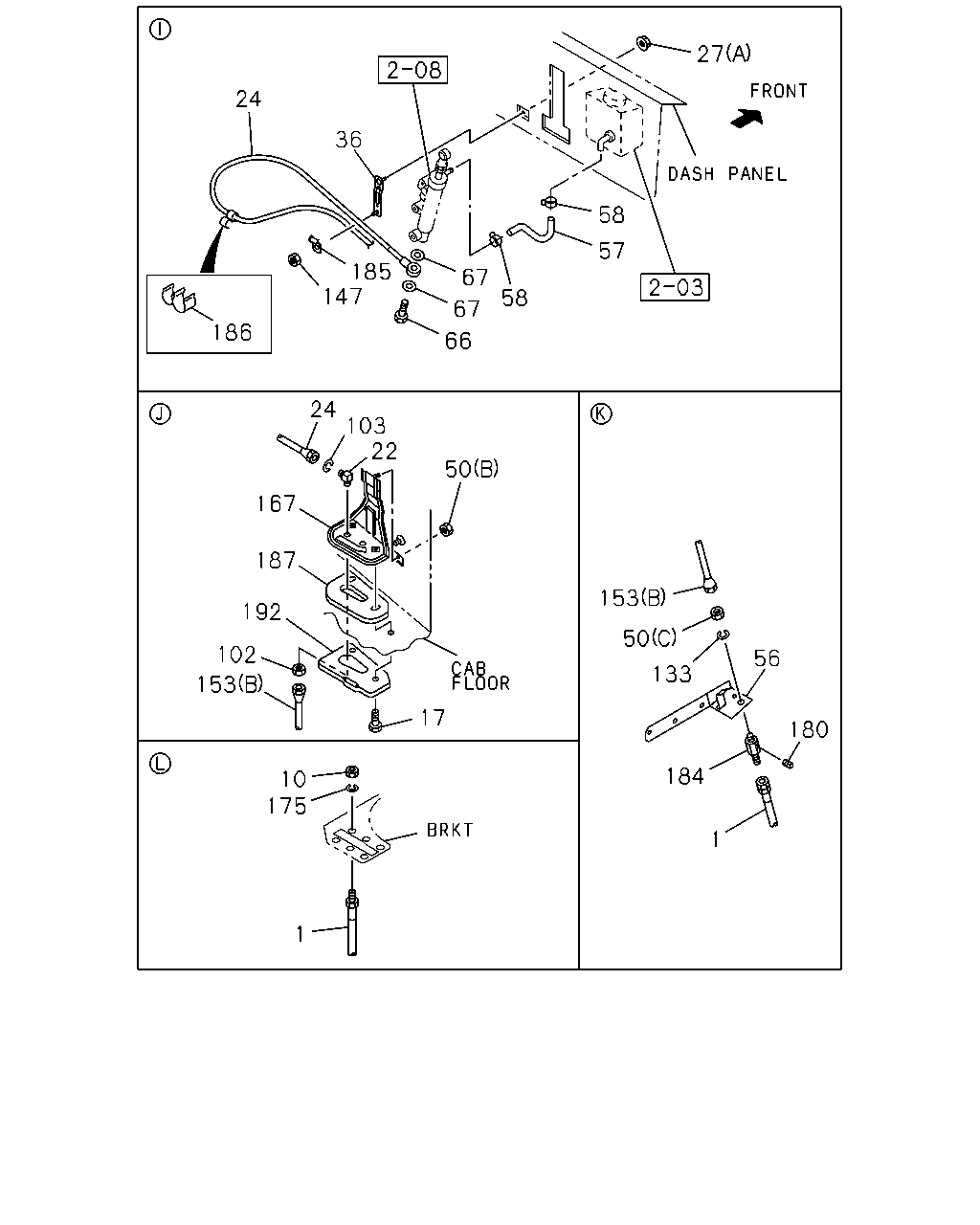

çizim 44449
27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 102 56 133 153 17 180 184 10 175 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 9906- ●
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9906- ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9906- ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906- ● ● ●
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 9906- ● ● ●
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 9906- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION 1-47427-608-0 01 1 9906- ● ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9906- ● ● ●
36 BRACKET; CLIP 1-71117-191-1 01 1 9906- ● ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906- ● ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9906- ● ● ●
50 NUT; UNION
(E) M12 FLANGE 		0-91150-212-0 01 1 9906- ● ● ●
50 NUT; UNION
(D) M12 		9-09840-280-0 01 1 9906- ● ● ●
56 BRACKET; FLEX HOSE 1-47477-602-1 01 1 9906- ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9906- ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9906- ● ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9906- ● ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9906- ● ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906- ● ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9906- ● ● ●
147 NUT; CLIP FIX
M8 FLANGE 		0-91150-208-0 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=955 		1-49163-430-0 01 1 9906- ● ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 9906- ● ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9906- ● ● ●
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9906- ● ● ●
185 CLIP; BRKT
ID=9 L=20 		9-09545-108-0 01 1 9906- ● ● ●
186 HOLDER; CLIP
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 9906- ● ● ●
187 SEAL; BRKT 1-71117-222-0 01 1 9906- ● ● ●
192 PLATE 1-71117-221-0 01 1 9906- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
