Isuzu WW
▶
TRUCKS
▶
FVM
▶
11391 - FVM(INDONESIA)6HK1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

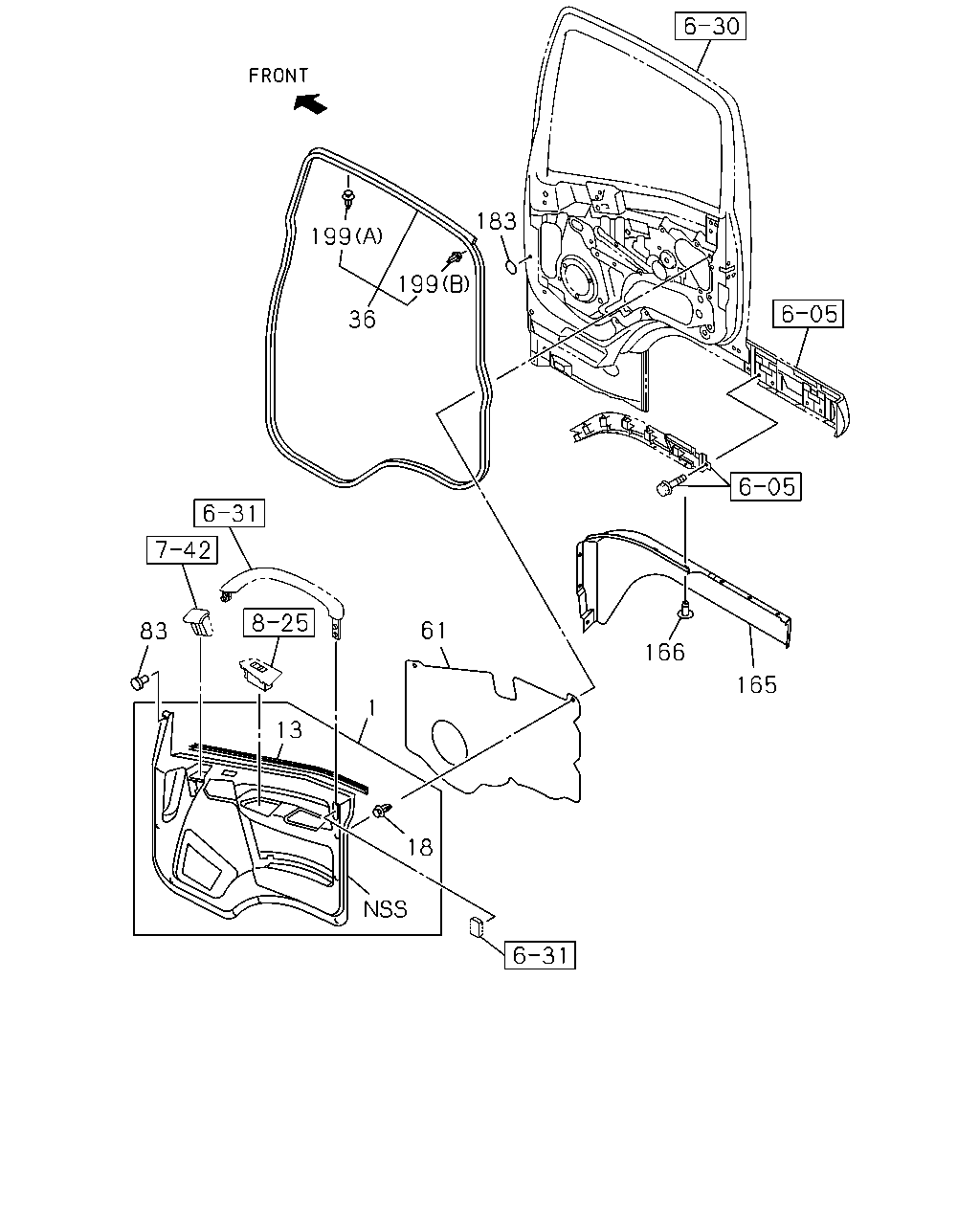

6-35 — FRONT DOOR TRIM
(#62747) — 17 parça
199
183
199
36
165
166
61
18
1
13
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
GRAY IDN
8-97405-305-6
01
1
1108-
1
PAD; TRIM,FRT DOOR
GRAY IDN
8-97405-307-6
01
1
1108-
13
SEAL; DOOR TRIM
IDN
8-98029-201-1
01
1
1108-
13
SEAL; DOOR TRIM
IDN
8-98029-202-1
01
1
1108-
18
CLIP; DOOR PAD
IDN
8-98004-025-0
14
1
1108-
36
SEAL; DOOR,MAIN,CAB SIDE
IDN
8-98029-199-3
01
1
1108-
36
SEAL; DOOR,MAIN,CAB SIDE
IDN
8-98077-429-0
01
1
1108-
61
SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> IDN
8-98029-394-2
01
1
1108-
61
SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> IDN
8-98029-395-2
01
1
1108-
61
SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95>
8-98029-396-0
02
1
1108-
83
CLIP; DOOR TRIM
GRAY IDN
8-97405-308-0
02
1
1108-
165
LINER; DOOR LWR
8-98038-288-1
01
1
1108-
165
LINER; DOOR LWR
8-98038-289-1
01
1
1108-
166
PLUG; HOLE
D8X13.5
1-09987-248-1
09
1
1108-
183
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
1108-
199
CLIP; SEAL
(A) NATURAL
8-98062-270-0
80
1
1108-
199
CLIP; SEAL
(B) RED IDN
8-98062-271-0
02
1
1108-
