Isuzu WW
▶
TRUCKS
▶
FVM
▶
11391 - FVM(INDONESIA)6HK1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶
6-32 — FRONT DOOR LOCK AND HANDLE
(#62746) — 31 parça
◀

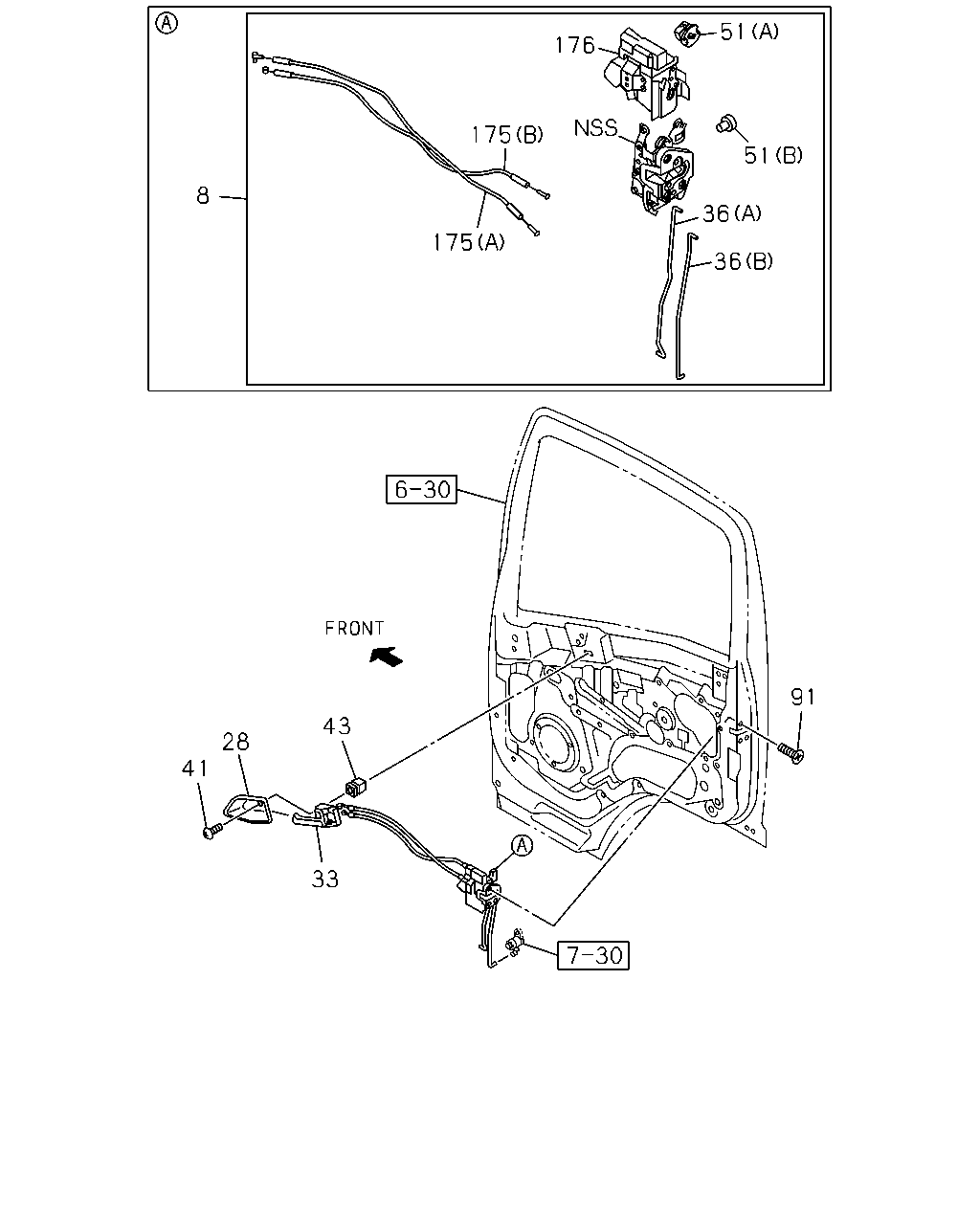

[632A] NO.1 (22 parça)

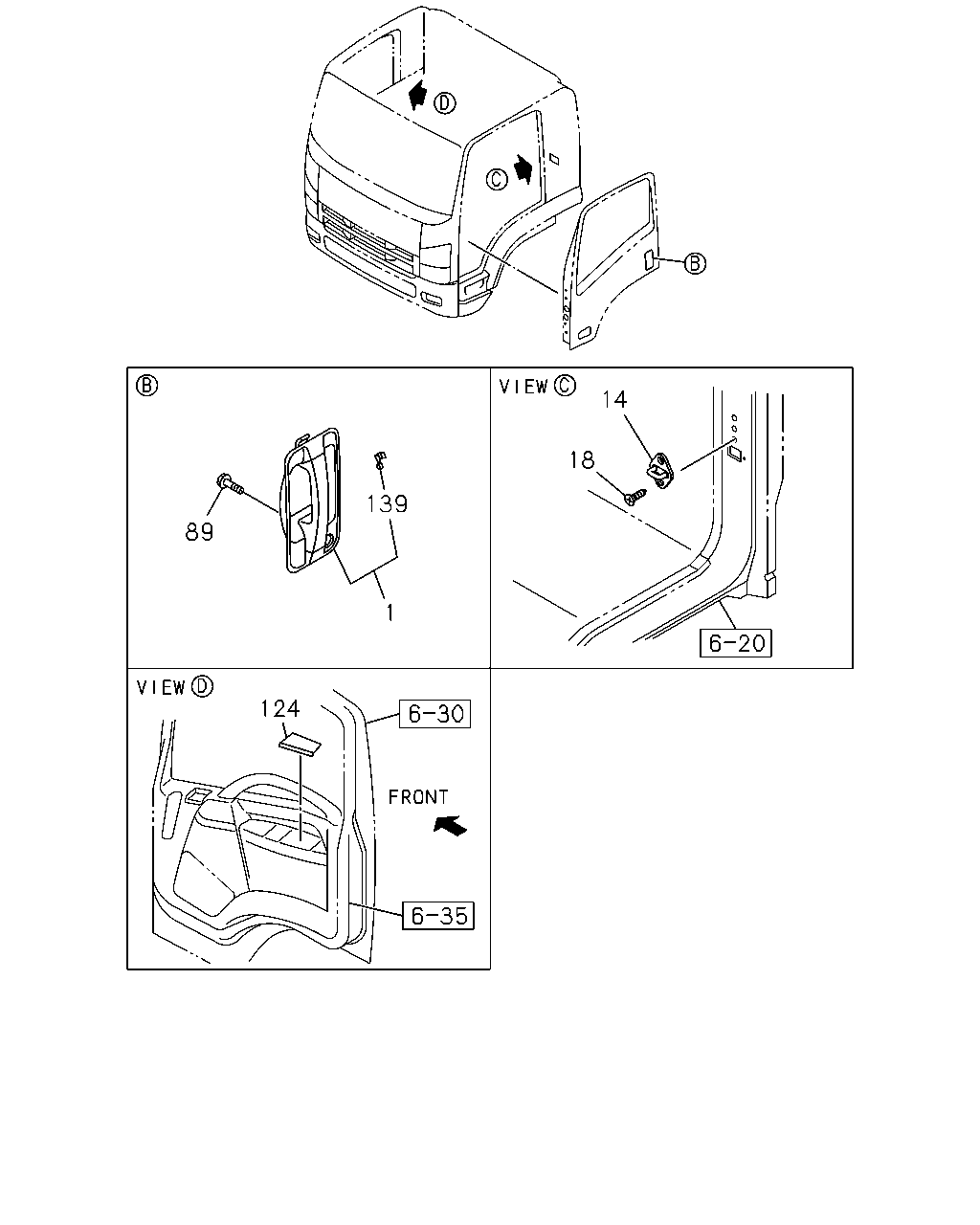

[632A] NO.2 (9 parça)
▶
175
175
176
51
51
36
8
36
91
43
28
41
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LOCK; DOOR,FRT DOOR
IDN
8-98029-052-2
01
1
1108-
8
LOCK; DOOR,FRT DOOR
IDN
8-98029-053-2
01
1
1108-
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY
8-97405-311-0
01
1
1108-
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY
8-97405-312-0
01
1
1108-
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY IDN
8-97405-309-1
01
1
1108-
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY IDN
8-97405-310-1
01
1
1108-
36
LINK; DOOR LOCK,OUTSIDE
(A) IDN
8-98058-531-0
01
1
1108-
36
LINK; DOOR LOCK,OUTSIDE
(A) IDN
8-98058-532-0
01
1
1108-
36
LINK; DOOR LOCK,OUTSIDE
(B) IDN
8-98058-535-0
01
1
1108-
36
LINK; DOOR LOCK,OUTSIDE
(B) IDN
8-98058-536-0
01
1
1108-
41
SCREW; INSIDE HANDLE
M5X16 TAPPING HEXALOBULAR IDN
0-72380-516-0
02
1
1108-
43
GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 IDN
8-94279-078-0
02
1
1108-
51
SNAP; FRT DOOR LOCK CONT ROD
(A) NATURAL
8-98058-226-0
02
1
1108-
51
SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE
8-98058-227-0
02
1
1108-
51
SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK IDN
8-98058-228-0
01
1
1108-
51
SNAP; FRT DOOR LOCK CONT ROD
(B) RED IDN
8-98058-229-0
01
1
1108-
91
BOLT; DOOR LOCK
M6X14.5
8-98004-342-0
06
1
1108-
175
CABLE ASM; LOCK CONTROL
(A) IDN
8-98058-537-0
01
1
1108-
175
CABLE ASM; LOCK CONTROL
(A) IDN
8-98058-538-0
01
1
1108-
175
CABLE ASM; LOCK CONTROL
(B) IDN
8-98058-539-0
02
1
1108-
176
COVER; DOOR LOCK
8-98058-238-0
01
1
1108-
176
COVER; DOOR LOCK
8-98058-239-0
01
1
1108-
14
18
139
89
124
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,FRT DOOR
IDN
8-98037-100-2
01
1
1108-
1
HANDLE; OUTSIDE,FRT DOOR
IDN
8-98037-101-2
01
1
1108-
14
STRIKER; FRT DOOR
8-98029-173-2
02
1
1108-
18
SCREW; DOOR STRIKER
M8X20 CK-HEAD
8-98004-343-2
04
1
1108-
89
BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE IDN
0-28050-610-0
04
1
1108-
124
COVER; DOOR PULL
GRAY IDN
8-97422-055-1
01
1
1108-
124
COVER; DOOR PULL
GRAY IDN
8-97422-056-1
01
1
1108-
139
HOLDER; ROD,DOOR HANDLE
WHITE IDN
8-97333-303-0
01
1
1108-
139
HOLDER; ROD,DOOR HANDLE
BLACK IDN
8-98095-813-0
01
1
1108-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
