◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#62743) — 48 parça

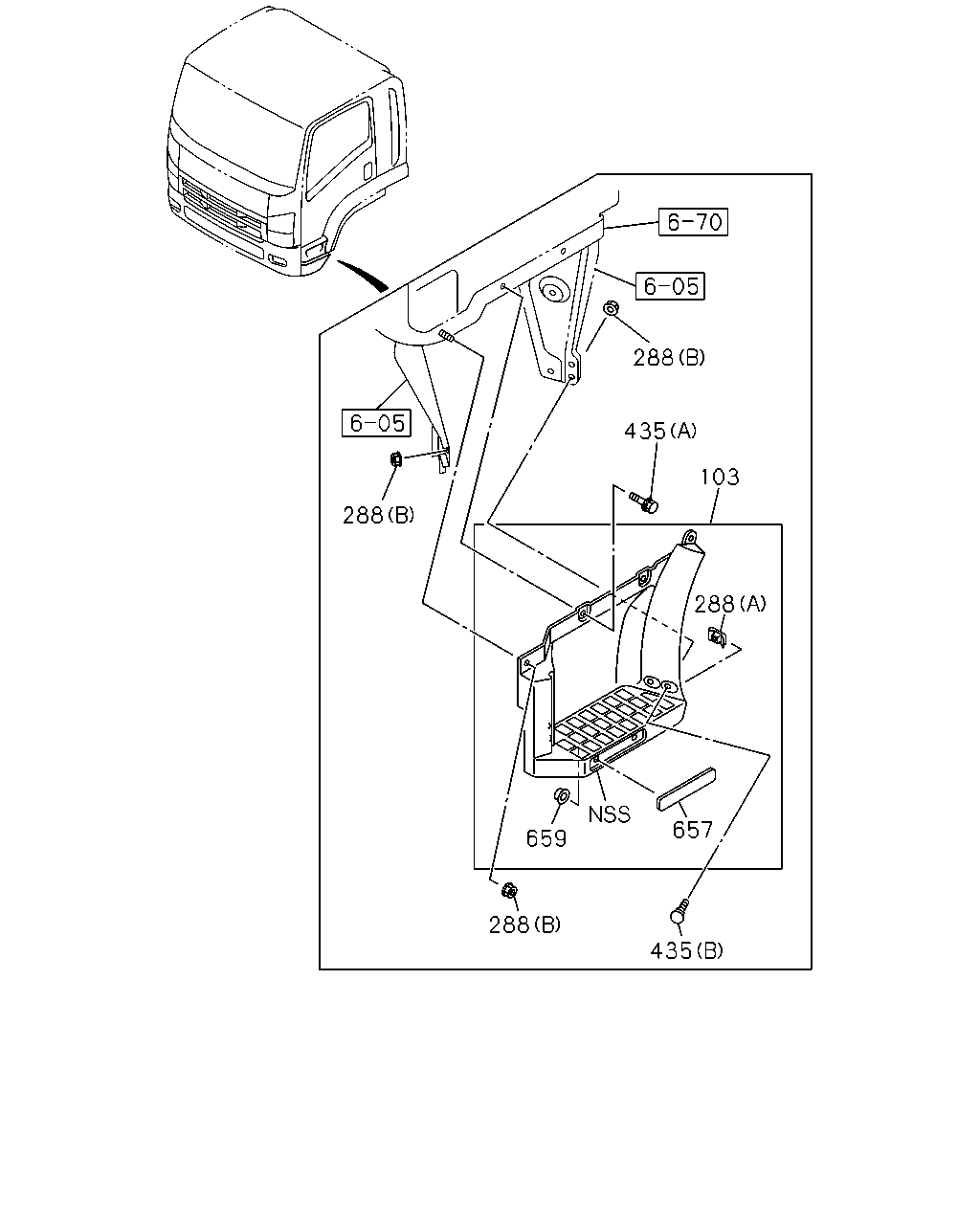

çizim 145957
288 435 288 288 659 657 288 435 103
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-345-2 01 1 1108-
103 PLATE; STEP 8-98037-346-2 01 1 1108-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1108-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1108-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1108-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1108-
657 REFLECTOR; REFLEX
IDN 		8-97378-910-0 02 1 1108-
659 CLIP; SPRING NUT
IDN 		8-97811-510-0 04 1 1108-

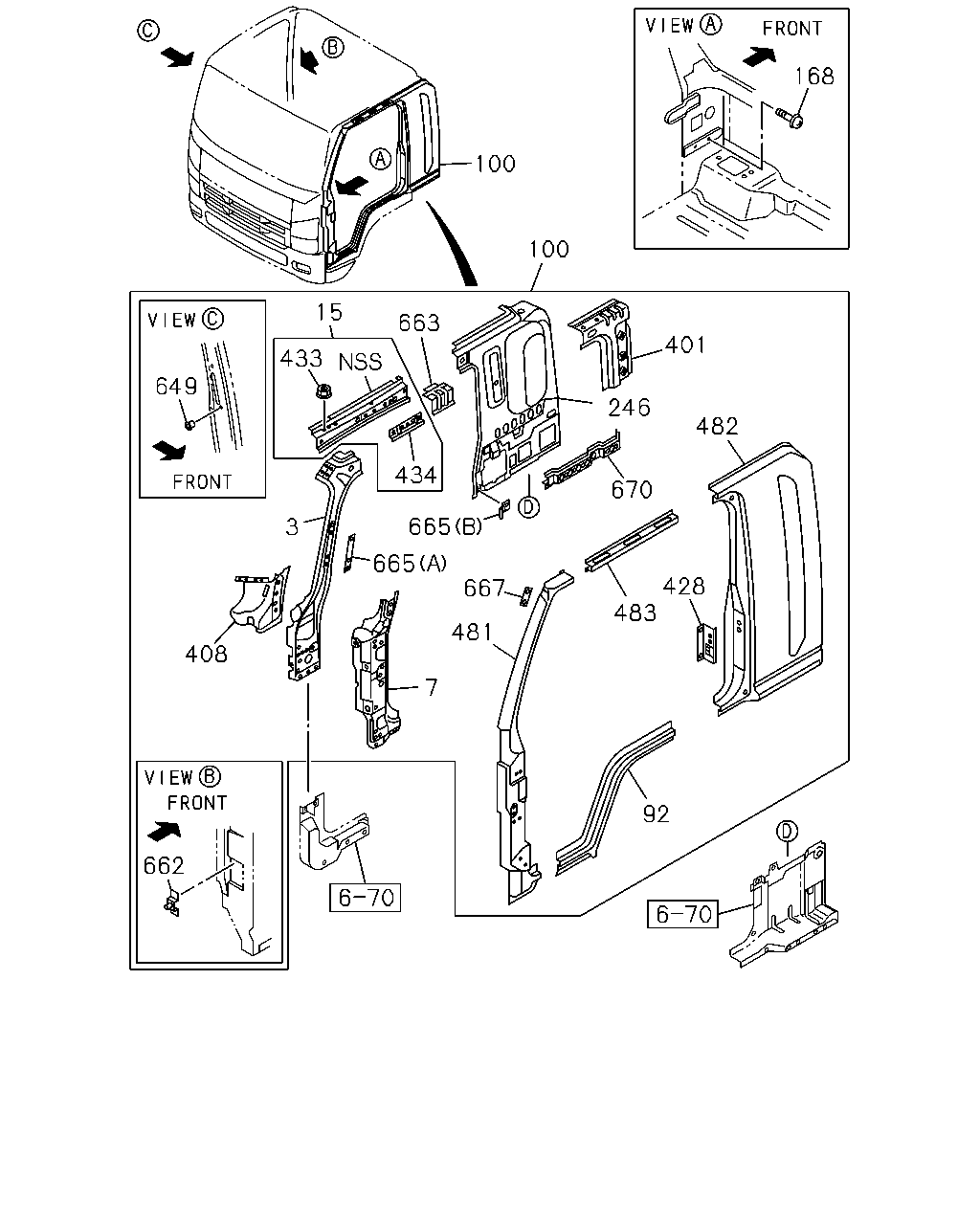

çizim 145960
168 401 482 428 483 92 481 7 665 665 3 408 670 246 663 100 100 15 433 649 662 667 434
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1108-
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-98058-237-1 01 1 1108-
7 REINFORCEMENT; HINGE
IDN 		8-97585-240-3 01 1 1108-
7 REINFORCEMENT; HINGE
IDN 		8-97585-244-4 01 1 1108-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1108-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1108-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1108-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1108-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-061-6 01 1 1108-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-98185-955-0 01 1 1108-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-065-6 01 1 1108-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98103-333-1 01 1 1108-
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1108-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1108-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1108-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1108-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1108-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1108-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1108-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1108-
428 REINFORCEMENT; DOOR STRIKER
IDN 		8-97585-261-4 01 1 1108-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1108-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1108-
434 PATCH; ASSIST GRIP
IDN 		8-98039-020-0 01 1 1108-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1108-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-580-0 01 1 1108-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 1108-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-471-0 01 1 1108-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1108-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1108-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1108-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1108-
649 NUT; POP
M5 POP NUT IDN 		8-97249-574-0 02 1 1108-
662 BRACKET; DUCT
IDN 		8-97584-611-1 01 1 1108-
663 BRACKET; AIR 8-97585-207-2 01 1 1108-
663 BRACKET; AIR
IDN 		8-97585-208-2 01 1 1108-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1108-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1108-
667 BRACKET; MIRROR 8-98109-948-0 03 1 1108-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1108-
