◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05A - CLUTCH PIPING ▶
2-05A — CLUTCH PIPING (#6274) — 115 parça

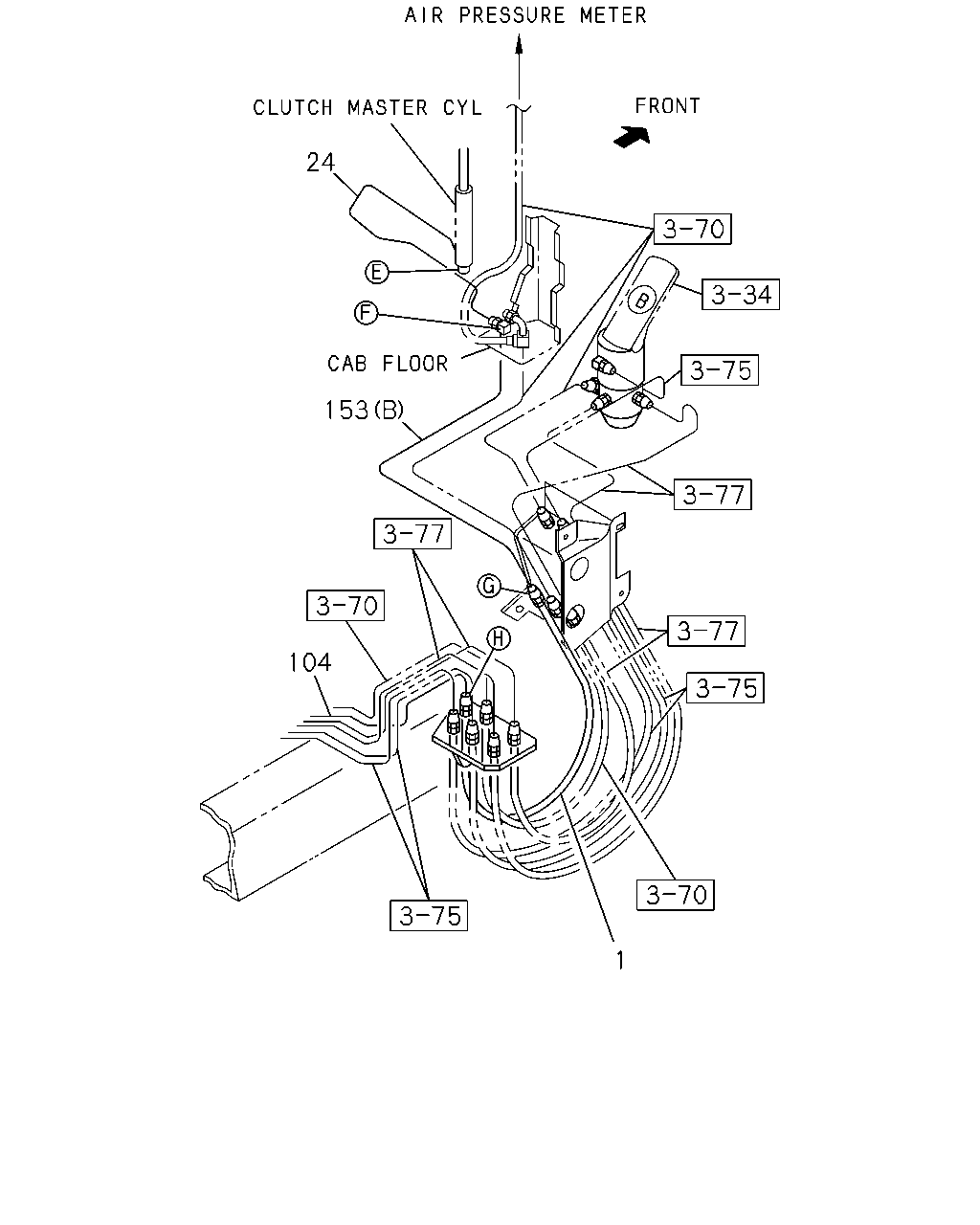

çizim 7097
24 153 104 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9906-
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9906-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1589 		1-49164-423-0 01 1 9906-0002
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1595 		1-49165-436-0 01 1 0003-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9906-9906
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1699 		1-49164-559-0 01 1 9906-
çizim 41712
153 104 47 47 25 30 43 44 42 25 27 28 28 33 29 34 26 35 106
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE
(B) 		1-47477-597-2 01 1 9906-0002
25 BRACKET; OIL PIPE
(A) 		1-47477-604-2 01 1 9906-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 9906-0002
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0003-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9906-0002
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9906-
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9906-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9906-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9906-0002
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0003-
28 CLIP; OIL PIPE
(B) ID=9 		9-09524-845-0 01 1 9906-0002
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9906-0002
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0003-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0003-
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9906-
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 9906-0002
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 04 1 0003-0101
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 04 1 0102-
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 03 1 9906-0002
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 04 1 0003-0101
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 04 1 0102-
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9906-9906
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9906-0002
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0003-0101
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0102-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9906-9906
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-414-0 01 1 9906-9906
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-475-1 01 1 9907-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M10X30 FLANGE 		0-28681-030-0 02 1 9906-9906
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9907-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M10 FLANGE 		0-91150-210-0 02 1 9906-9906
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9907-9912
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0001-
47 HOSE; FLEX,CLU CONT
(B) L=550 		1-09364-434-0 01 1 9906-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=500 		0-07806-500-1 01 1 9906-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600 		0-07706-600-0 01 1 9906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1589 		1-49164-423-0 01 1 9906-0002
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1595 		1-49165-436-0 01 1 0003-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9906-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9906-9906
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1699 		1-49164-559-0 01 1 9906-

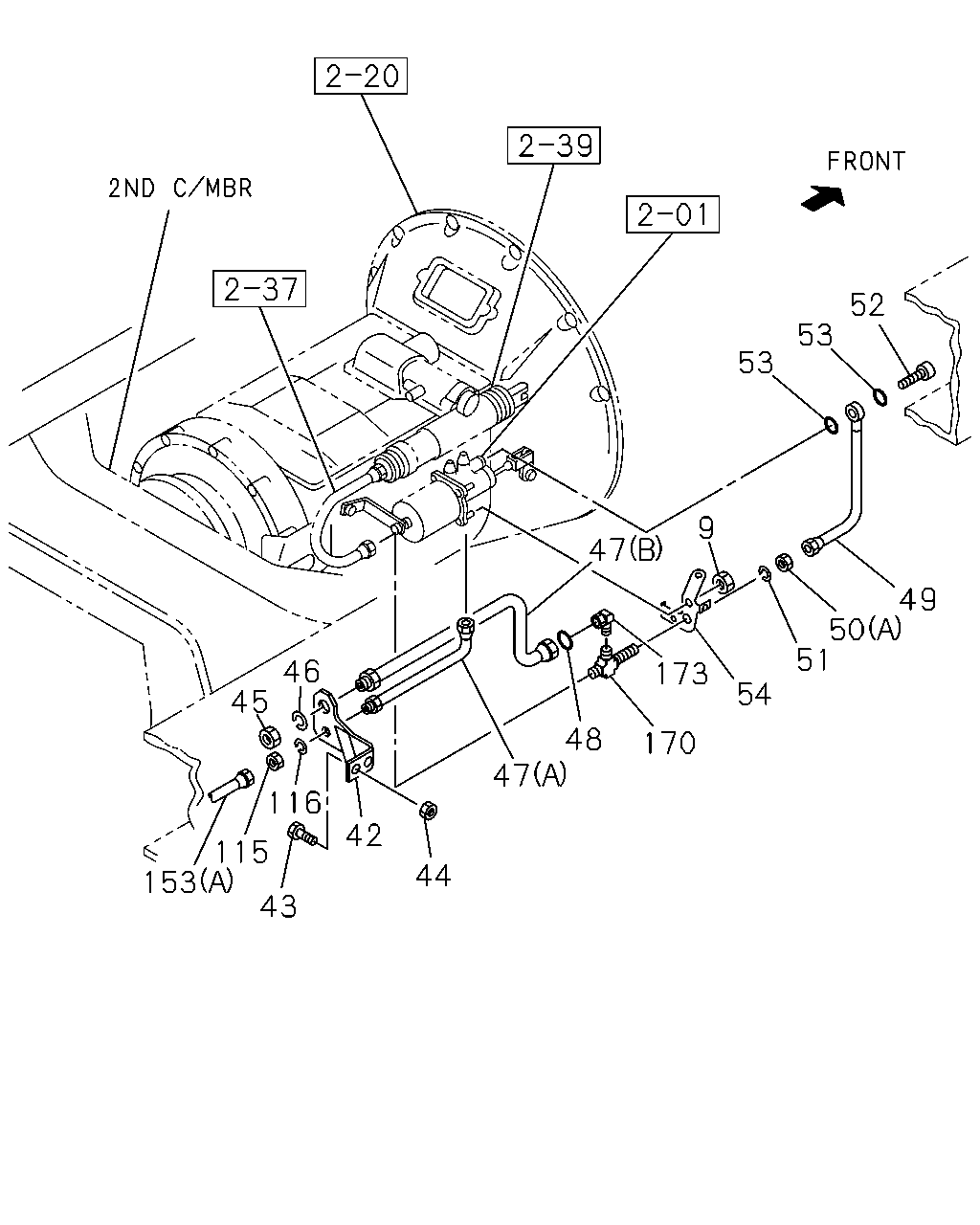

çizim 43246
52 53 53 9 47 49 50 51 173 46 54 45 48 170 47 116 42 153 115 44 43
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91150-210-0 02 1 9906-
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-414-0 01 1 9906-9906
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-475-1 01 1 9907-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M10X30 FLANGE 		0-28681-030-0 02 1 9906-9906
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9907-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M10 FLANGE 		0-91150-210-0 02 1 9906-9906
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9907-9912
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0001-
45 NUT; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> M20 		9-99111-420-0 01 1 9906-
45 NUT; FLEX HOSE,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> M20 		9-99111-420-0 02 1 9906-
46 WASHER; LK,FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> ID=20.2 		9-09150-520-0 01 1 9906-
46 WASHER; LK,FLEX HOSE,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2 		9-09150-520-0 02 1 9906-
47 HOSE; FLEX,CLU CONT
(B) L=550 		1-09364-434-0 01 1 9906-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=500 		0-07806-500-1 01 1 9906-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600 		0-07706-600-0 01 1 9906-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9906-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=245 		1-49117-733-0 01 1 9906-
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906-
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9906-
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> (A) M20 		9-99111-420-0 01 1 9906-
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=20.2 		9-09150-520-0 01 1 9906-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 9906-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9906-
54 BRACKET; AIR,FLEX HOSE 1-47477-284-1 01 1 9906-
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9906-9906
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1699 		1-49164-559-0 01 1 9906-
170 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> 		1-09656-640-0 01 1 9906-
173 CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9906-

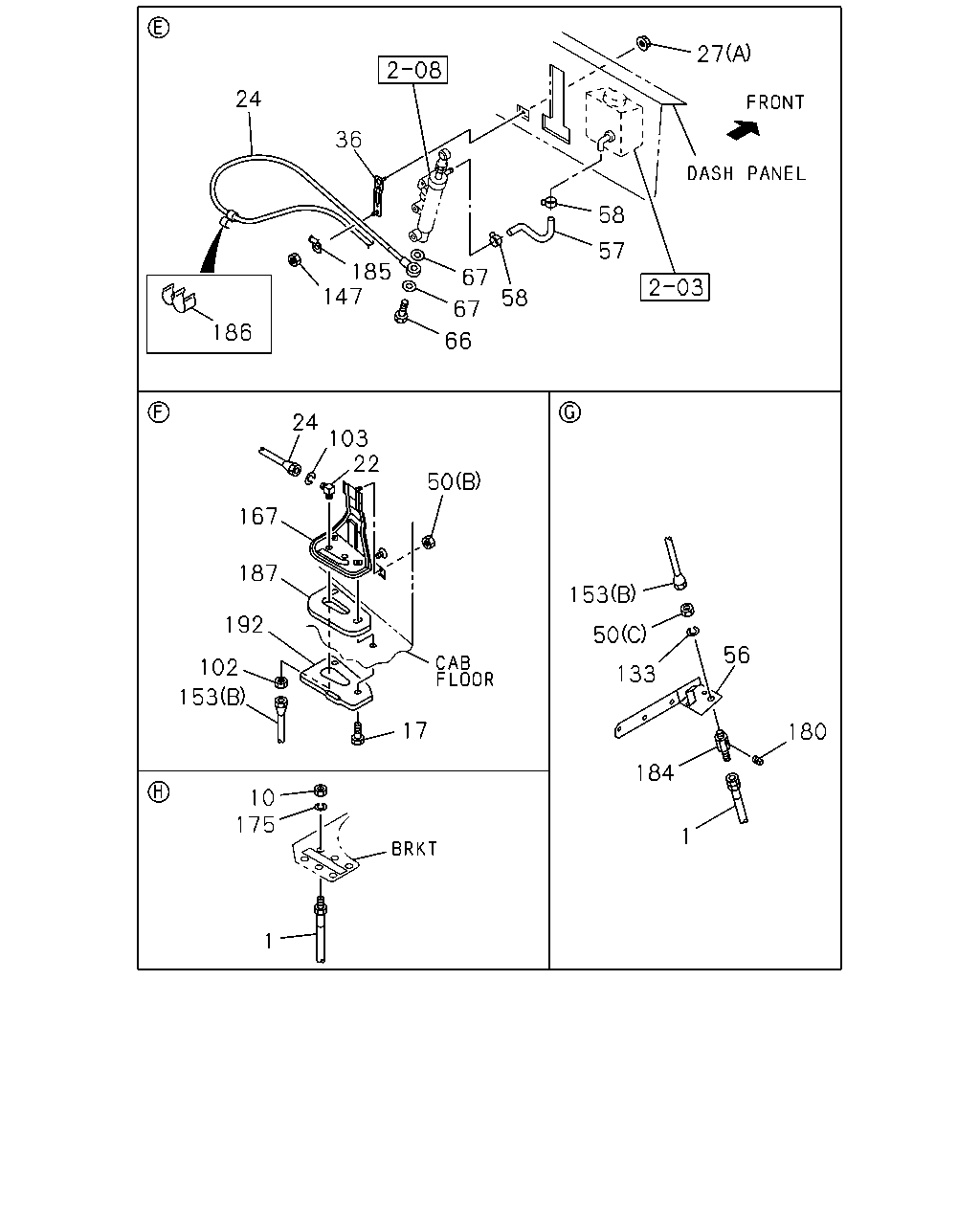

çizim 43355
27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 56 102 133 153 17 180 184 10 175 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9906-
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9906-
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906-
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 9906-
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 9906-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9906-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9906-0002
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9906-
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9906-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9906-
36 BRACKET; CLIP 1-71117-191-1 01 1 9906-
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906-
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9906-
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> (A) M20 		9-99111-420-0 01 1 9906-
56 BRACKET; FLEX HOSE 1-47477-602-1 01 1 9906-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9906-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9906-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9906-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9906-
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906-
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9906-
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9906-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9906-9906
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1699 		1-49164-559-0 01 1 9906-
167 BRACKET; UNION 1-71117-183-3 01 1 9906-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906-
180 PLUG; PIPE 9-09204-510-0 01 1 9906-
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9906-
185 CLIP; BRKT
ID=9 L=20 		9-09545-108-0 01 1 9906-
186 HOLDER; CLIP
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 9906-
187 SEAL; BRKT 1-71117-222-0 01 1 9906-
192 PLATE 1-71117-221-0 01 1 9906-
