◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#62734) — 52 parça

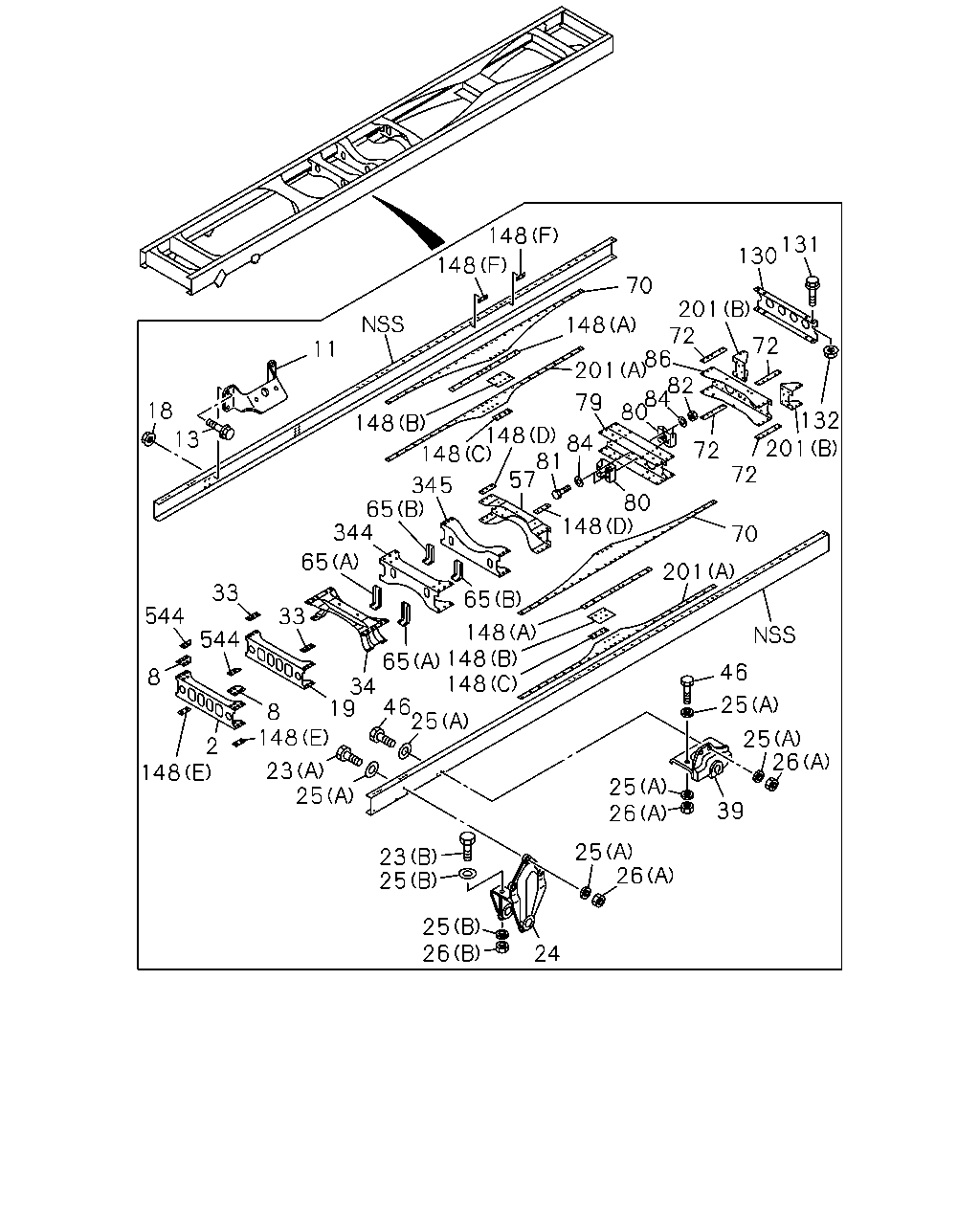

çizim 145813
24 26 25 25 26 25 23 25 26 46 25 25 26 39 201 72 72 201 132 72 130 131 201 70 72 148 201 86 82 84 80 79 84 148 148 148 148 11 148 148 18 13 65 81 57 345 344 65 33 544 8 544 148 8 148 23 25 19 46 34 65 148 148 65 70 80 33 25 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST
IDN 		8-97610-852-7 01 1 1108- ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1108- ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1108- ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 1108- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1108- ● ●
19 MEMBER; CROSS,2ND
IDN 		8-97610-853-5 01 1 1108- ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1108- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1108- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1108- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1108- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1108- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1108- ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1108- ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1108- ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1108- ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1108- ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1108- ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1108- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1108- ● ●
57 MEMBER; CROSS,RR SUSP FRT
IDN 		8-97612-103-1 01 1 1108- ● ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) (A) 		8-97614-129-0 02 1 1310- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) (B) 		8-97614-132-0 02 1 1310- ●
65 BRACKET; CENTER BRG
(A) 		8-97622-644-0 02 1 1108- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-128-0 02 1 1108-1309 ●
65 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (B) 		8-97614-128-0 02 1 1310- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-150-0 02 1 1108-1309 ●
65 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (A) 		8-97614-150-0 02 1 1310- ●
70 GUSSET; TRUNNION,UPR
IDN 		8-97612-106-0 02 1 1108- ● ●
72 SPACER; TRUNNION 8-97612-110-0 04 1 1108- ● ●
79 MEMBER; CROSS,TRUNNION ASM
IDN 		8-97612-104-0 01 1 1108- ● ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 1108- ● ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 1108- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1108- ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1108- ● ●
86 MEMBER; CROSS,RR SUSP RR
IDN 		8-97612-105-4 01 1 1108- ● ●
130 MEMBER; CROSS,END
IDN 		8-97610-869-1 01 1 1108- ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1108- ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1108- ● ●
148 SPACER; C/MBR
(E) 		8-97611-039-0 02 1 1108- ● ●
148 SPACER; C/MBR
(D) 		8-97612-109-0 02 1 1108- ● ●
148 SPACER; C/MBR
(F) 		8-97612-111-0 04 1 1108- ● ●
148 SPACER; C/MBR
(A) 		8-97612-112-0 02 1 1108- ● ●
148 SPACER; C/MBR
(B) 		8-97612-113-0 02 1 1108- ● ●
148 SPACER; C/MBR
(C) 		8-97612-115-0 02 1 1108- ● ●
201 GUSSET; C/MBR
(A) IDN 		8-97640-016-2 01 1 1108- ●
201 GUSSET; C/MBR
(A) IDN 		8-97640-348-1 01 1 1108- ●
201 GUSSET; C/MBR
(A) IDN 		8-97640-017-2 01 1 1108- ●
201 GUSSET; C/MBR
(A) IDN 		8-97640-402-1 01 1 1108- ●
201 GUSSET; C/MBR
(B) IDN 		8-97612-108-2 02 1 1108- ● ●
344 MEMBER; CROSS,4TH
IDN 		8-97611-238-1 01 1 1108- ● ●
345 MEMBER; CROSS,5TH
IDN 		8-97611-238-1 01 1 1108- ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1108- ● ●
