Isuzu WW
▶
TRUCKS
▶
FVM
▶
11391 - FVM(INDONESIA)6HK1
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

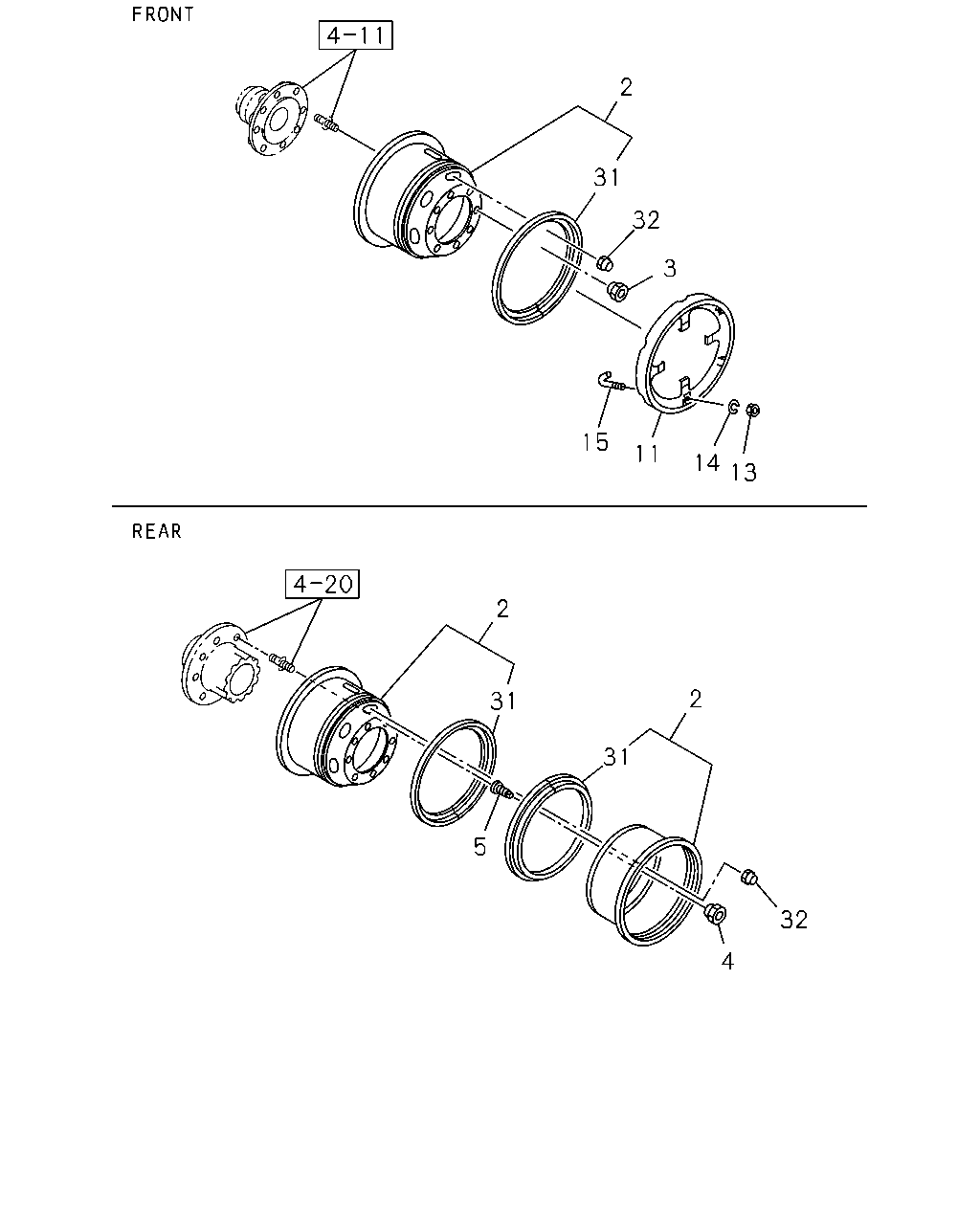

4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#62733) — 17 parça
2
31
32
3
15
11
14
13
32
4
2
31
5
31
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR(R46) SPARE IDN
1-42350-478-0
01
1
1108-
2
WHEEL; DISC
FRONT IDN
1-42350-478-0
02
1
1108-
2
WHEEL; DISC
REAR IDN
1-42350-478-0
08
1
1108-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
08
1
1108-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
08
1
1108-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
16
1
1108-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
16
1
1108-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD IDN
8-97359-805-0
16
1
1108-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD IDN
8-97359-806-0
16
1
1108-
11
STEP; DISC WHEEL SIDE
IDN
1-43139-002-2
02
1
1108-
13
NUT; STEP DISC
M10
0-91110-510-0
06
1
1108-
14
WASHER; LK,STEP DISC
ID=10.2 IDN
0-91510-810-0
06
1
1108-
15
BOLT; STEP DISC
L=44
9-43139-023-1
06
1
1108-
31
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR(R46) SPARE IDN
1-42355-003-1
01
1
1108-
31
RING; SIDE,DISC WHEEL
FRONT IDN
1-42355-003-1
02
1
1108-
31
RING; SIDE,DISC WHEEL
REAR IDN
1-42355-003-1
08
1
1108-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR(R46)
1-42374-001-0
11
1
1108-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
