Sayfa 4-01 - Isuzu EPC

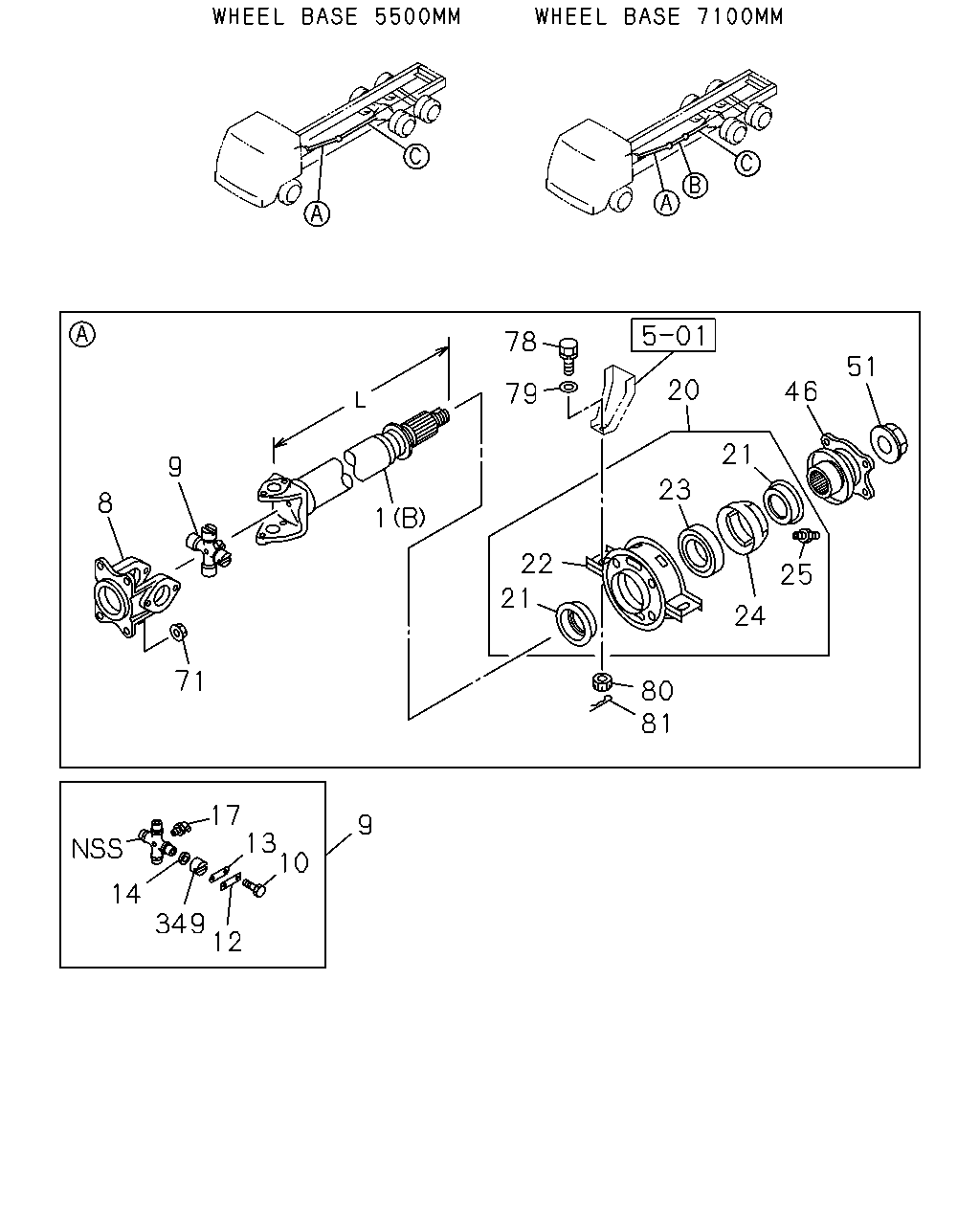

4-01 — PROPELLER SHAFT (#62718) — 297 parça

51 46 21 23 25 24 80 81 21 22 78 79 20 1 9 8 71 17 13 10 9 12 349 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP P90 PROP SHAFT<C5T> (A) L=1389	1-37123-903-0	01	1	1310-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (C) L=902	8-98239-158-0	01	1	1310-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=1007	8-98239-157-0	01	1	1310-	●
1	SHAFT; PROP (A) L=1309	1-37123-818-0	01	1	1108-1309	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (A) L=1309	1-37123-818-0	01	1	1310-	●
1	SHAFT; PROP (A) L=1194	1-37124-114-0	01	1	1108-		●
1	SHAFT; PROP (B) L=706	1-37152-558-0	01	1	1108-		●
1	SHAFT; PROP (B) L=1199	8-98185-867-0	01	1	1108-1309	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1199	8-98185-867-0	01	1	1310-	●
1	SHAFT; PROP (C) L=999	8-98189-372-0	01	1	1108-1309	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (C) L=999	8-98189-372-0	01	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-066-1	02	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-066-1	01	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-066-1	01	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-072-1	03	1	1108-1309	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M>	1-37211-072-1	03	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-072-1	02	1	1108-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-072-1	01	1	1108-1309	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-072-1	01	1	1310-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M>	1-37211-072-1	01	1	1310-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-1	AR	1	1310-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-1	AR	1	1310-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-1	AR	1	1310-	●
9	JOURNAL ASM; PROP SHAFT 2ND	1-37300-095-1	AR	1	1108-1309	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> 2ND	1-37300-095-1	AR	1	1310-	●
9	JOURNAL ASM; PROP SHAFT 1ST,END	1-37300-094-1	AR	1	1108-1309	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,END	1-37300-094-1	AR	1	1108-1309	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> 1ST,END	1-37300-094-1	AR	1	1310-	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> 1ST,END	1-37300-094-1	AR	1	1310-	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-1	AR	1	1310-	●
10	BOLT; UJT M10X20	0-20951-020-0	16	1	1108-1309		●
10	BOLT; UJT M10X20	0-20951-020-0	16	1	1310-		●
10	BOLT; UJT P90 PROP SHAFT<C5T> M10X20	0-20951-020-0	16	1	1310-	●
10	BOLT; UJT M10X20	0-20951-020-0	24	1	1108-1309	●
10	BOLT; UJT P60 PROP SHAFT<C2M> M10X20	0-20951-020-0	24	1	1310-	●
10	BOLT; UJT M10X20	0-20951-020-0	08	1	1108-1309	●	●
10	BOLT; UJT M10X20	0-20951-020-0	08	1	1310-	●	●
10	BOLT; UJT P90 PROP SHAFT<C5T> M10X20	0-20951-020-0	08	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	04	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	04	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	04	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	08	1	1108-1309	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M> IDN	1-37356-010-0	08	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1108-1309	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1108-1309		●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1310-		●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1310-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M> IDN	1-37356-010-0	04	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	04	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	04	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	04	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	08	1	1108-1309	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M> T=6 IDN	1-37355-022-0	08	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1108-1309	●	●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1108-1309		●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1310-		●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1310-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M> T=6 IDN	1-37355-022-0	04	1	1310-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	08	1	1310-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	04	1	1310-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	04	1	1310-	●
14	COVER; DUST,SPIDER IDN	9-37352-023-0	12	1	1108-1309	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> IDN	9-37352-023-0	12	1	1310-	●
14	COVER; DUST,SPIDER IDN	9-37352-023-0	08	1	1108-		●
14	COVER; DUST,SPIDER IDN	9-37352-023-0	04	1	1108-1309	●	●
14	COVER; DUST,SPIDER IDN	9-37352-023-0	04	1	1310-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> IDN	9-37352-023-0	04	1	1310-	●
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1108-1309	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M> 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1310-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1108-1309	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1310-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1108-1309	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1310-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1310-	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT<C5T>	1-37510-094-3	01	1	1310-	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT<C5T>	1-37510-094-3	01	1	1310-	●
20	BEARING ASM; CTR,PROP SHAFT IDN	1-37510-093-3	01	1	1108-1309	●	●
20	BEARING ASM; CTR,PROP SHAFT IDN	1-37510-093-3	01	1	1108-1309	●
20	BEARING ASM; CTR,PROP SHAFT IDN	1-37510-093-3	01	1	1310-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT<C2M> IDN	1-37510-093-3	01	1	1310-	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT<C2M> IDN	1-37510-093-3	01	1	1310-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT<C5T> D=120	1-09625-127-0	02	1	1310-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT<C5T> D=120	1-09625-127-0	02	1	1310-	●
21	SEAL; OIL,CENTER BRG D=120	1-09625-126-0	02	1	1108-1309	●	●
21	SEAL; OIL,CENTER BRG D=120	1-09625-126-0	02	1	1108-1309	●
21	SEAL; OIL,CENTER BRG D=120	1-09625-126-0	02	1	1310-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT<C2M> D=120	1-09625-126-0	02	1	1310-	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT<C2M> D=120	1-09625-126-0	02	1	1310-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37516-048-2	01	1	1310-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37516-048-2	01	1	1310-	●
22	RUBBER; CUSHION,CENTER BRG,1ST IDN	1-37516-047-2	01	1	1108-1309	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST IDN	1-37516-047-2	01	1	1108-1309	●
22	RUBBER; CUSHION,CENTER BRG,1ST IDN	1-37516-047-2	01	1	1310-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT<C2M> IDN	1-37516-047-2	01	1	1310-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT<C2M> IDN	1-37516-047-2	01	1	1310-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT<C5T>	9-00090-256-0	01	1	1310-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT<C5T>	9-00090-256-0	01	1	1310-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-292-0	01	1	1108-1309	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-292-0	01	1	1108-1309	●
23	BEARING; CENTER,PROP SHAFT	9-00090-292-0	01	1	1310-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT<C2M>	9-00090-292-0	01	1	1310-	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT<C2M>	9-00090-292-0	01	1	1310-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37529-041-0	01	1	1310-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37529-041-0	01	1	1310-	●
24	RETAINER; CENTER BRG,1ST IDN	1-37529-039-0	01	1	1108-1309	●	●
24	RETAINER; CENTER BRG,1ST IDN	1-37529-039-0	01	1	1108-1309	●
24	RETAINER; CENTER BRG,1ST IDN	1-37529-039-0	01	1	1310-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT<C2M> IDN	1-37529-039-0	01	1	1310-	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT<C2M> IDN	1-37529-039-0	01	1	1310-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT IDN	1-09380-006-0	01	1	1108-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT IDN	1-09380-006-0	01	1	1108-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T>	1-37245-271-1	01	1	1310-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T>	1-37245-271-1	01	1	1310-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST IDN	1-37245-283-1	01	1	1108-1309	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST IDN	1-37245-283-1	01	1	1108-1309	●
46	FLANGE; SPLINED,PROP SHAFT,1ST IDN	1-37245-283-1	01	1	1310-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M> IDN	1-37245-283-1	01	1	1310-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M> IDN	1-37245-283-1	01	1	1310-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT<C5T> M39 FLANGE	1-09440-046-0	01	1	1310-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT<C5T> M39 FLANGE	1-09440-046-0	01	1	1310-	●
51	NUT; FLANGE,SPLINED M33 FLANGE	1-09449-051-0	01	1	1108-1309	●	●
51	NUT; FLANGE,SPLINED M33 FLANGE	1-09449-051-0	01	1	1108-1309	●
51	NUT; FLANGE,SPLINED M33 FLANGE	1-09449-051-0	01	1	1310-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT<C2M> M33 FLANGE	1-09449-051-0	01	1	1310-	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT<C2M> M33 FLANGE	1-09449-051-0	01	1	1310-	●
71	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	1108-	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1108-	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1108-	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	1108-1204	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1108-	●	●
349	BEARING; FRT UJT,PROP SHAFT	1-09811-394-0	04	1	1108-	●	●
349	BEARING; FRT UJT,PROP SHAFT	1-09811-394-0	04	1	1108-	●
349	BEARING; FRT UJT,PROP SHAFT	1-09811-394-0	08	1	1108-	●	●

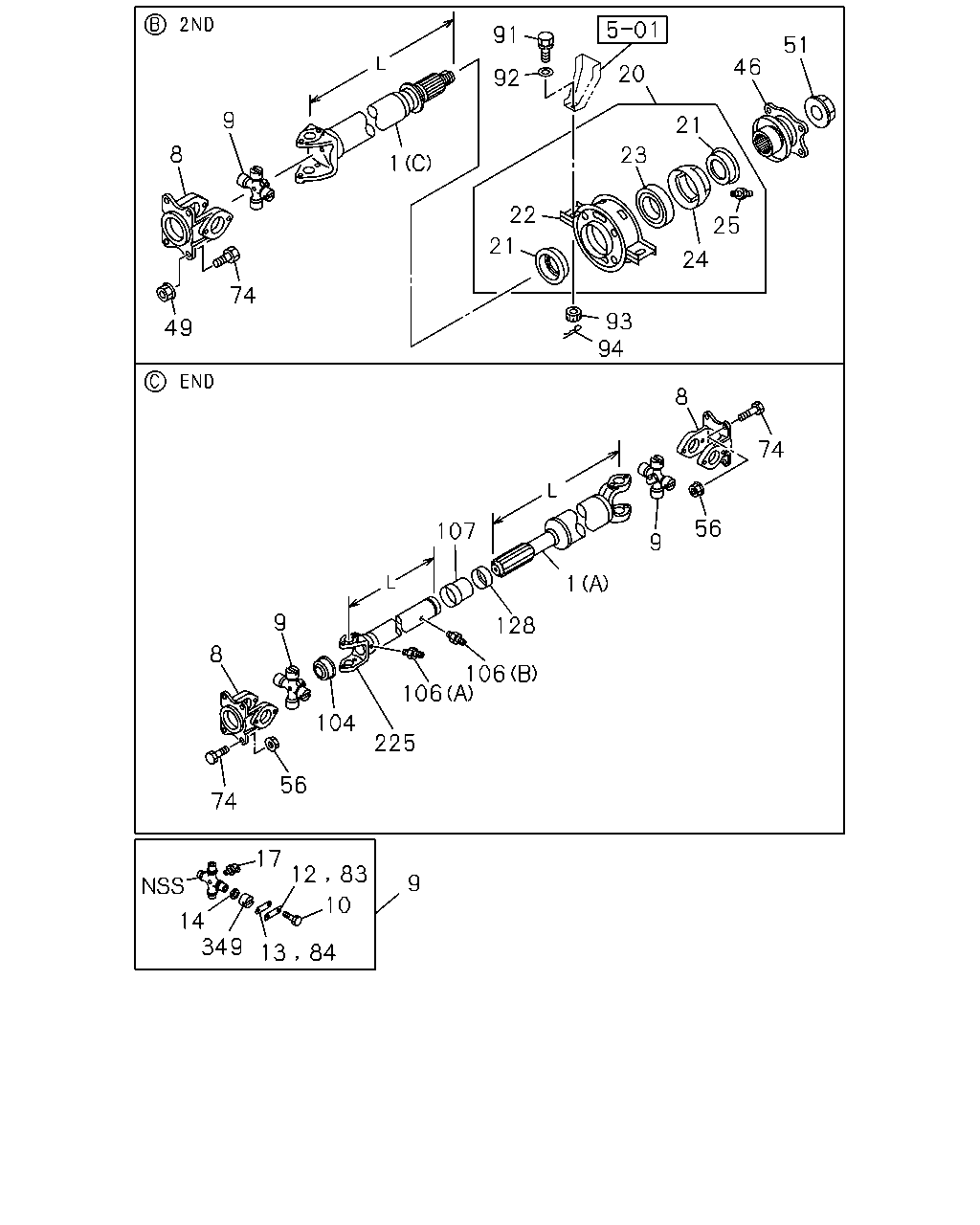

9 8 74 49 104 128 9 74 56 1 106 106 225 56 74 9 9 8 8 46 51 21 23 22 21 24 25 93 94 83 10 12 17 91 20 92 1 14 349 13 84 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP P90 PROP SHAFT<C5T> (A) L=1389	1-37123-903-0	01	1	1310-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (C) L=902	8-98239-158-0	01	1	1310-	●
1	SHAFT; PROP P90 PROP SHAFT<C5T> (B) L=1007	8-98239-157-0	01	1	1310-	●
1	SHAFT; PROP (A) L=1309	1-37123-818-0	01	1	1108-1309	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (A) L=1309	1-37123-818-0	01	1	1310-	●
1	SHAFT; PROP (A) L=1194	1-37124-114-0	01	1	1108-		●
1	SHAFT; PROP (B) L=706	1-37152-558-0	01	1	1108-		●
1	SHAFT; PROP (B) L=1199	8-98185-867-0	01	1	1108-1309	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (B) L=1199	8-98185-867-0	01	1	1310-	●
1	SHAFT; PROP (C) L=999	8-98189-372-0	01	1	1108-1309	●
1	SHAFT; PROP P60 PROP SHAFT<C2M> (C) L=999	8-98189-372-0	01	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-066-1	02	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-066-1	01	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-066-1	01	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-072-1	03	1	1108-1309	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M>	1-37211-072-1	03	1	1310-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-072-1	02	1	1108-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-072-1	01	1	1108-1309	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-072-1	01	1	1310-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT<C2M>	1-37211-072-1	01	1	1310-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-1	AR	1	1310-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-1	AR	1	1310-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-1	AR	1	1310-	●
9	JOURNAL ASM; PROP SHAFT 2ND	1-37300-095-1	AR	1	1108-1309	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> 2ND	1-37300-095-1	AR	1	1310-	●
9	JOURNAL ASM; PROP SHAFT 1ST,END	1-37300-094-1	AR	1	1108-1309	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,END	1-37300-094-1	AR	1	1108-1309	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> 1ST,END	1-37300-094-1	AR	1	1310-	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT<C2M> 1ST,END	1-37300-094-1	AR	1	1310-	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-1	AR	1	1310-	●
10	BOLT; UJT M10X20	0-20951-020-0	16	1	1108-1309		●
10	BOLT; UJT M10X20	0-20951-020-0	16	1	1310-		●
10	BOLT; UJT P90 PROP SHAFT<C5T> M10X20	0-20951-020-0	16	1	1310-	●
10	BOLT; UJT M10X20	0-20951-020-0	24	1	1108-1309	●
10	BOLT; UJT P60 PROP SHAFT<C2M> M10X20	0-20951-020-0	24	1	1310-	●
10	BOLT; UJT M10X20	0-20951-020-0	08	1	1108-1309	●	●
10	BOLT; UJT M10X20	0-20951-020-0	08	1	1310-	●	●
10	BOLT; UJT P90 PROP SHAFT<C5T> M10X20	0-20951-020-0	08	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	04	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	04	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	04	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	08	1	1108-1309	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M> IDN	1-37356-010-0	08	1	1310-	●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1108-1309	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1108-1309		●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1310-		●
12	PLATE; LK,FRT UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1310-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M> IDN	1-37356-010-0	04	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	04	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	04	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	04	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	08	1	1108-1309	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M> T=6 IDN	1-37355-022-0	08	1	1310-	●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1108-1309	●	●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1108-1309		●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1310-		●
13	COVER; FRT UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1310-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT<C2M> T=6 IDN	1-37355-022-0	04	1	1310-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	08	1	1310-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	04	1	1310-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	04	1	1310-	●
14	COVER; DUST,SPIDER IDN	9-37352-023-0	12	1	1108-1309	●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> IDN	9-37352-023-0	12	1	1310-	●
14	COVER; DUST,SPIDER IDN	9-37352-023-0	08	1	1108-		●
14	COVER; DUST,SPIDER IDN	9-37352-023-0	04	1	1108-1309	●	●
14	COVER; DUST,SPIDER IDN	9-37352-023-0	04	1	1310-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT<C2M> IDN	9-37352-023-0	04	1	1310-	●
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1108-1309	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT<C2M> 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1310-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1108-1309	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1310-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1108-1309	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1310-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1310-	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT<C5T>	1-37510-094-3	01	1	1310-	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT<C5T>	1-37510-094-3	01	1	1310-	●
20	BEARING ASM; CTR,PROP SHAFT IDN	1-37510-093-3	01	1	1108-1309	●	●
20	BEARING ASM; CTR,PROP SHAFT IDN	1-37510-093-3	01	1	1108-1309	●
20	BEARING ASM; CTR,PROP SHAFT IDN	1-37510-093-3	01	1	1310-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT<C2M> IDN	1-37510-093-3	01	1	1310-	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT<C2M> IDN	1-37510-093-3	01	1	1310-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT<C5T> D=120	1-09625-127-0	02	1	1310-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT<C5T> D=120	1-09625-127-0	02	1	1310-	●
21	SEAL; OIL,CENTER BRG D=120	1-09625-126-0	02	1	1108-1309	●	●
21	SEAL; OIL,CENTER BRG D=120	1-09625-126-0	02	1	1108-1309	●
21	SEAL; OIL,CENTER BRG D=120	1-09625-126-0	02	1	1310-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT<C2M> D=120	1-09625-126-0	02	1	1310-	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT<C2M> D=120	1-09625-126-0	02	1	1310-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37516-048-2	01	1	1310-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37516-048-2	01	1	1310-	●
22	RUBBER; CUSHION,CENTER BRG,1ST IDN	1-37516-047-2	01	1	1108-1309	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST IDN	1-37516-047-2	01	1	1108-1309	●
22	RUBBER; CUSHION,CENTER BRG,1ST IDN	1-37516-047-2	01	1	1310-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT<C2M> IDN	1-37516-047-2	01	1	1310-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT<C2M> IDN	1-37516-047-2	01	1	1310-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT<C5T>	9-00090-256-0	01	1	1310-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT<C5T>	9-00090-256-0	01	1	1310-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-292-0	01	1	1108-1309	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-292-0	01	1	1108-1309	●
23	BEARING; CENTER,PROP SHAFT	9-00090-292-0	01	1	1310-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT<C2M>	9-00090-292-0	01	1	1310-	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT<C2M>	9-00090-292-0	01	1	1310-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37529-041-0	01	1	1310-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT<C5T>	1-37529-041-0	01	1	1310-	●
24	RETAINER; CENTER BRG,1ST IDN	1-37529-039-0	01	1	1108-1309	●	●
24	RETAINER; CENTER BRG,1ST IDN	1-37529-039-0	01	1	1108-1309	●
24	RETAINER; CENTER BRG,1ST IDN	1-37529-039-0	01	1	1310-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT<C2M> IDN	1-37529-039-0	01	1	1310-	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT<C2M> IDN	1-37529-039-0	01	1	1310-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT IDN	1-09380-006-0	01	1	1108-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT IDN	1-09380-006-0	01	1	1108-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T>	1-37245-271-1	01	1	1310-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T>	1-37245-271-1	01	1	1310-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST IDN	1-37245-283-1	01	1	1108-1309	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST IDN	1-37245-283-1	01	1	1108-1309	●
46	FLANGE; SPLINED,PROP SHAFT,1ST IDN	1-37245-283-1	01	1	1310-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M> IDN	1-37245-283-1	01	1	1310-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT<C2M> IDN	1-37245-283-1	01	1	1310-	●
49	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	1108-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT<C5T> M39 FLANGE	1-09440-046-0	01	1	1310-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT<C5T> M39 FLANGE	1-09440-046-0	01	1	1310-	●
51	NUT; FLANGE,SPLINED M33 FLANGE	1-09449-051-0	01	1	1108-1309	●	●
51	NUT; FLANGE,SPLINED M33 FLANGE	1-09449-051-0	01	1	1108-1309	●
51	NUT; FLANGE,SPLINED M33 FLANGE	1-09449-051-0	01	1	1310-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT<C2M> M33 FLANGE	1-09449-051-0	01	1	1310-	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT<C2M> M33 FLANGE	1-09449-051-0	01	1	1310-	●
56	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	1108-	●	●
56	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	1108-	●	●
74	BOLT; YOKE,TRANS M16X48	1-09000-383-0	04	1	1108-	●	●
74	BOLT; YOKE,TRANS M16X48	1-09000-383-0	04	1	1108-	●	●
74	BOLT; YOKE,TRANS M16X48	1-09000-383-0	04	1	1108-	●
83	PLATE; LK,UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	04	1	1310-	●
83	PLATE; LK,UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1108-1309	●	●
83	PLATE; LK,UJT,PROP SHAFT IDN	1-37356-010-0	04	1	1310-		●
83	PLATE; LK,UJT,PROP SHAFT P60 PROP SHAFT<C2M> IDN	1-37356-010-0	04	1	1310-	●
84	COVER; UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	04	1	1310-	●
84	COVER; UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1108-1309	●	●
84	COVER; UJT,PROP SHAFT T=6 IDN	1-37355-022-0	04	1	1310-		●
84	COVER; UJT,PROP SHAFT P60 PROP SHAFT<C2M> T=6 IDN	1-37355-022-0	04	1	1310-	●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	1108-	●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	1108-	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	0-91116-516-0	02	1	1108-1204	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1205-	●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	1108-	●
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	1108-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) MT6 STRAIGHT IDN	1-09380-006-0	01	1	1108-1309	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) MT6 STRAIGHT IDN	1-09380-006-0	01	1	1310-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT<C2M> (B) MT6 STRAIGHT IDN	1-09380-006-0	01	1	1310-	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	1108-	●	●
107	COVER; RET,SLEEVE	1-37249-137-1	01	1	1108-1309	●	●
107	COVER; RET,SLEEVE	1-37249-137-1	01	1	1310-		●
107	COVER; RET,SLEEVE P60 PROP SHAFT<C2M>	1-37249-137-1	01	1	1310-	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T>	1-37247-019-0	01	1	1310-	●
128	SEAL; SLEEVE IDN	1-37247-021-0	01	1	1108-1309	●	●
128	SEAL; SLEEVE IDN	1-37247-021-0	01	1	1310-		●
128	SEAL; SLEEVE P60 PROP SHAFT<C2M> IDN	1-37247-021-0	01	1	1310-	●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T> L=332	1-37241-103-1	01	1	1310-	●
225	YOKE; SLEEVE,PROP SHAFT L=332	1-37241-109-1	01	1	1108-1309	●	●
225	YOKE; SLEEVE,PROP SHAFT L=332	1-37241-109-1	01	1	1310-		●
225	YOKE; SLEEVE,PROP SHAFT P60 PROP SHAFT<C2M> L=332	1-37241-109-1	01	1	1310-	●
349	BEARING; FRT UJT,PROP SHAFT	1-09811-394-0	04	1	1108-	●	●
349	BEARING; FRT UJT,PROP SHAFT	1-09811-394-0	04	1	1108-	●
349	BEARING; FRT UJT,PROP SHAFT	1-09811-394-0	08	1	1108-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
