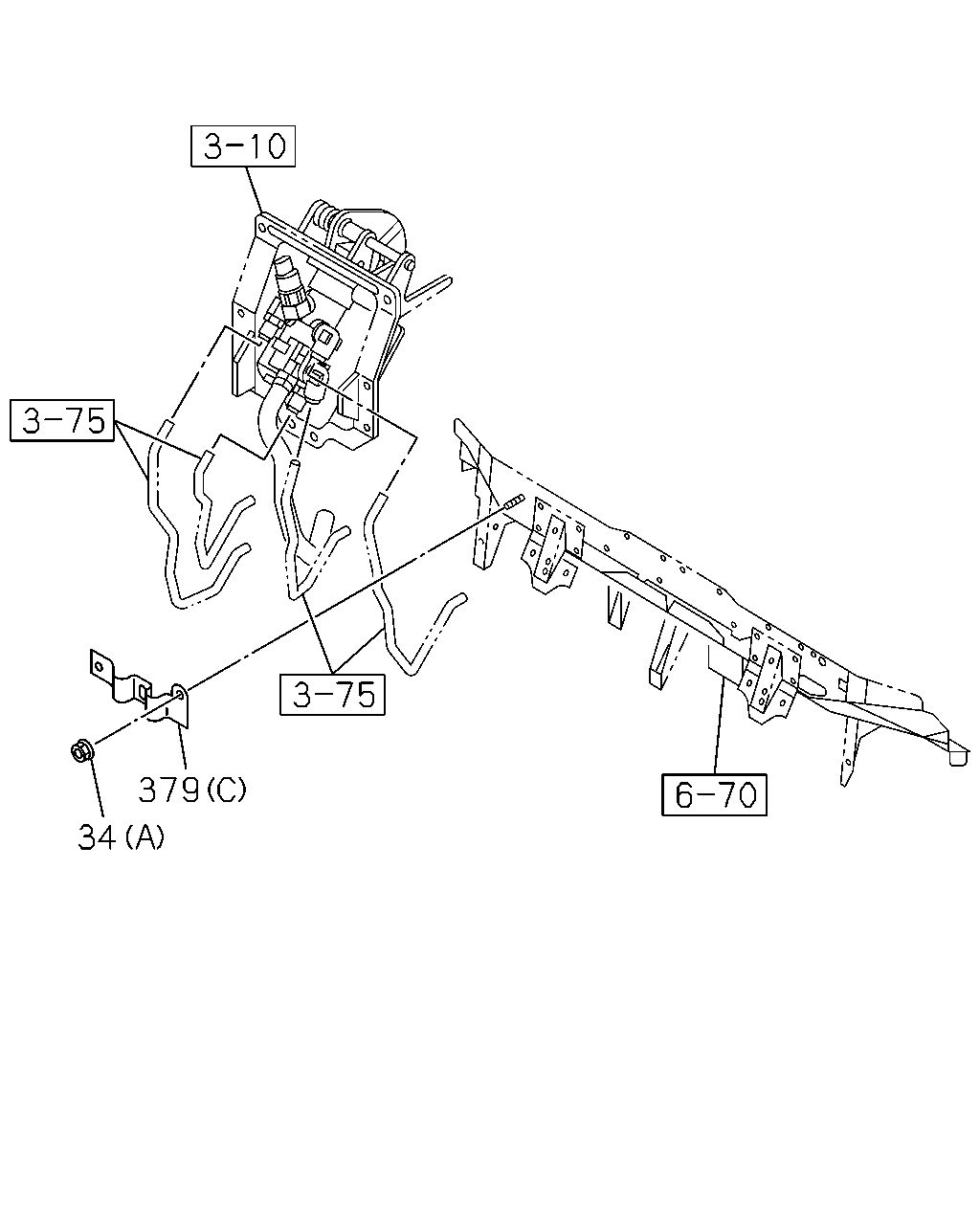

3-78 — FIXING PARTS; AIR PIPING (#62717) — 73 parça
çizim 145900
379 34
BalonParca AdiParca NoAdetTipApplied Date
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1108-
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1108-
379 BRACKET; NYLON TUBE
WHEEL BASE 5500MM(55W) (D) 		8-98119-184-1 01 1 1304-
379 BRACKET; NYLON TUBE
WHEEL BASE 5500MM(55W) (B) L=60 H=30 		1-47477-716-1 01 1 1108-
379 BRACKET; NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=60 H=30 		1-47477-716-1 02 1 1108-
379 BRACKET; NYLON TUBE
(A) L=90 		1-47477-755-1 01 1 1108-
379 BRACKET; NYLON TUBE
(C) 		8-98044-013-0 01 1 1108-

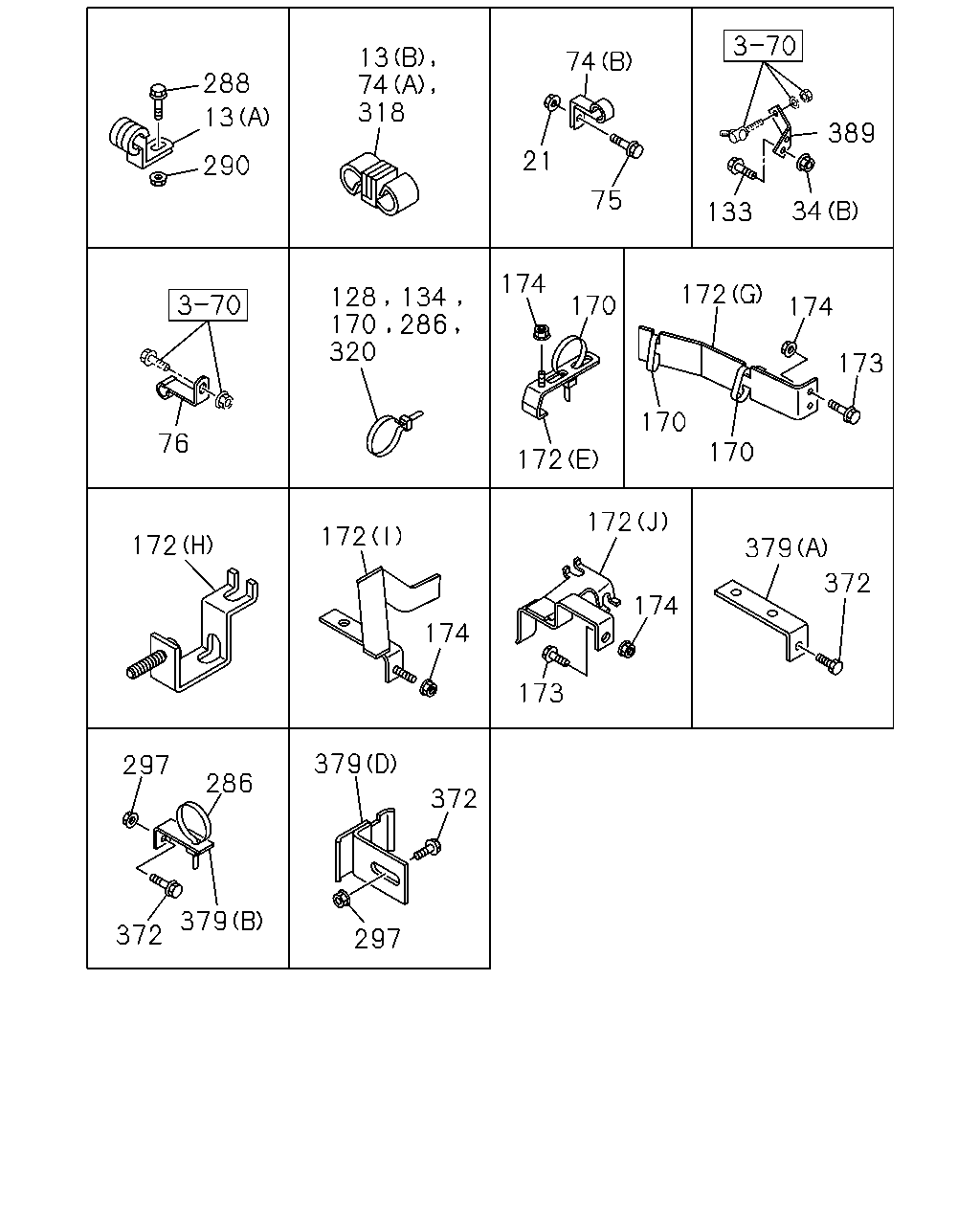

çizim 145907
288 13 290 13 74 318 74 21 75 133 34 389 173 174 172 170 170 379 372 172 174 173 174 172 172 76 128 170 320 134 286 174 170 172 379 372 297 379 372 286 297
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1108-
13 CLIP; AIR PIPE
(B) ID=6.35 & 15 		1-09709-276-1 01 1 1108-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1108-
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1108-
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1108-
74 CLIP; NYLON TUBE
(B) ID=13 H=50 L=25 		1-09700-529-0 01 1 1108-
74 CLIP; NYLON TUBE
(A) ID=12 & 15 		1-09709-281-1 01 1 1108-
75 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1108-
76 CLIP; NYLON TUBE
ID=13 H=50 L=25 		1-09700-529-0 01 1 1108-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1108-
133 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1108-
170 CLIP; NYLON TUBE
L=350 		1-09707-183-0 27 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCS ENG(80L) (F) 		8-98177-873-0 04 1 1310-
172 BRACKET; TUBE CLIP
(A) 		1-47477-514-3 01 1 1108-
172 BRACKET; TUBE CLIP
(B) L=225 		1-47477-646-3 01 1 1108-
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 1108-
172 BRACKET; TUBE CLIP
(D) 		8-98031-420-2 01 1 1108-
172 BRACKET; TUBE CLIP
(E) 		8-98047-730-0 02 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (H) 		8-98169-222-0 01 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (F) 		8-98177-873-0 01 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (I) 		8-98182-331-0 01 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (J) 		8-98182-760-0 01 1 1108-
172 BRACKET; TUBE CLIP
(G) IDN 		8-98184-177-0 01 1 1108-
173 BOLT; CLIP BRKT
6HK1-TCS ENG(80L) M8X30 FLANGE 		0-28650-830-0 04 1 1310-
173 BOLT; CLIP BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
173 BOLT; CLIP BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1108-
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1108-1303
173 BOLT; CLIP BRKT
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 05 1 1304-
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 11 1 1108-
286 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 03 1 1108-
286 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 04 1 1108-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1108-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 1108-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1108-1303
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1304-
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 05 1 1108-
320 CLIP; BAND,FLEX FIX
L=250 IDN 		5-09707-030-1 01 1 1108-
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W) M8X30 FLANGE 		0-28650-830-0 02 1 1108-
372 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 03 1 1108-
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-1303
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1304-
379 BRACKET; NYLON TUBE
WHEEL BASE 5500MM(55W) (D) 		8-98119-184-1 01 1 1304-
379 BRACKET; NYLON TUBE
WHEEL BASE 5500MM(55W) (B) L=60 H=30 		1-47477-716-1 01 1 1108-
379 BRACKET; NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=60 H=30 		1-47477-716-1 02 1 1108-
379 BRACKET; NYLON TUBE
(A) L=90 		1-47477-755-1 01 1 1108-
379 BRACKET; NYLON TUBE
(C) 		8-98044-013-0 01 1 1108-
389 BRACKET; UNION 1-47471-363-0 01 1 1108-

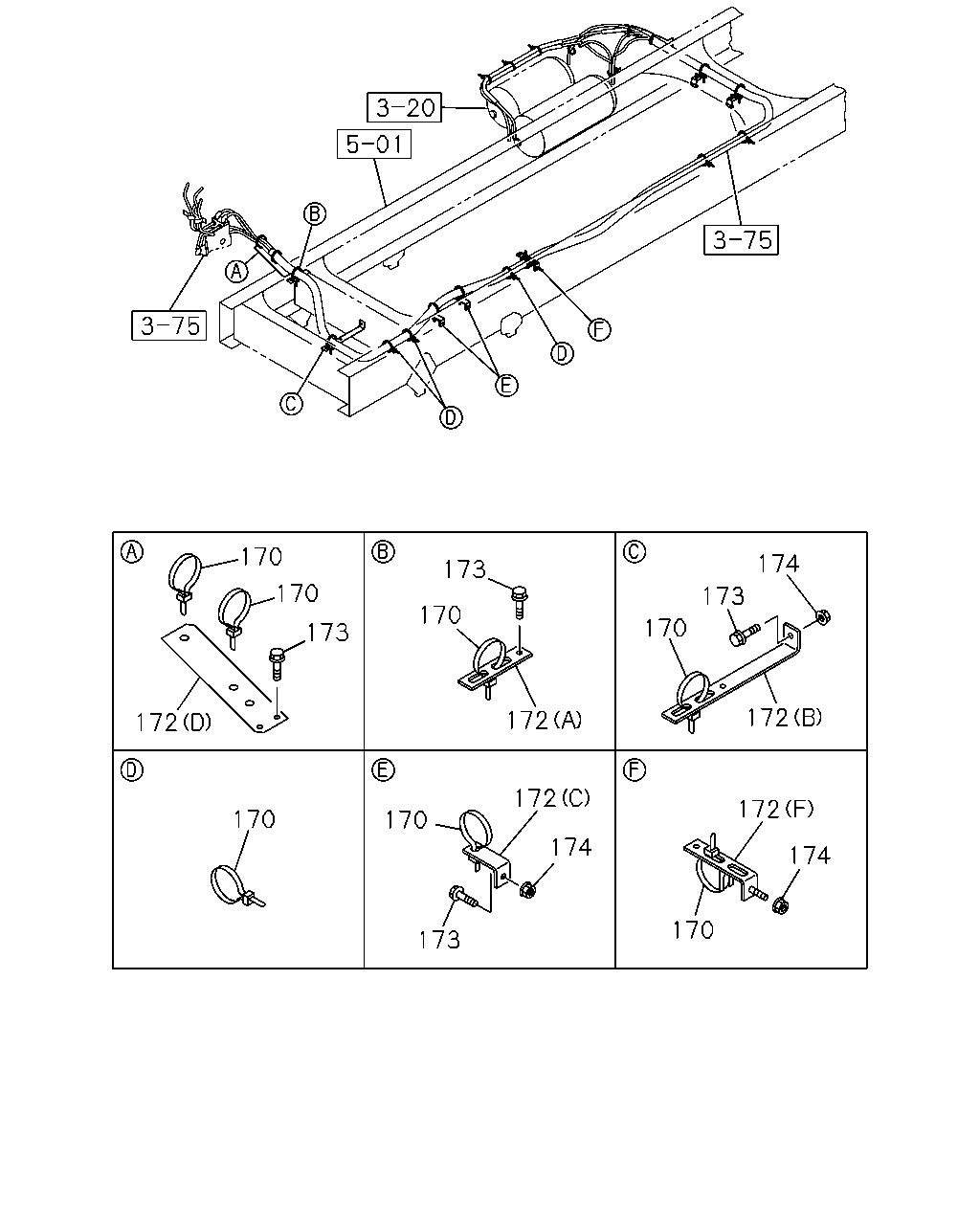

çizim 145914
172 173 170 170 170 173 172 170 172 174 173 170 170 173 174 172 172 174 170
BalonParca AdiParca NoAdetTipApplied Date
170 CLIP; NYLON TUBE
L=350 		1-09707-183-0 27 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCS ENG(80L) (F) 		8-98177-873-0 04 1 1310-
172 BRACKET; TUBE CLIP
(A) 		1-47477-514-3 01 1 1108-
172 BRACKET; TUBE CLIP
(B) L=225 		1-47477-646-3 01 1 1108-
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 1108-
172 BRACKET; TUBE CLIP
(D) 		8-98031-420-2 01 1 1108-
172 BRACKET; TUBE CLIP
(E) 		8-98047-730-0 02 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (H) 		8-98169-222-0 01 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (F) 		8-98177-873-0 01 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (I) 		8-98182-331-0 01 1 1108-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (J) 		8-98182-760-0 01 1 1108-
172 BRACKET; TUBE CLIP
(G) IDN 		8-98184-177-0 01 1 1108-
173 BOLT; CLIP BRKT
6HK1-TCS ENG(80L) M8X30 FLANGE 		0-28650-830-0 04 1 1310-
173 BOLT; CLIP BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
173 BOLT; CLIP BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1108-
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1108-1303
173 BOLT; CLIP BRKT
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 05 1 1304-
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 11 1 1108-
