Isuzu WW
▶
TRUCKS
▶
FVM
▶
11391 - FVM(INDONESIA)6HK1
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶
3-70 — BRAKE PIPING; AIR,AIR MASTER
(#62714) — 63 parça
◀

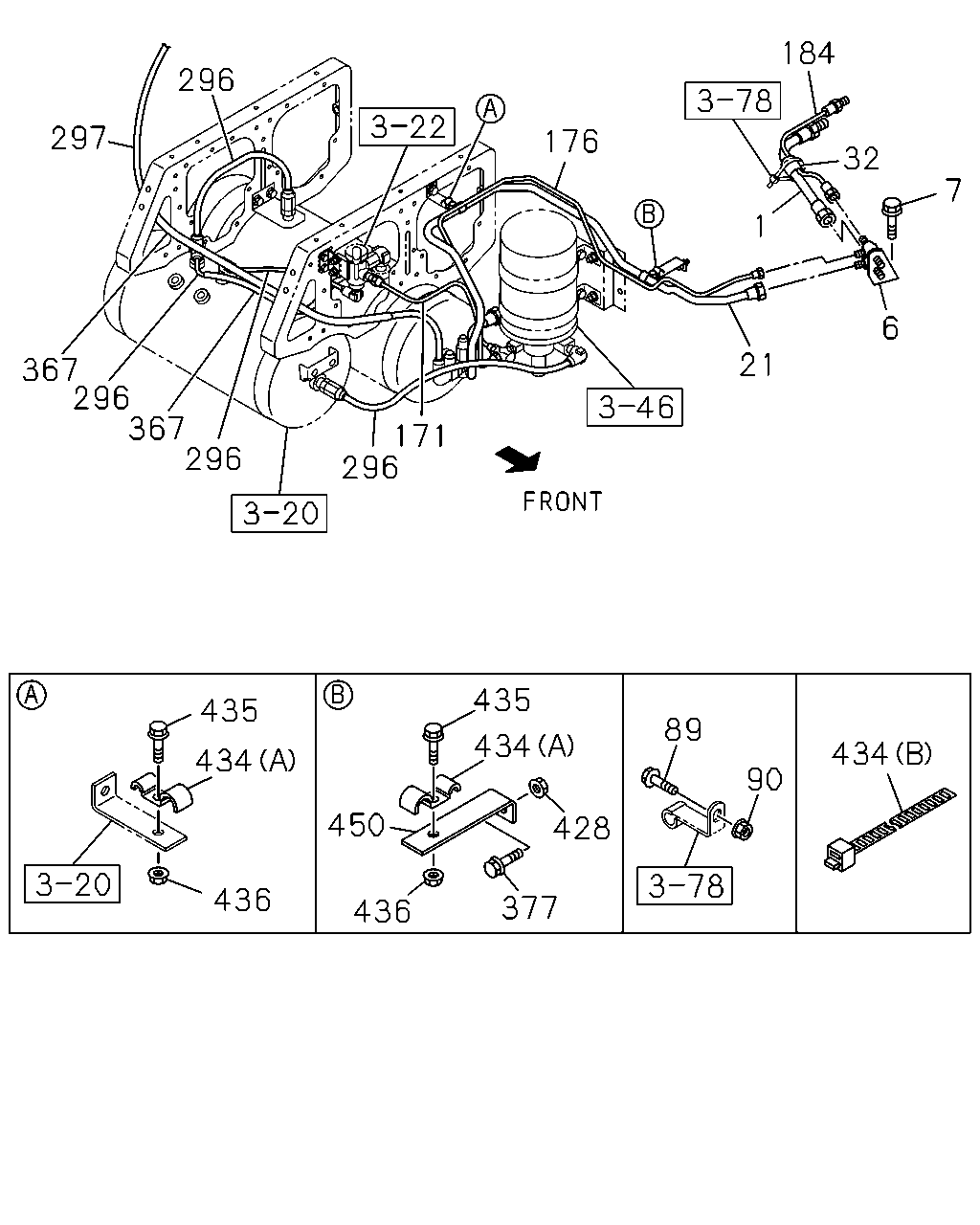

[370A] AIR TANK SIDE NO.1 (23 parça)

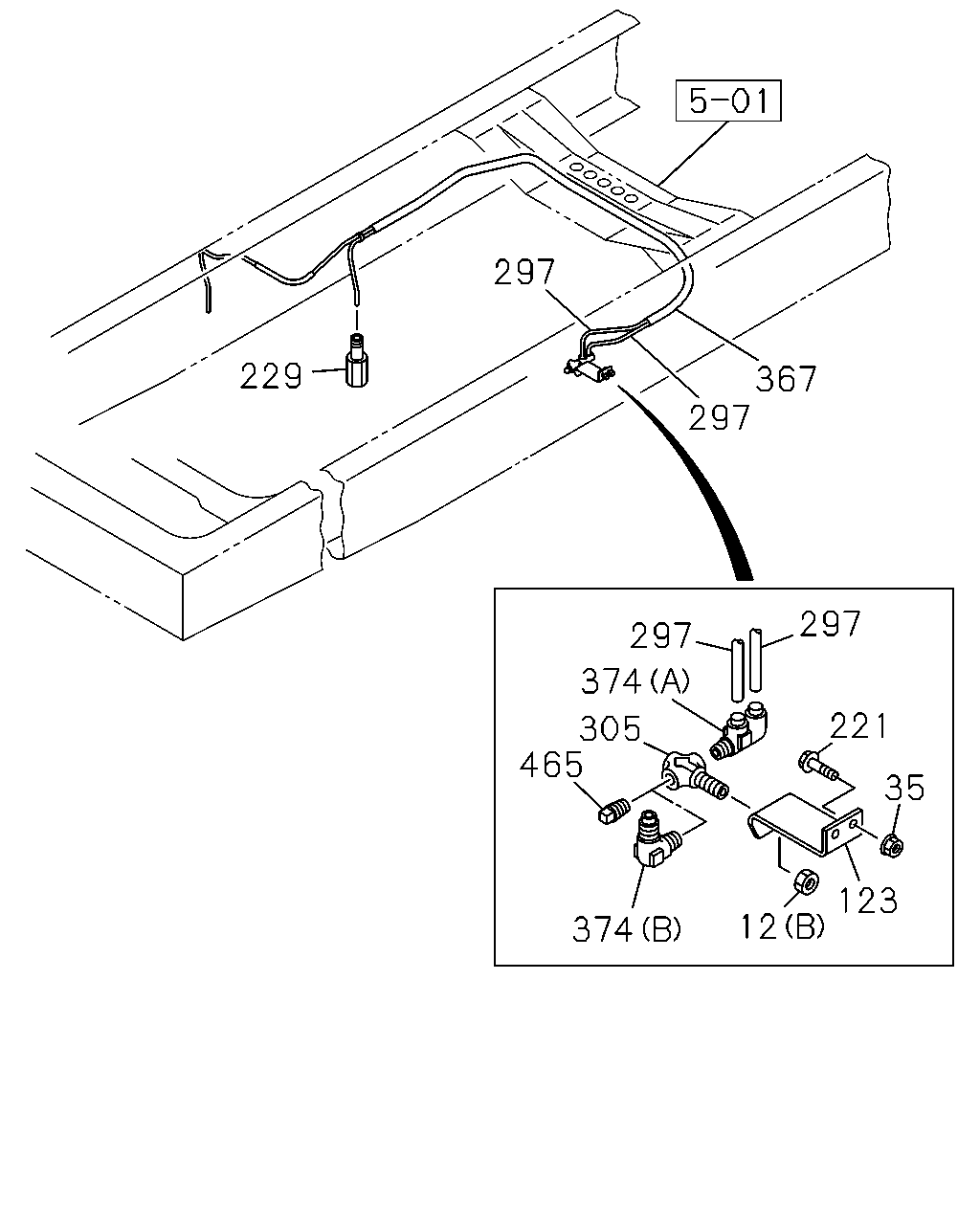

[370A] FRAME SIDE (27 parça)

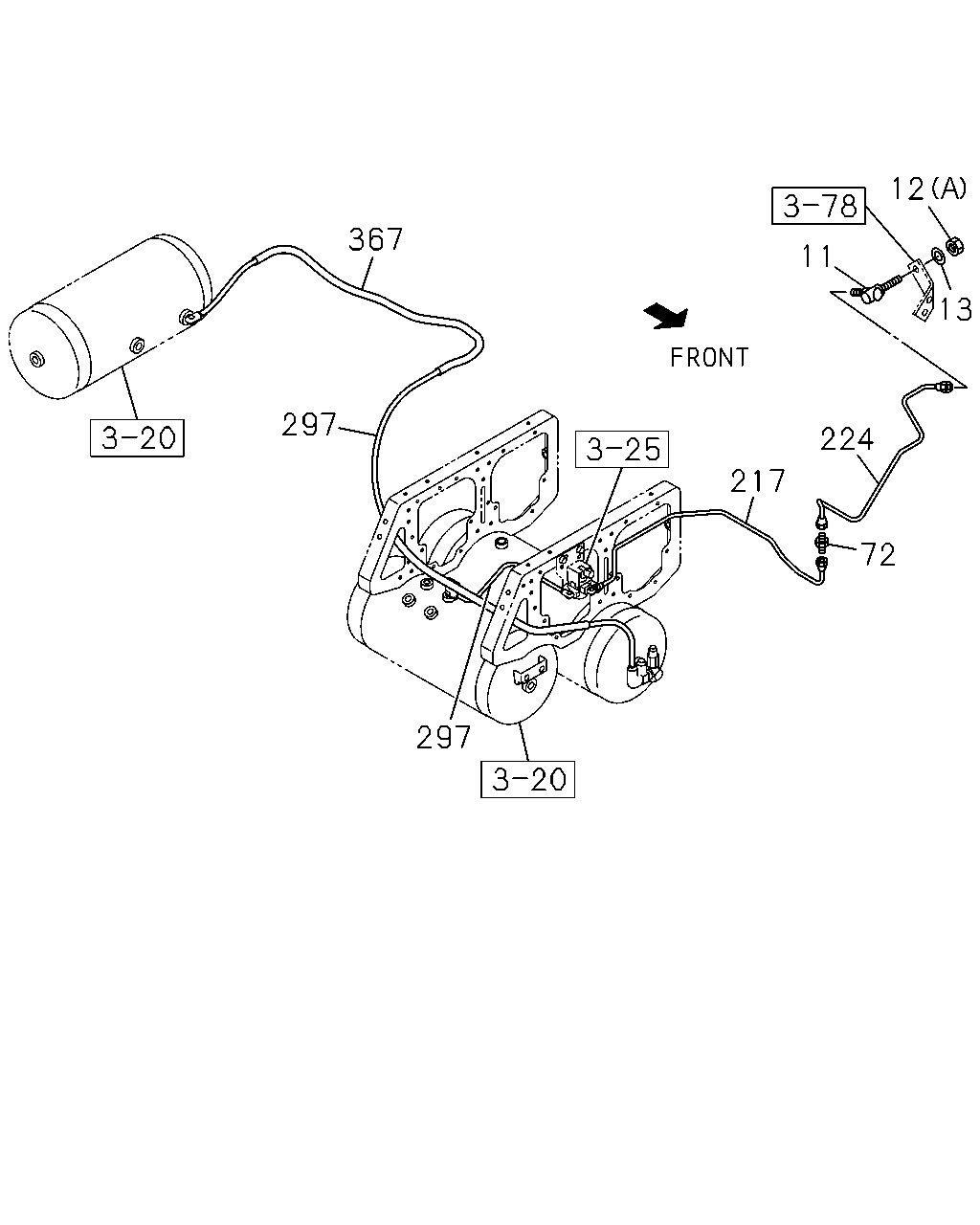

[370A] AIR TANK SIDE NO.2 (13 parça)
▶
434
89
90
435
434
428
377
436
450
434
435
436
296
171
21
6
7
32
184
176
1
296
297
367
296
296
367
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
L=310
8-97607-730-0
01
1
1108-
6
BRACKET; FLEX HOSE,AIR TANK
8-98117-117-0
01
1
1108-
7
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE
0-28650-830-0
02
1
1108-
21
PIPE; AIR,UNION TO AIR DRYER
L=1713 IDN
8-98189-194-0
01
1
1108-
32
SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50
1-09337-023-0
01
1
1108-
89
BOLT; TUBE CLIP
M8X20 FLANGE IDN
0-28650-820-0
01
1
1108-
90
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
01
1
1108-
171
PIPE; AIR,GOV TO AIR DRYER
L=515 SERVICED BY L=550
1-47428-808-0
01
1
1108-
176
PIPE; AIR,AIR DRYER TO UNION
L=1427 SERVICED BY L=1500
1-47428-819-0
01
1
1108-
184
HOSE; FLEX,AIR GOV
L=350
1-09363-624-0
01
1
1108-
296
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1108-
296
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1108-
297
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1108-
297
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1108-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1108-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1108-
377
BOLT; BRKT FIX
M8X30 FLANGE
0-28650-830-0
01
1
1108-
428
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1108-
434
CLIP
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (B) L=350
1-09707-183-0
03
1
1310-
434
CLIP
(A) ID=16 & 7 L=21 & 17
1-09700-675-0
02
1
1108-
435
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
02
1
1108-
436
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1108-
450
BRACKET; CLIP
L=115 B=25
1-47476-758-0
01
1
1108-
367
297
297
229
297
297
221
35
123
12
374
465
305
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NUT; UNION
(A) M12
9-09840-280-0
01
1
1108-
12
NUT; UNION
EXC. PTO CONTROL<SV6> (B) M12
0-91111-512-0
01
1
1108-1309
12
NUT; UNION
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (B) M12
0-91111-512-0
01
1
1310-
12
NUT; UNION
ZF9S1110 DD M/T(Y5P) (B) M12
0-91111-512-0
01
1
1310-
35
NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE
0-91180-108-0
02
1
1108-1309
35
NUT; BRKT
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> M8 FLANGE
0-91180-108-0
02
1
1310-
35
NUT; BRKT
ZF9S1110 DD M/T(Y5P) M8 FLANGE
0-91180-108-0
02
1
1310-
123
BRACKET; UNION
EXC. PTO CONTROL<SV6> IDN
8-98118-545-0
01
1
1108-1309
123
BRACKET; UNION
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> IDN
8-98118-545-0
01
1
1310-
123
BRACKET; UNION
ZF9S1110 DD M/T(Y5P) IDN
8-98118-545-0
01
1
1310-
221
BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE
0-28650-835-0
02
1
1108-1309
221
BOLT; BRKT
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> M8X35 FLANGE
0-28650-835-0
02
1
1310-
221
BOLT; BRKT
ZF9S1110 DD M/T(Y5P) M8X35 FLANGE
0-28650-835-0
02
1
1310-
229
ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1108-1303
229
ADAPTER; NYLON TUBE
MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1310-
297
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1108-
297
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1108-
305
UNION ASM; NYLON TUBE
EXC. PTO CONTROL<SV6>
8-98120-049-0
01
1
1108-1309
305
UNION ASM; NYLON TUBE
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6>
8-98120-049-0
01
1
1310-
305
UNION ASM; NYLON TUBE
ZF9S1110 DD M/T(Y5P)
8-98120-049-0
01
1
1310-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1108-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1108-
374
CONNECTOR
ZF9S1110 DD M/T(Y5P) (B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1310-
374
CONNECTOR
EXC. PTO CONTROL<SV6> (A) DIN13X2 & PT1/4 DOUBLE ELBOW
8-98179-708-0
01
1
1108-1309
374
CONNECTOR
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (A) DIN13X2 & PT1/4 DOUBLE ELBOW
8-98179-708-0
01
1
1310-
374
CONNECTOR
ZF9S1110 DD M/T(Y5P) (A) DIN13X2 & PT1/4 DOUBLE ELBOW
8-98179-708-0
01
1
1310-
465
PLUG
EXC. PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
1108-
297
72
217
224
13
11
12
297
367
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
UNION; AIR PIPE
M12 ELBOW
0-92125-206-0
01
1
1108-
12
NUT; UNION
(A) M12
9-09840-280-0
01
1
1108-
12
NUT; UNION
EXC. PTO CONTROL<SV6> (B) M12
0-91111-512-0
01
1
1108-1309
12
NUT; UNION
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (B) M12
0-91111-512-0
01
1
1310-
12
NUT; UNION
ZF9S1110 DD M/T(Y5P) (B) M12
0-91111-512-0
01
1
1310-
13
WASHER; LK,UNION
ID=12.2
0-91510-812-0
01
1
1108-
72
UNION; AIR PIPE
M12 L=40
0-92113-006-0
01
1
1108-
217
PIPE; VAC,UNION TO MAG VLV
L=954 SERVICED BY L=1000
1-47428-814-0
01
1
1108-
224
PIPE; AIR,UNION TO FLEX HOSE
L=720 SERVICED BY L=800
1-47428-812-0
01
1
1108-
297
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1108-
297
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1108-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1108-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1108-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
