◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#62712) — 23 parça

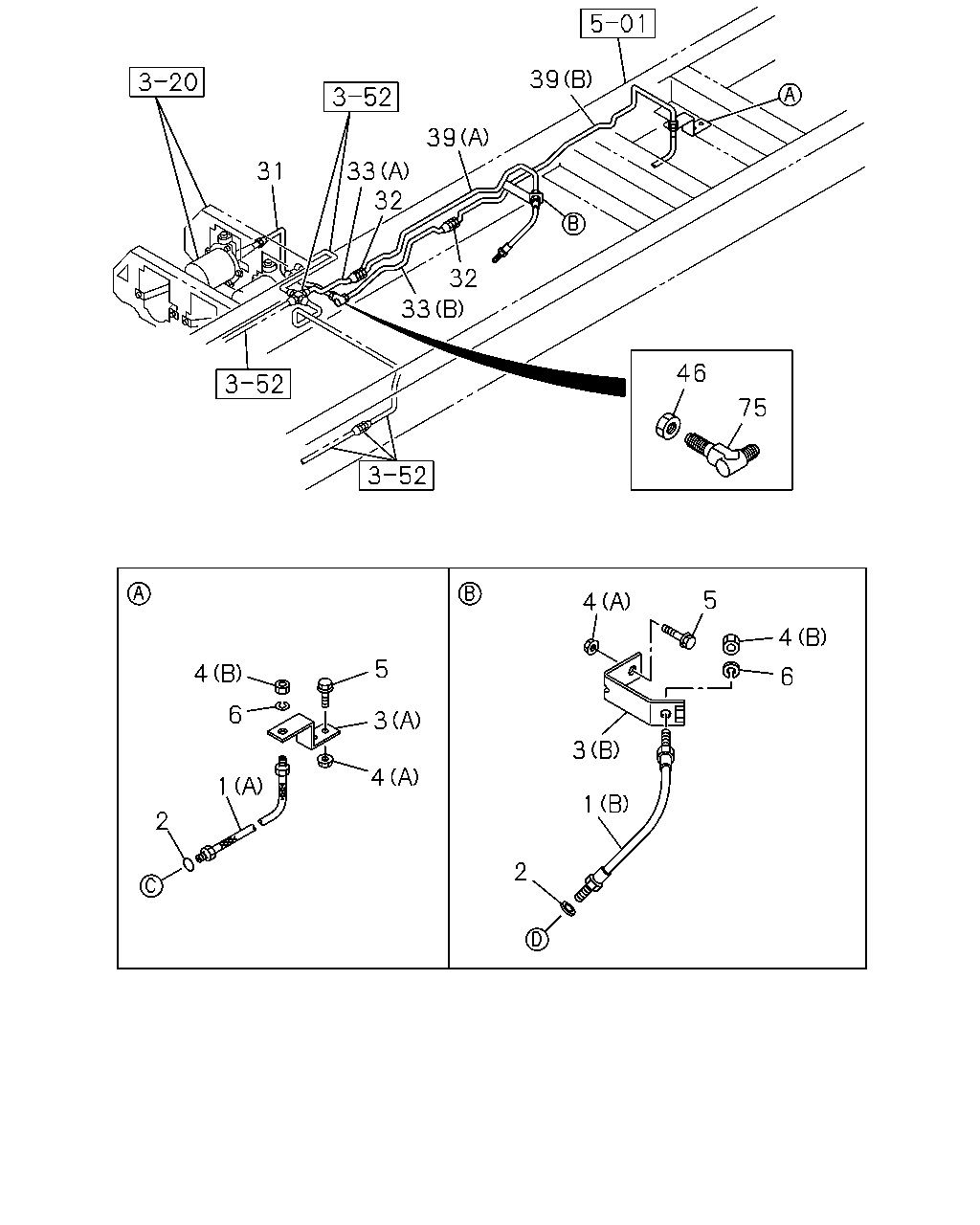

çizim 145921
31 33 39 39 32 33 5 3 4 4 6 1 2 2 1 3 4 5 4 6 46 75 32
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
(B) L=450 		1-09364-188-0 01 1 1108-
1 HOSE; FLEX,RR BRK
(A) L=675 		1-09364-201-0 01 1 1108-
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 02 1 1108-
3 BRACKET; FLEX HOSE,RR BRK
(A) 		1-47465-608-0 01 1 1108-
3 BRACKET; FLEX HOSE,RR BRK
(B) 		1-47475-357-2 01 1 1108-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 04 1 1108-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M12 		9-09840-280-0 02 1 1108-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 04 1 1108-
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 1108-
31 PIPE; OIL,AIR MASTER TO UNION
L=646 SERVICED BY L=650 		1-47428-726-0 01 1 1108-
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 02 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) L=1743 SERVICED BY L=1820 		1-47428-738-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 7100MM(71W) (B) L=3363 SERVICED BY L=3400 		1-47428-746-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) L=1576 SERVICED BY L=1620 		1-47428-736-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 7100MM(71W) (A) L=3196 SERVICED BY L=3200 		1-47428-745-0 01 1 1108-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=856 SERVICED BY L=900 		1-47428-729-0 01 1 1108-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) L=2409 SERVICED BY L=2500 		1-47428-742-0 01 1 1108-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1108-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1108-
çizim 145922
13 13 13 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE
(A) 		8-98190-809-0 01 1 1108-
13 PIPE; BRK,RR AXLE
(A) 		8-98190-810-0 01 1 1108-
13 PIPE; BRK,RR AXLE
(B) 		8-98191-101-0 01 1 1108-
13 PIPE; BRK,RR AXLE
(B) 		8-98191-102-0 01 1 1108-
