◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#62705) — 104 parça

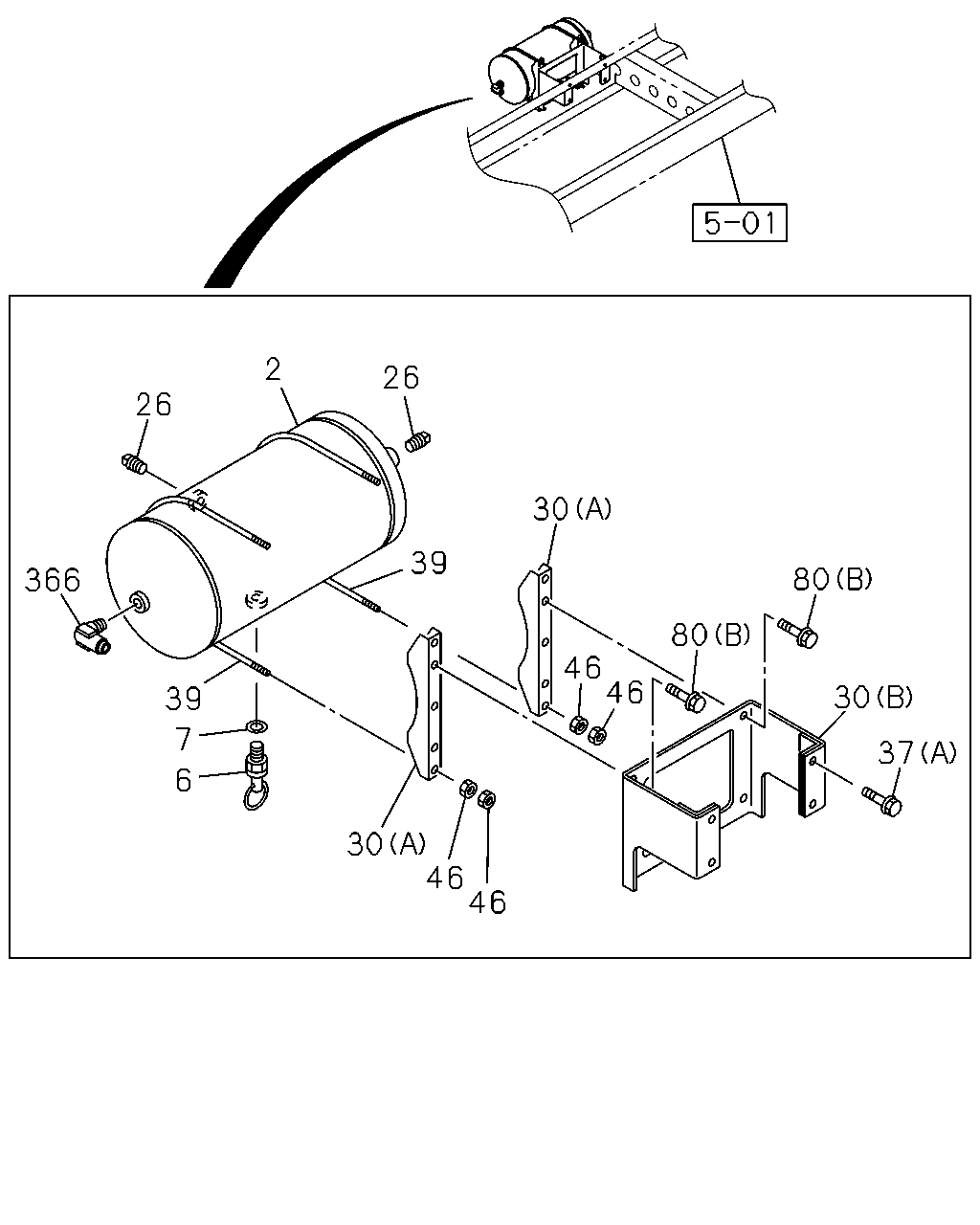

çizim 145884
37 30 80 80 30 46 46 46 46 30 6 39 7 39 26 2 26 366
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
IDN 		8-98195-655-0 01 1 1108-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1108-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1108-1501
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1502-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1108-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1108-1501
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1502-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1108-
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-287-2 02 1 1108-
30 BRACKET; AIR TANK,SUB
(B) 		8-98040-713-1 01 1 1108-
37 BOLT; AIR TANK
(A) M10X40 FLANGE 		0-28651-040-0 04 1 1108-
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1108-
39 U-BOLT; AIR TANK 1-48317-289-0 02 1 1108-
46 NUT; U-BOLT
M8 IDN 		0-91110-508-0 08 1 1108-
80 BOLT; BRKT
(B) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1108-
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 1108-
80 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 1108-
366 CONNECTOR; NYLON TUBE
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1108-

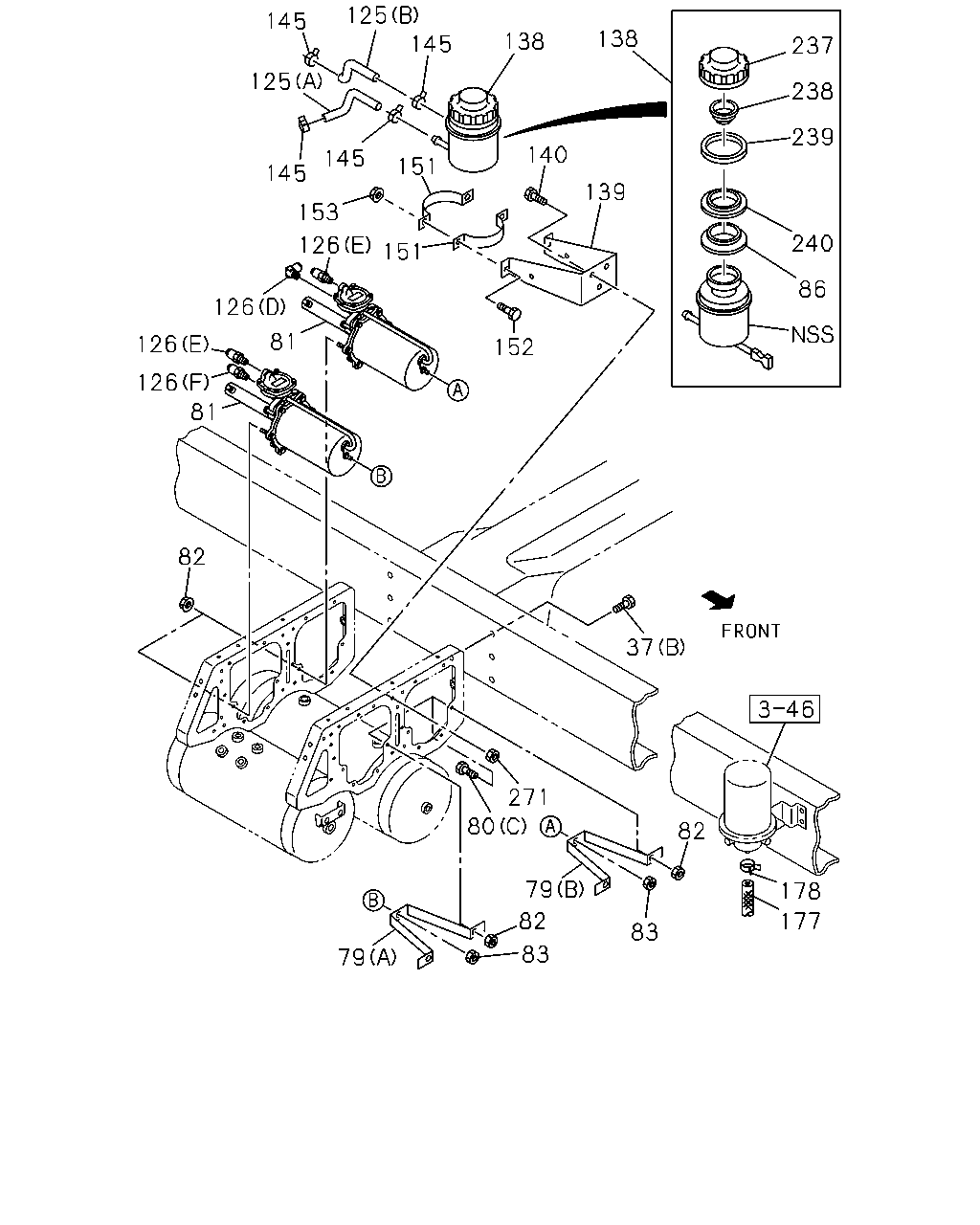

çizim 145917
86 240 239 238 237 139 140 138 138 145 125 145 125 145 145 151 152 151 126 153 126 81 126 126 81 82 271 80 79 82 3 178 177 82 83 79 37
BalonParca AdiParca NoAdetTipApplied Date
3 VALVE; CHECK,AIR TANK
(A) 		1-48410-182-3 02 1 1108-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1108-
37 BOLT; AIR TANK
(A) M10X40 FLANGE 		0-28651-040-0 04 1 1108-
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1108-
79 STAY; AIR MASTER TO BRKT
(A) 		1-53318-348-0 01 1 1108-
79 STAY; AIR MASTER TO BRKT
(B) 		8-98120-254-0 01 1 1108-
80 BOLT; BRKT
(B) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1108-
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 1108-
80 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 1108-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-794-0 01 1 1108-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-795-0 01 1 1108-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91180-210-0 04 1 1108-
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 10 1 1108-
86 SEAL; DUST 1-47529-019-0 01 1 1108-
125 HOSE; OIL TANK TO AIR MASTER
(A) IDN 		1-47469-118-0 01 1 1108-
125 HOSE; OIL TANK TO AIR MASTER
(B) IDN 		1-47469-119-0 01 1 1108-
126 CONNECTOR; ELBOW
(A) 		1-09656-698-0 01 1 1108-
126 CONNECTOR; ELBOW
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1108-
126 CONNECTOR; ELBOW
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1108-
126 CONNECTOR; ELBOW
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1108-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1108-
126 CONNECTOR; ELBOW
(F) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1108-
126 CONNECTOR; ELBOW
(G) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1108-
126 CONNECTOR; ELBOW
(H) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1108-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1108-
139 BRACKET; OIL TANK
IDN 		8-98174-721-0 01 1 1108-
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE IDN 		0-28651-025-0 03 1 1108-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 IDN 		1-09704-102-0 04 1 1108-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1108-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
153 NUT; OIL TANK TO BAND
M8 IDN 		0-91110-508-0 02 1 1108-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1108-
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1108-
237 CAP; OIL TANK 1-47525-030-0 01 1 1108-
238 PLATE; BAFFLE 1-47529-022-0 01 1 1108-
239 FILTER; DUST 1-47529-017-0 01 1 1108-
240 HOLDER; FILTER 1-47529-018-0 01 1 1108-
271 NUT; BRKT,HOSE
M10 FLANGE 		0-91180-210-0 03 1 1108-

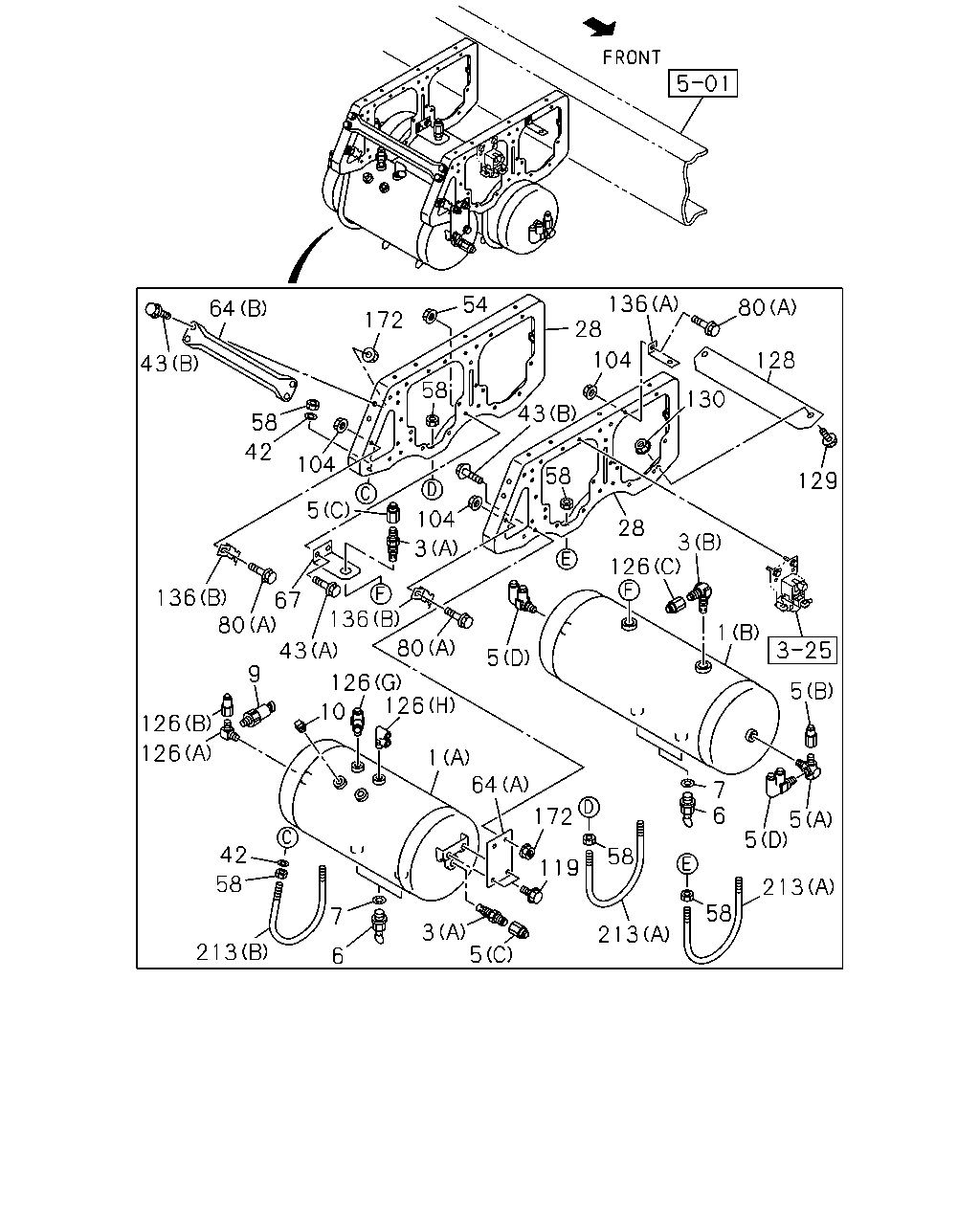

çizim 145939
80 128 129 5 5 5 213 58 213 58 172 119 5 3 7 6 58 213 42 10 64 1 126 126 43 80 136 126 126 136 80 5 3 126 28 3 130 104 136 28 43 54 172 64 43 58 5 104 42 67 9 104 58 58 7 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48370-493-0 01 1 1108-1501
1 TANK ASM; AIR
(A) 		8-98269-244-0 01 1 1502-
1 TANK ASM; AIR
(B) 		8-98179-212-0 01 1 1108-
3 VALVE; CHECK,AIR TANK
(A) 		1-48410-182-3 02 1 1108-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1108-
5 UNION; AIR TANK
(A) 		1-09656-557-1 01 1 1108-1112
5 UNION; AIR TANK
(A) M16 & R3/8 		8-98204-239-0 01 1 1201-
5 UNION; AIR TANK
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1108-
5 UNION; AIR TANK
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1108-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1108-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1108-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1108-1501
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1502-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1108-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1108-1501
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1502-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 01 1 1108-
10 PLUG; AIR TANK
PT1/4 		9-99204-513-0 01 1 1108-
28 BRACKET; AIR TANK 8-98174-720-0 02 1 1108-
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 1108-
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE IDN 		0-28651-025-0 02 1 1108-
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X30 FLANGE 		0-28651-030-0 06 1 1108-
54 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 1108-
58 NUT; BAND,AIR TANK
M8 IDN 		0-91110-508-0 12 1 1108-
64 STAY; AIR TANK,MAIN
(A) 		1-48317-760-0 01 1 1108-
64 STAY; AIR TANK,MAIN
(B) 		1-53318-293-1 01 1 1108-
67 STAY; SUB TANK 1-48317-321-2 01 1 1108-
80 BOLT; BRKT
(B) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1108-
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 1108-
80 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 1108-
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1108-
119 BOLT; STAY
M10X25 FLANGE IDN 		0-28651-025-0 02 1 1108-
126 CONNECTOR; ELBOW
(A) 		1-09656-698-0 01 1 1108-
126 CONNECTOR; ELBOW
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1108-
126 CONNECTOR; ELBOW
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1108-
126 CONNECTOR; ELBOW
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1108-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1108-
126 CONNECTOR; ELBOW
(F) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1108-
126 CONNECTOR; ELBOW
(G) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1108-
126 CONNECTOR; ELBOW
(H) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1108-
128 PROTECTOR 1-53319-018-0 01 1 1108-
129 BOLT; PROTECTOR FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1108-
130 NUT; PROTECTOR FIX
M8 FLANGE 		0-91180-108-0 02 1 1108-
136 BRACKET; CLIP
(A) L=90 B=25 		1-47475-530-0 01 1 1108-
136 BRACKET; CLIP
(B) 		8-98119-184-1 02 1 1108-
172 NUT; STAY,AIR TANK,MAIN
M10 FLANGE 		0-91180-210-0 06 1 1108-
213 BOLT; U AIR TANK
(A) IDN 		1-48317-301-0 02 1 1108-
213 BOLT; U AIR TANK
(B) IDN 		1-48317-302-0 01 1 1108-
