◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#62704) — 48 parça

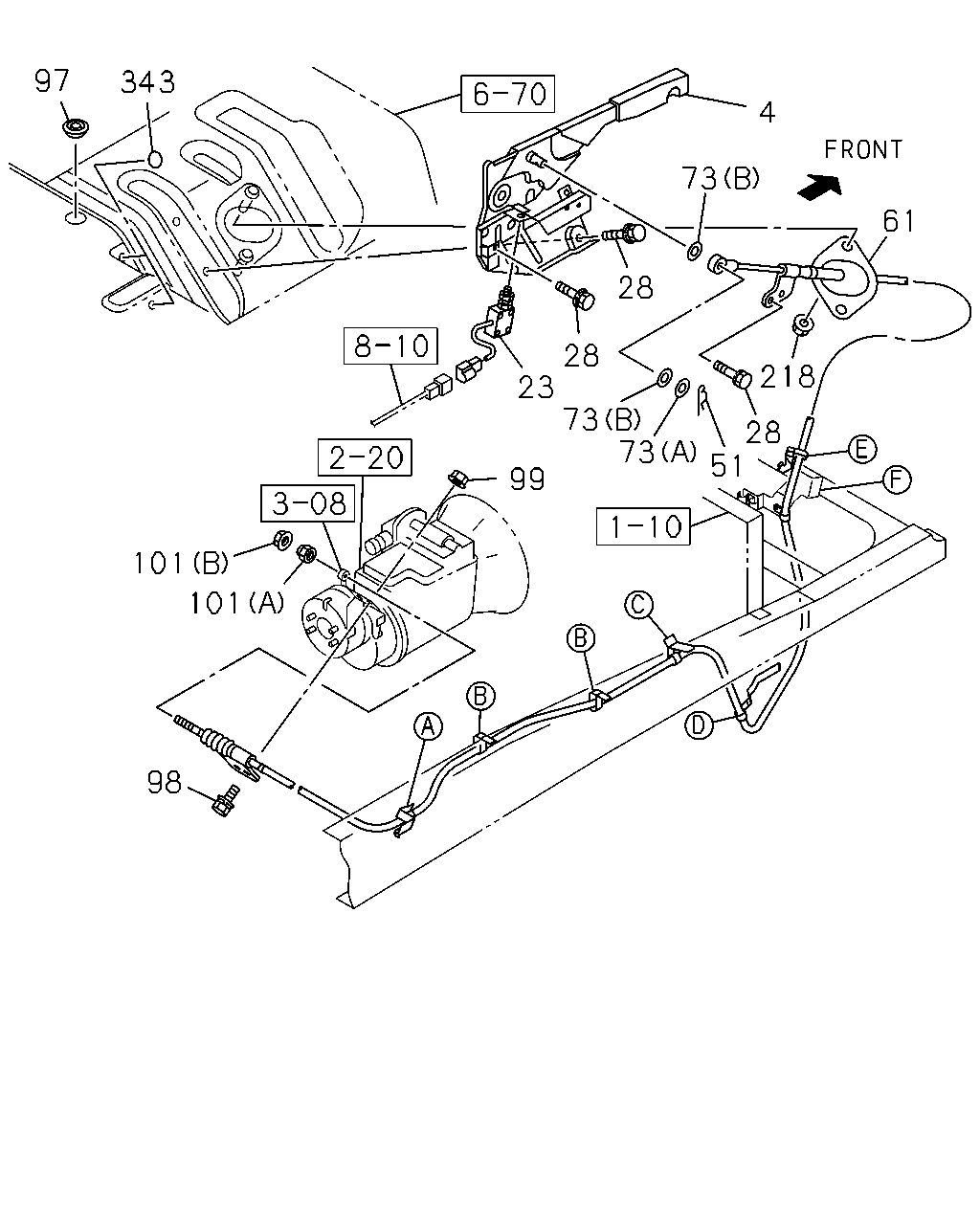

çizim 145890
4 73 61 218 28 51 73 73 23 28 28 99 101 101 343 97 98
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK 8-98173-353-0 01 1 1108-
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 1108-
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1108-
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 1108-
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046 		8-98184-206-0 01 1 1310-1401
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046 		8-98257-639-0 01 1 1402-
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615 		8-98173-502-0 01 1 1108-1401
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615 		8-98257-635-0 01 1 1402-
73 WASHER; PL,CABLE
(A) ID=17 OD=30 		0-91610-516-0 01 1 1108-
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 02 1 1108-
97 GROMMET; PARKING BRK CABLE
OD=35 IDN 		8-94122-971-0 01 1 1108-
98 BOLT; RR COVER
M10X30 FLANGE 		0-28651-030-0 02 1 1108-
99 NUT; CONT CABLE
M10 FLANGE 		0-91180-210-0 02 1 1108-
101 NUT; CABLE TO LEVER
(B) M8 FLANGE 		0-91180-108-0 01 1 1108-
101 NUT; CABLE TO LEVER
(A) 		1-46259-007-0 01 1 1108-
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE 		0-91180-108-0 02 1 1108-
343 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 1108-

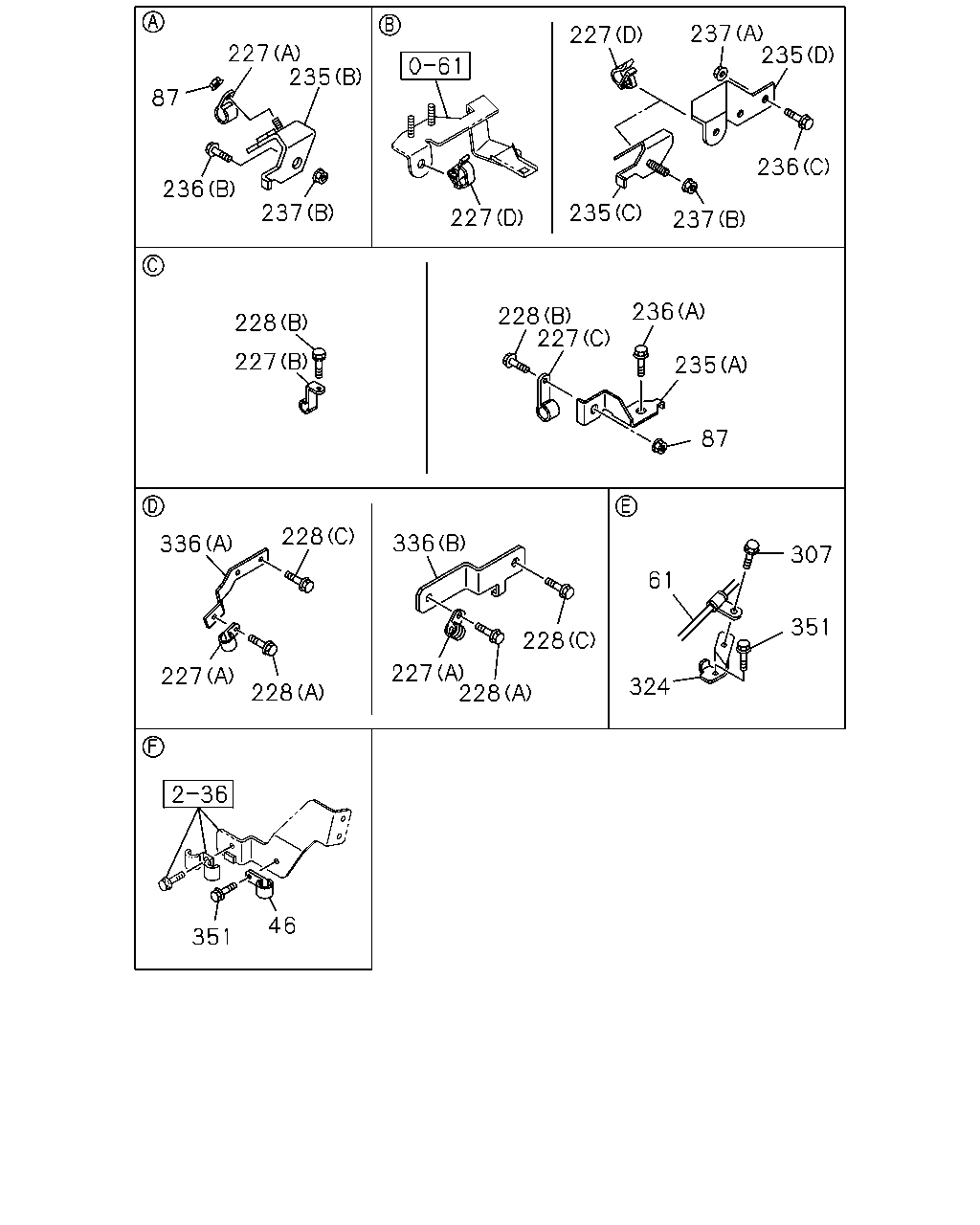

çizim 145892
227 227 227 227 227 227 227 351 46 228 228 228 228 228 87 87 235 235 235 235 236 236 236 237 237 237 336 336 228 324 61 307 351
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 01 1 1108-1401
46 CLIP; FRT CABLE TO FLOOR
ID=13 L=20 		0-95235-235-0 01 1 1402-
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046 		8-98184-206-0 01 1 1310-1401
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046 		8-98257-639-0 01 1 1402-
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615 		8-98173-502-0 01 1 1108-1401
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615 		8-98257-635-0 01 1 1402-
87 NUT
M8 FLANGE 		0-91180-108-0 02 1 1108-
227 CLIP; RAD
ZF9S1110 DD M/T(Y5P) (D) ID=9.5 		5-09709-020-0 02 1 1310-
227 CLIP; RAD
(A) ID=13 L=20 		0-95235-235-0 02 1 1108-
227 CLIP; RAD
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1108-
227 CLIP; RAD
(C) ID=14.5 L=40 		1-09701-014-0 01 1 1108-
227 CLIP; RAD
MZW6P M/T(RSZ) (D) ID=9.5 		5-09709-020-0 01 1 1108-
228 BOLT; CLIP RAD MTG
ZF9S1110 DD M/T(Y5P) (C) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 1310-
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1108-
228 BOLT; CLIP RAD MTG
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1108-
228 BOLT; CLIP RAD MTG
MZW6P M/T(RSZ) (C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1108-
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCS ENG(80L) (C) 		8-98126-934-0 01 1 1310-
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCS ENG(80L) (D) 		8-98100-152-0 01 1 1310-
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98111-492-0 01 1 1108-
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98126-426-0 01 1 1108-
236 BOLT; BRKT TO FRAME
6HK1-TCS ENG(80L) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1310-
236 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-
236 BOLT; BRKT TO FRAME
(B) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1108-
237 NUT; BRKT TO FRAME
6HK1-TCS ENG(80L) (B) M10 FLANGE 		0-91180-210-0 02 1 1310-
237 NUT; BRKT TO FRAME
6HK1-TCS ENG(80L) (A) M8 FLANGE 		0-91180-108-0 02 1 1310-
237 NUT; BRKT TO FRAME
6HK1-TCN ENG(82L) (B) M10 FLANGE 		0-91180-210-0 01 1 1108-
307 BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER 		0-51640-825-0 01 1 1108-
324 BRACKET 8-98067-482-1 01 1 1108-
336 BRACKET; RADIATOR
ZF9S1110 DD M/T(Y5P) (B) IDN 		8-98182-153-1 01 1 1310-
336 BRACKET; RADIATOR
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) 		8-98044-680-0 01 1 1108-
351 BOLT; CLIP
M8X25 W/WASHER 		0-51640-825-0 03 1 1108-
