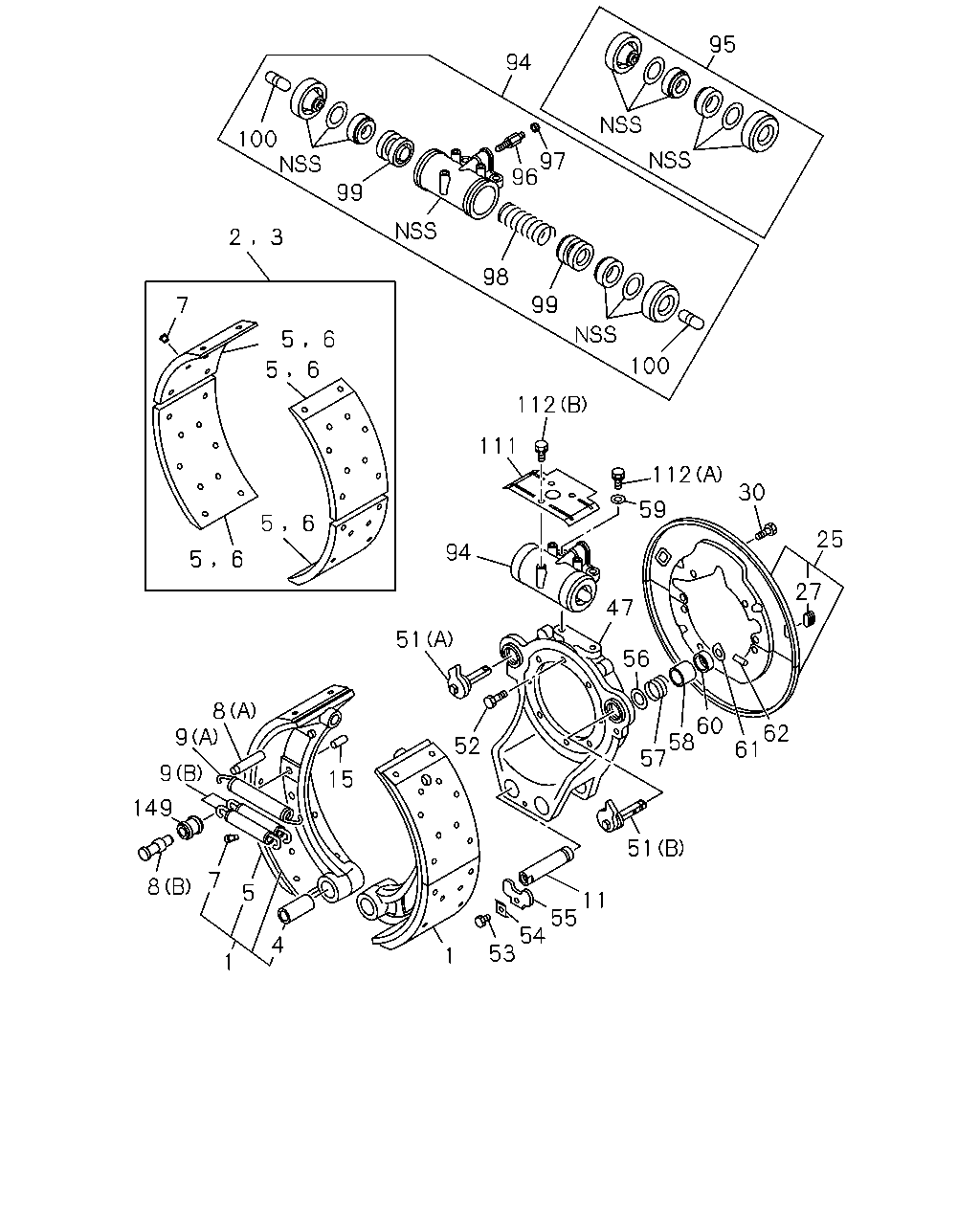

3-05 — REAR WHEEL BRAKE (#62701) — 82 parça
çizim 145982
95 94 97 96 100 99 98 99 100 2 3 7 5 6 5 6 5 6 6 5 8 9 9 149 8 5 7 1 4 15 1 53 54 55 11 51 52 51 94 111 112 112 59 30 25 27 62 61 60 58 57 56 47
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR 1-47120-434-0 04 1 1108-
1 SHOE; BRK,RR 1-47120-434-0 04 1 1108-
2 LINING SET; RR BRK,STANDARD 1-88310-385-1 02 1 1108-
2 LINING SET; RR BRK,STANDARD 1-88310-385-1 02 1 1108-
3 LINING SET; RR BRK,OVER SIZE 1-88310-386-1 02 1 1108-
3 LINING SET; RR BRK,OVER SIZE 1-88310-386-1 02 1 1108-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 1108-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 1108-
5 LINING; RR BRK SHOE,STANDARD 1-47125-537-0 08 1 1108-
5 LINING; RR BRK SHOE,STANDARD 1-47125-537-0 08 1 1108-
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-538-0 08 1 1108-
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-538-0 08 1 1108-
7 RIVET; LINING,RR BRK
L=19.5 		1-09732-035-0 AR 1 1108-
7 RIVET; LINING,RR BRK
L=19.5 		1-09732-035-0 AR 1 1108-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-09744-051-0 04 1 1108-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-09744-051-0 04 1 1108-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-025-0 04 1 1108-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-025-0 04 1 1108-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-210-0 02 1 1108-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-210-0 02 1 1108-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-277-2 02 1 1108-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-277-2 02 1 1108-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 1108-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 1108-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-005-0 04 1 1108-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-005-0 04 1 1108-
25 COVER SET; RR BRK DRUM 1-47151-664-0 02 1 1108-
25 COVER SET; RR BRK DRUM 1-47151-664-0 02 1 1108-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1108-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1108-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1108-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1108-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 1108-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 1108-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-076-0 02 1 1108-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-076-0 02 1 1108-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-077-0 02 1 1108-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-077-0 02 1 1108-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 1108-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 1108-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1108-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1108-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1108-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1108-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 1108-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 1108-
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 1108-
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 1108-
57 SPRING; ADJ CAM,RR WHEEL BRK 1-09580-508-0 04 1 1108-
57 SPRING; ADJ CAM,RR WHEEL BRK 1-09580-508-0 04 1 1108-
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-039-0 04 1 1108-
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-039-0 04 1 1108-
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 1108-
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 1108-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 1108-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 1108-
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 1108-
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 1108-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 1108-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 1108-
94 CYLINDER; WHEEL,RR BRK 1-47601-126-0 02 1 1108-
94 CYLINDER; WHEEL,RR BRK 1-47601-126-0 02 1 1108-
95 CUP SET; RR WHEEL CYL 1-87830-720-0 02 1 1108-
95 CUP SET; RR WHEEL CYL 1-87830-720-0 02 1 1108-
96 SCREW; BLEEDER,RR BRK
L=66.5 		1-47615-005-0 02 1 1108-
96 SCREW; BLEEDER,RR BRK
L=66.5 		1-47615-005-0 02 1 1108-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1108-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1108-
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 1108-
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 1108-
99 PISTON; RR WHEEL CYL 1-47624-391-0 04 1 1108-
99 PISTON; RR WHEEL CYL 1-47624-391-0 04 1 1108-
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 1108-
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 1108-
111 COVER; WHEEL CYL 1-47159-081-0 02 1 1108-
111 COVER; WHEEL CYL 1-47159-081-0 02 1 1108-
112 BOLT; WHEEL CYL SETTING
(A) M14X35 		0-20851-435-0 04 1 1108-
112 BOLT; WHEEL CYL SETTING
(A) M14X35 		0-20851-435-0 04 1 1108-
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50540-816-0 06 1 1108-
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50540-816-0 06 1 1108-
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 1108-
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 1108-
