3 - Brakes, Brake System
▶

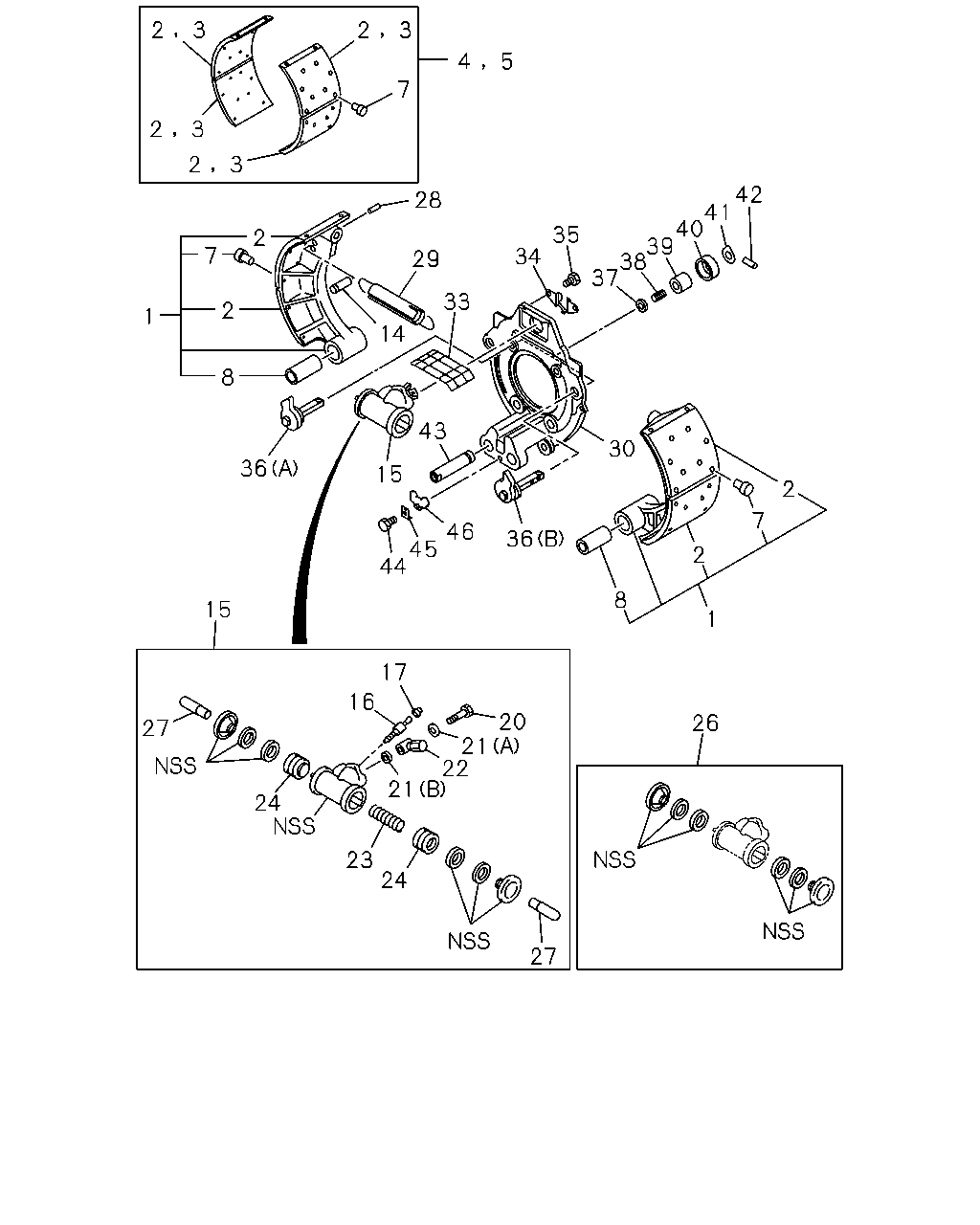

3-01 - FRONT WHEEL BRAKE
▶
3-01 — FRONT WHEEL BRAKE
(#62700) — 38 parça
27
26
20
21
22
21
24
23
24
27
16
17
15
44
45
46
36
30
43
15
33
14
29
36
8
2
1
7
2
28
34
35
37
38
39
40
41
42
4
5
2
3
7
2
3
2
3
2
3
8
2
7
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
1-47120-706-0
04
1
1108-
2
LINING; FRT BRK SHOE,STANDARD
1-47125-811-0
08
1
1108-
3
LINING; FRT BRK SHOE,OVER SIZE
1-47125-812-0
08
1
1108-
4
LINING SET; FRT BRK,STANDARD
1-88310-495-1
02
1
1108-
5
LINING SET; FRT BRK,OVER SIZE
1-88310-496-1
02
1
1108-
7
RIVET; LINING,FRT BRK
L=18.5
1-09732-034-0
80
1
1108-
8
BUSHING; BRK SHOE
1-47112-011-0
04
1
1108-
14
PIN; SHOE RETURN SPR
L=73.5
1-47119-017-1
04
1
1108-
15
CYLINDER; WHEEL,FRT BRK
1-47600-674-0
01
1
1108-
15
CYLINDER; WHEEL,FRT BRK
1-47600-675-0
01
1
1108-
16
SCREW; BLEEDER,FRT BRK
L=66.5
1-47615-005-0
02
1
1108-
17
CAP; BLEEDER,FRT WHEEL CYL
OD=12
1-47619-011-0
02
1
1108-
20
BOLT; JOINT
M12X40.5 EYE BOLT
1-47634-006-0
02
1
1108-
21
GASKET; UNION BOLT
(A) ID=15.2
1-09630-019-0
02
1
1108-
21
GASKET; UNION BOLT
(B) ID=12.2
1-09630-020-0
02
1
1108-
22
JOINT; PIPE
1-47631-057-1
02
1
1108-
23
SPRING; COIL
9-09940-435-0
02
1
1108-
24
PISTON; FRT WHEEL CYL
9-47624-210-0
04
1
1108-
26
CUP SET; FRT WHEEL CYL
ID=47.5
1-87830-521-0
02
1
1108-
27
ROD; PUSH
1-47621-009-0
04
1
1108-
28
PIN; SHOE ADJ CAM GUIDE
1-47116-002-0
04
1
1108-
29
SPRING; RETURN,FRT BRK SHOE
1-09583-269-1
02
1
1108-
30
BRACKET; ANCHOR,FRT
1-47137-435-0
02
1
1108-
33
COVER; WHEEL CYL
1-47159-080-0
02
1
1108-
34
PLATE; DIRECTION,FRT
1-47159-094-0
02
1
1108-
35
BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER
0-50551-235-0
04
1
1108-
36
CAM ASM; ADJ
(A)
1-47165-058-1
02
1
1108-
36
CAM ASM; ADJ
(B)
1-47165-059-1
02
1
1108-
37
WASHER; ADJ CAM
1-47169-033-0
04
1
1108-
38
SPRING; ADJ CAM
1-47169-046-0
04
1
1108-
39
BOOT; ADJ CAM
1-47169-034-0
04
1
1108-
40
COVER; BOOT,ADJ CAM
1-47169-031-0
04
1
1108-
41
INDICATOR
1-47169-032-1
04
1
1108-
42
PIN; SPINDLE
1-47169-030-0
04
1
1108-
43
PIN; ANCHOR
L=106.5
1-47131-038-0
04
1
1108-
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20851-016-0
02
1
1108-
45
WASHER; LK
1-47133-011-0
02
1
1108-
46
PLATE; LOCK
1-47133-005-0
02
1
1108-
