Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10806 - EXZ RHD FUEL TANK 400L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01A - CLUTCH
▶
2-01A — CLUTCH
(#6270) — 61 parça
◀

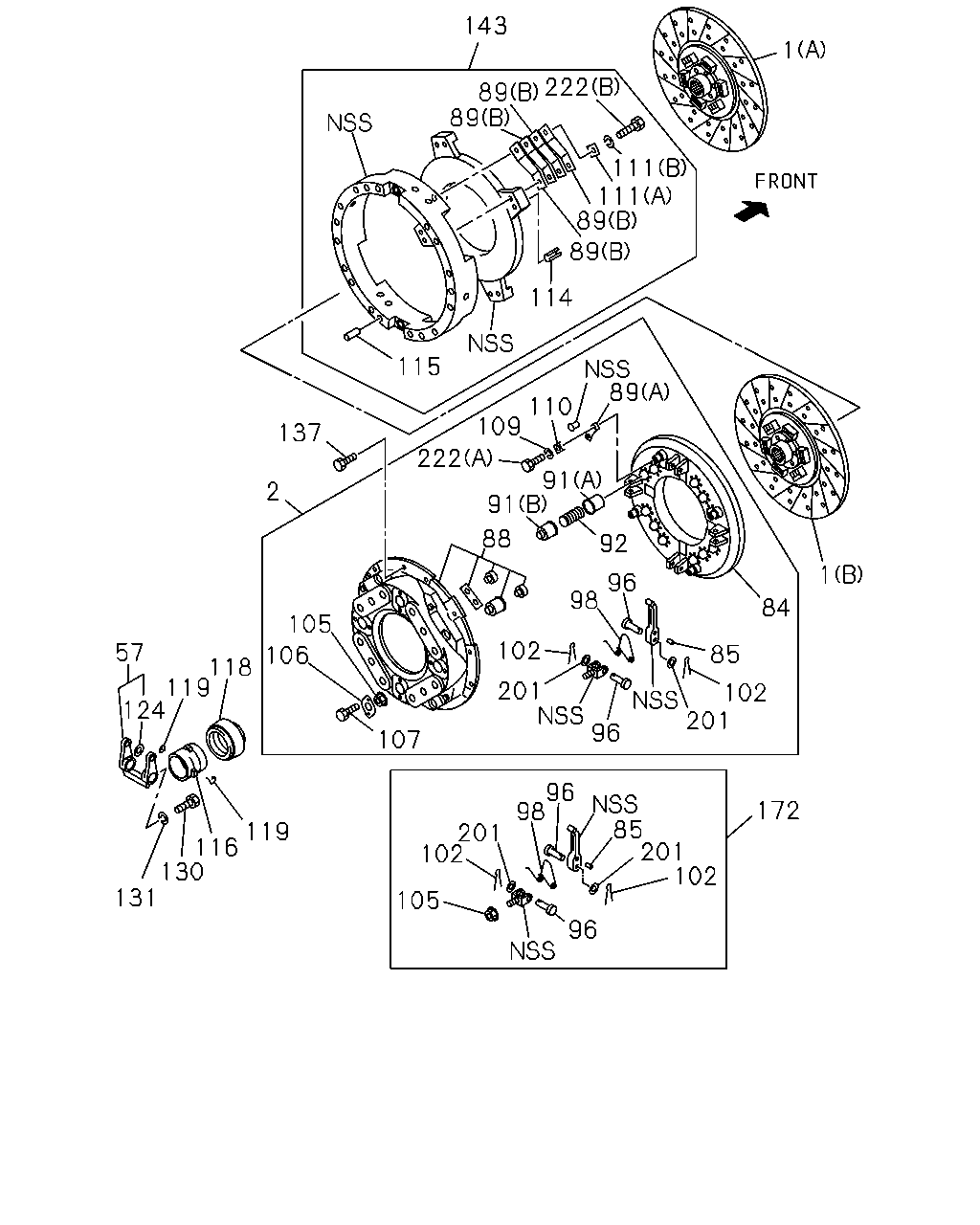

[201A] DISC AND PLATE (42 parça)

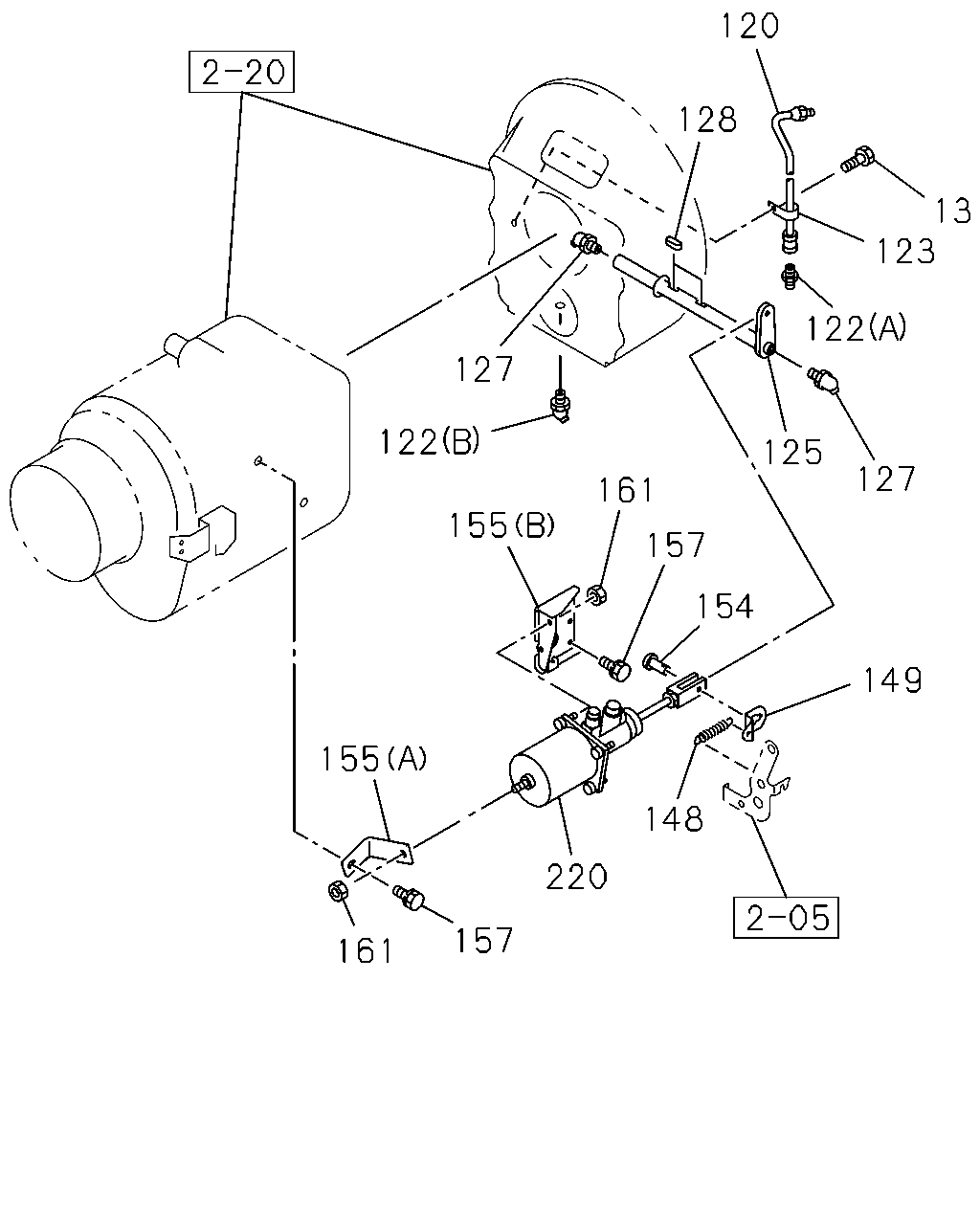

[201A] BOOSTER (19 parça)
▶
143
1
222
89
89
111
111
89
89
114
115
89
110
109
137
222
91
91
2
88
92
1
96
98
84
105
102
57
85
106
118
119
124
201
96
102
201
107
96
98
85
201
102
172
119
116
130
131
201
102
105
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
(A) FRONT 15.5"
1-31240-731-0
01
1
9906-0009
1
DISC; CLUTCH
(A) FRONT 15.5"
1-31240-885-0
01
1
0010-
1
DISC; CLUTCH
(B) REAR 15.5"
1-31240-732-0
01
1
9906-0009
1
DISC; CLUTCH
(B) REAR 15.5"
1-31240-886-0
01
1
0010-
2
PLATE ASM; PRESSURE,CLU
1-31220-276-2
01
1
9906-
57
FORK; SHIFT,CLU
1-31340-059-1
01
1
9906-
84
PLATE; PRESSURE
1-31221-087-0
01
1
9906-
85
BUSHING; RELEASE LEVER
1-31239-021-0
16
1
9906-
88
COVER SUB ASM; CLU
1-31210-020-1
01
1
9906-
89
PLATE; STRAP
(A)
1-31229-010-0
12
1
9906-
89
PLATE; STRAP
(B)
1-31229-048-0
16
1
9906-
91
SEAT; SPR
(B)
1-31219-045-0
12
1
9906-
91
SEAT; SPR
(A)
1-31219-046-0
12
1
9906-
92
SPRING; CLU
1-31214-042-0
12
1
9906-
96
PIN; RELEASE LEVER
1-31232-013-0
08
1
9906-
98
SPRING; RETURN
1-31233-007-0
04
1
9906-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
9906-
105
NUT; SUPPORT
M16
1-31239-013-0
04
1
9906-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
9906-
107
BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER
1-31239-020-0
08
1
9906-
109
WASHER; LK,STRAP
ID=12.2
9-09150-512-0
04
1
9906-
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
9906-
111
WASHER; PL,STRAP
(A) ID=12
1-31229-006-0
08
1
9906-
111
WASHER; PL,STRAP
(B) ID=12.2
9-09150-512-0
08
1
9906-
114
PIN; STRAIGHT,INTERMEDIATE PLATE
1-09748-033-0
04
1
9906-
115
PIN; STRAIGHT,FLYWHEEL,SPACER
D=10 L=25
1-09740-039-1
02
1
9906-
116
BLOCK; SHIFT,CLU
1-31321-073-2
01
1
9906-
118
BEARING; CLU RELEASE
9-00095-044-1
01
1
9906-0003
118
BEARING; CLU RELEASE
1-09820-112-0
01
1
0004-
119
SPRING; SHIFT FORK
1-31329-019-0
01
1
9906-
119
SPRING; SHIFT FORK
1-31329-018-0
01
1
9906-
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
9906-
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
9906-
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
9906-
137
BOLT; CLU COVER
M12X80
0-28181-280-0
02
1
9906-
137
BOLT; CLU COVER
M12X90 FLANGE
0-28181-290-0
10
1
9906-
137
BOLT; CLU COVER
M12X30
0-28781-230-0
04
1
9906-
143
PLATE; INTERMEDIATE
1-31221-122-0
01
1
9906-
172
LEVER KIT; RELEASE,CLU
1-87830-733-0
01
1
9906-
201
WASHER; PIN LEVER SUPPORT
ID=14
9-09651-098-0
08
1
9906-
222
BOLT; STRAP
(A) M12X30
1-09040-016-0
04
1
9906-
222
BOLT; STRAP
(B) M12X26.7
1-09040-086-0
08
1
9906-
120
128
13
123
122
127
122
125
127
161
155
157
154
149
155
148
220
157
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9906-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09364-870-0
01
1
9906-0003
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0004-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 & M10
1-09660-710-0
01
1
9906-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
01
1
9906-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
9-09524-835-0
01
1
9906-
125
SHAFT; CLU
1-31342-262-0
01
1
9906-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
9906-9906
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
9907-0002
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
0003-
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
9906-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
9906-
149
EYE; SPRING,RETURN SPRING
1-31426-048-0
01
1
9906-
154
PIN; JAW JOINT
1-31424-009-0
01
1
9906-
155
BRACKET; MINIPACK
(B)
1-31429-323-1
01
1
9906-
155
BRACKET; MINIPACK
(A)
1-31429-324-0
01
1
9906-
157
BOLT; BRKT
M10X18 FLANGE
0-28181-018-0
03
1
9906-
161
NUT; BRKT
M10 FLANGE
0-91150-210-0
03
1
9906-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-386-3
01
1
9906-
