0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#627) — 109 parça

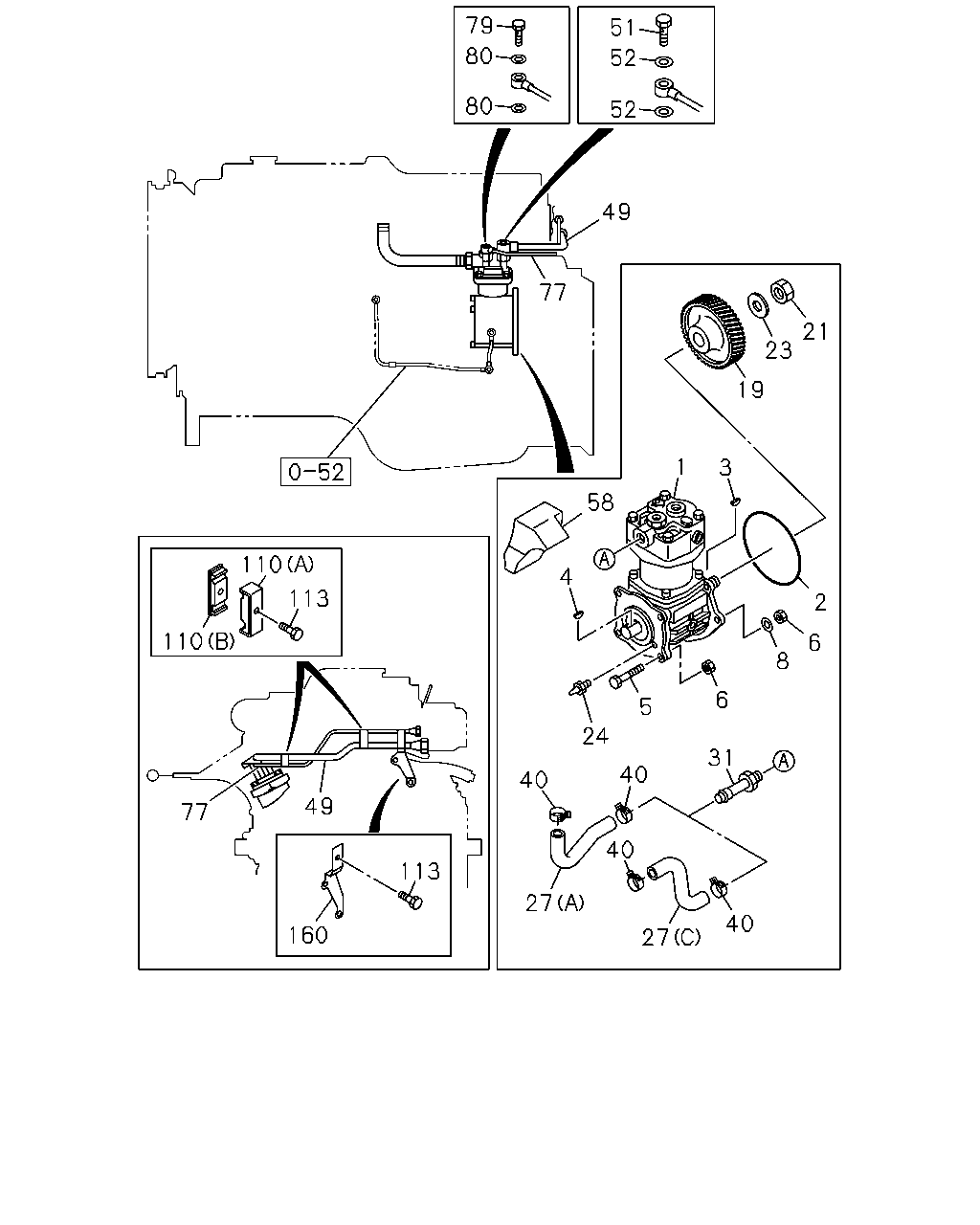

79 51 80 52 80 52 49 77 21 23 19 1 3 58 110 4 113 2 110 6 8 6 5 24 31 40 40 49 77 40 113 27 160 40 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-892-6	01	1	9202-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-891-3	01	1	9202-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9202-	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-416-0	01	1	9202-	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9202-	●	●
5	BOLT; AIR CMPR FIX MLD6 M/T<X9Y> M12X95	0-16806-295-0	01	1	9202-9212	●
5	BOLT; AIR CMPR FIX A/T<X9D>,MBG5 M/T<X9W>,MBG6 M/T<X9X> M12X95 FLANGE	8-94396-485-1	01	1	9202-9212	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9301-	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9202-	●	●
6	NUT; AIR CMPR M12	9-99110-512-0	01	1	9202-9208	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9209-9312	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9401-	●	●
8	WASHER; PL,AIR CMPR ID=12.5 OD=22	8-94393-140-1	02	1	9202-9208	●	●
8	WASHER; PL,AIR CMPR ID=12.5 OD=22	8-94393-140-1	01	1	9209-9212	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9202-	●	●
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9202-	●	●
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9202-	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9202-	●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94397-173-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94397-173-0	01	1	9202-9307		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94395-083-0	01	1	9308-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94395-083-0	01	1	9308-		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94397-156-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94397-156-0	01	1	9202-9307		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94395-082-0	01	1	9308-	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94395-082-0	01	1	9308-		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	8-94397-204-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	8-94395-085-0	01	1	9308-	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	8-94397-196-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	8-94395-084-0	01	1	9308-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94399-954-0	01	1	9202-	●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94399-942-1	01	1	9202-	●	●
40	CLIP; AIR PIPE ID=28.5	1-09707-150-0	02	1	9202-9307	●	●
40	CLIP; AIR PIPE ID=26	1-09707-091-0	02	1	9308-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-200-0	01	1	9202-	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-198-0	01	1	9202-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9202-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9202-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	02	1	9202-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9202-	●	●
58	SPACER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94393-045-2	01	1	9202-9502	●
58	SPACER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94395-675-1	01	1	9503-	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-795-0	01	1	9202-	●	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-199-0	01	1	9202-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9202-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9202-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9202-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9202-	●	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	03	1	9202-	●	●
110	CLIP; AIR PIPE (B)	8-94393-090-0	02	1	9202-	●	●
113	BOLT; CLIP,AIR PIPE M6X16 FLANGE	0-28280-616-0	01	1	9202-	●	●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28280-630-0	03	1	9202-	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	03	1	9202-	●	●
160	BRACKET; AIR PIPE MLD6 M/T<X9Y>	8-94394-455-0	01	1	9202-	●
160	BRACKET; AIR PIPE A/T<X9D>,MBG5 M/T<X9W>,MBG6 M/T<X9X>	8-94393-202-0	01	1	9202-	●	●

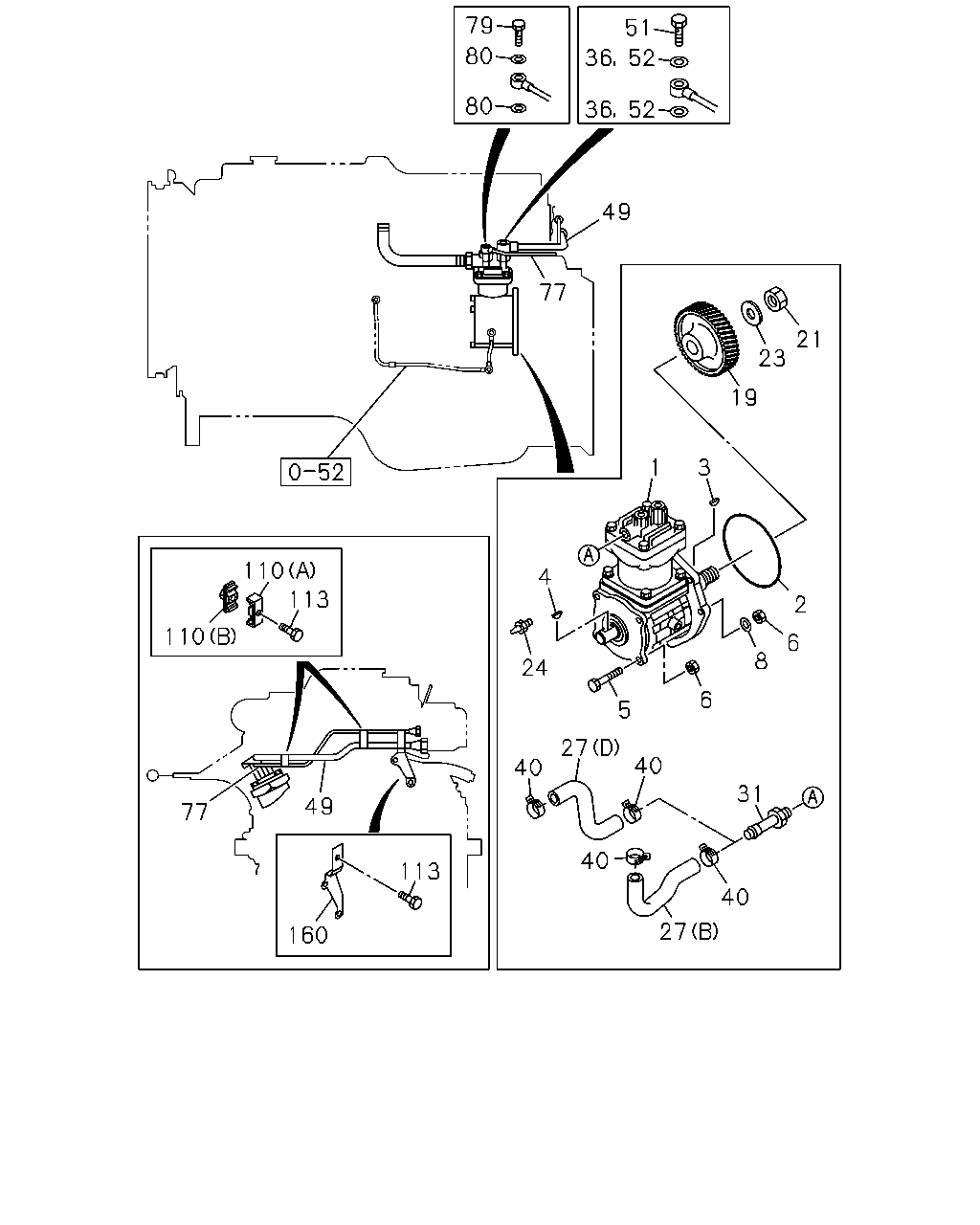

79 51 80 36 52 80 36 52 49 77 21 23 19 3 1 110 4 113 2 110 6 8 24 6 5 27 40 40 31 49 77 40 113 40 160 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-892-6	01	1	9202-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-891-3	01	1	9202-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9202-	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-416-0	01	1	9202-	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9202-	●	●
5	BOLT; AIR CMPR FIX MLD6 M/T<X9Y> M12X95	0-16806-295-0	01	1	9202-9212	●
5	BOLT; AIR CMPR FIX A/T<X9D>,MBG5 M/T<X9W>,MBG6 M/T<X9X> M12X95 FLANGE	8-94396-485-1	01	1	9202-9212	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9301-	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9202-	●	●
6	NUT; AIR CMPR M12	9-99110-512-0	01	1	9202-9208	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9209-9312	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9401-	●	●
8	WASHER; PL,AIR CMPR ID=12.5 OD=22	8-94393-140-1	02	1	9202-9208	●	●
8	WASHER; PL,AIR CMPR ID=12.5 OD=22	8-94393-140-1	01	1	9209-9212	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9202-	●	●
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9202-	●	●
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9202-	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9202-	●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94397-173-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94397-173-0	01	1	9202-9307		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94395-083-0	01	1	9308-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94395-083-0	01	1	9308-		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94397-156-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94397-156-0	01	1	9202-9307		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94395-082-0	01	1	9308-	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94395-082-0	01	1	9308-		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	8-94397-204-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	8-94395-085-0	01	1	9308-	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	8-94397-196-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	8-94395-084-0	01	1	9308-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94399-954-0	01	1	9202-	●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94399-942-1	01	1	9202-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	01	1	9202-	●	●
40	CLIP; AIR PIPE ID=28.5	1-09707-150-0	02	1	9202-9307	●	●
40	CLIP; AIR PIPE ID=26	1-09707-091-0	02	1	9308-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-200-0	01	1	9202-	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-198-0	01	1	9202-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9202-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9202-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	02	1	9202-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9202-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-795-0	01	1	9202-	●	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-199-0	01	1	9202-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9202-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9202-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9202-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9202-	●	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	03	1	9202-	●	●
110	CLIP; AIR PIPE (B)	8-94393-090-0	02	1	9202-	●	●
113	BOLT; CLIP,AIR PIPE M6X16 FLANGE	0-28280-616-0	01	1	9202-	●	●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28280-630-0	03	1	9202-	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	03	1	9202-	●	●
160	BRACKET; AIR PIPE MLD6 M/T<X9Y>	8-94394-455-0	01	1	9202-	●
160	BRACKET; AIR PIPE A/T<X9D>,MBG5 M/T<X9W>,MBG6 M/T<X9X>	8-94393-202-0	01	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
