◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#62695) — 29 parça

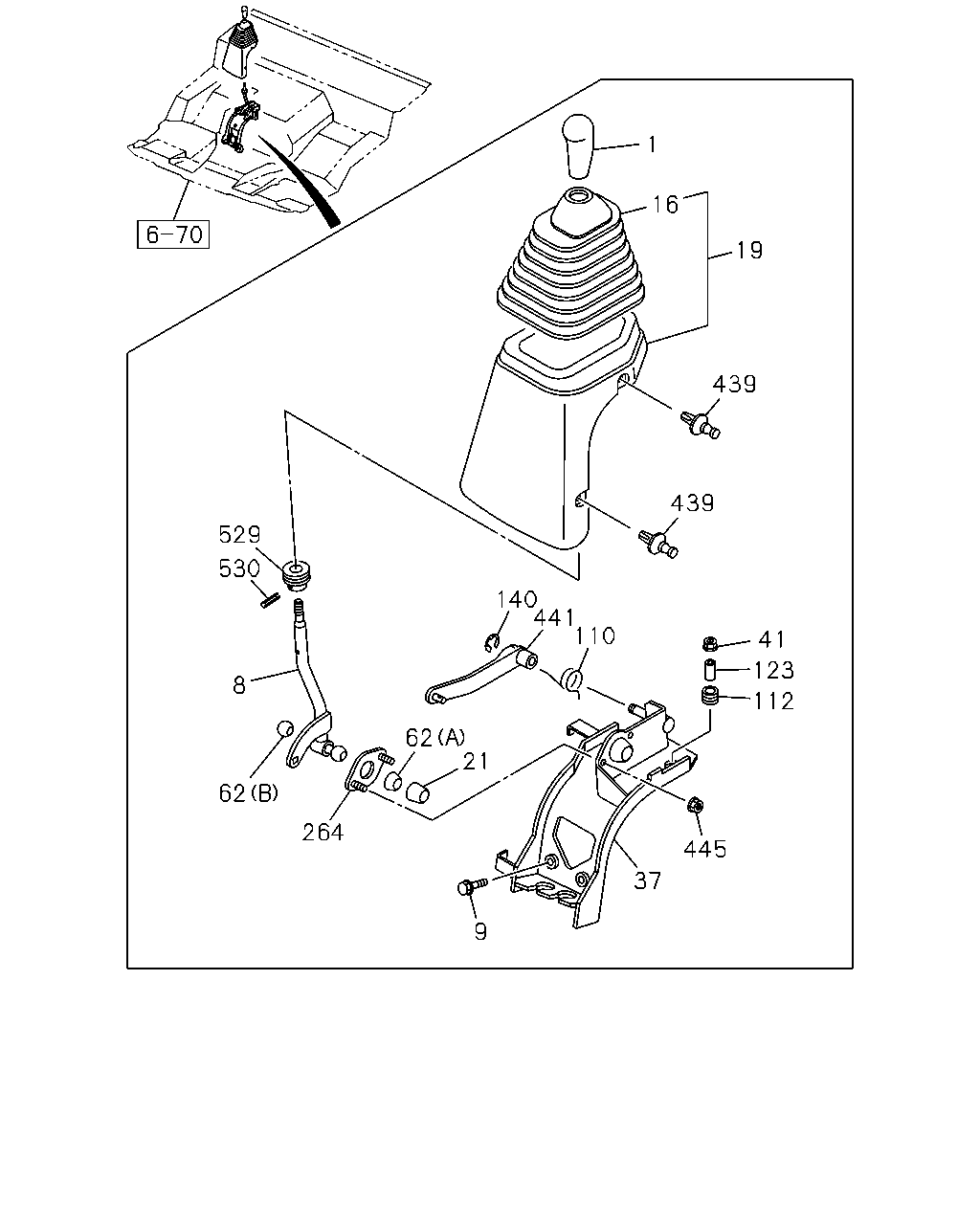

çizim 145932
1 16 19 439 439 41 123 112 110 441 140 445 37 9 21 62 264 62 8 530 529
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33611-099-1 01 1 1310-
1 KNOB; CHANGE LEVER
MZW6P M/T(RSZ) 		1-33611-070-1 01 1 1108-
8 LEVER; CHANGE
ZF9S1110 DD M/T(Y5P) 		8-98093-455-0 01 1 1310-
8 LEVER; CHANGE 8-98093-455-0 01 1 1108-1112
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98071-282-0 01 1 1201-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1108-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1108-
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1108-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1108-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 DD M/T(Y5P) 		8-98093-444-0 01 1 1310-
37 BRACKET; CHANGE LEVER SUPPORT 8-98093-444-0 01 1 1108-1112
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) 		8-98071-302-0 01 1 1201-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1108-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1108-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1108-
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-435-0 01 1 1310-
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1108-1112
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-586-0 01 1 1201-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1108-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1108-
140 RING; SNAP
ID=10 IDN 		0-91805-510-0 01 1 1108-
264 PLATE; COVER 1-33619-430-0 01 1 1108-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1108-
441 LEVER; SELECT
ZF9S1110 DD M/T(Y5P) 		8-98093-449-0 01 1 1310-
441 LEVER; SELECT 8-98093-449-0 01 1 1108-1112
441 LEVER; SELECT
MZW6P M/T(RSZ) 		8-98071-283-0 01 1 1201-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1108-
529 RING; BOOT 1-33619-504-0 01 1 1108-
530 PIN; SPRING 1-33619-505-0 01 1 1108-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
